Description

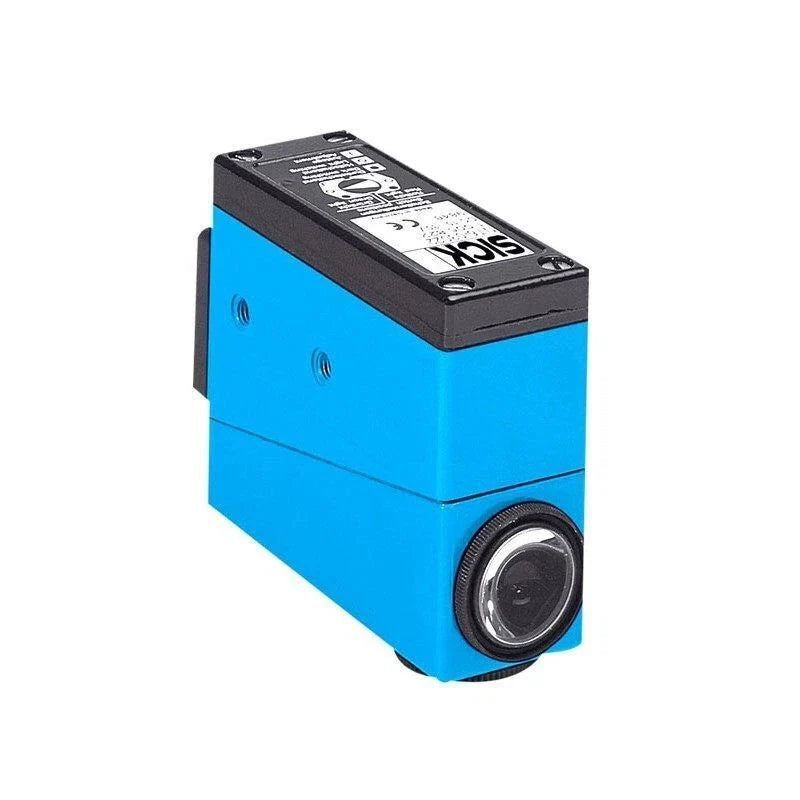

The SICK NT6-P112 is a registration and contrast sensor designed for precise detection of printed marks and contrast differences in industrial processing systems. It operates within a short 9 mm sensing distance and uses red/green LED technology with a PNP output for reliable high-speed detection.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
SICK |
| Category |
Sensors |
| Part Number |
NT6-P112 |
| Subcategory |
Registration / Contrast Sensors |
| Series |
NT6 |
| Sensor Type |
Registration and contrast sensor |
| Output Type |
PNP |
| Supply Voltage |
10–30 VDC |
| Current Consumption |
< 80 mA |
| Ripple |
≤ 5 Vpp |
| Switching Frequency |
5 kHz |
| Sensing Distance |
≤ 9 mm |
| Sensing Tolerance |
± 2 mm |
| Light Source |
LED, visible red / green |
| Wavelength |
560 nm |
| Light Spot Diameter |
Ø 2.5 mm |
| Light Spot Direction |
Round |
| Light Emission |
Long and short side, exchangeable |
| Adjustment Method |
Potentiometer |
| Pull-Up / Pull-Down Resistor |
22 kΩ |
| Connection Type |
2 m cable with male connector |
| Housing Design |
Middle |
| Housing Dimensions (W × H × D) |
80 × 30.4 × 64 mm |
| Weight |
1.33 lbs |
Information About NT6-P112
The NT6-P112 is part of the SICK NT6 series, developed for accurate registration and contrast detection in printing, packaging, labeling, and converting applications. This sensor uses dual-color LED technology to reliably differentiate contrast variations on a wide range of materials and surfaces. Its compact optical design with a small light spot enables precise mark detection even on narrow or closely spaced print features. The device integrates easily into industrial automation systems using standard 10–30 VDC power and a PNP switching output.
Key Features
- Registration And Contrast Detection Capability: Designed to accurately detect printed registration marks and contrast differences for positioning and synchronization tasks.
- Short 9 MM Sensing Distance: Enables precise detection in close-range applications where accurate positioning is critical.
- Dual Red/Green LED Light Source: Enhances contrast recognition across different print colors and materials.
- Fine 2.5 MM Light Spot Diameter: Supports reliable detection of small or narrow registration marks.
- High Switching Frequency: Operates up to 5 kHz for stable performance in high-speed production processes.
- PNP Output Interface: Ensures straightforward integration with PLCs and industrial control systems.
- Adjustable Sensitivity Control: Uses a potentiometer for precise tuning to match specific application requirements.
The NT6-P112 delivers the reliability and precision required for accurate registration and contrast detection in automated industrial processes.
