Description

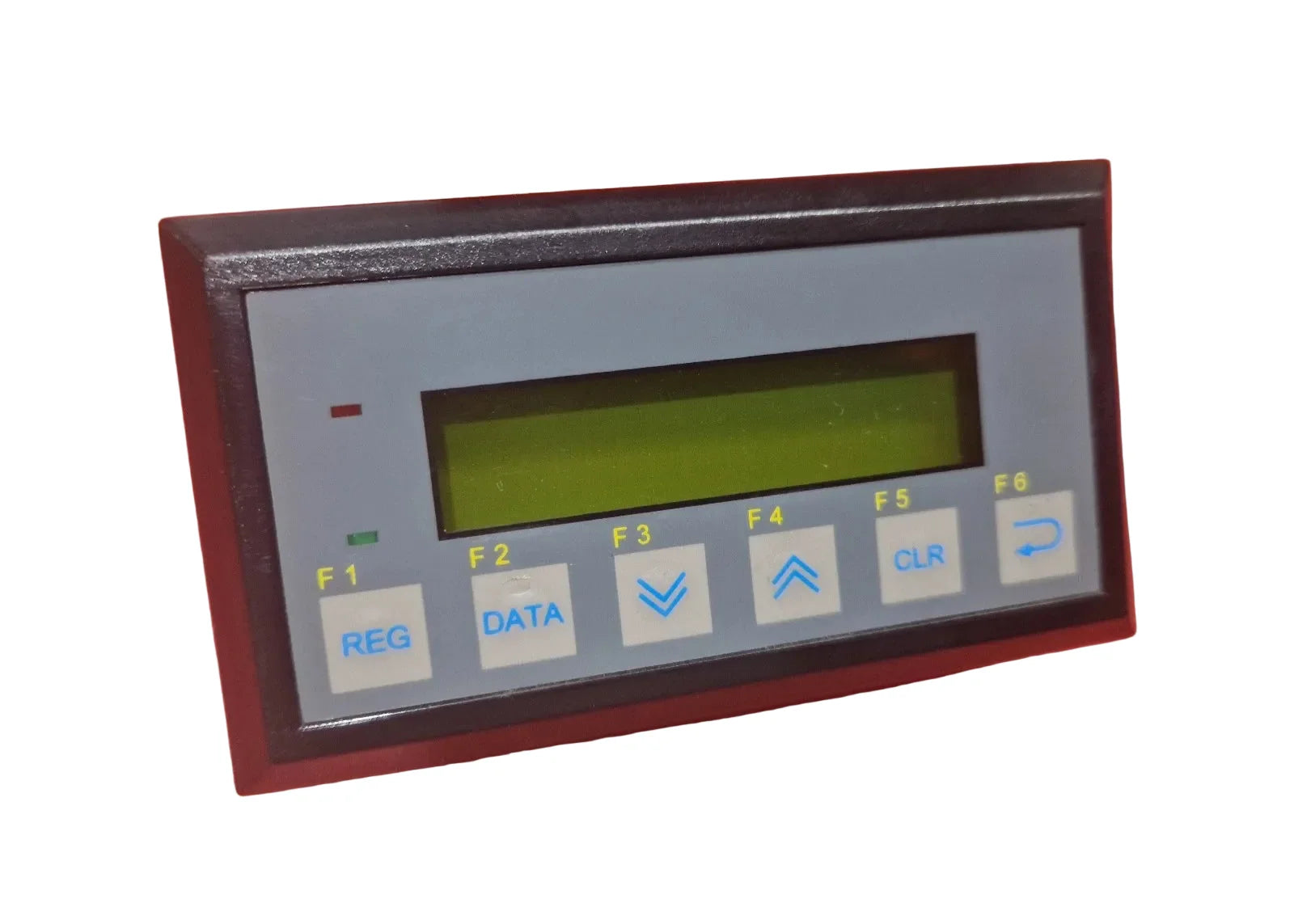

The Omron NT2S-SF123B-EV2 is a compact operator interface designed for simple message display and basic machine interaction. It features a 2x16 character monochrome LCD and pushbutton inputs for ASCII-based PLC communication.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Omron |
| Category |
Industrial Automation |
| Part Number |
NT2S-SF123B-EV2 |
| Subcategory |
Operator Interfaces |
| Series |
NT2S Series |
| HMI Type |
Pushbutton HMI |
| Display Type |
Monochrome STN LCD |
| Display Format |
2 × 16 Characters |
| Display Resolution |
56 × 11 Pixels |
| Display Colors |
Monochrome |
| Primary Function |
Operator Interface |
| Communication Method |
PLC ASCII-Based Program |
| Supply Voltage |
24 VDC |
| Mounting Type |
Chassis Mount |
| Special Features |
Printer Connection |
| Operating Temperature Range |
0°C to +50°C |
| Dimensions (W × L × D) |
0.00 × 4.29 × 0.08 in |
| Weight |
2.10 lbs |
Information About NT2S-SF123B-EV2
The NT2S-SF123B-EV2 belongs to Omron’s NT2S Series, developed as a simple and cost-effective operator interface for machine-level control. This series is intended for applications that require basic text display and operator input without the complexity of graphical HMIs. The unit communicates with PLCs using ASCII-based messaging, allowing straightforward integration into existing control systems. Its compact chassis-mounted design supports installation in space-constrained panels and small automation enclosures.
Key Features
- 2x16 Character LCD Display: Provides clear text-based status messages, alarms, and operator prompts.
- Pushbutton Operator Interface: Includes function keys for direct machine interaction and simple control operations.
- ASCII-Based PLC Communication: Enables easy data exchange with PLCs using standard ASCII messaging.
- Monochrome STN LCD Technology: Ensures stable visibility and low power consumption in industrial environments.
- Printer Connection Support: Allows external printing of messages or system data when required.
- Compact Chassis-Mount Design: Supports efficient panel integration in small or distributed control systems.
- Wide Industrial Temperature Range: Designed for reliable operation from 0°C to 50°C.
The NT2S-SF123B-EV2 delivers the reliability and precision required for basic operator messaging and machine interface applications.
