Description

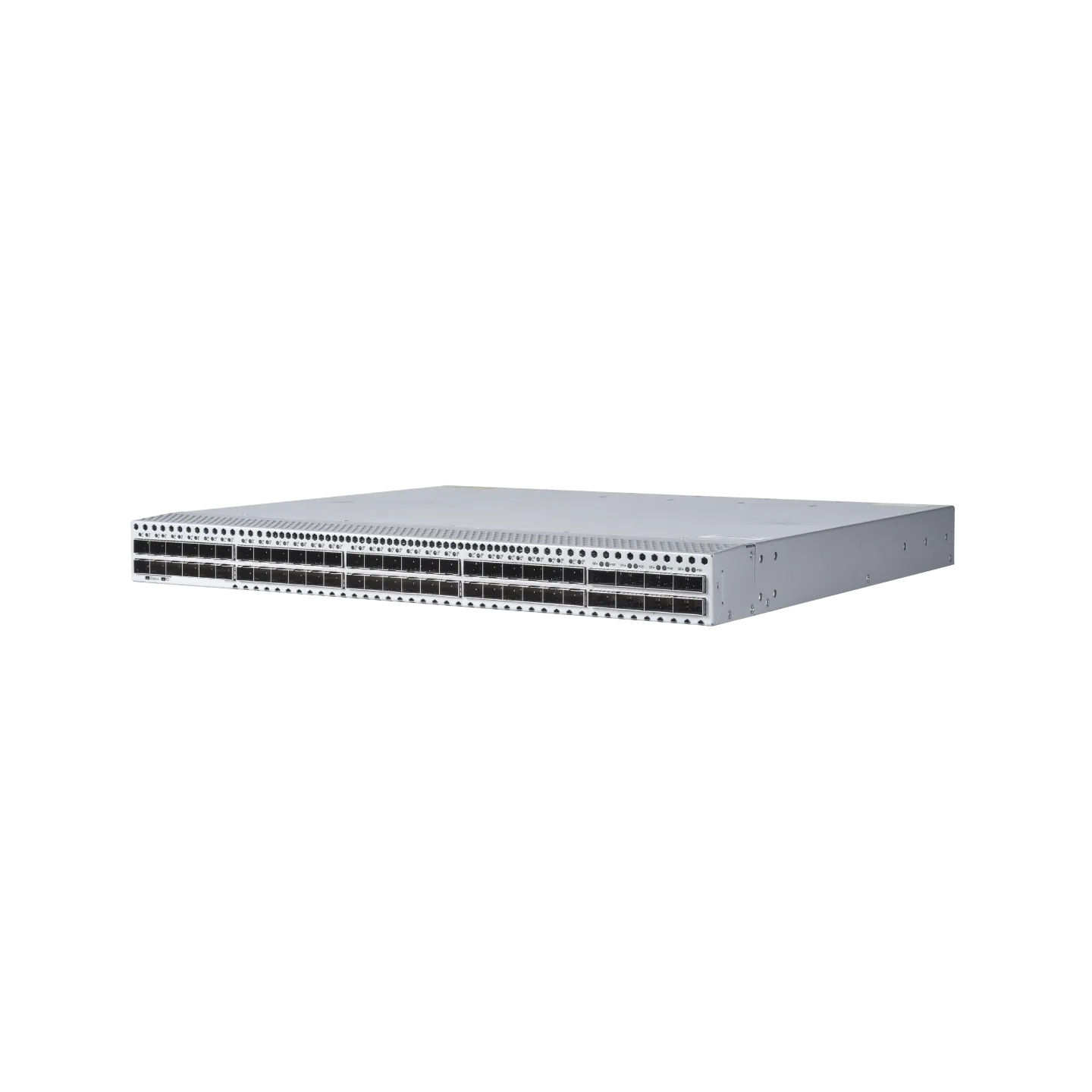

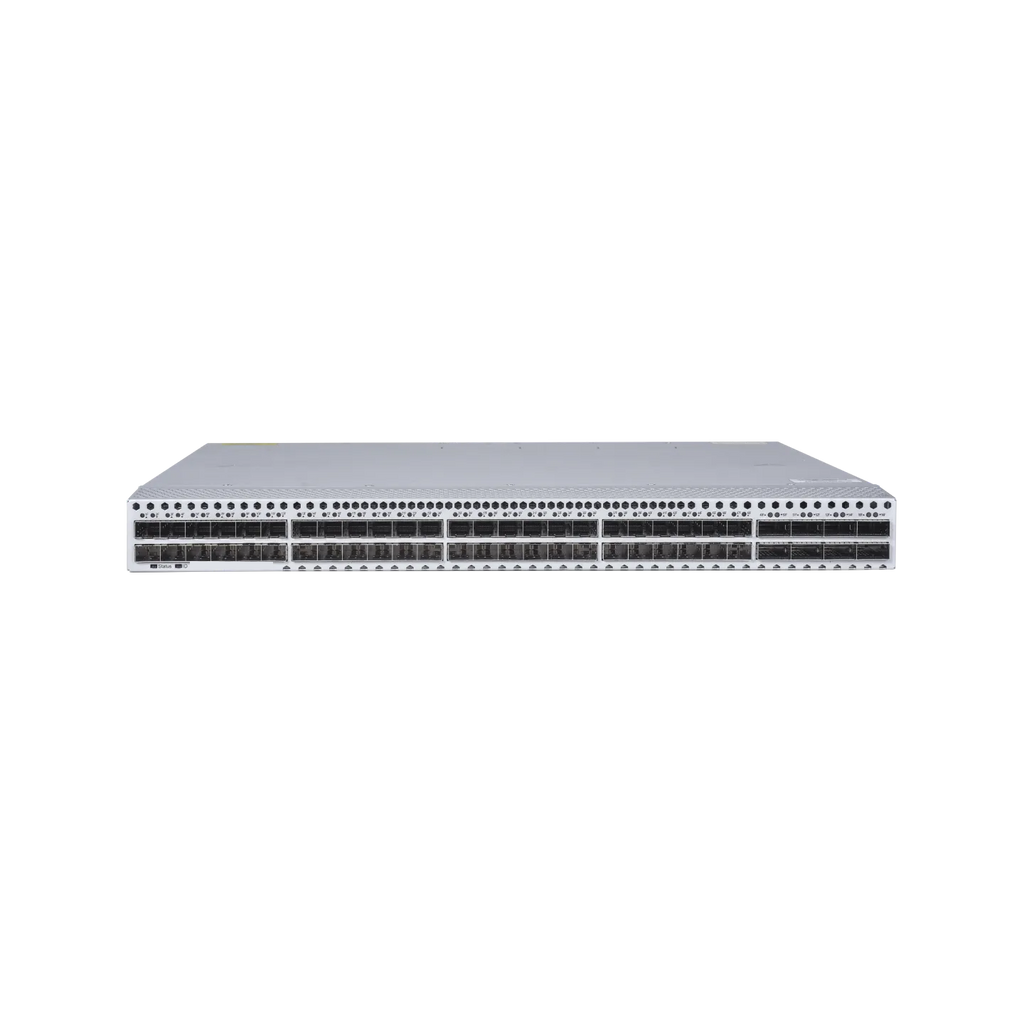

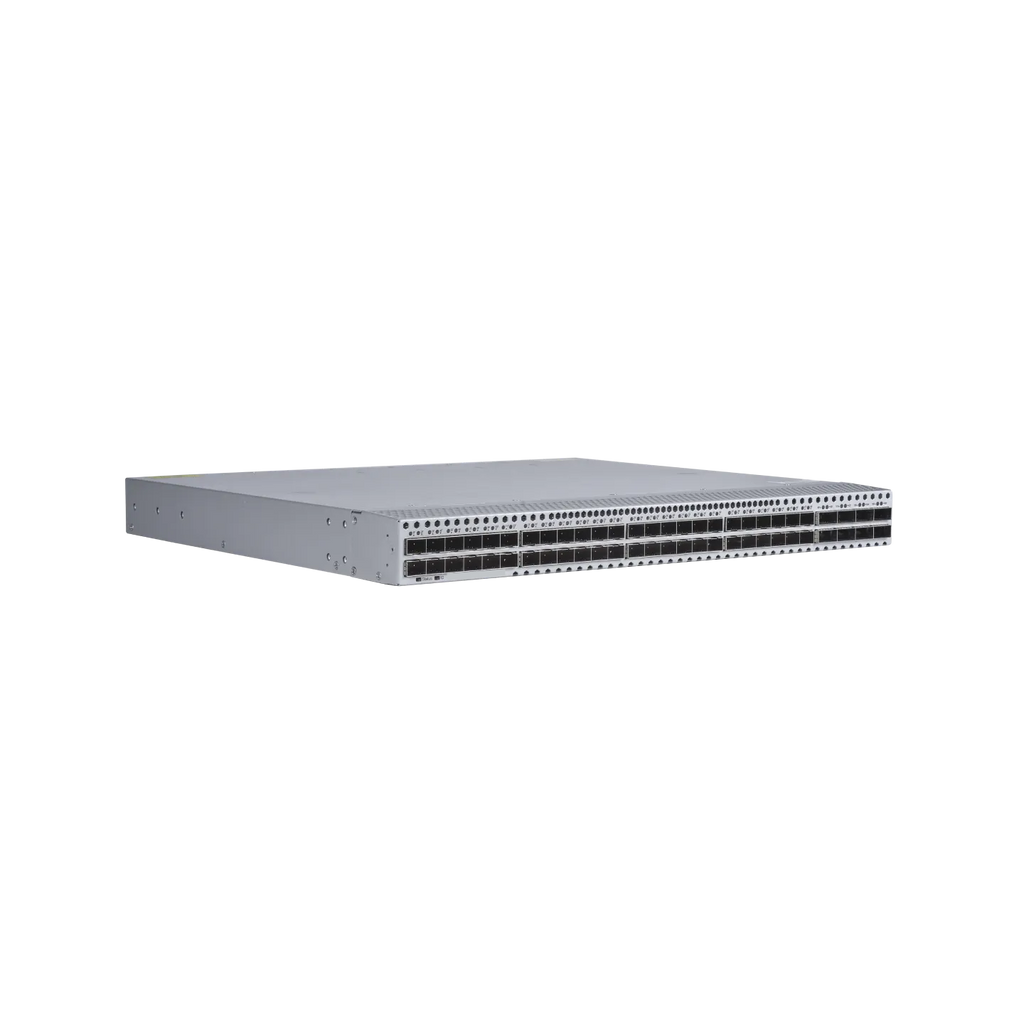

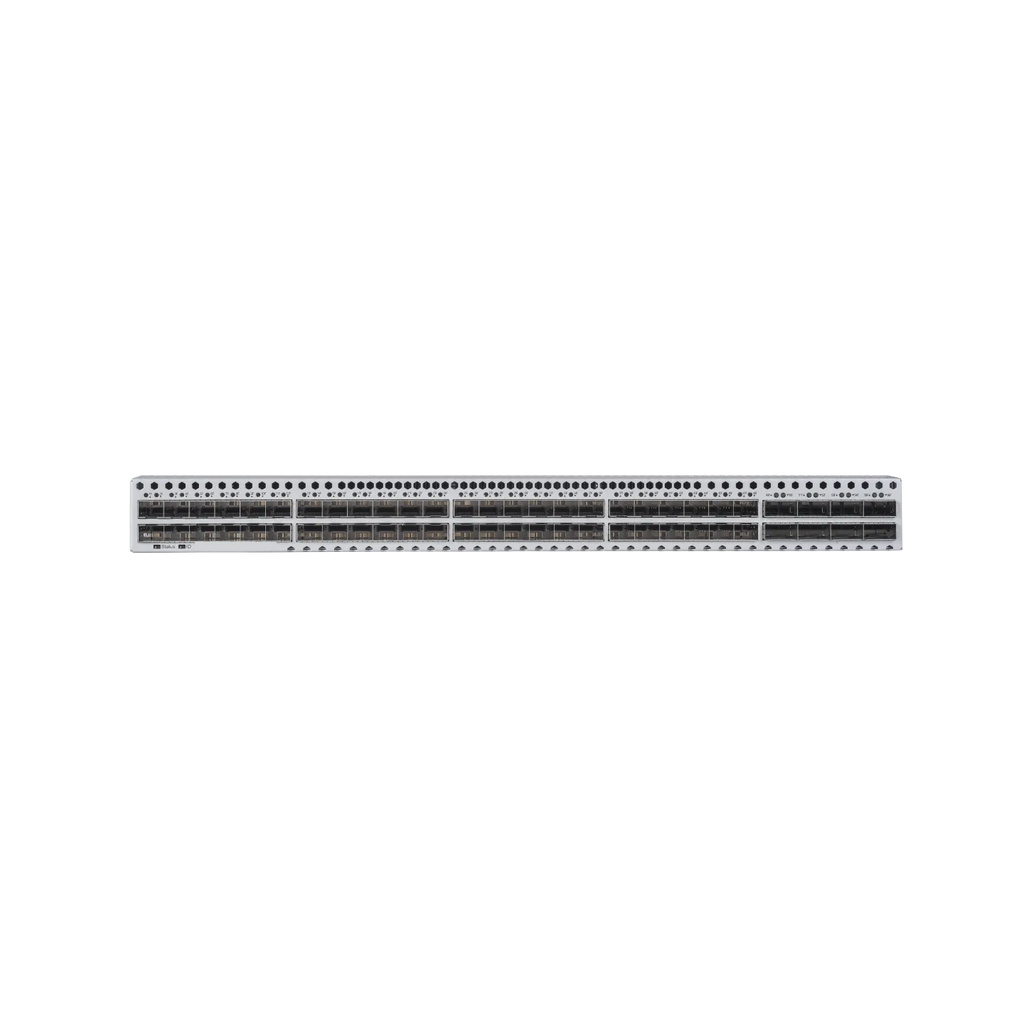

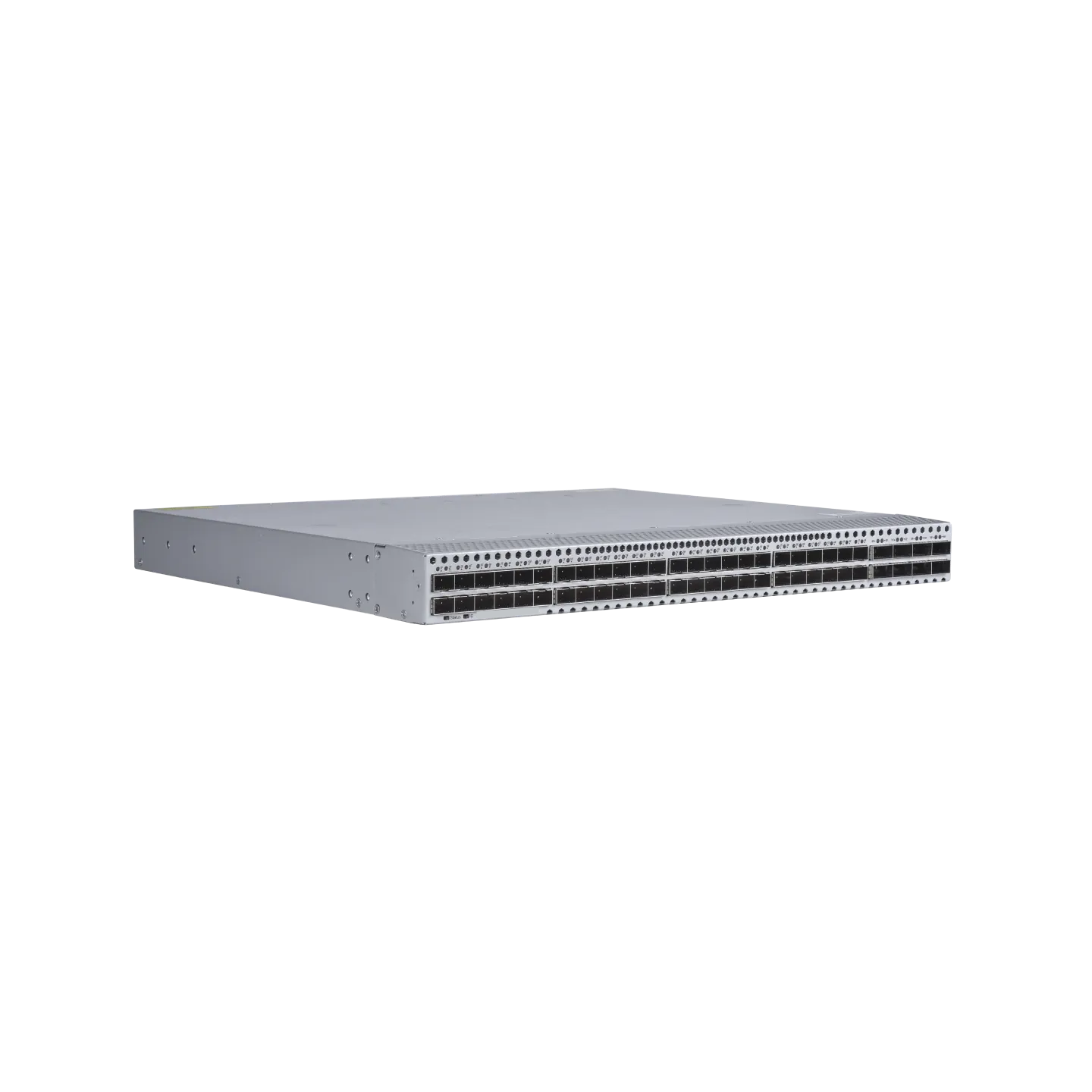

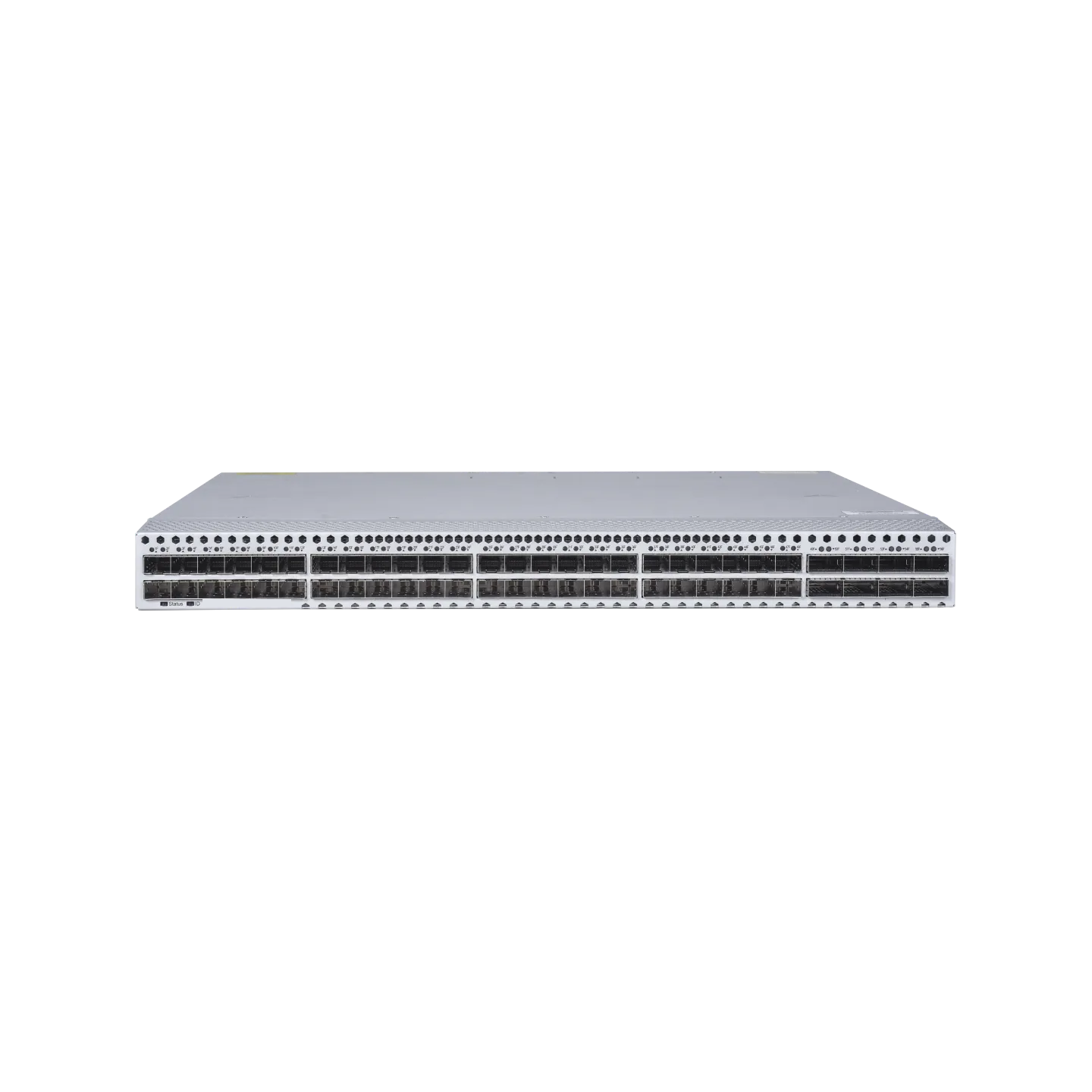

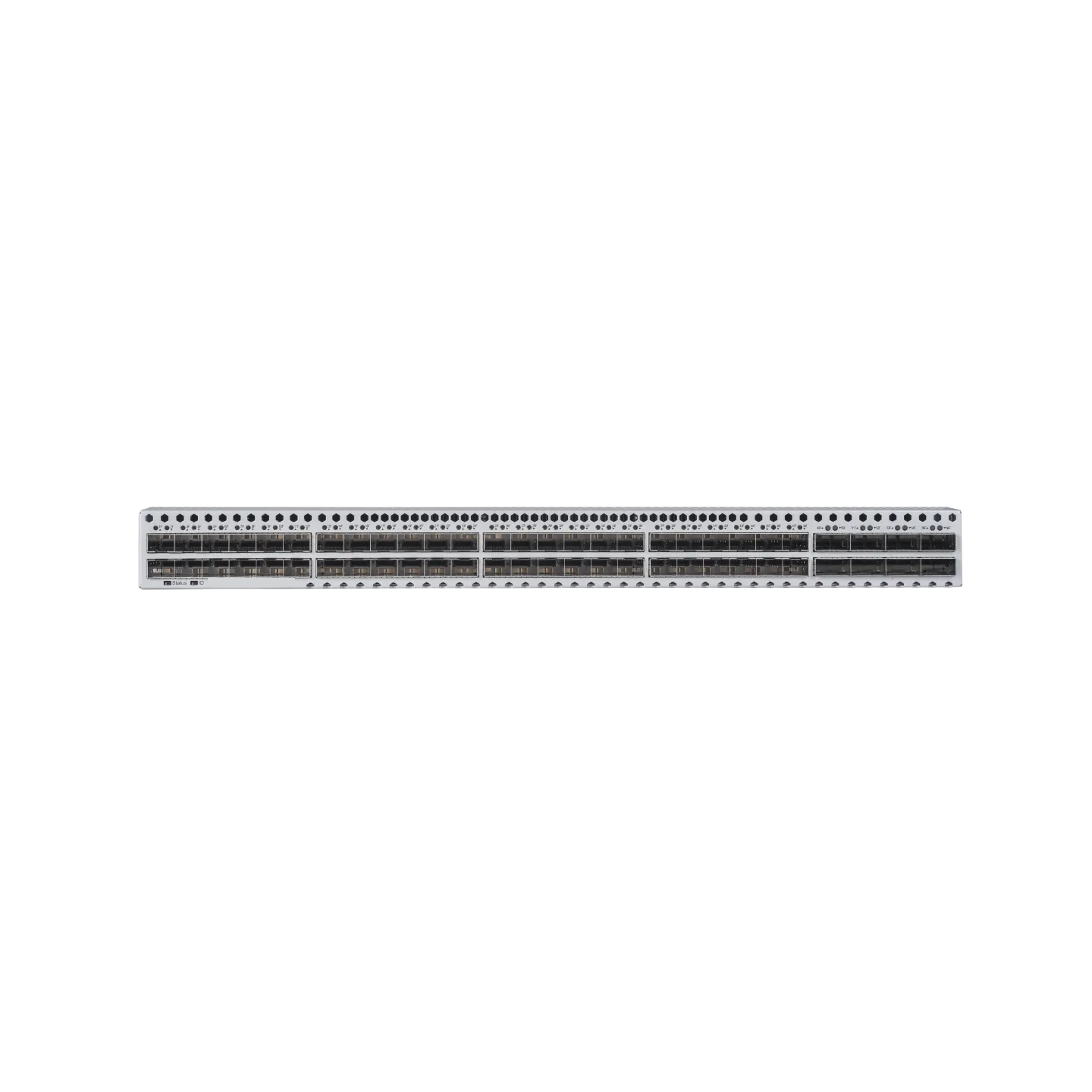

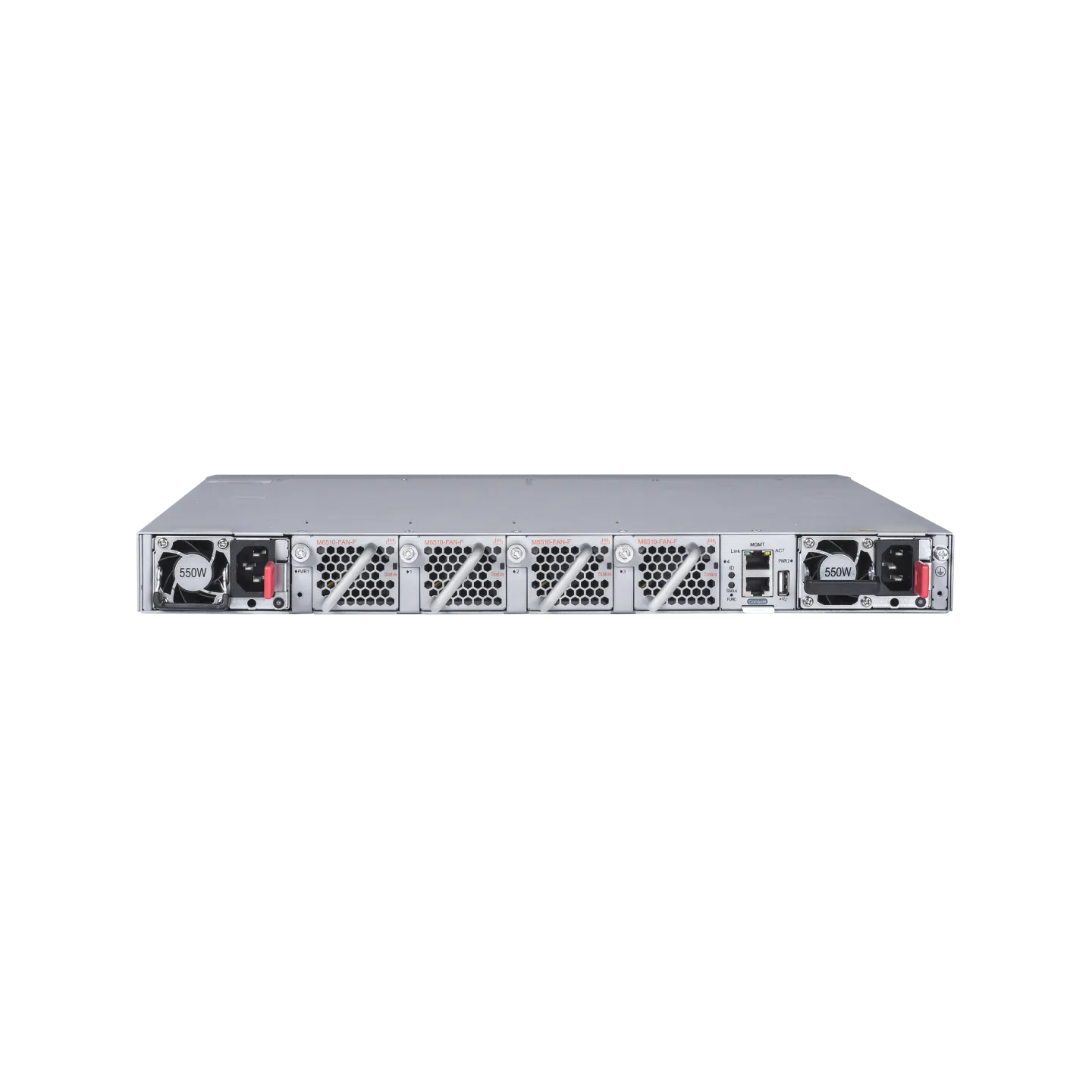

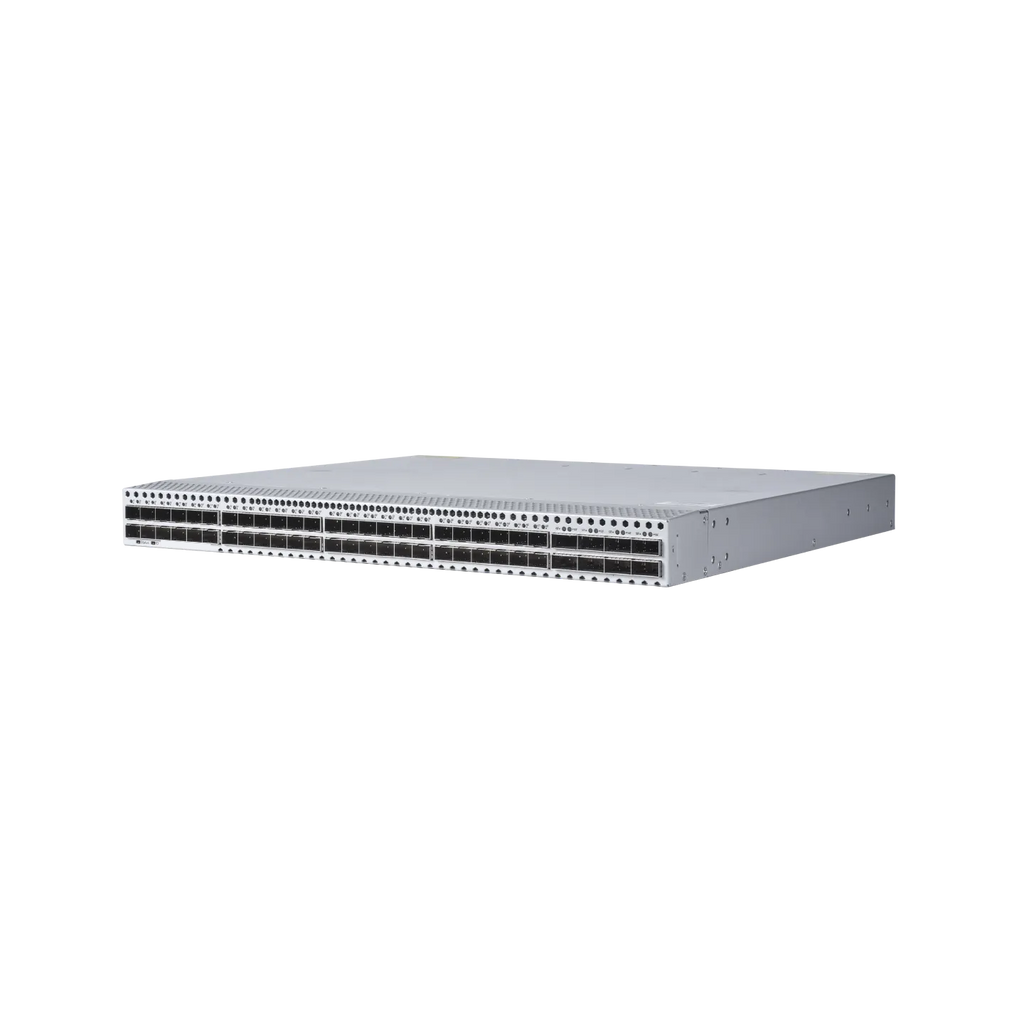

48 × 25 Gbps SFP28 + 8 × 100 Gbps QSFP28 Layer 3 Data Center Switch
Overview
OEM version of Ruijie’s RG-S6510-48VS8CQ. Integrates 48 SFP28 25 Gbps downlinks and 8 QSFP28 100 Gbps uplinks in 1 RU, with line-rate L2/L3, VSU, and lossless Ethernet features.
Highlights
-
4.0 Tbps switching / 2 000 Mpps forwarding
-
48×25 GbE SFP28 + 8×100 GbE QSFP28
-
VSU, VXLAN, M-LAG for sub-200 ms failover
-
PFC & ECN for zero-loss RDMA
-

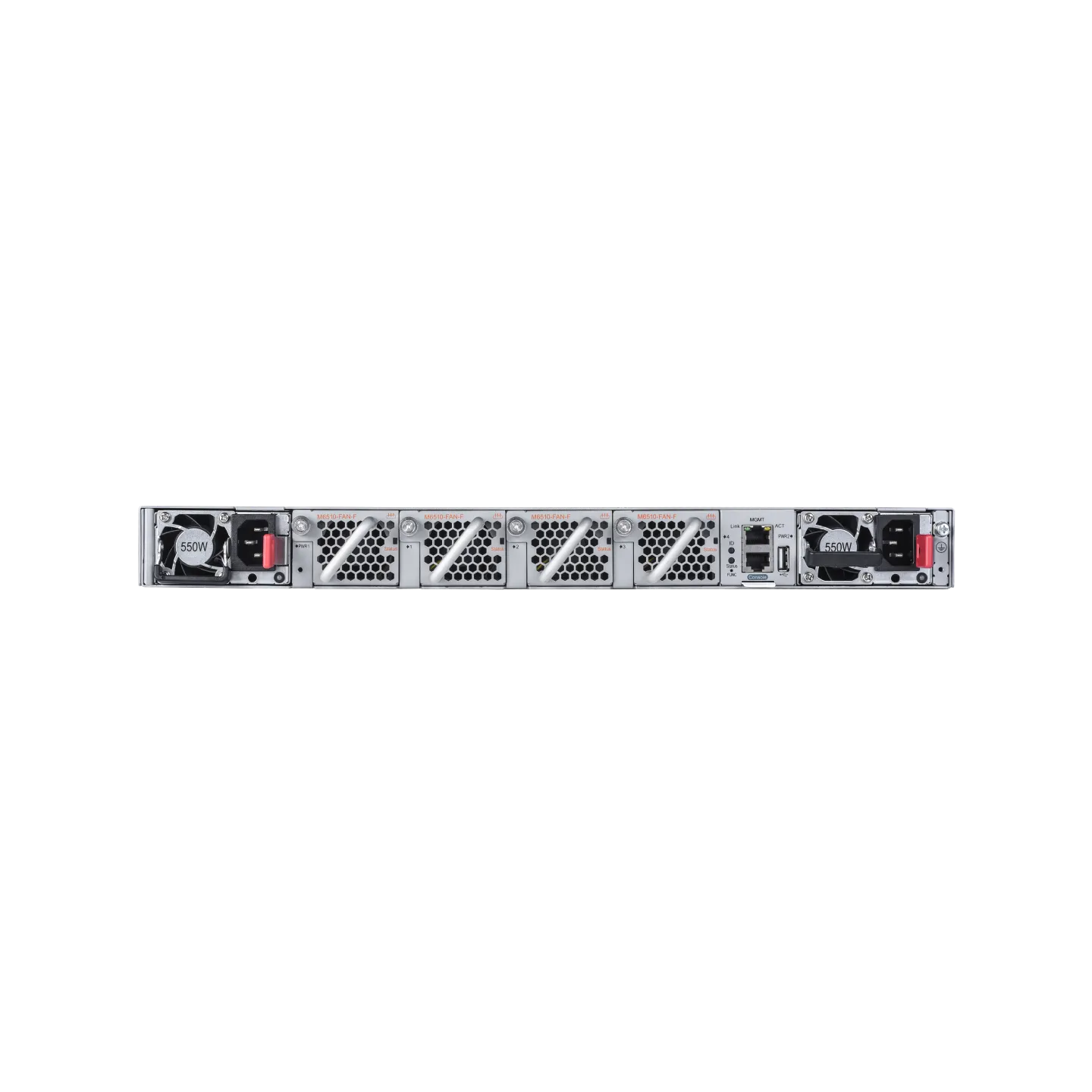

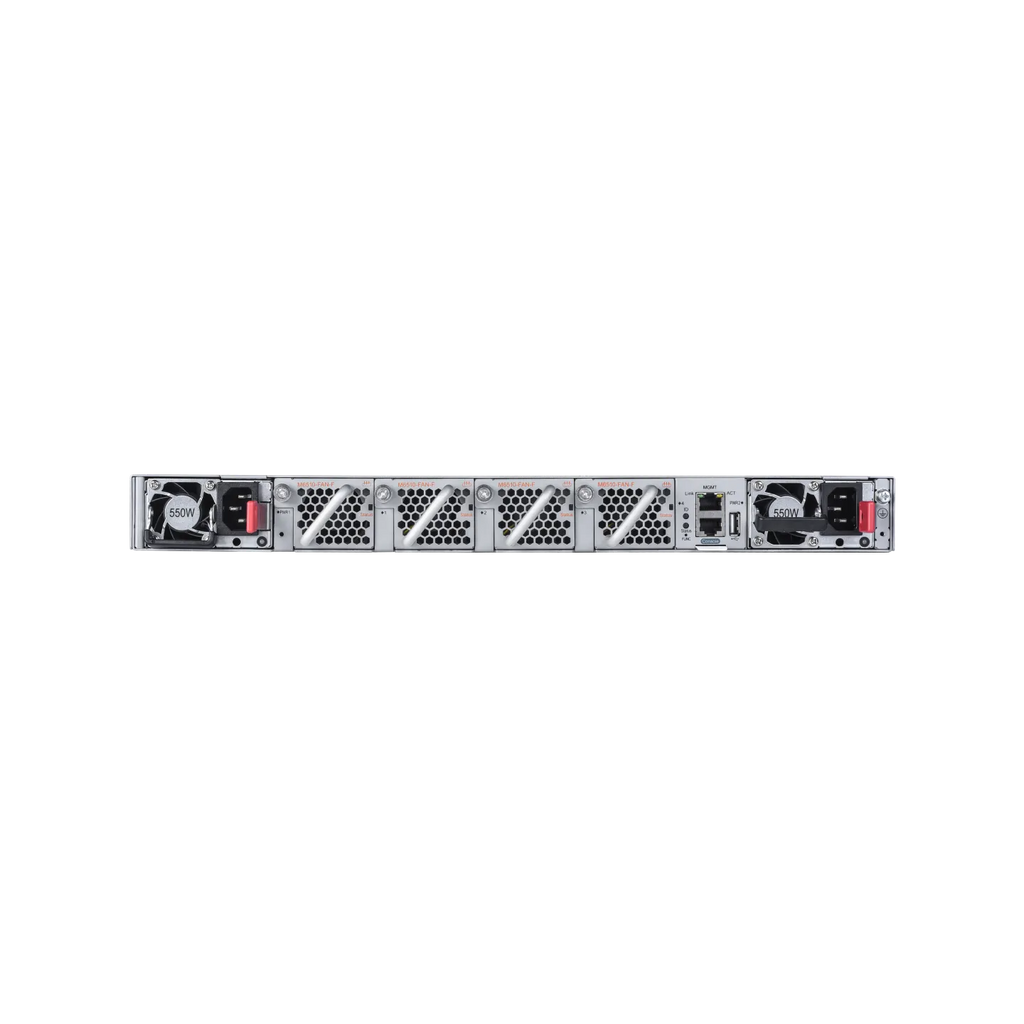

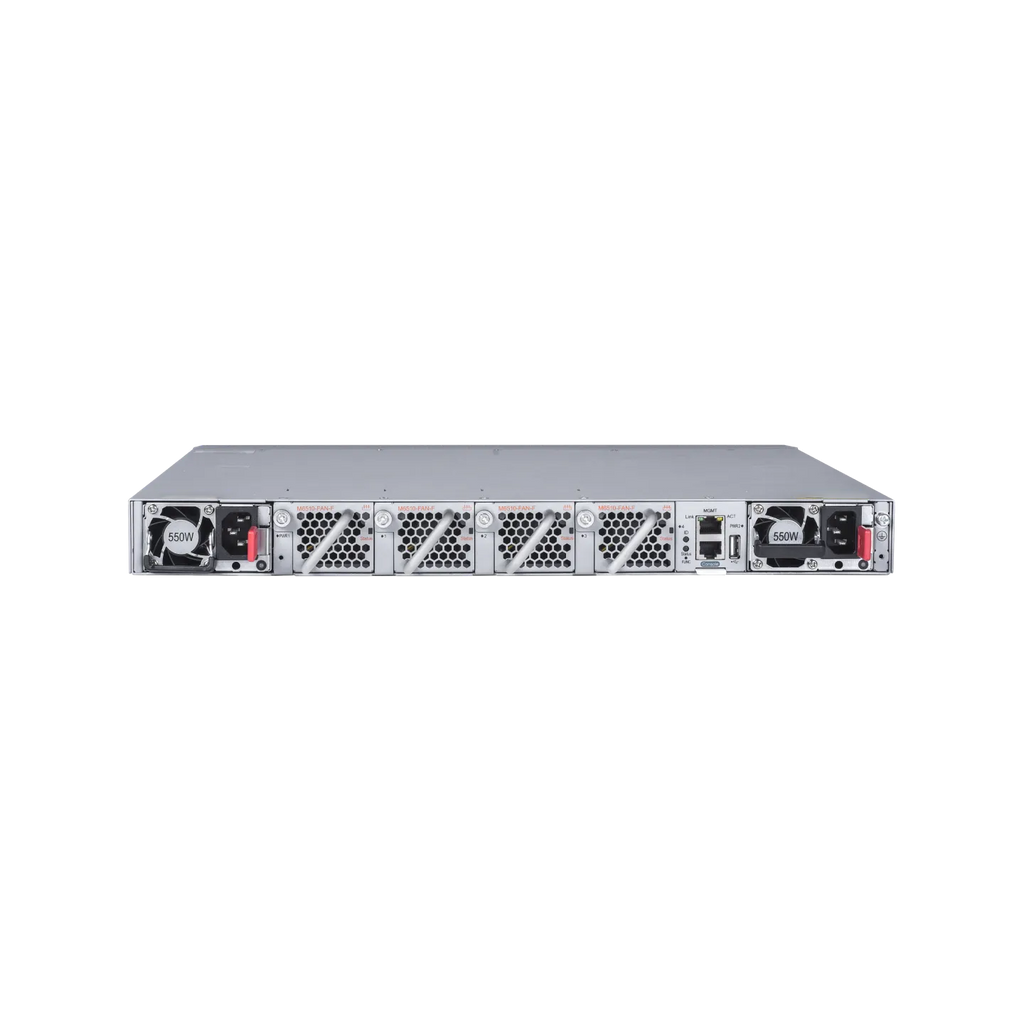

1+1 PSUs; 2+1 fans
Recommended Accessories
| Product Name | Category | Description |
|---|---|---|
| NS-PA550I-F | AC Power Module | 550 W hot-swap PSU |
| NS-RMK-1U | Rack Mount Kit | 19″ 1 RU mounting brackets |
Compare with Similar Models
| Model | Ports & Uplinks | Switching Capacity | Forwarding Rate | Redundancy Features |
|---|---|---|---|---|
| Ruijie RG-S6580-48CQ8QC | 48×100 GbE DSFP + 8×400 GbE QSFP-DD | 16.0 Tbps | 5 350 Mpps | 1+1 PSUs; 5+1 fans |
| NS-S6580-48CQ8QC | Same | Same | Same | Same |
| Ruijie RG-S6580-24DC8QC | 24×200 GbE QSFP56 + 8×400 GbE QSFP-DD | 16.0 Tbps | 5 350 Mpps | 1+1 PSUs; 5+1 fans |
| NS-S6580-24DC8QC | Same | Same | Same | Same |
| Ruijie RG-S6520-64CQ | 64×100 GbE QSFP28 | 12.8 Tbps | 4 482 Mpps | 1+1 PSUs; 2+1 fans |
| NS-S6520-64CQ | Same | Same | Same | Same |
| Ruijie RG-S6510-4C | Modular 4 slots (max 96×25 GbE or 32×100 GbE) | 6.4 Tbps | 4 800 Mpps | 1+1 PSUs; 2+1 fans |
| NS-S6510-4C | Same | Same | Same | Same |
| Ruijie RG-S6510-48VS8CQ | 48×25 GbE SFP28 + 8×100 GbE QSFP28 | 4.0 Tbps | 2 000 Mpps | 1+1 PSUs; 2+1 fans |
| NS-S6510-48VS8CQ | Same | Same | Same | Same |
| Ruijie RG-S6510-32CQ | 32×100 GbE QSFP28 | 6.4 Tbps | 2 030 Mpps | 1+1 PSUs; 2+1 fans |
| NS-S6510-32CQ | Same | Same | Same | Same |
Specification Summary
| Parameter | Specification Details |
|---|---|
| Model | NS-S6510-48VS8CQ |
| Downlink / Uplink Ports | 48×25 GbE SFP28, 8×100 GbE QSFP28 |
| Switching Capacity | 4.0 Tbps |
| Forwarding Rate | 2 000 Mpps |
| Redundancy | 1+1 PSUs; 2+1 fans |
| Dimensions (W×D×H) | 442×340×44 mm |
| Operating Temperature | 0 °C – 45 °C |
