Description

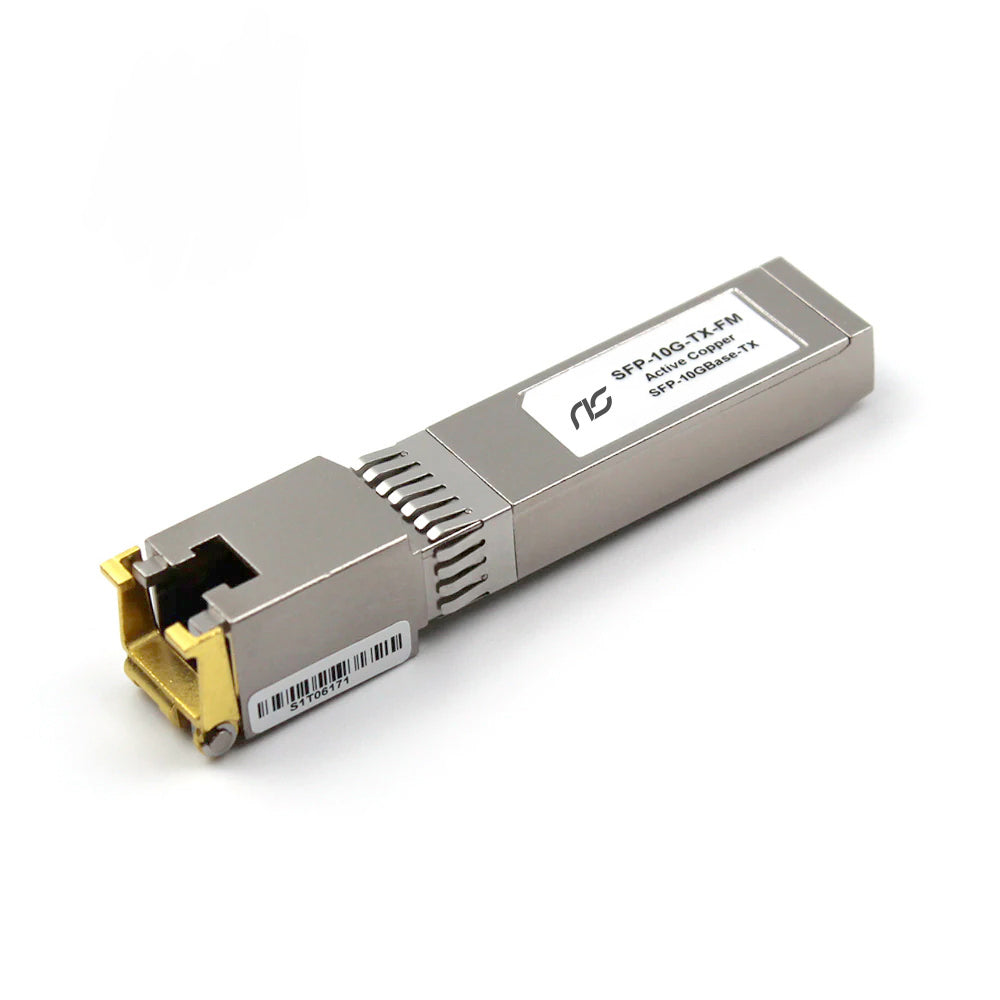

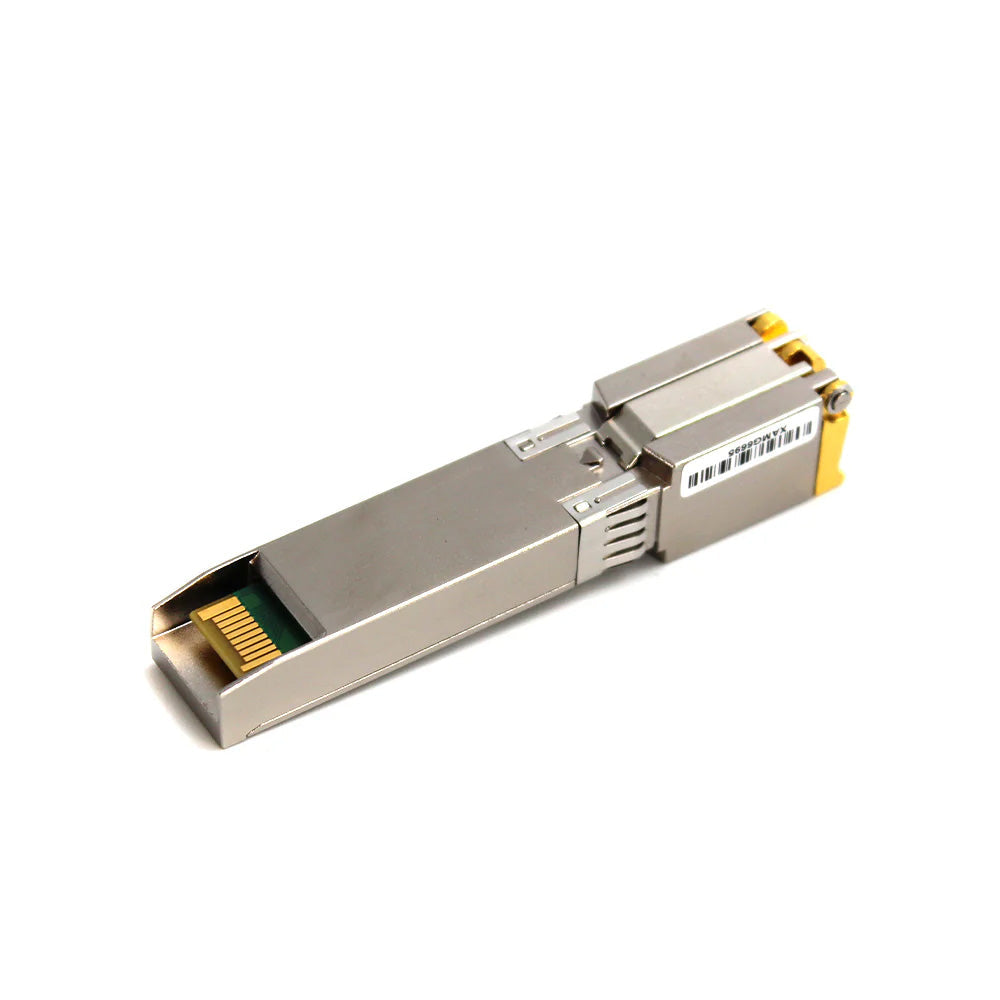

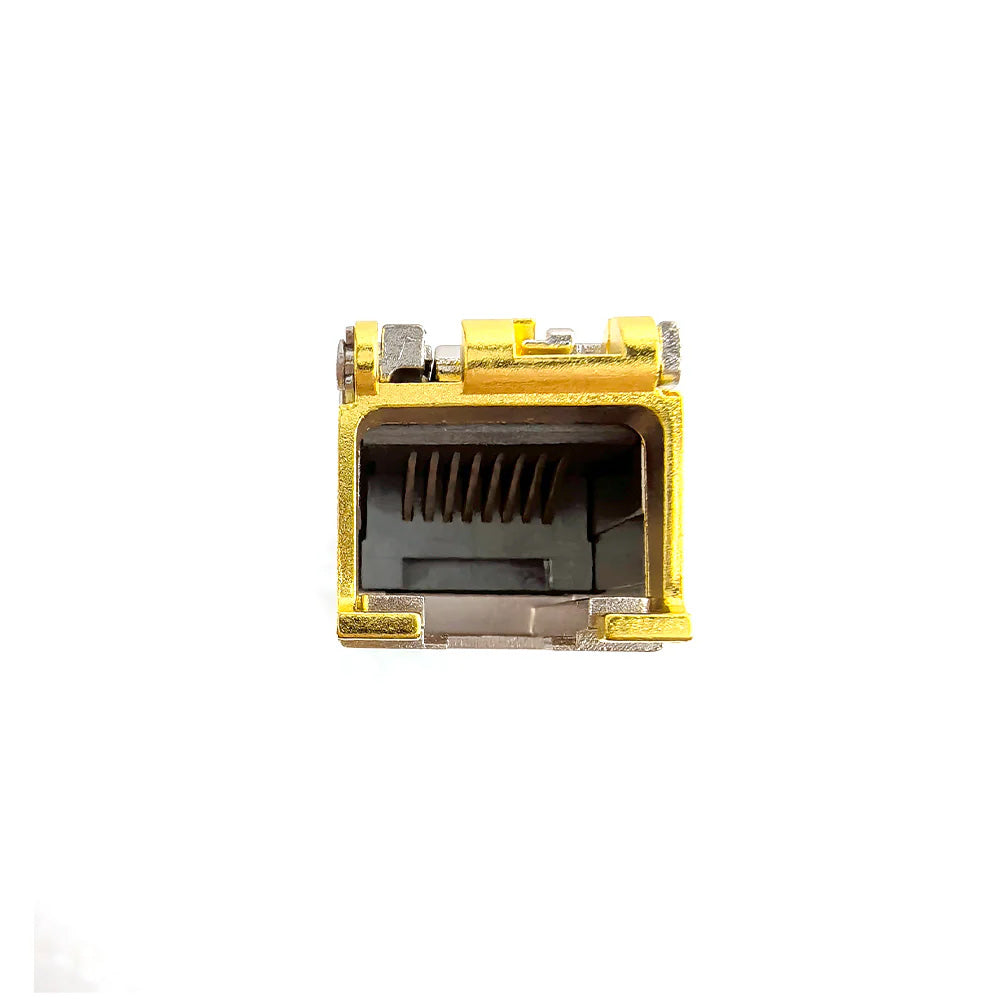

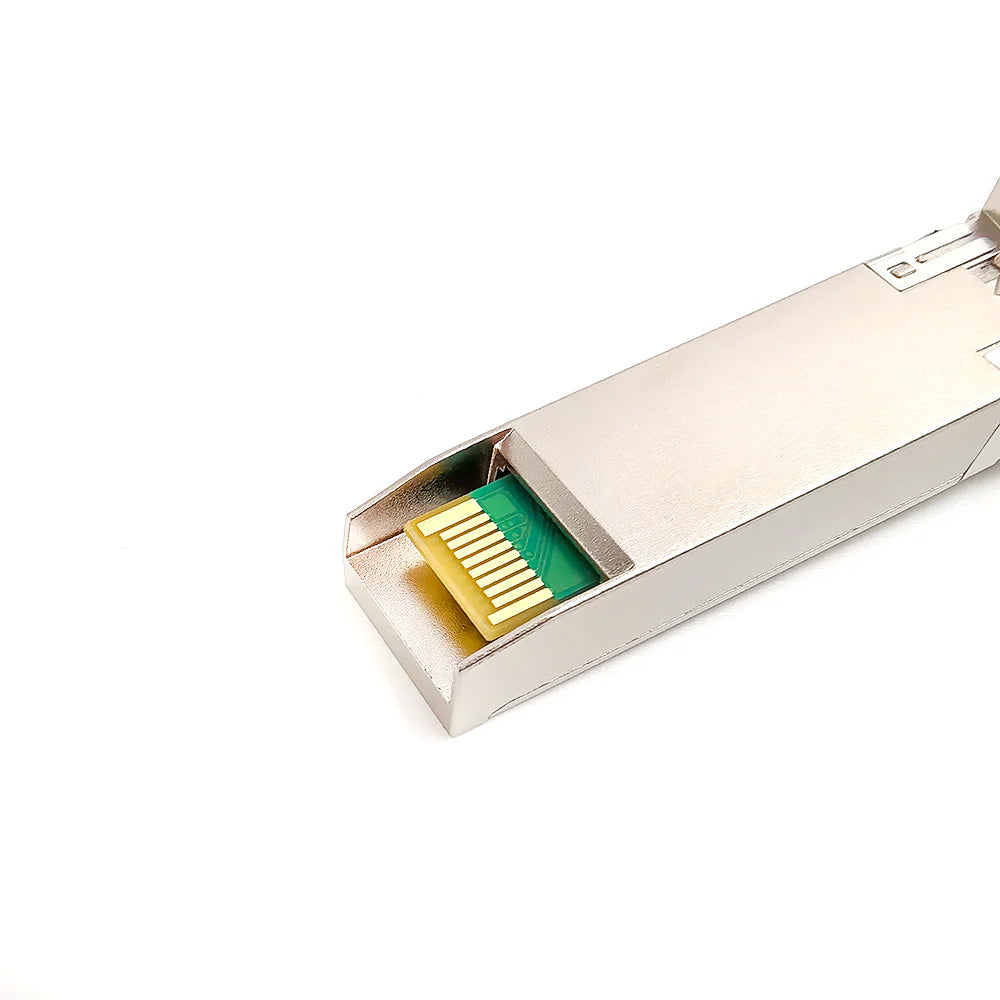

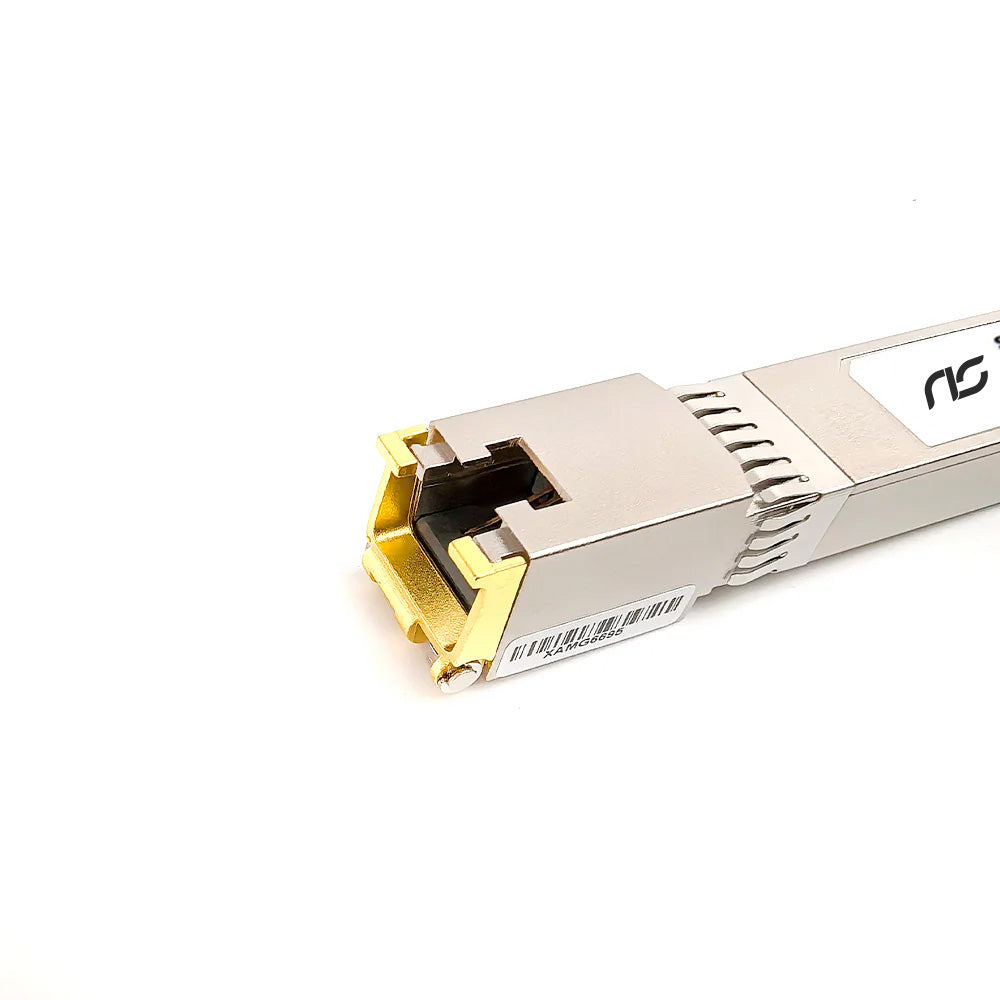

NS-SFP‑10G‑TX Transceiver Module | 10Gbps, RJ45, 30 m/100 m – Compatible with Major Brands
The NSComm NS-SFP‑10G‑TX is a flexible and economical Small Form‑Factor Pluggable Plus (SFP+) copper transceiver designed for 10 Gigabit Ethernet connectivity over twisted‑pair cabling.
It supports transmission rates up to 10 Gbps, using a standard RJ45 connector, and accommodates link distances up to 30 m over Cat6a/Cat7 or up to 100 m at lower speeds (1Gbps/100Mbps) over Cat5e/6 cables.
This module is hot‑swappable, ensuring painless in-field installation or upgrades without shutting down the system. It conforms to IEEE Ethernet standards and SFP+ MSA protocols. Some models may not support Digital Optical Diagnostic Monitoring (DOM).
Compatible Brands
The NS-SFP-10G-TX is universally compatible across all brands. If you need to verify compatibility with your specific switch model, please click Contact Us Now for assistance.
Key Specifications
| Specification | Details |
|---|---|
| Vendor Name | NSComm |
| Form Factor | SFP+ (Small Form‑Factor Pluggable Plus) |
| Max. Data Rate | 10 Gbps (also supports 1 Gbps and 100 Mbps) |
| Connector | RJ45 |
| Max. Cable Distance | 30 m at 10 Gbps over Cat6a/Cat7; 100 m at lower speeds |
| Media | Copper twisted-pair cabling |
| DOM Support | Optional (varies by vendor) |
| Power Consumption | Up to ~2.5 W |
| Operating Temperature Range | 0 °C to 70 °C (Commercial) |
| Protocols Compliance | IEEE 802.3an, IEEE 802.3ab, IEEE 802.3u, SFP+ MSA |
