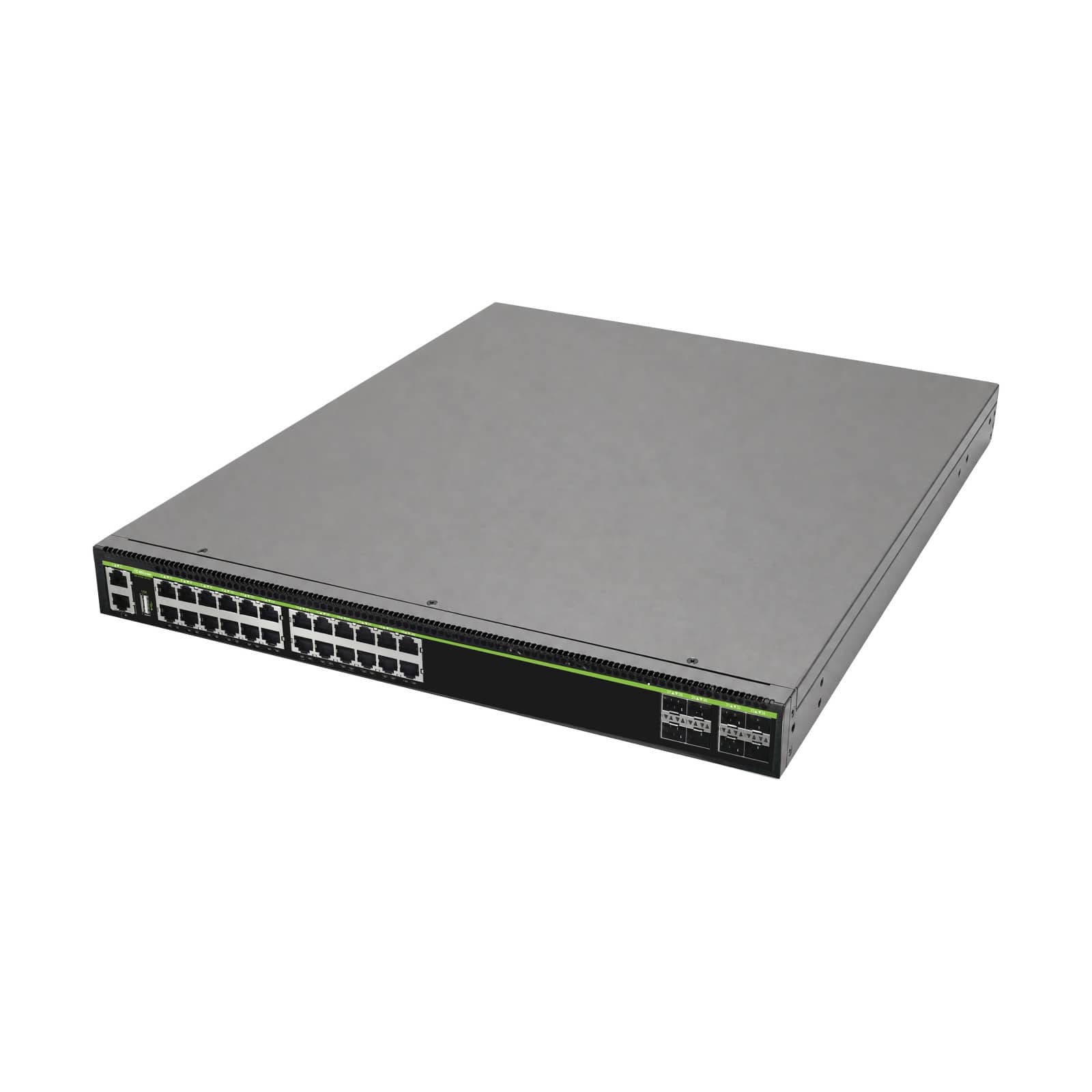

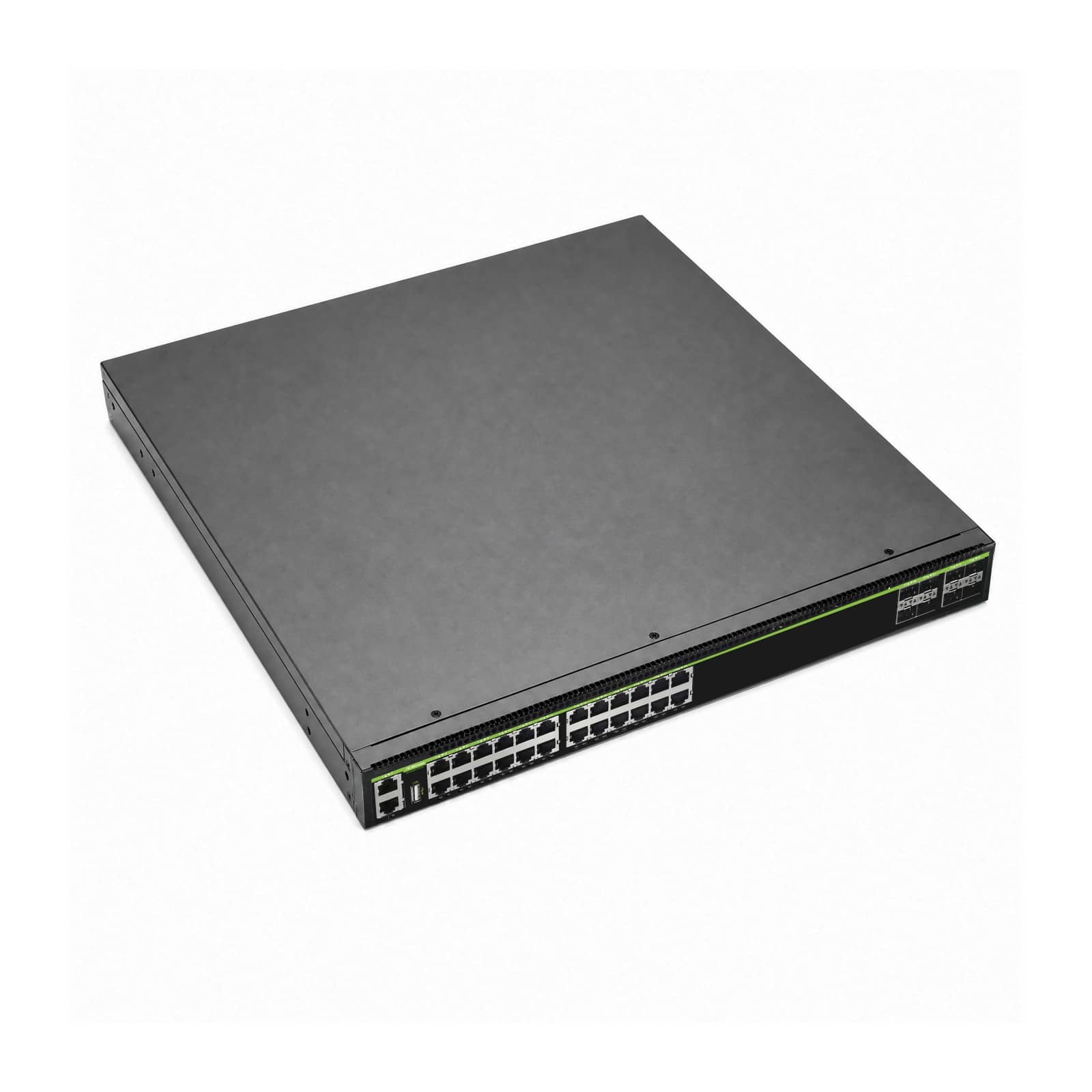

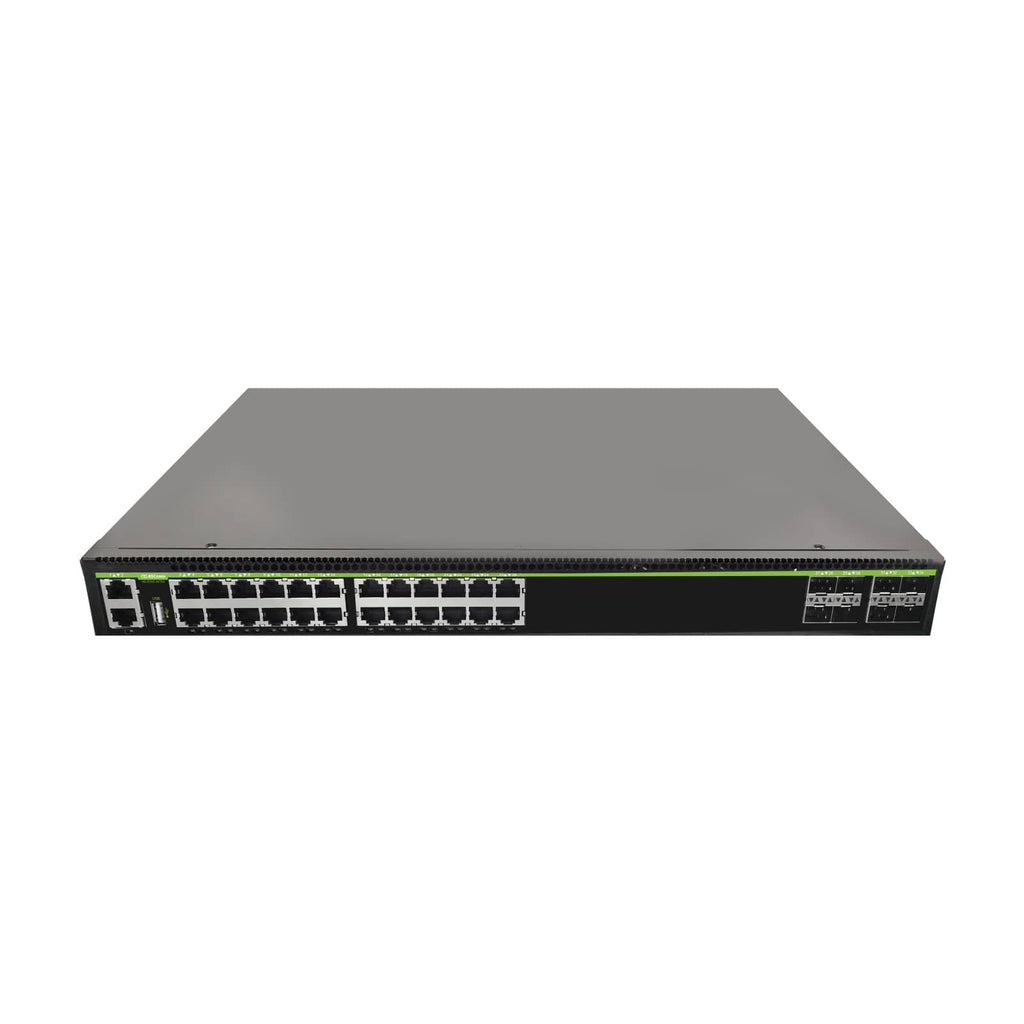

NSComm E530-24T8X 24-Port Gigabit + 8-Port 10G SFP+ L2/L3 Managed Switch

Overview

The NSComm E530-24T8X is a high-performance Layer 2/Layer 3 managed Ethernet switch designed for TOR access, enterprise and metro networks, and Hyper-Converged Infrastructure (HCI) access or aggregation scenarios. It provides 24 x 10/100/1000Base-T Gigabit RJ45 ports and 8 x 10GE SFP+ uplink ports, giving network teams a compact 1U platform for secure access, high-speed aggregation, and scalable campus or branch deployments.

Powered by a dual-core ARM A53 SOC with 2GB memory, 8GB eMMC flash, and a 9MB packet buffer, the E530-24T8X supports both store-and-forward and cut-through switching. It delivers 208Gbps switching capacity, 154.75Mpps throughput, and low 660ns latency for business-critical network traffic.

Core Highlights

1. 24 Gigabit RJ45 access ports
   Provides 24 x 1GE Base-T ports for wired access, endpoint connectivity, and enterprise edge deployment.
2. 8 high-speed 10GE SFP+ uplinks
   Built-in 10G optical uplink ports support aggregation to core switches, distribution layers, servers, or storage networks.
3. Layer 2/Layer 3 managed switching
   Suitable for VLAN segmentation, resilient Layer 2 access, routing-enabled aggregation, and managed enterprise network expansion.
4. High-performance hardware platform
   208Gbps switching capacity, 154.75Mpps throughput, 9MB packet buffer, and 660ns latency help maintain stable forwarding under burst traffic.
5. Rich management interfaces
   Includes 1 x RJ45 console port, 1 x RJ45 out-of-band management port, in-band management support, and 1 x Type-A USB port.
6. Reliable 1U rack-mount design
   Standard 19-inch rack-mountable hardware with fan cooling, intelligent fan speed control, dual power input support, and front-to-rear/rear-to-front airflow options.

Applications Scenarios

• Enterprise Access Networks: Connect wired users, workstations, printers, access controllers, and office endpoints with managed Gigabit access.
• Campus and Branch Aggregation: Use 10GE SFP+ uplinks to aggregate access traffic toward distribution or core layers.
• Metro and Service Provider Edge: Deploy as a compact managed platform for metro access or edge aggregation environments.
• HCI and Server Access: Support hyper-converged infrastructure access where Gigabit downlinks and 10G uplinks are required.
• Operations and Maintenance Networks: Use console, out-of-band, in-band, and USB management interfaces for flexible deployment and service workflows.

Comparison with Similar Models

Model	Ports	PoE	Uplink	Platform	Best For
NSComm E530-24T8X	24 x 1GE RJ45	None	8 x 10GE SFP+	L2/L3 managed	Enterprise, metro, HCI access or aggregation
Cisco C9200-24T-A	24 x 1GE RJ45	None	Modular 1G/10G	Network Advantage	Campus access and branch data-only networks
Huawei S5735-L24T4X-A1	24 x 1GE RJ45	None	4 x 10GE SFP+	CloudEngine S5735-L	SMB, campus access, and enterprise edge switching

Specifications

Parameter	Specification	Value
Model	Product model	NSComm E530-24T8X
Switch type	Managed Ethernet switch	Layer 2 / Layer 3
Downlink ports	RJ45 electrical ports	24 x 1GE Base-T
Uplink ports	Optical uplink ports	8 x 10GE SFP+
Switching capacity	Switching capability	208 Gbps
Forwarding rate	Throughput	154.75 Mpps
Latency	Hardware forwarding latency	660 ns
Packet buffer	Buffer memory	9 MB
CPU	Processor	Dual-core ARM A53 SOC
Memory / Flash	System memory and storage	2GB memory / 8GB eMMC flash
Management ports	Console and management	1 x RJ45 console, 1 x RJ45 out-of-band management, in-band management, 1 x Type-A USB
Switching method	Forwarding mode	Store-and-forward / cut-through
Power supply	AC power	100-240V AC, 50/60Hz; maximum 90-264V AC, 47-63Hz
Power input	Redundancy support	Double power input supported
Power draw	Typical / maximum	41W typical / 55W maximum
Surge protection	Protection level	2 kV
Form factor	Rack deployment	Standard 1U 19-inch rack mountable
Dimensions	H x W x D	4.4 x 44.2 x 24.5 cm (1.7 x 17.4 x 9.7 in.)
Weight	Device weight	3.60 kg
Cooling	Fan design	Fan cooling, 2 fixed fans, intelligent speed control
Airflow	Airflow direction	Front-to-rear / rear-to-front airflow
Operating temperature	Environment	0 deg C to 45 deg C
MTBF	Reliability	215,299 hours / 24.58 years

Why Choose NSComm E530-24T8X?

• 24-port Gigabit access with 8-port 10G SFP+ uplink capacity in one compact 1U switch.
• 208Gbps switching and 154.75Mpps forwarding for stable enterprise traffic handling.
• Designed for TOR access, enterprise, metro, HCI access, and aggregation deployments.
• Flexible management through console, out-of-band, in-band, and USB interfaces.
• Reliable fixed-fan cooling, intelligent fan speed control, and double power input support.
• Suitable for scalable campus, branch, data-center edge, and service-provider access networks.
