Description

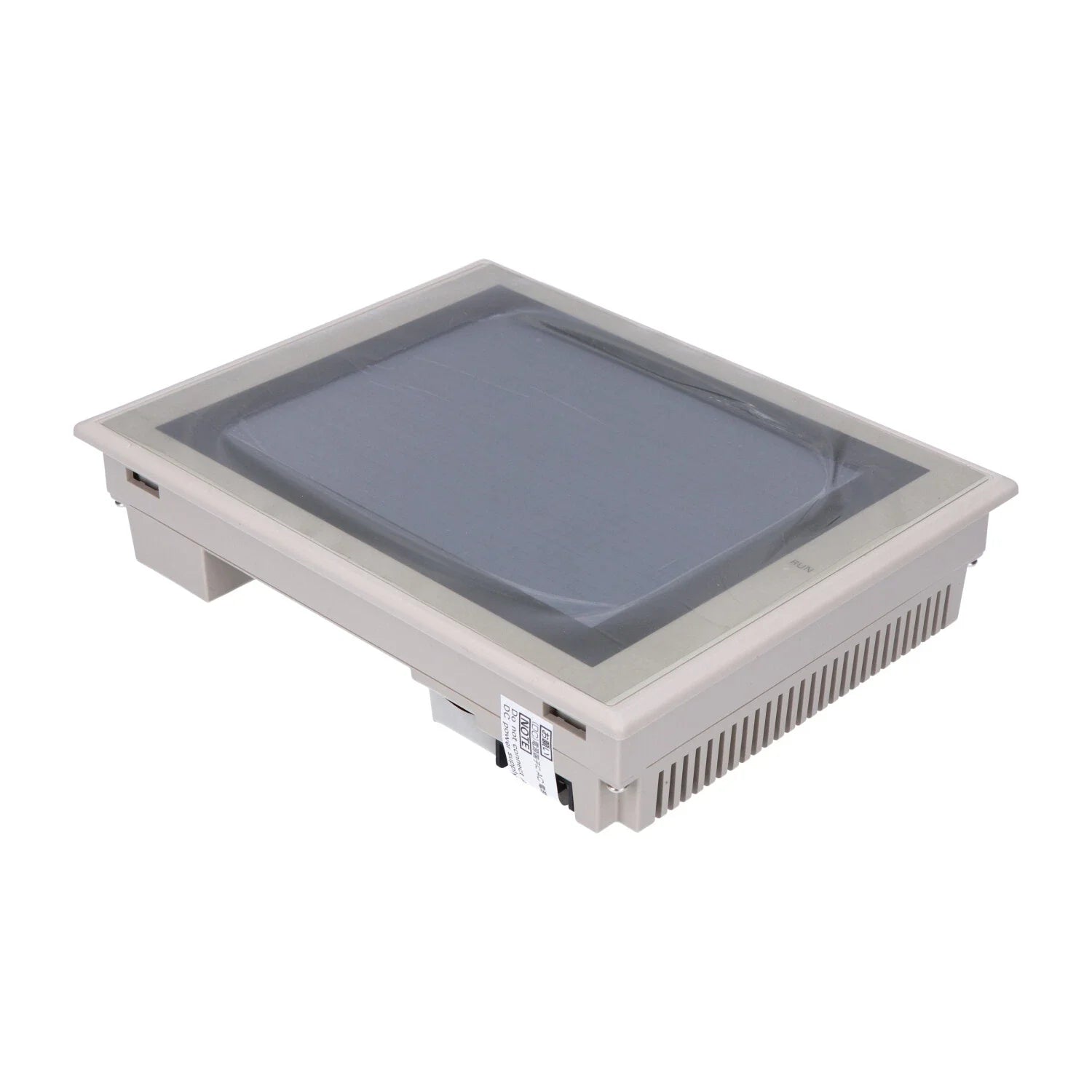

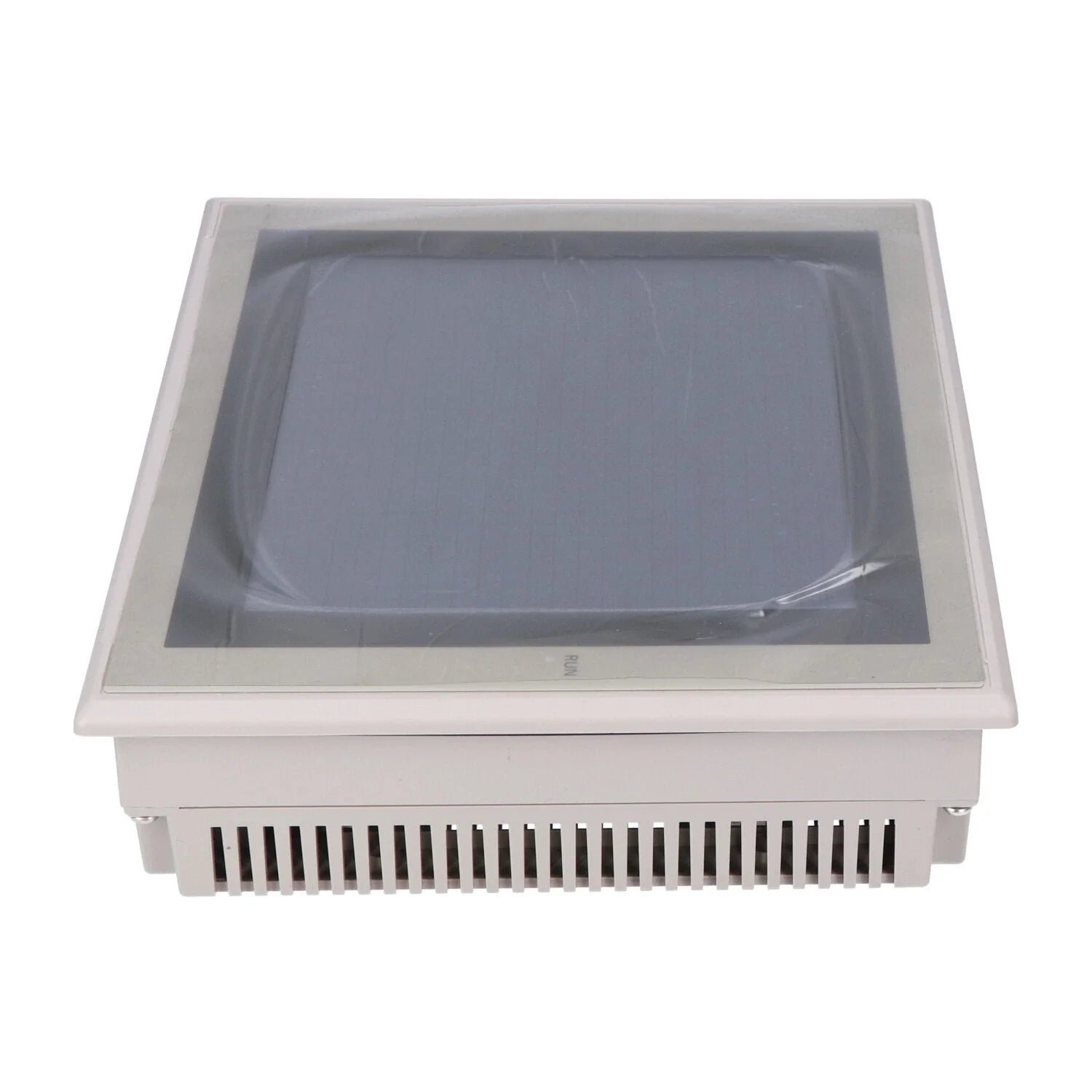

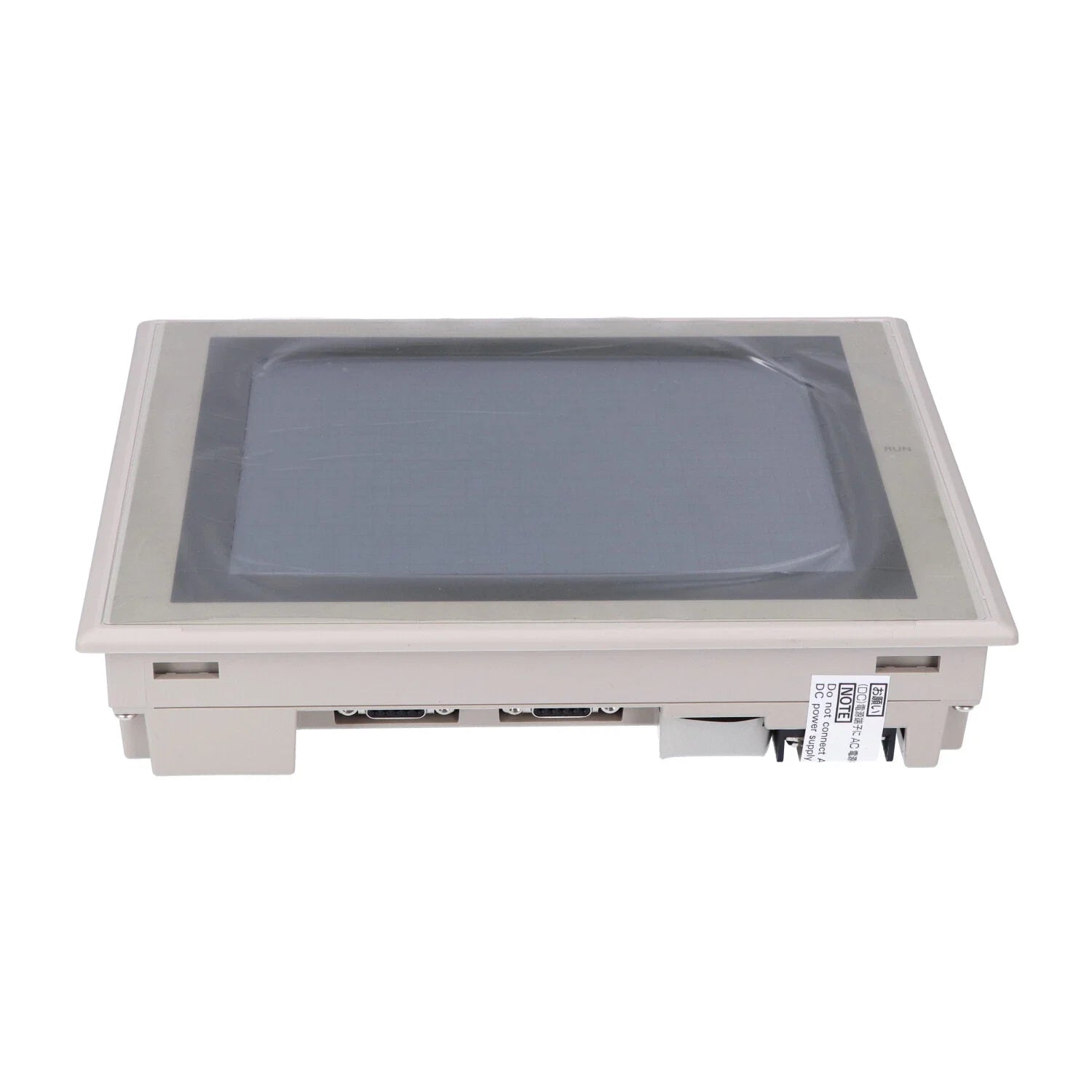

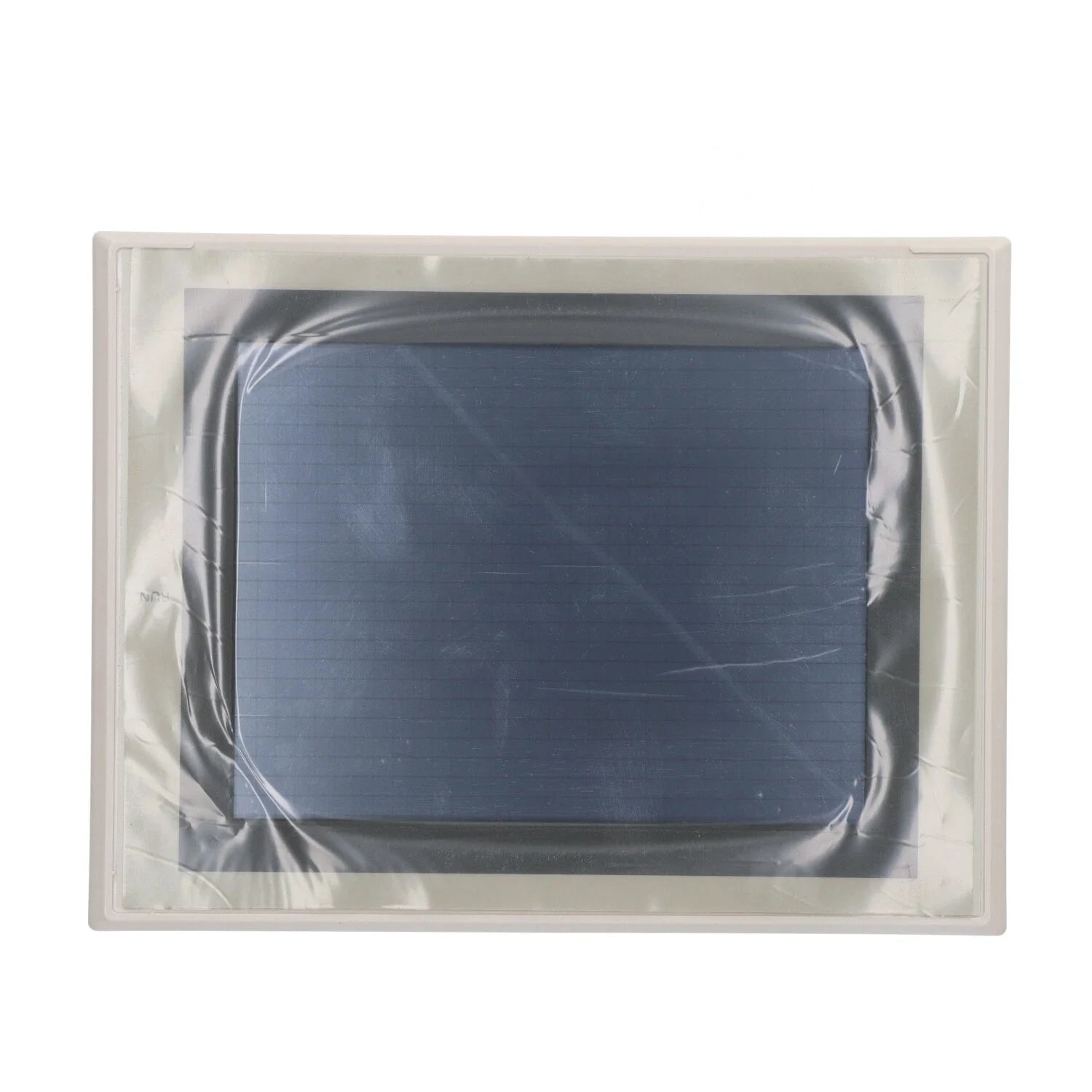

The Omron NS7SV00 is a compact operator terminal designed to provide touchscreen-based monitoring and control for industrial automation systems. It features a 7-inch TFT color LCD with high-resolution display and integrated communication interfaces. The NS7SV00 is engineered for panel-mounted use in environments requiring reliable human-machine interaction.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Omron |
| Category |
Human Machine Interface (HMI) |
| Part Number |
NS7SV00 |
| Subcategory |
Operator Terminals |
| Product Line |
NS |
| Display Type |
TFT color LCD |
| Display Size |
7 inches |
| Resolution |
800 × 480 pixels |
| Touchscreen |
Yes |
| Backlight Type |
LED |
| Brightness Adjustment |
Yes |
| Power Supply |
24 VDC |
| Power Consumption |
10 W |
| Mounting Type |
Panel mount |
| Front Panel Protection Rating |
IP65 |
| Interfaces |
RS-232, USB, Ethernet |
| Operating Temperature Range |
0°C to 50°C |
| Storage Temperature Range |
-20°C to 60°C |
| Certifications |
CE, UL |
| Weight |
20.00 lbs (9.07 kg) |
Information About NS7SV00
The NS7SV00 is part of Omron’s NS series of compact terminals, developed for efficient operator control and visualization. It incorporates a color TFT display with touch input to support real-time system monitoring and command execution. The unit is designed for panel installation and includes multiple communication interfaces for integration with PLCs and control networks. Its front-panel protection rating supports use in industrial environments where durability and operational stability are required.
Key Features:
- TFT Color LCD Display: Provides clear and detailed visual output for industrial control applications.
- 7-Inch Screen Size: Balances compact panel footprint with sufficient display area.
- Touchscreen Interface: Enables direct operator input and intuitive navigation.
- High Display Resolution: Supports 800 × 480 pixels for improved data visibility.
- Multi-Interface Connectivity: Includes RS-232, USB, and Ethernet communication ports.
- Front Panel Protection: Rated IP65 for resistance to dust and water exposure.
- LED Backlighting: Provides consistent illumination with adjustable brightness control.
The NS7SV00 delivers the reliability and precision required for industrial operator interface and monitoring applications.
