Description

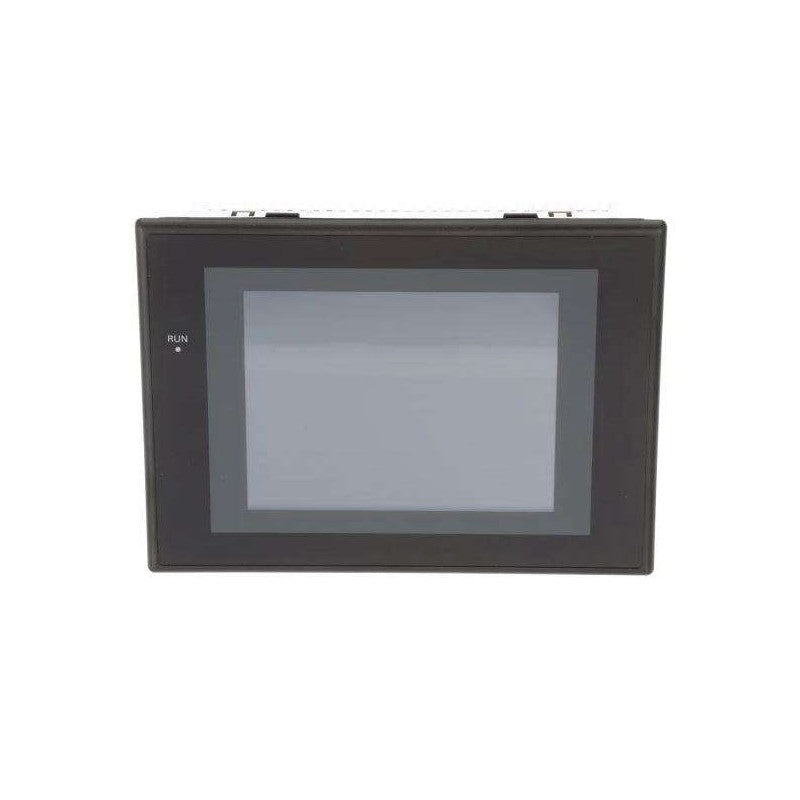

The Omron NS5-MQ10B-V2 is a 5.7-inch monochrome operator interface designed for displaying control data and graphics in factory automation systems. With 16 gradations and a 320 × 240 resolution, it provides reliable and clear visual output in compact installations.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Omron |
| Category |
|
| Part Number |
NS5-MQ10B-V2 |
| Subcategory |
Operator Interface |
| Series |
NS |
| Ethernet Connection |
Not supported |
| Display Device |
STN Monochrome LCD |
| Display Colors |
16 gradations |
| Size |
5.7 inches |
| Color |
Monochrome |
| Resolution |
320 x 240 dots |
| Color Case |
Black |
| USB Host |
None |
| USB Slave |
1 port (screen data transfer, connection to computer, connection to printer) |
| Expansion Interface |
For Expansion Interface Units. Used to install Expansion Units specially designed for the NS5. |
| Memory Card Interface |
1 ATA-Compact Flash interface slot. Used to transfer and store screen data and to store history data. |
| Weight |
2.25 lbs |
Information About NS5-MQ10B-V2
The NS5-MQ10B-V2 is part of Omron’s NS-series display terminals and offers a monochrome STN LCD with 16 gradations to support detailed yet energy-efficient HMI applications. Featuring a 5.7-inch screen and 320 × 240 pixel resolution, this model is suitable for visualizing system states, alarms, and basic trends. It is housed in a black frame and integrates easily into machines with limited space. Although Ethernet is not supported, the unit includes a USB slave port for screen data transfer and printer connectivity, as well as an ATA-Compact Flash slot for storing screen and historical data. An expansion interface allows the connection of specialized NS5 expansion modules to adapt functionality as needed.
Key Features:
- 5.7-Inch Display: Compact screen ideal for embedding in control panels or smaller equipment.
- Monochrome STN LCD: 16 gradations provide clear contrast and easy readability of text and graphics.
- 320 × 240 Resolution: Supports detailed screen layouts for efficient data presentation.
- USB Slave Port: Allows connection to computers or printers for easy data transfer or reporting.
- Expansion Interface: Compatible with dedicated NS5 expansion units to enhance functionality.
- ATA Compact Flash Slot: Enables screen backups and data logging using CF cards.
- No Ethernet Support: Simplifies installation for systems not requiring networked access.
- Black Case Design: Neutral and industrial appearance fits modern control environments.
The NS5-MQ10B-V2 is a reliable solution for localized machine control interfaces that prioritize clarity and simplicity. It is best suited for standalone systems or applications requiring basic screen data handling without network communication.
