Description

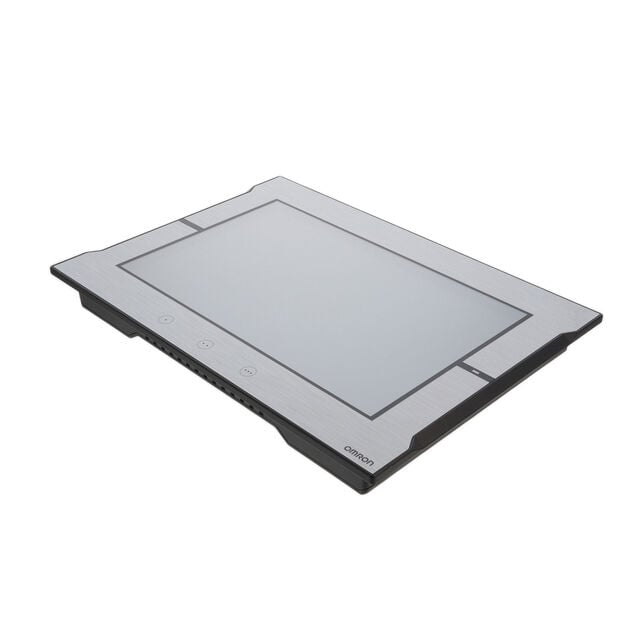

The Omron NS12-TS01-V2 is a 12.1-inch touchscreen human-machine interface designed for monitoring and controlling industrial automation systems. It features a color TFT display with an 800 × 600 resolution and supports multiple communication interfaces for integration with PLC-based control systems. This operator interface provides reliable visualization and machine interaction in industrial environments.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Omron |
| Category |
HMI / MMI / OIT |
| Part Number |
NS12-TS01-V2 |
| Subcategory |
Operator Interface |
| Series |
NS |
| Display Size |
12.1 in |
| Display Type |
Color TFT touchscreen |
| Resolution |
800 × 600 pixels |
| Color Depth |
32,768 colors |
| Memory Capacity |
60 MB |
| Supply Voltage |
24 VDC |
| Communication Ports |
Ethernet (RJ45), 2 × RS-232, USB |
| Ingress Protection |
IP65, NEMA 4 |
| Operating Temperature |
0°C to 50°C |
| Mounting Cutout |
302 × 228 mm |
| Dimensions |
323 × 241 × 42 mm |
| Weight |
2.82 kg |
Information About NS12-TS01-V2
The NS12-TS01-V2 is part of the Omron NS series of programmable operator interfaces developed for industrial machine control and automation applications. It provides a graphical touchscreen interface that allows operators to monitor system status, manage alarms, and control machine functions through an intuitive display. The unit supports communication through Ethernet, RS-232, USB, and other industrial interfaces to connect with PLCs and control equipment. Its IP65-rated front panel and rugged panel-mount design make it suitable for installation in factory control panels and automation systems.
Key Features:
-
Large Touchscreen Display: 12.1-inch color TFT screen provides clear visualization for machine operation and system monitoring.
-
High Display Resolution: 800 × 600 pixel resolution supports detailed graphics and control screens.
-
Multi-Color Interface: Supports up to 32,768 display colors for improved visualization of system data.
-
Multiple Communication Interfaces: Includes Ethernet (RJ45), dual RS-232 ports, and USB connectivity.
-
Industrial Panel Mount Design: Designed for installation in machine control panels and operator stations.
-
Built-In Memory: Provides 60 MB internal memory for application programs and screen data.
-
Industrial Protection Rating: IP65 and NEMA 4 front panel protection against dust and water.
-
Integrated Memory Card Interface: Allows project storage and data transfer using removable memory media.
The NS12-TS01-V2 delivers the reliability and precision required for operator monitoring and control in industrial automation systems.
