Description
The Omron NQ3-TQ000-B is a compact operator interface designed for monitoring and control tasks in industrial automation systems. It features a 3.5-inch QVGA TFT color display with LED backlight and supports multiple communication interfaces. This HMI is suitable for equipment operation, visualization, and basic user interaction.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Omron |
| Category |
Displays |
| Part Number |
NQ3-TQ000-B |
| Subcategory |
Operator Interface |
| Display Size |
3.5 Inch |
| Display Type |
TFT Color LCD |
| Display Resolution |
320 × 240 (QVGA) |
| Backlight Type |
LED |
| Color Support |
256 Colors |
| Communication Port |
RS-232C / RS-485 |
| USB Interface |
USB Host and USB Slave |
| Function Keys |
5 |
| Power Supply Type |
DC |
| Tariff Code |
85312040 |
| Weight |
0.40 kg |

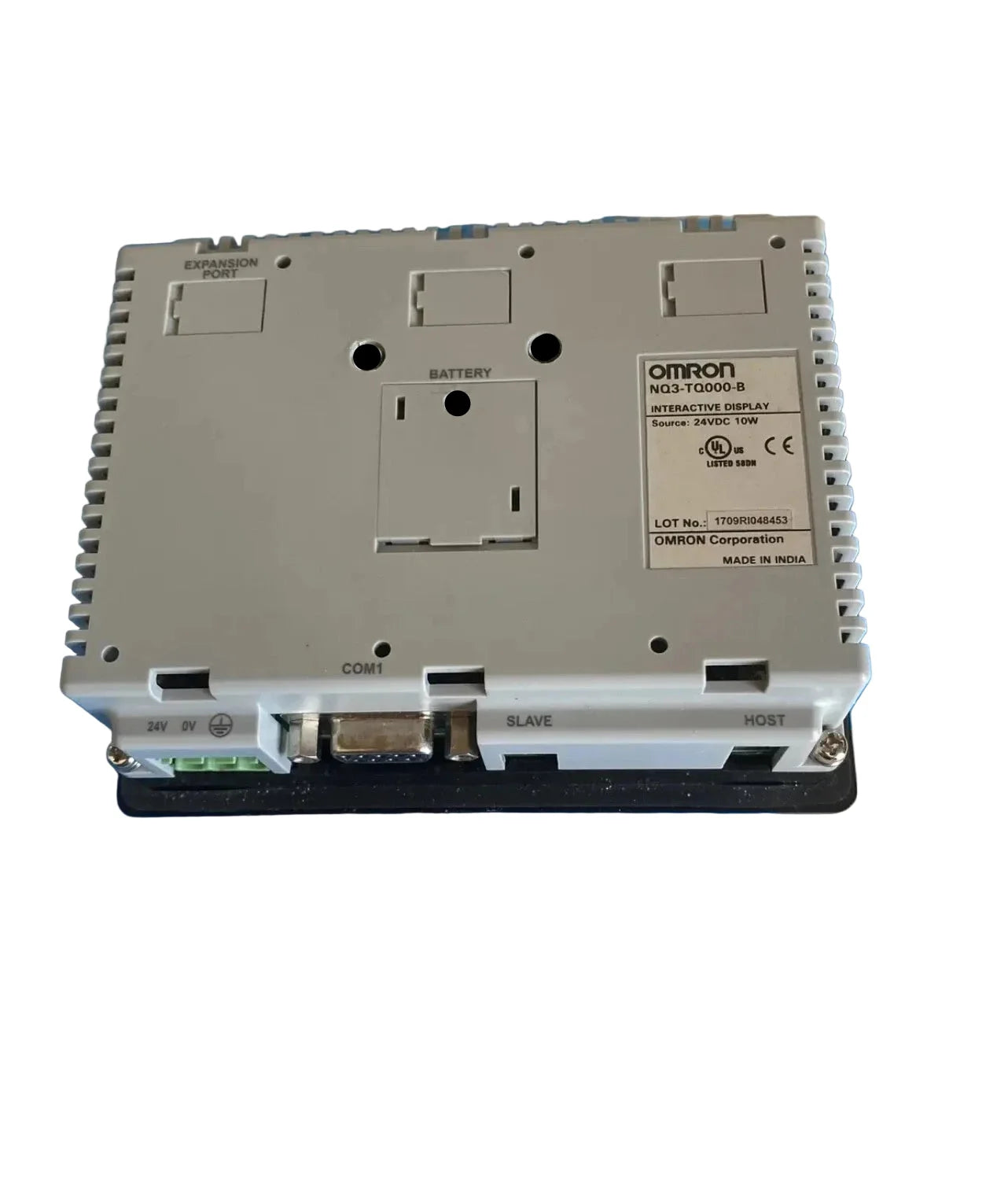

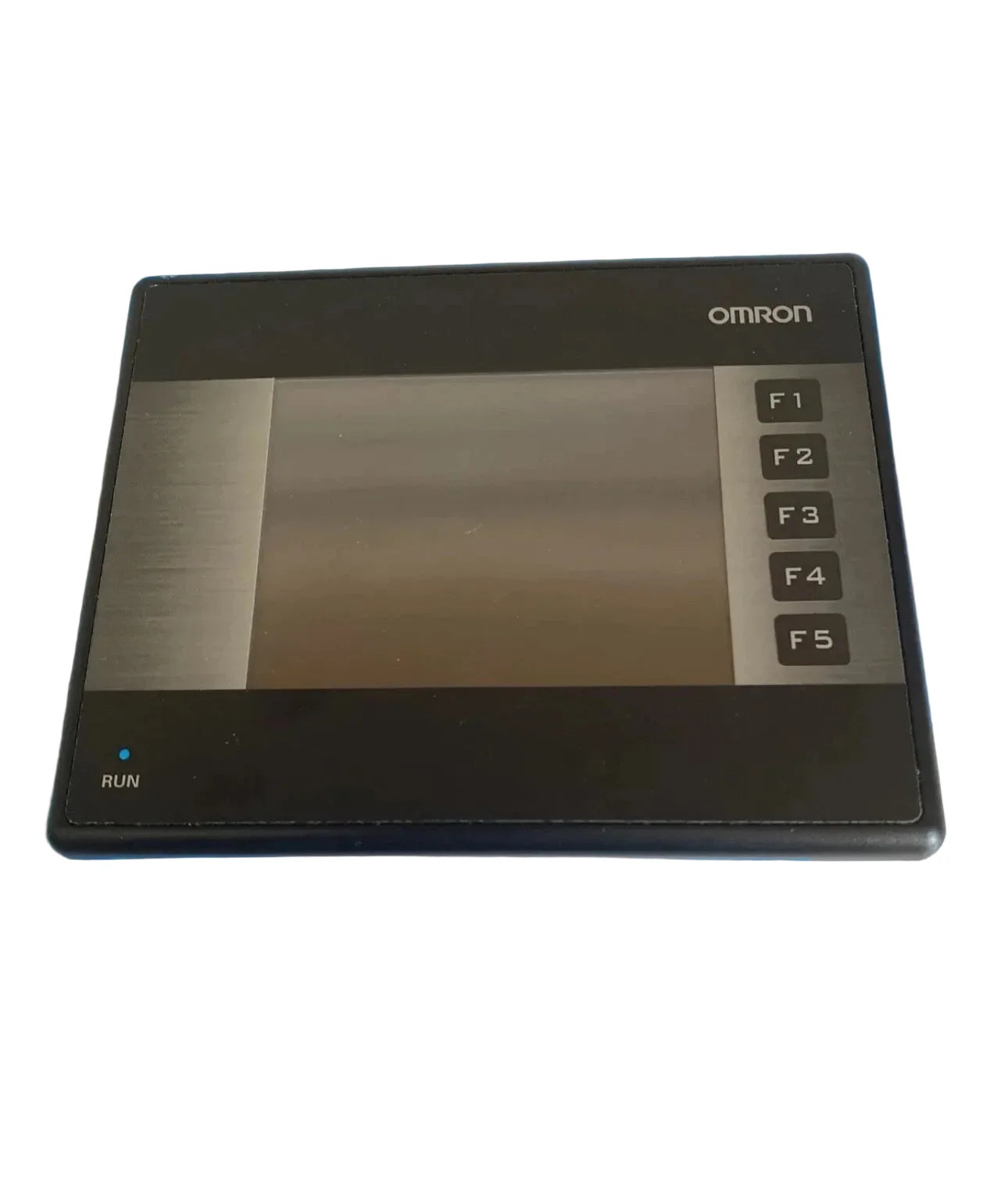

Information About NQ3-TQ000-B
The NQ3-TQ000-B is part of Omron’s NQ series of compact operator interfaces intended for space-constrained control panels. It uses a TFT color display with QVGA resolution to present process data, alarms, and system status clearly. The unit supports RS-232C/RS-485 serial communication and includes USB host and slave ports for data transfer and configuration. Five built-in function keys provide direct operator input without the need for additional peripherals.
Key Features:
-
3.5-inch TFT Color Display: Provides clear visualization with 320 × 240 pixel resolution.
-
LED Backlight Technology: Ensures consistent brightness and long operational life.
-
Multi-Color Display Support: Displays up to 256 colors for standard graphics and images.
-
Serial Communication Port: Supports RS-232C and RS-485 connectivity.
-
USB Host and Slave Ports: Allows program transfer and peripheral connectivity.
-
Integrated Function Keys: Five keys enable direct operator control and navigation.
-
Compact Panel Design: Suitable for installation in limited space environments.
The NQ3-TQ000-B delivers the reliability and precision required for industrial operator interface and visualization applications.
