Description

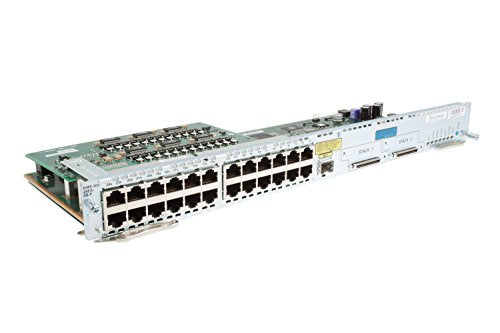

The Cisco NME‑XD‑24ES‑1S‑P is a dual-wide EtherSwitch service module for Cisco routers, providing integrated 24-port 10/100 Mbps switching, inline Power over Ethernet (PoE), and a 1‑Gigabit SFP uplink via StackWise backplane.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Cisco
|
| Category |
Networking Hardware |
| Part Number |
NME-XD-24ES-1S-P
|
| Subcategory |
EtherSwitch Service Module |
| Ports |
24 x 10/100 Mbps Ethernet Ports |
| POE |
Yes |
| Stacking Support |
StackWise |
| SFP Ports |
1 x SFP Port |
| Software |
SMI |
| Compatibility |
Cisco Routers |
| Maximum Power Consumption |
60W |
| Stacking Bandwidth |
32 Gbps |
| Forwarding Bandwidth |
12.8 Gbps |
| Switching Bandwidth |
24 Gbps |
| VLAN IDs Supported |
4096 |
| MAC Address Table Size |
8000 entries |
| Network Management |
SNMP, CLI, RMON |
| QoS Support |
Yes |
| Dimensions (WxDxH) |
8.51 x 7.15 x 1.58 inches |
| Operating Temperature |
32°F to 104°F (0°C to 40°C) |
| Storage Temperature |
-40°F to 158°F (-40°C to 70°C) |
| Operating Humidity |
10% to 85% non-condensing |
| Storage Humidity |
5% to 95% non-condensing |
| Weight |
1.36 kgs |
Information About NME-XD-24ES-1S-P
The Cisco NME‑XD‑24ES‑1S‑P is a dual-wide EtherSwitch Service Module for Cisco routers, offering integrated Power over Ethernet (PoE) and high-density switching in a compact form factor. Designed for 2800 and 3800 Series routers, it delivers enhanced LAN capabilities with minimal footprint.
Key Features:
-
Product Type: EtherSwitch Service Module (Extended Double‑Wide)
-
Ports: 24 × 10/100 Mbps RJ‑45 with IEEE 802.3af PoE support
-
Uplink: 1 × SFP Gigabit Ethernet port
-
Stacking: Dual StackWise backplane connectors for switch stacking
-
Router Compatibility: Supported in Cisco 2821, 2851, 3800 Series (3825/3845) routers (one per chassis)
-
PoE Capability: Powers IEEE 802.3af devices (Cisco pre‑standard and standard); up to 15 W per port, total power based on router PSU
-
Compliance: Meets NEBS GR‑1089 for intra-building shielded installations
The NME‑XD‑24ES‑1S‑P combines robust LAN switching, PoE, and stacking functionality, making it ideal for branch-office deployments. It simplifies network infrastructure by enabling modular expansion and powering edge devices directly from the router, all while supporting enterprise-grade reliability and scalability.
