Description

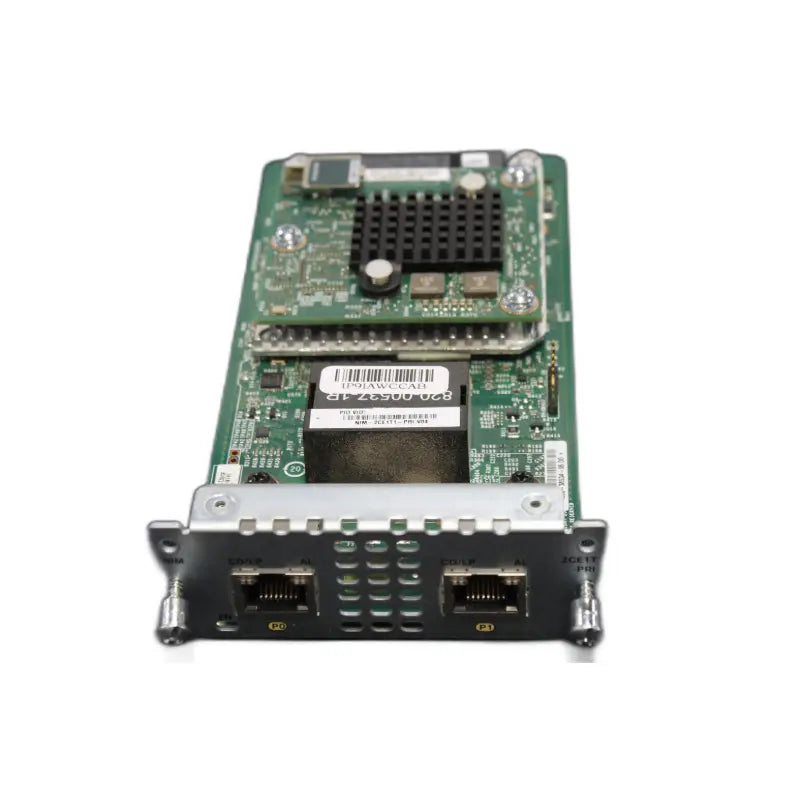

The Cisco NIM-2CE1T1-PRI is a dual-port network interface module designed to support both voice and data applications over T1/E1 circuits. This compact and versatile module enables high-density digital WAN and voice trunk connectivity for Cisco ISR routers.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Cisco
|
| Category |
|
| Part Number |
NIM-2CE1T1-PRI |
| Subcatecory |
Voice/WAN Interface Modules
|
| Series |
Cisco NIM Series |
| Number of Ports |
2 x T1/E1 |
| Supported Modes |
PRI, Channelized, Unstructured |
|
Standards Compliance
|
TIA-968-A, CS-03, JATE, ANSI T1.403 |
| Operating Temperature |
0°C to 50°C (32°F to 122°F) |
| Operating Humidity |
10% to 85% (non-condensing) |
| Dimensions (H x W x D) |
1.25 x 3.50 x 7.24 in. (3.18 x 8.89 x 18.39 cm) |
| Weight |
0.42 lb (191 g) |
Information About NIM-2CE1T1-PRI
The NIM-2CE1T1-PRI is part of Cisco’s Multiflex Trunk module family, combining voice and channelized data capabilities in a single interface. It provides two T1/E1 ports that can operate in voice, data, or mixed modes, allowing flexible deployment in enterprise branch networks requiring PRI, channelized, or unstructured communication.
Key Features:
- Dual-Port Versatility: includes two configurable T1/E1 ports for voice, data, or mixed-use deployment, maximizing interface utility.
- Multiflex Capability: supports Primary Rate ISDN (PRI), channelized T1/E1, and unstructured data modes for flexible WAN integration.
- Standards-Based Compliance: meets global telecom standards including TIA-968-A, CS-03, JATE, and ANSI T1.403 for carrier interoperability.
- Compact and Lightweight Design: fits easily into Cisco ISR chassis with minimal space and power requirements, weighing only 0.42 lb.
- Rugged Environmental Support: operates in temperatures from 0°C to 50°C with humidity tolerance for demanding industrial conditions.
- Integrated Voice and Data Support: ideal for branch offices needing cost-effective PSTN access and WAN connectivity in a single module.
The NIM-2CE1T1-PRI offers flexible T1/E1 trunking for Cisco routers, consolidating voice and data interfaces into a reliable, standards-compliant module for enterprise deployments.
