Description

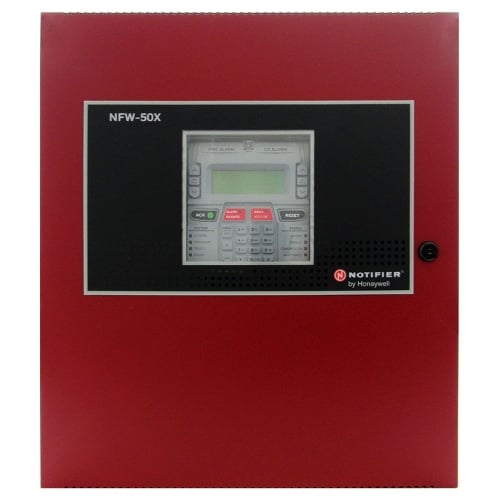

The Notifier NFW-50XR is an intelligent addressable fire alarm control panel. It supports up to 50 addressable devices, including detectors and modules, on a single Signaling Line Circuit (SLC) loop. This panel provides precise fire detection and reporting capabilities, featuring an integrated dual-path communicator for both IP and POTS communication.
Technical Specifications
| Condition |
|
| Brand |
Notifier |
| Category |
|
| Part Number |
NFW-50XR |
| Subcategory |
Control Panels |
| Type |
Intelligent Addressable FACP
|
| Device Capacity |
|
| Protocols |
|
| Power Input |
120/240 VAC auto-sensing, 50/60 Hz
|
| NAC Circuits |
2 Class A/B |
| System Output |
2.7A total |
| Battery Support |
7–18AH |
| Communicator |
|
| Relays |
2 programmable, 1 fixed trouble
|
| Display |
|
| Enclosure Color |
Red |
| Listings & Approvals |
|
| Weight |
16.00 lbs |
Information About NFW-50XR
The NFW-50XR is part of the Notifier FireWarden series and is a direct replacement for the legacy NFW-50 model. Its robust construction allows it to integrate seamlessly into a wide range of fire safety applications. The panel is a sophisticated control unit that utilizes both the advanced FlashScan and traditional CLIP communication protocols for device compatibility. It’s designed for use in small to medium-sized commercial and institutional buildings, providing advanced programming and reliable communication to a central monitoring station. The pre-installed IPOTS-COM communicator provides a secure, cost-effective method for transmitting system status to central stations over both the Internet and traditional telephone lines.
Key Features:
- Device Capacity: Supports up to 50 addressable devices in any combination of detectors or modules.
- Dual Protocol Support: Compatible with both FlashScan and CLIP protocols for broad device compatibility.
- Integrated Communicator: Comes with a pre-installed IPOTS-COM communicator for dual-path reporting over IP and POTS.
- Multiple Relays: Features two programmable Form-C relays and one fixed trouble relay for system integration.
- Programmable NACs: Includes two independently programmable Class A/B Notification Appliance Circuits.
- Auto-Programming: Offers a learn mode that automatically discovers and maps all connected devices, reducing installation time.
- Real-Time Monitoring: An integral 80-character LCD displays real-time status and events for easy system management.
- Flexible Programming: Supports upload/download of program and data via USB, and can be configured with the FSTools Programming Utility.
The NFW-50XR delivers the reliability and precision required for advanced fire alarm system control and monitoring.
