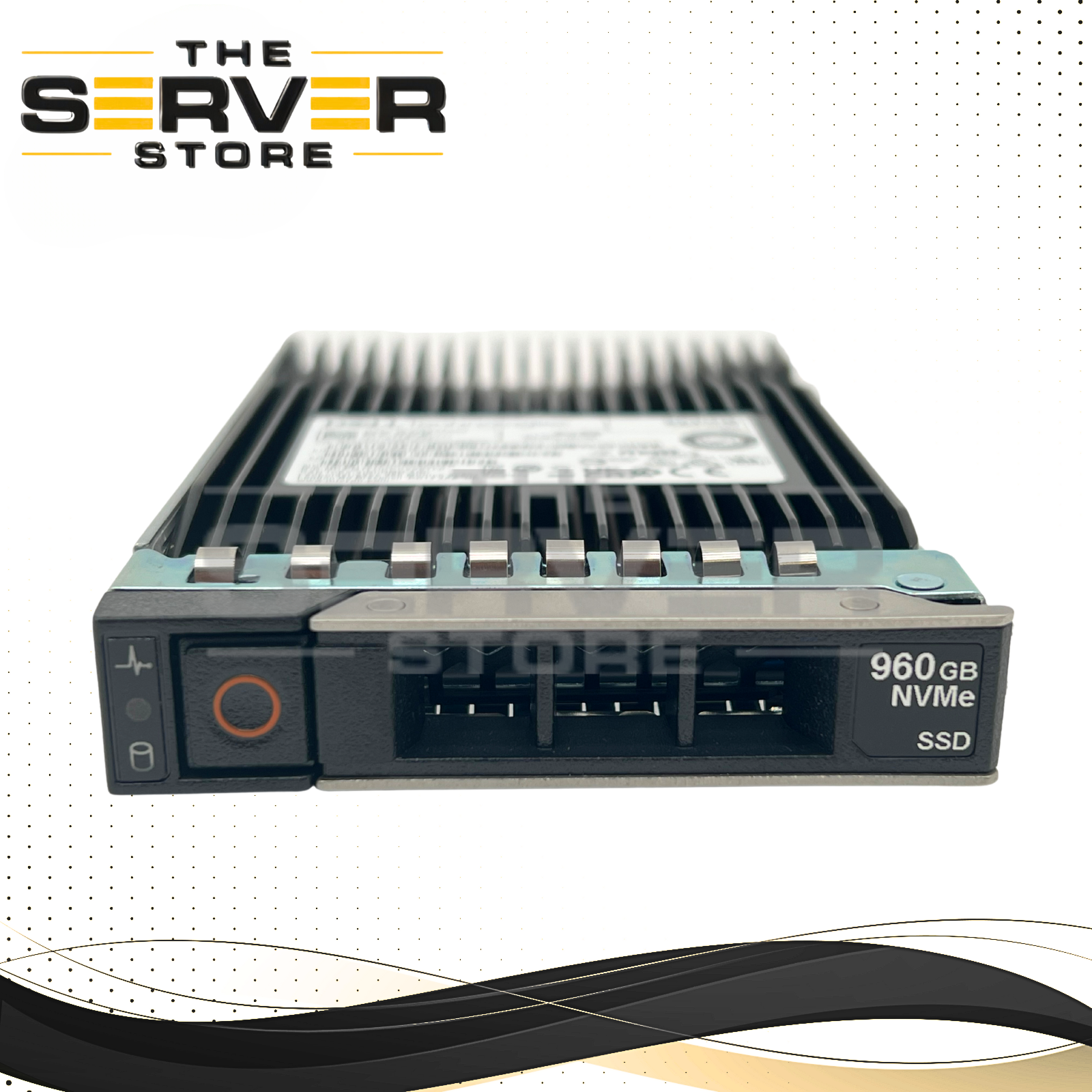

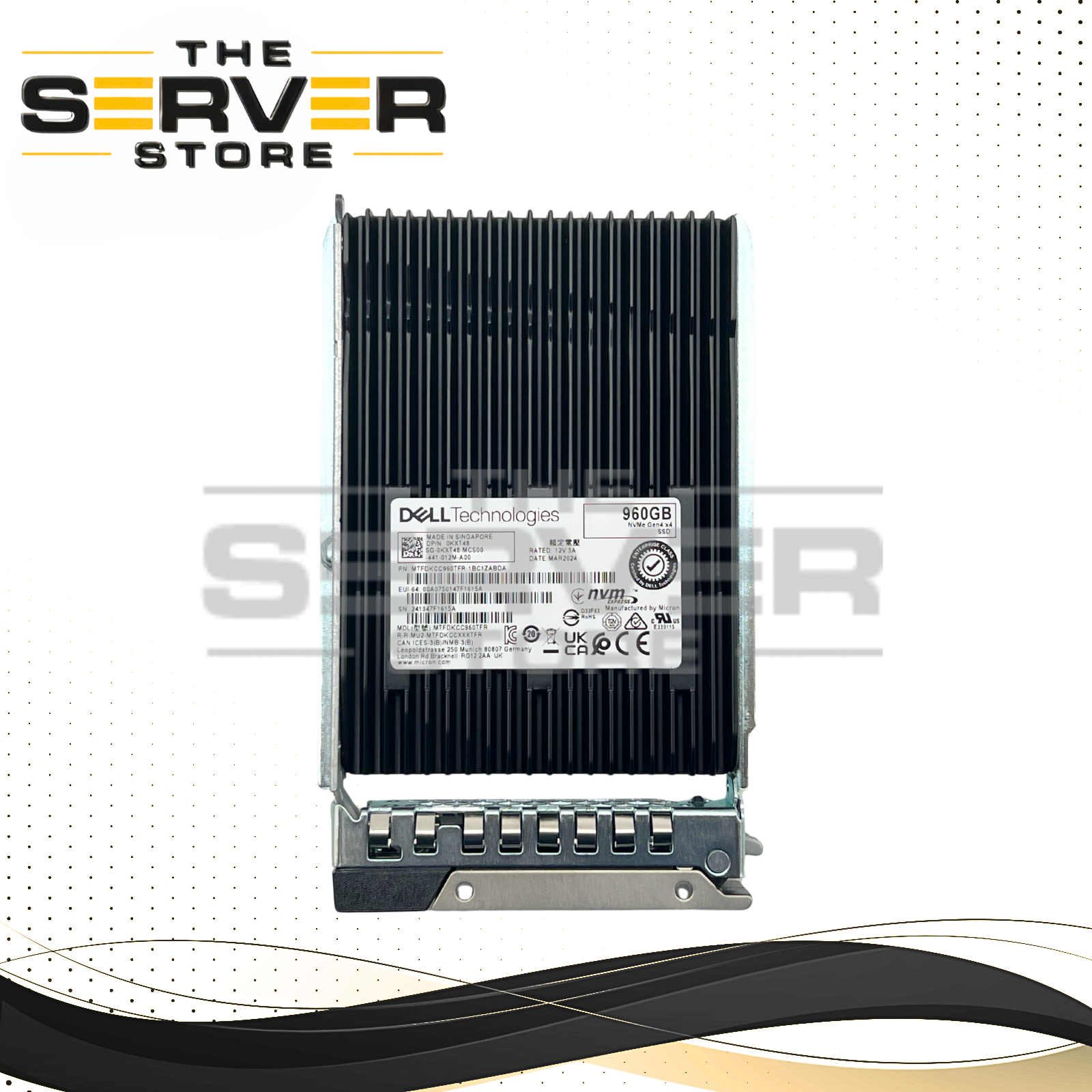

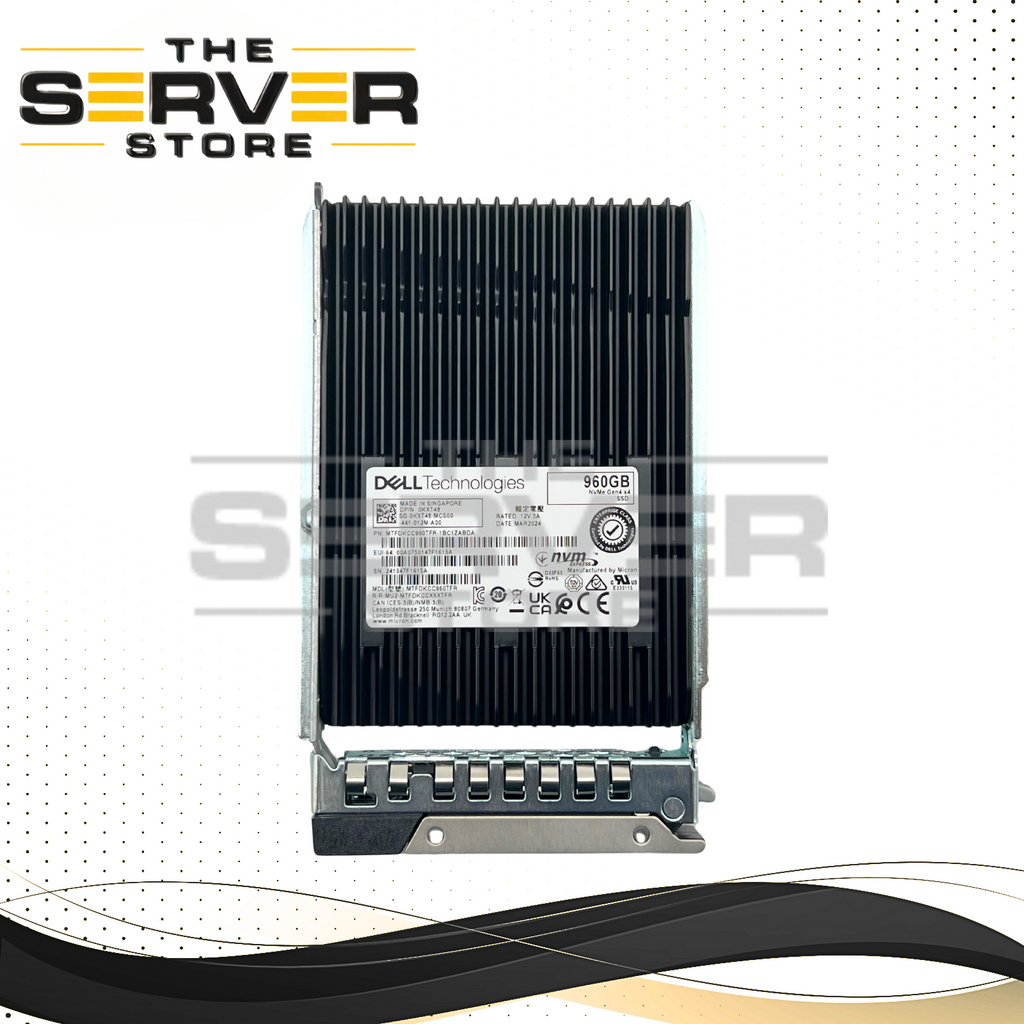

Upgrade your enterprise storage with the genuine Dell KXT48 (also labeled as 0KXT48), a 960GB Read-Intensive (RI) Solid-State Drive MTFDKCC960TFR, MTFDKCC960TFR-1BC1ZABDA.
This high-performance U.3 NVMe SSD is built with Micron 7450 PRO technology to deliver outstanding speed, endurance, and reliability—ideal for demanding data center and server workloads. Optimized for Dell PowerEdge servers, it offers seamless integration and maximum operational efficiency for your IT infrastructure.

---

General Specifications

• Capacity: 960 GB

• Manufacturer (OEM): Dell

• Manufacturer (Original): Micron

• Endurance Type: Read-Intensive (RI), rated for 1 Drive Write Per Day (DWPD)

• Total Bytes Written (Endurance): 1,700 TB

• NAND Flash: 176-layer 3D Triple-Level Cell (TLC) NAND

• Interface: U.3 PCIe 4.0 x4 (NVMe)

• Form Factor: 2.5-inch, 15mm height

---

Performance

• Sequential Read: Up to 6,800 MB/s

• Sequential Write: Up to 1,400 MB/s

• Random Read (4K): Up to 530,000 IOPS

• Random Write (4K): Up to 85,000 IOPS

• Latency (99.9999% QoS): 2 ms or less

• Mean Time Between Failures (MTBF): 2 million device hours

---

Features

• Power-Loss Protection (PLP): Ensures data in transit is safely written to the drive in the event of an unexpected power loss.

• Hot-Plug Support: Allows the drive to be replaced without shutting down the system.

• Data Path Protection: Detects and corrects bit errors during internal data transfers.

• Encryption: Non-SED (Software-Enabled Device)

---

Compatibility

Compatible with a wide range of Dell PowerEdge servers supporting PCIe 4.0 U.3 NVMe drives, including but not limited to:

• PowerEdge C Series:

  • C6420

  • C6525

• PowerEdge R Series:

  • R640

  • R650, R650xs

  • R6515, R6525

  • R740xd

  • R7425

  • R750, R750xs, R750xa

  • R7515, R7525

• This SSD is an alternate of this part number: XCDFV and 400-BMTR
