Description
Quick Specs

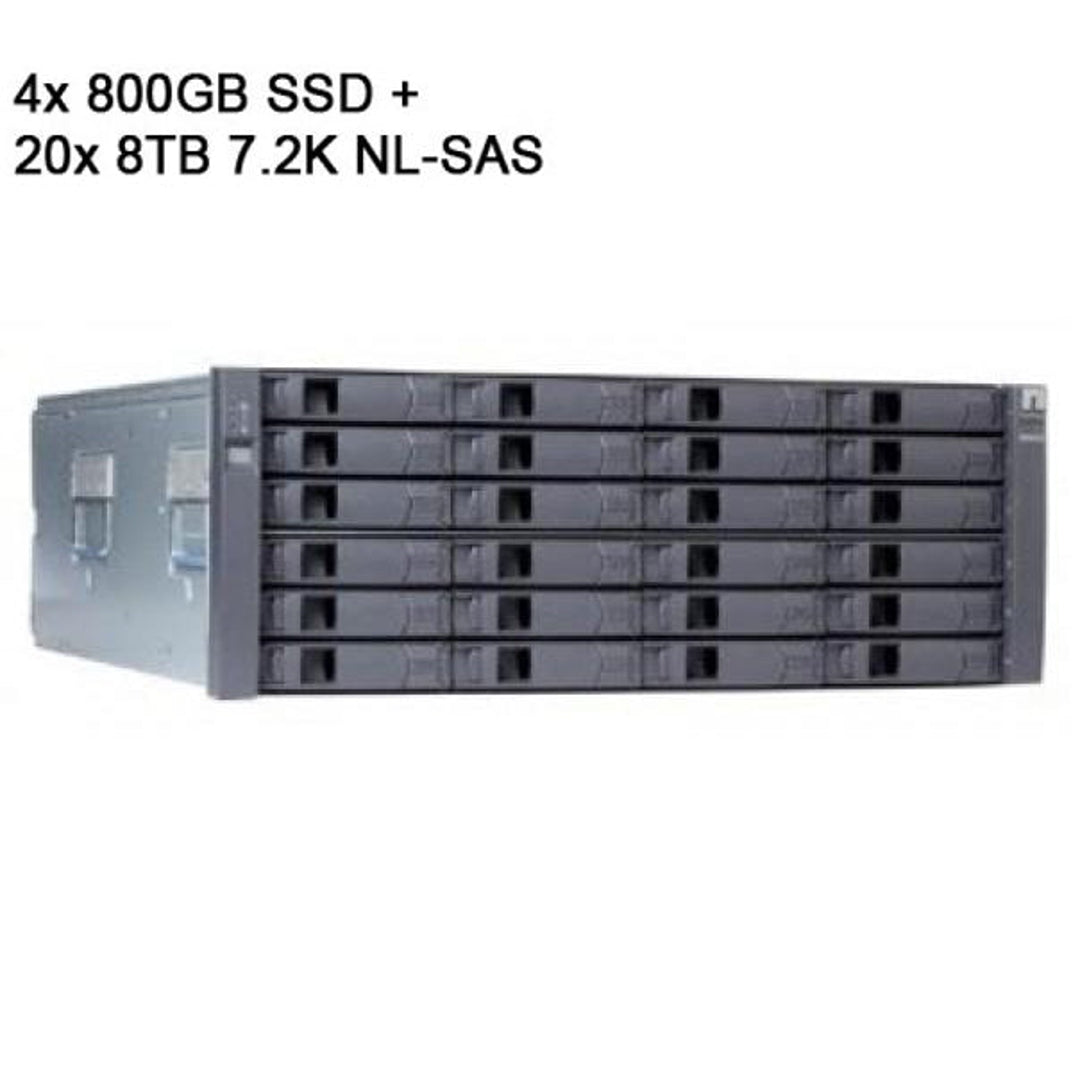

NetApp DS4246 with 4x 800GB SSD (X449A-R6) + 20x 8TB NL-SAS 7.2K (X318A-R6) Disk Shelf achieves both large capacity storage and performance in a 4U form factor. The DS4246 utilizes SATA and NL-SAS Drives up to 8TB in size to offer a large capacity storage as well as SSD + NL-SAS/SATA performance options for Enterprise businesses. This DS4246 is populated with four 800GB SSD + twenty 8TB 7.2K NL-SAS Drives (X318A-R6).
Parts Included:
- 1x DS4246 Disk Shelf
- 4x 800GB SSD (X449A-R6) + 20x 8TB 7.2K NL-SAS Drives (X318A-R6)
- 2x IOM6 Controller (X5713A-R5)
- 2x Power Supplies with Fans - AC (X519A-R6)
- 2x .5 QSFP to QSFP SAS Cables (X6557A-R6)
- 1x Rail Kit II, Cab, R6 (X877B-R6)
- 2x Power Cable (NA), -C, R6 (X800E-R6-C)
NetApp DS4246 Disk Shelf Specifications
| NETAPP DS4246 DISK SHELF SPECIFICATIONS | |
|---|---|
| Form Factor | 4U |
| Drives per Enclosure | 24 |
| Drives per Rack Unit | 6 |
| Supported Drive Types | 3.5" 1TB 7.2K SATA 3.5" 2TB 7.2K SATA 3.5" 3TB 7.2K SATA 3.5" 4TB 7.2K NL-SAS 3.5" 6TB 7.2K NL-SAS 3.5" 8TB 7.2K NL-SAS Mixed: 100GB SSD + 1TB SATA 200GB SSD + 2TB SATA 200GB SSD + 4TB NL-SAS 400GB SSD + 2TB SATA 400GB SSD + 4TB NL-SAS 400GB SSD + 6TB NL-SAS 800GB SSD + 8TB NL-SAS 800GB SSD + 6TB NL-SAS |
| Supported Controllers | FAS2500 Series FAS8000 Series FAS2200 Series FAS/V3200 Series FAS/V6200 Series |
| Data ONTAP Version Required | 8.0.2 |
| Shelf I/O modules | Dual IOM6 modules |
| Optical SAS Support | Yes |
| Power Supplies and Cooling | Dual redundant hot-pluggable power supplies and fan assembly. Dual Power Supplies required for high-capacity disk drives and SSD's. |
| AC input Power Voltage | 50 - 60 Hz |
| Weight (Fully Loaded) | 110 lbs |
| Dimensions | Height: 7.00" Width: 19.00" Depth: 24.00" |
| Temperature | Operating Temp: 50ºF to 104ºF Non-Operating Temp: -40ºF to 158ºF |
| Self-Encrypting Drives Supported | 4TB 7.2K NL-SAS 6TB 7.2K NL-SAS 800GB SSD + 6TB NL-SAS 7.2K AES-256 FIPS 140-2 Compliant |
| Operating Acoustic Noise | 7.0 bels LwAd (4 PCMs) |
| Relative Humidity |
Operating:20% to 80% noncondensing Non-operating:10% to 95% noncondensing |
| Altitude |
Operating:0 to 10,000ft (0 to 3,045m) Non-operating:-1000ft to 40,000ft (-305m to 12,192m) |
| Compatible Filers | FAS8080EX, FAS8060, FAS8040, FAS8020, FAS6290, FAS6280, FAS6250, FAS6240, FAS6220, FAS6210, F6080, FAS6040, FAS6070, FAS6030, FAS3250, FAS3220, FAS3270, FAS3240, FAS3210, FAS3170, FAS3160, FAS3140, FAS3070, FAS3040, FAS2554, FAS2552, FAS2520, FAS2240-4, FAS2240-2, FAS2220, FAS2040, V6220, V6250, V6290, V6210, V6240, V6280 |
| Alternate NetApp Part Number(s) | DS4246-07-.8-8-24M-0P-C DSK SHLF,4x800GB SSD,20x8TB,Mixed,0P,-C DS4246-07-.8-8-24M-1P-SK DSK SHLF,4x800GB SSD,20x8TB,Mixed,1P,-SK DS4246-07-.8-8-24M-QS DSK SHLF,4x800GB SSD,20x8TB,Mixed,-QS |
Other Configurations
| Associated Part No. | Configuration | Rack Units | Weight | Sound Power | Sound Pressure | Line Voltage Actual (Min to Max) | Amps Typical | Amps Worst | Watts Typical | Watts Worst | BTU/Hr Typical | BTU/Hr Worst |
| Quickship Half Populated | ||||||||||||
| DS4246-07-8-12B-QS | 12x8TB 7.2K NL-SAS | 4 | 66.4 lb (30.1 kg) | 6.9 Bels | 50 dBA | 100 (100 to 120) | 2.18 | 2.52 | 213 | 246 | 727 | 840 |
| DS4246-07-8-12B-QS | 12x8TB 7.2K NL-SAS | 4 | 66.4 lb (30.1 kg) | 6.9 Bels | 50 dBA | 200 (200 to 240) | 1.07 | 1.24 | 209 | 242 | 714 | 826 |
| DS4246-0712-12A-QS-R6 | 12x1.0TB 7.2K SATA | 4 | 61.7 lb (28.0 kg) | 6.9 Bels | 50 dBA | 100 (100 to 120) | 2.06 | 2.40 | 201 | 235 | 686 | 803 |
| DS4246-0712-12A-QS-R6 | 12x1.0TB 7.2K SATA | 4 | 61.7 lb (28.0 kg) | 6.9 Bels | 50 dBA | 200 (200 to 240) | 1.01 | 1.18 | 197 | 231 | 673 | 789 |
| DS4246-0724-12A-QS-R6 | 12x2.0TB 7.2K SATA | 4 | 61.7 lb (28.0 kg) | 6.9 Bels | 50 dBA | 100 (100 to 120) | 1.83 | 2.74 | 179 | 268 | 611 | 915 |
| DS4246-0724-12A-QS-R6 | 12x2.0TB 7.2K SATA | 4 | 61.7 lb (28.0 kg) | 6.9 Bels | 50 dBA | 200 (200 to 240) | .90 | 1.35 | 176 | 263 | 601 | 898 |
| DS4246-0736-12A-QS-R6 | 12x3.0TB 7.2K SATA | 4 | 62.6 lb (28.4 kg) | 6.9 Bels | 50 dBA | 100 (100 to 120) | 2.06 | 2.40 | 201 | 235 | 686 | 803 |
| DS4246-0736-12A-QS-R6 | 12x3.0TB 7.2K SATA | 4 | 62.6 lb (28.4 kg) | 6.9 Bels | 50 dBA | 200 (200 to 240) | 1.01 | 1.18 | 197 | 231 | 673 | 789 |
| DS4246-0748-12A-QS-R6 | 12x4.0TB 7.2K NL-SAS | 4 | 63.9 lb (29.0 kg) | 6.9 Bels | 50 dBA | 100 (100 to 120) | 2.14 | 2.48 | 209 | 243 | 714 | 830 |
| DS4246-0748-12A-QS-R6 | 12x4.0TB 7.2K NL-SAS | 4 | 63.9 lb (29.0 kg) | 6.9 Bels | 50 dBA | 200 (200 to 240) | 1.05 | 1.22 | 205 | 239 | 700 | 816 |
| DS4246-0772-12A-QS-R6 | 12x6.0TB 7.2K NL-SAS | 4 | 66.6 lb (30.2 kg) | 6.9 Bels | 50 dBA | 100 (100 to 120) | 2.16 | 2.49 | 211 | 244 | 721 | 833 |
| DS4246-0772-12A-QS-R6 | 12x6.0TB 7.2K NL-SAS | 4 | 66.6 lb (30.2 kg) | 6.9 Bels | 50 dBA | 200 (200 to 240) | 1.06 | 1.23 | 207 | 240 | 707 | 820 |
| Quickship Fully Populated | ||||||||||||
| DS4246-07-.8-6-24M-QS | 20x6.0TB,NSE,4x800GB,NSE,Mixed | 4 | 85.1 lb (38.6 kg) | 6.9 Bels | 50 dBA | 100 (100 to 120) | 3.43 | 3.78 | 336 | 370 | 1147 | 1263 |
| DS4246-07-.8-6-24M-QS | 20x6.0TB,NSE,4x800GB,NSE,Mixed | 4 | 85.1 lb (38.6 kg) | 6.9 Bels | 50 dBA | 200 (200 to 240) | 1.69 | 1.86 | 330 | 363 | 1127 | 1239 |
| DS4246-07-.8-8-24M-QS | 20x8TB,NL-SAS,4x800GB,SSD,Mixed | 4 | 87.7 lb (39.8 kg) | 6.9 Bels | 50 dBA | 100 (100 to 120) | 3.47 | 3.82 | 340 | 374 | 1161 | 1277 |
| DS4246-07-.8-8-24M-QS | 20x8TB,NL-SAS,4x800GB,SSD,Mixed | 4 | 87.7 lb (39.8 kg) | 6.9 Bels | 50 dBA | 200 (200 to 240) | 1.71 | 1.88 | 334 | 367 | 1140 | 1253 |
| DS4246-07-6-24N-QS | 24x6.0TB,NSE | 4 | 92.8 lb (42.1 kg) | 6.9 Bels | 50 dBA | 100 (100 to 120) | 3.80 | 4.14 | 372 | 405 | 1270 | 1383 |
| DS4246-07-6-24N-QS | 24x6.0TB,NSE | 4 | 92.8 lb (42.1 kg) | 6.9 Bels | 50 dBA | 200 (200 to 240) | 1.87 | 2.03 | 365 | 397 | 1246 | 1355 |
| DS4246-07-8-24B-QS | 24x8TB 7.2K NL-SAS | 4 | 92.2 lb (41.8 kg) | 6.9 Bels | 50 dBA | 100 (100 to 120) | 3.85 | 4.19 | 377 | 410 | 1287 | 1400 |
| DS4246-07-8-24B-QS | 24x8TB 7.2K NL-SAS | 4 | 92.2 lb (41.8 kg) | 6.9 Bels | 50 dBA | 200 (200 to 240) | 1.89 | 2.06 | 370 | 402 | 1263 | 1372 |
| DS4246-0724-24A-QS-R6 | 24x1.0TB 7.2K SATA | 4 | 110.0 lb (49.9 kg) | 6.7 Bels | 100 (100 to 120) | 4.42 | 4.41 | 438 | 439 | 1495 | 1499 | |
| DS4246-0724-24A-QS-R6 | 24x1.0TB 7.2K SATA | 4 | 110.0 lb (49.9 kg) | 6.7 Bels | 200 (200 to 240) | 2.27 | 2.21 | 424 | 429 | 1448 | 1465 | |
| DS4246-0724-24A-QS-R6 | 24x1.0TB 7.2K SATA | 4 | 110.0 lb (49.9 kg) | 6.7 Bels | 215 (200 to 240) | 1.90 | 2.10 | 409 | 452 | 1396 | 1543 | |
| DS4246-0748-24A-QS-R6 | 24x2.0TB 7.2K SATA | 4 | 101.0 lb (45.8 kg) | 6.7 Bels | 100 (100 to 120) | 4.62 | 4.72 | 458 | 469 | 1561 | 1599 | |
| DS4246-0748-24A-QS-R6 | 24x2.0TB 7.2K SATA | 4 | 101.0 lb (45.8 kg) | 6.7 Bels | 200 (200 to 240) | 2.42 | 2.42 | 456 | 470 | 1554 | 1602 | |
| DS4246-0772-24A-QS-R6 | 24x3.0TB 7.2K SATA | 4 | 99.2 lb (45.0 kg) | 6.7 Bels | 100 (100 to 120) | 4.60 | 4.95 | 456 | 495 | 1557 | 1690 | |
| DS4246-0772-24A-QS-R6 | 24x3.0TB 7.2K SATA | 4 | 99.2 lb (45.0 kg) | 6.7 Bels | 200 (200 to 240) | 2.38 | 2.50 | 448 | 483 | 1529 | 1649 | |
| DS4246-0772-24N-QS-R6 | 24x3.0TB 7.2K NSE | 4 | 99.2 lb (45.0 kg) | 6.7 Bels | 100 (100 to 120) | 4.60 | 4.95 | 456 | 495 | 1557 | 1690 | |
| DS4246-0772-24N-QS-R6 | 24x3.0TB 7.2K NSE | 4 | 99.2 lb (45.0 kg) | 6.7 Bels | 200 (200 to 240) | 2.38 | 2.50 | 448 | 483 | 1529 | 1649 | |
| DS4246-0796-24A-QS-R6 | 24x4.0TB 7.2K NL-SAS | 4 | 87.5 lb (39.7 kg) | 6.9 Bels | 50 dBA | 100 (100 to 120) | 3.77 | 4.12 | 369 | 403 | 1260 | 1376 |
| DS4246-0796-24A-QS-R6 | 24x4.0TB 7.2K NL-SAS | 4 | 87.5 lb (39.7 kg) | 6.9 Bels | 50 dBA | 200 (200 to 240) | 1.85 | 2.02 | 362 | 395 | 1236 | 1349 |
| DS4246-0796-24N-QS-R6 | 24x4.0TB 7.2K NSE | 4 | 87.5 lb (39.7 kg) | 6.9 Bels | 50 dBA | 100 (100 to 120) | 3.77 | 4.12 | 369 | 403 | 1260 | 1376 |
| DS4246-0796-24N-QS-R6 | 24x4.0TB 7.2K NSE | 4 | 87.5 lb (39.7 kg) | 6.9 Bels | 50 dBA | 200 (200 to 240) | 1.85 | 2.02 | 362 | 395 | 1236 | 1349 |
| DS4246-07A1-24A-QS-R6 | 24x6.0TB 7.2K NL-SAS | 4 | 92.8 lb (42.1 kg) | 6.9 Bels | 50 dBA | 100 (100 to 120) | 3.80 | 4.14 | 372 | 405 | 1270 | 1383 |
| DS4246-07A1-24A-QS-R6 | 24x6.0TB 7.2K NL-SAS | 4 | 92.8 lb (42.1 kg) | 6.9 Bels | 50 dBA | 200 (200 to 240) | 1.87 | 2.03 | 365 | 397 | 1246 | 1355 |
| DS4246-18TB-24M-QS-R6 | 18x1.0TB,6x100GB,Mixed | 4 | 92.2 lb (41.8 kg) | 6.7 Bels | 100 (100 to 120) | 3.41 | 3.91 | 335 | 386 | 1144 | 1318 | |
| DS4246-18TB-24M-QS-R6 | 18x1.0TB,6x100GB,Mixed | 4 | 92.2 lb (41.8 kg) | 6.7 Bels | 200 (200 to 240) | 1.84 | 2.11 | 331 | 388 | 1130 | 1325 | |
| DS4246-40TB-24M-QS-R6 | 20x2.0TB,4x200GB,Mixed | 4 | 80.3 lb (36.4 kg) | 6.9 Bels | 50 dBA | 100 (100 to 120) | 3.23 | 3.58 | 316 | 350 | 1079 | 1195 |
| DS4246-40TB-24M-QS-R6 | 20x2.0TB,4x200GB,Mixed | 4 | 80.3 lb (36.4 kg) | 6.9 Bels | 50 dBA | 200 (200 to 240) | 1.59 | 1.75 | 310 | 343 | 1058 | 1171 |
| DS4246-54TB-24M-QS-R6 | 18x3.0TB,6x100GB,Mixed | 4 | 92.2 lb (41.8 kg) | 6.7 Bels | 100 (100 to 120) | 3.72 | 4.11 | 368 | 406 | 1256 | 1386 | |
| DS4246-54TB-24M-QS-R6 | 18x3.0TB,6x100GB,Mixed | 4 | 92.2 lb (41.8 kg) | 6.7 Bels | 200 (200 to 240) | 2.14 | 2.25 | 397 | 418 | 1355 | 1427 | |
| DS4246-80TB-24M-QS-R6 | 20x4.0TB,4x200GB,Mixed | 4 | 83.8 lb (38.0 kg) | 6.9 Bels | 50 dBA | 100 (100 to 120) | 3.37 | 3.71 | 330 | 363 | 1127 | 1239 |
| DS4246-80TB-24M-QS-R6 | 20x4.0TB,4x200GB,Mixed | 4 | 83.8 lb (38.0 kg) | 6.9 Bels | 50 dBA | 200 (200 to 240) | 1.66 | 1.82 | 324 | 356 | 1106 | 1215 |
| DS4246-S-1.6-6-24N-QS | 20x6TB,NL-SAS,NSE,4x1.6TB,SSD,NSE,Mixed | 4 | 88.2 lb (40.0 kg) | 6.9 Bels | 50 dBA | 100 (100 to 120) | 3.41 | 3.75 | 334 | 367 | 1140 | 1253 |
| DS4246-S-1.6-6-24N-QS | 20x6TB,NL-SAS,NSE,4x1.6TB,SSD,NSE,Mixed | 4 | 88.2 lb (40.0 kg) | 6.9 Bels | 50 dBA | 200 (200 to 240) | 1.68 | 1.84 | 328 | 360 | 1120 | 1229 |
| DS4246-SL001-24M-QS-R6 | 20x2.0TB,4x400GB,Mixed | 4 | 92.2 lb (41.8 kg) | 100 (100 to 120) | 3.20 | 3.50 | 315 | 353 | 1075 | 1204 | ||
| DS4246-SL001-24M-QS-R6 | 20x2.0TB,4x400GB,Mixed | 4 | 92.2 lb (41.8 kg) | 200 (200 to 240) | 1.61 | 1.67 | 302 | 312 | 1030 | 1064 | ||
| DS4246-SL002-24M-QS-R6 | 20x4.0TB,4x400GB,Mixed | 4 | 92.2 lb (41.8 kg) | 100 (100 to 120) | 3.50 | 3.60 | 340 | 360 | 1160 | 1228 | ||
| DS4246-SL002-24M-QS-R6 | 20x4.0TB,4x400GB,Mixed | 4 | 92.2 lb (41.8 kg) | 200 (200 to 240) | 1.70 | 1.80 | 311 | 345 | 1061 | 1177 | ||
| DS4246-SL003-24M-QS-R6 | 20x6.0TB,4x400GB,Mixed | 4 | 95.7 lb (43.4 kg) | 100 (100 to 120) | 3.40 | 3.71 | 338 | 367 | 1153 | 1251 | ||
| DS4246-SL003-24M-QS-R6 | 20x6.0TB,4x400GB,Mixed | 4 | 95.7 lb (43.4 kg) | 200 (200 to 240) | 1.72 | 1.83 | 333 | 357 | 1136 | 1217 | ||
