Description

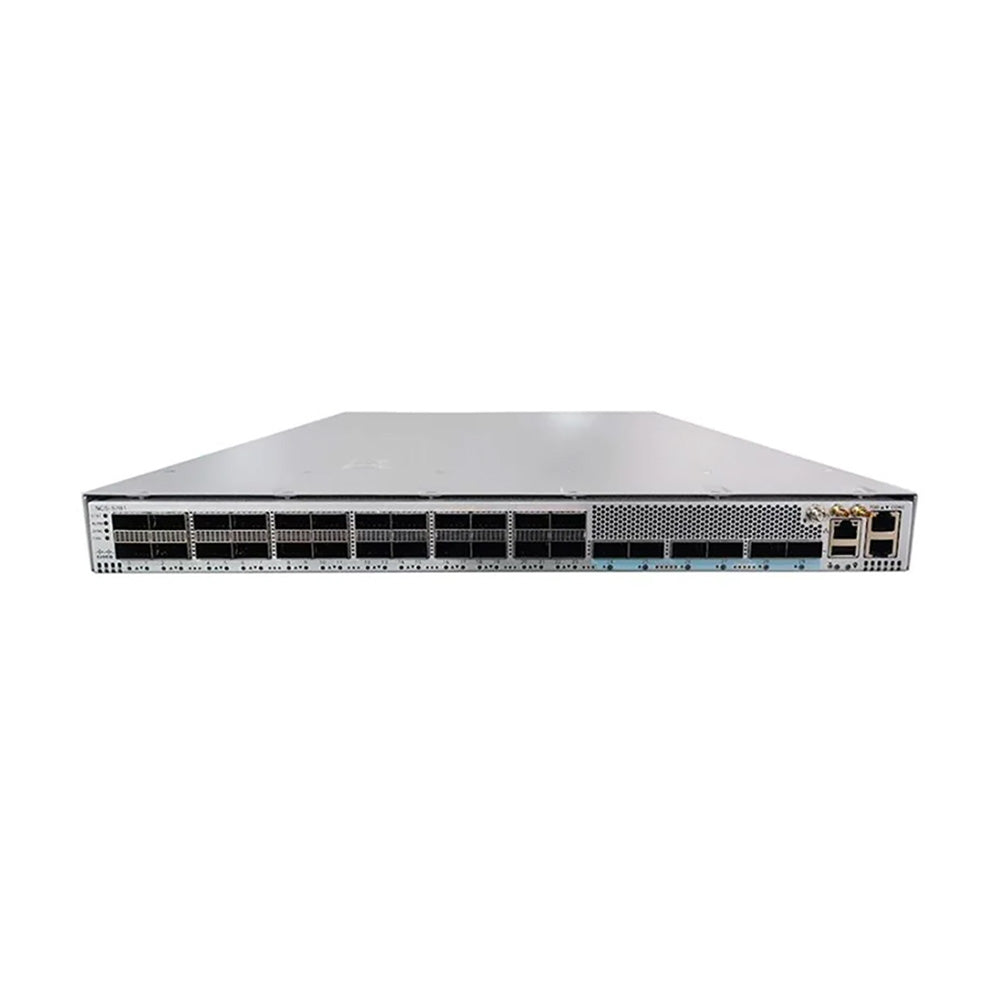

NCS-57B1-5D24H-SE Routers Overview
The Cisco NCS-57B1-5D24H-SE is a high-performance chassis designed to meet the demands of robust network environments. Equipped with 5x400G and 24x100G QSFP-DD ports, it offers exceptional scalability and flexibility for enterprises and data centers aiming to enhance their networking capabilities. With 6.4 Tbps forwarding capacity and sub-microsecond latency, this device ensures efficient and high-speed data handling. Its scalable design supports a variety of deployment needs, making it a perfect solution for large-scale networks. The NCS-57B1-5D24H-SE supports both AC/DC power supplies and provides high packet buffer capacity (30 MB per ASIC), ensuring reliable operation even in demanding environments. Designed with enterprise-grade reliability, this product is an excellent choice for service provider edge networks and data-intensive operations. Shop Cisco Routers like the NCS-57B1-5D24H-SE for advanced service provider edge network routers, delivering powerful and flexible network solutions tailored to meet the diverse needs of modern businesses.
Compare to Similar Items
Features |
NCS-57B1-5D24H-SE |
NCS-57C3-6B40H-SE |
NCS-55A1-24H-S |
N9K-C93180YC-FX |
NCS-540-24Z8Q2C-M |
N9K-C92160YC-X |
N3K-C3064PQ-10GE |
| Port Speed | 400G, 100G | 400G, 100G | 100G | 100G | 100G | 40G, 25G, 100G | 10G |
| Port Type | QSFP-DD | QSFP-DD | QSFP28 | SFP+/QSFP28 | SFP28/QSFP28 | QSFP28, SFP28 | SFP+ |
| Chassis Design | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed |
| Scalability | High | High | Medium | Medium | High | Medium | Low |
| Target Environment | Enterprise, Data Center | Enterprise, Data Center | Enterprise | Data Center | Enterprise, Data Center | Data Center | Enterprise |
Recommended Accessories
Model |
Description |
QSFP-DD-400G-SR8 |
400G QSFP-DD Module, Short Range |
QSFP-100G-SR4-S |
100G QSFP Module, Short Range |
NCS-FAN-220CFM |
Cooling Fan for NCS-Series |
Specifications
NCS-57B1-5D24H-SE Specifications |
|
| Brand | Cisco |
| Model | NCS-57B1-5D24H-SE |
| Fixed Scale Hardware | NCS57B1 |
| Port Configuration | 5x400G, 24x100G |
| Port Type | QSFP-DD |
| Operational Temperature Range | 0°C to 45°C |
| Operational Humidity Range | 10% to 90%, non-condensing |
| Storage Temperature | -40°C to 70°C |
| Storage Humidity Range | 5% to 95%, non-condensing |
| Power Supply Options | AC/DC |
| Input Voltage Range | 100-240V AC, 48-60V DC |
| Forwarding Capacity | 6.4 Tbps |
| Packet Buffer | 30 MB per ASIC |
| Latency | Sub-microsecond |
| Cooling | Front-to-back or back-to-front air flow |
| Redundancy | Power Supply and Fan Redundancy |
| MTBF | Over 500,000 hours |
| Compliance | RoHS-6, NEBS Level 3 |
| Management Interface | RJ-45, Console |
| Security Features | Sensitive Data Protection, Secure Boot |
