Description

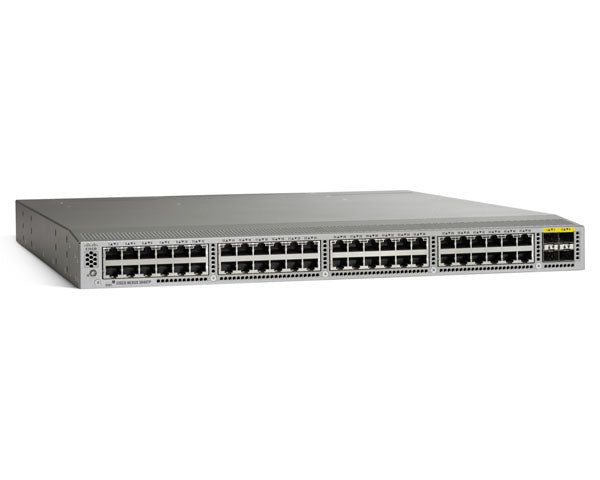

The N3K-C3048TP-1GE is a Cisco Nexus 3000 Series switch that delivers high-density Layer 2 and Layer 3 switching with exceptional performance. It is designed for top-of-rack (ToR) deployment in data center environments, offering consistent low latency and high scalability.
Technical Specifications
|
Condition
|
New/Never Used Surplus
|
| Brand |
Cisco
|
| Category |
|
| Part Number |
N3K-C3048TP-1GE
|
| Subcatecory |
|
| Switching Capacity |
176 Gbps |
Forwarding Rate
|
132 mpps |
| Line Rate Throughput |
Layer 2 and Layer 3, on all ports |
| Ports (RJ-45) |
48 x 10/100/1000 Mbps |
Uplink Ports
|
4 x 1/10 Gbps SFP+ |
| Form Factor |
1RU |
| Maximum MTU |
9216 bytes (jumbo frame support) |
| Power Supplies |
2 (redundant) |
| Fan Tray |
1 tray with redundant fans |
| Fixed Module |
1 I/O with console, management, USB ports |
| Dimensions |
1.72 x 17.3 x 19.7 in. (4.4 x 43.9 x 50.5 cm) |
| Weight |
20.5 lb (9.3 kg) |
Information About N3K-C3048TP-1GE
The N3K-C3048TP-1GE is a 1RU fixed-form-factor data center switch featuring 48 RJ-45 ports supporting 10/100/1000 Mbps and 4 uplink SFP+ ports supporting 1 or 10 Gbps. It offers line-rate Layer 2 and Layer 3 switching, delivering up to 176 Gbps switching capacity and a forwarding rate of 132 million packets per second (mpps). The switch supports jumbo frames with configurable MTUs up to 9216 bytes, making it ideal for modern high-throughput environments.
Key Features:
-
High Port Density: 48 x 1G RJ-45 ports plus 4 x 1/10G SFP+ uplinks for scalable deployments.
-
High Performance: 176 Gbps switching capacity and 132 mpps forwarding rate.
-
Layer 2 & Layer 3 Support: Full line-rate switching for both L2 and L3 traffic.
-
Robust Redundancy: Dual hot-swappable power supplies and a fan tray with redundant fans for increased reliability.
-
Large Frame Support: Jumbo frame capability with MTUs up to 9216 bytes for improved performance in high-volume traffic scenarios.
The N3K-C3048TP-1GE is built to meet the demands of next-generation data centers with flexibility, efficiency, and resilience.
