Description

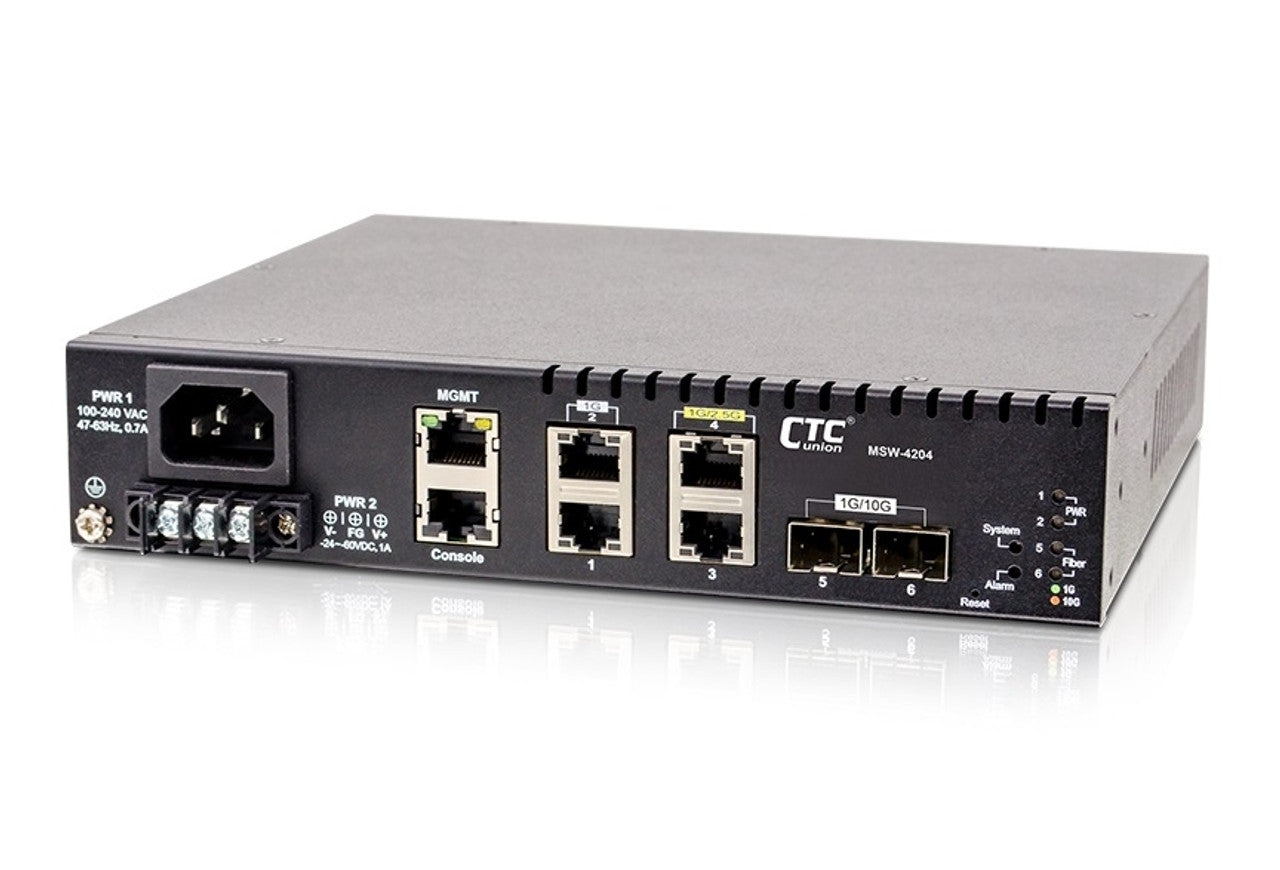

The next generation Carrier Ethernet Network Interface Device (NID) is designed for business class Ethernet connectivity. The MSW-4204 is equipped with 2 SFP+ slots, dual rate 1G/10Gbps and 4 ports Gigabit RJ45 network interfaces. It can be configured as either UNI or NNI device which are CE(Carrier Ethernet) 2.0 compliant for Metro Ethernet network deployments.
The MSW-4204 is positioned as an universal network interface device (NID) for most carrier Ethernet access applications. It has built-in hardware based Ethernet OAM engine and is compliant to the latest OAM standards to deliver the committed SLA performance KPIs measurement on a per service basis.
Highlights
- MEF 9, MEF 14: EPL and EVPL
- Support 16K MAC
- Spanning Tree 802.1D, 802.1s, 802.1w
- Support IEEE 802.1Q tagged VLAN (4K VLAN groups)IEEE 802.1ad QinQ VLAN, Voice VLAN; MAC based VLAN; Protocol based VLAN;
- IP subnet based VLAN;Private VLAN for port isolation; VLAN translation;GVRP
- Double VLAN Tagging (C-tag/S-tag) (IEEE 802.1ad)
- support for ISP application
- Various QoS capability (MAC/port/802.1p/Diffserv)
- Port-based rate limiting
- DHCP Snooping
- IGMP Snooping
- IPv6 support
- 802.3x and 802.1x support
- Jumbo frame for up to 10K
-
Extensive OAM support
- IEEE 802.3ah
- IEEE 802.1ag
- ITU-T Y.1731
- RFC2544
- ITU-T Y.1564 - SNMP v1/v2c/v3, Telnet, Web GUI
Technical specifications
| Interfaces: | Four RJ45 copper IEEE 802.3 10Base-T, 802.3u 100Base-TX, 802.3ab 1000Base-T and two SFP+ slots for 802.3z 100/1000Base- SX/LX/ZX standards |
| Connectors: | 4 x RJ-45 copper 10/100/1000 Mbps and 2 x SFP+ slot 1G/10G, DB9 RS232 serial console for management |
| UTP ports: | MDI/MDI-X, auto-negotiation, Full/Half Duplex, max. packet 9.6Kbytes (Jumbo support) |
| Optical slot: | Small Form Pluggable - supports Auto and Forced mode operation and dual rate 1G and 10G Base-X operation |

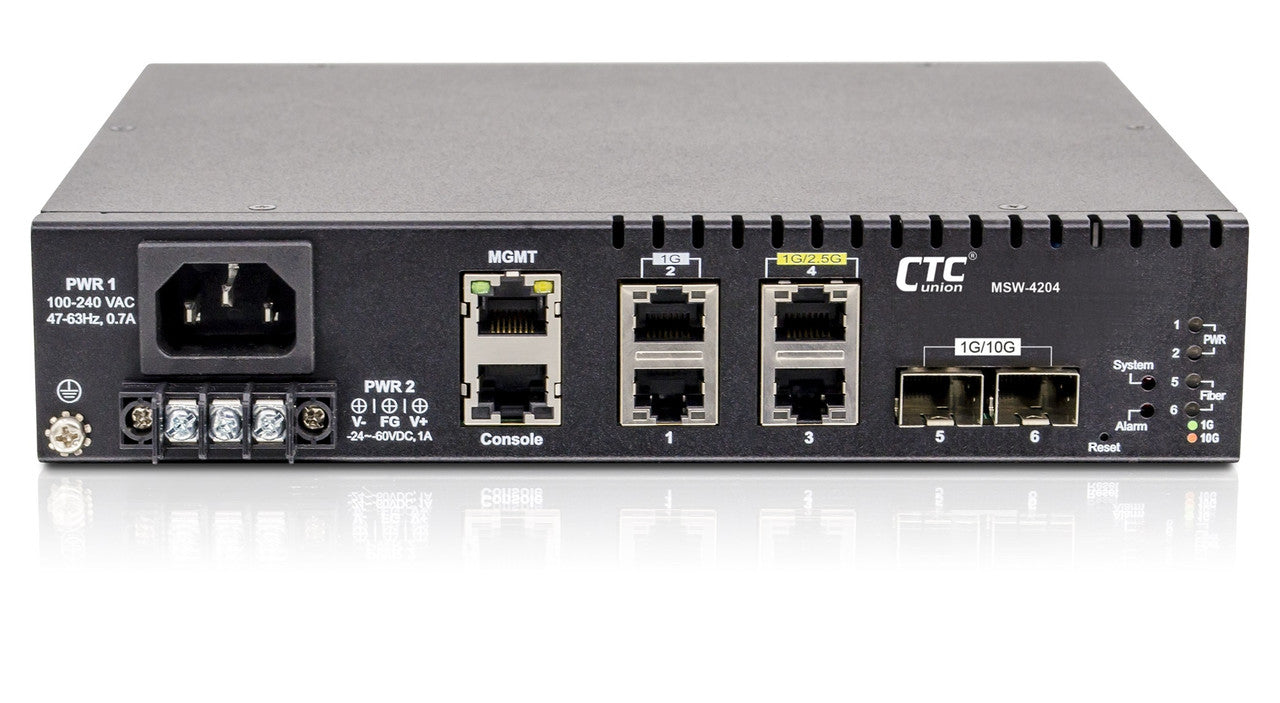

| Front LEDs: | FEF, Fiber Link 1, Fiber Link 2, ACT, Link 3, Link 4 |
| Power: | Internal 90-260V AC switching power supply, 3 pin IEC connector C14, AC power cord C13 with US style main plug included in package; DC48V 3 screw block connector |
| Temperature: | 0~50°C (Operating); -20~80°C (Storage) |
| Humidity: | 10~90% non condensing (Operating); 0 90% (Storage) |
| Consumption: | less than 20W |
| Dimensions(WxDxH): | 215mm x 190mm x 44mm |
| Weight: | 780g (without power cord) |
| Compliance: | CE, FCC Class A |
| MTBF: | 65,000 hours |
Additional information on MSW-4204-AD EDD 10G/Gigabit switch:
PDF Datasheet.
