MSOA-1310 Semiconductor Optical Amplifier – 1310nm O-Band, 14-Pin Butterfly
Cost-Effective O-Band Amplification for 40G/100G Optical Systems
The MSOA-1310 Semiconductor Optical Amplifier delivers high-performance O-band amplification in a compact, cost-efficient package—perfect for 40G and 100G telecom applications. Built on proven semiconductor laser and packaging technology, it offers a low-cost alternative to traditional fiber amplifiers, with support for operation across the 1280–1330nm wavelength range.
This SOA is ideal for boosting high-speed signals over short and medium distances. With up to 18 dB gain, <2 dB polarization dependence, and 8.5 dBm saturation output power, the MSOA-1310 provides reliable, efficient amplification while minimizing noise. Housed in a standard 14-pin butterfly package, it includes FC/APC-terminated SMF-28 fiber pigtails and built-in TEC cooling for stable performance in demanding environments.
🔧 Key Features
-
O-Band (1310nm) Amplification for 40G and 100G networks
-

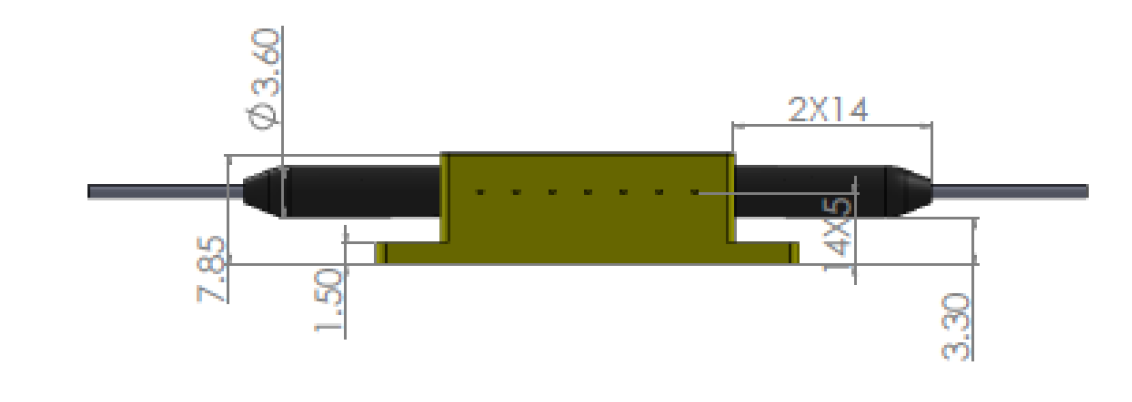

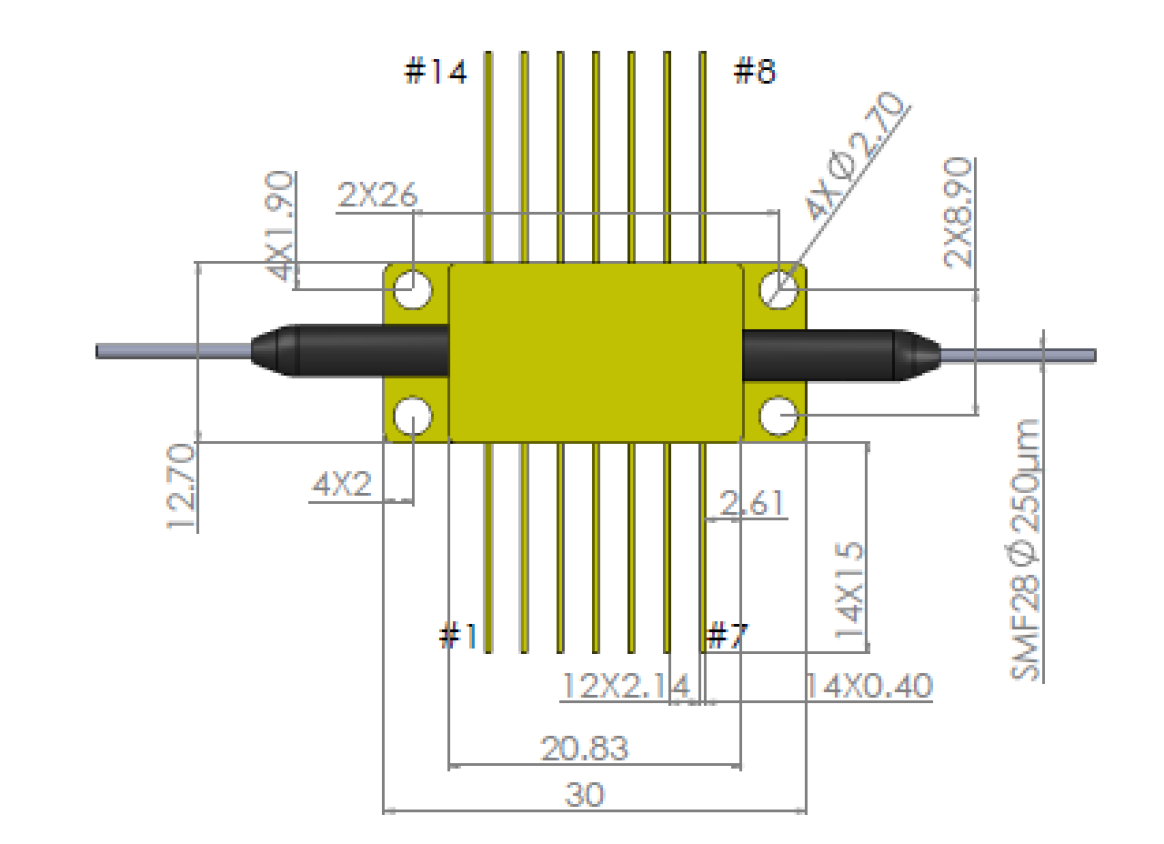

Standard 14-Pin MSA Butterfly Package
-
High Optical Gain: Up to 18 dB
-
Saturation Output Power: Up to 8.5 dBm
-
Low Noise Figure: As low as 6.5 dB
-
Minimal Polarization Dependence: < 2.0 dB
-
FC/APC Connectorized >1m SMF-28 Fiber Pigtails
-
Integrated Thermoelectric Cooler (TEC) for temperature stability
📐 Technical Specifications
| Parameter |
Symbol |
Min |
Typ |
Max |
Unit |
Notes |
| Case Operating Temp. |
Tcase |
-15 |
|
65 |
°C |
T = 25°C, IF = 200 mA |
| Storage Temperature |
Tstg |
-40 |
|
+85 |
°C |
|
| Forward Current |
IF |
150 |
250 |
350 |
mA |
350 mA absolute max |
| Reverse Voltage |
VREV |
|
|
2 |
V |
|
| Operation Wavelength |
λ |
1280 |
|
1330 |
nm |
O-band |
| Gain Bandwidth (3 dB) |
BW |
|
45 |
|
nm |
|
| Gain |
G |
|
18 |
|
dB |
|
| Gain Ripple |
ΔG |
0.2 |
0.5 |
|
dB |
|
| 3 dB Saturation Output Power |
P3dB |
|
|
8.5 |
dBm |
|
| Polarization Dependent Gain |
PDG |
|
1.0 |
2.0 |
dB |
|
| Optical Noise Figure |
NF |
|
6.5 |
7.5 |
dB |
|
| Forward Voltage |
VF |
|
2.5 |
|
V |
|
| Thermistor Resistance |
R |
9.5 |
10 |
10.5 |
kΩ |
At 25°C |
| Cooler Current |
Icool |
|
1.1 |
1.5 |
A |
|
| Cooler Voltage |
Vcool |
|
3.0 |
3.7 |
V |
|
| Fiber Bending Radius |
R |
|
|
35 |
mm |
|
| Fiber to Case Tensile Strength |
F |
|
|
5 |
N |
|
