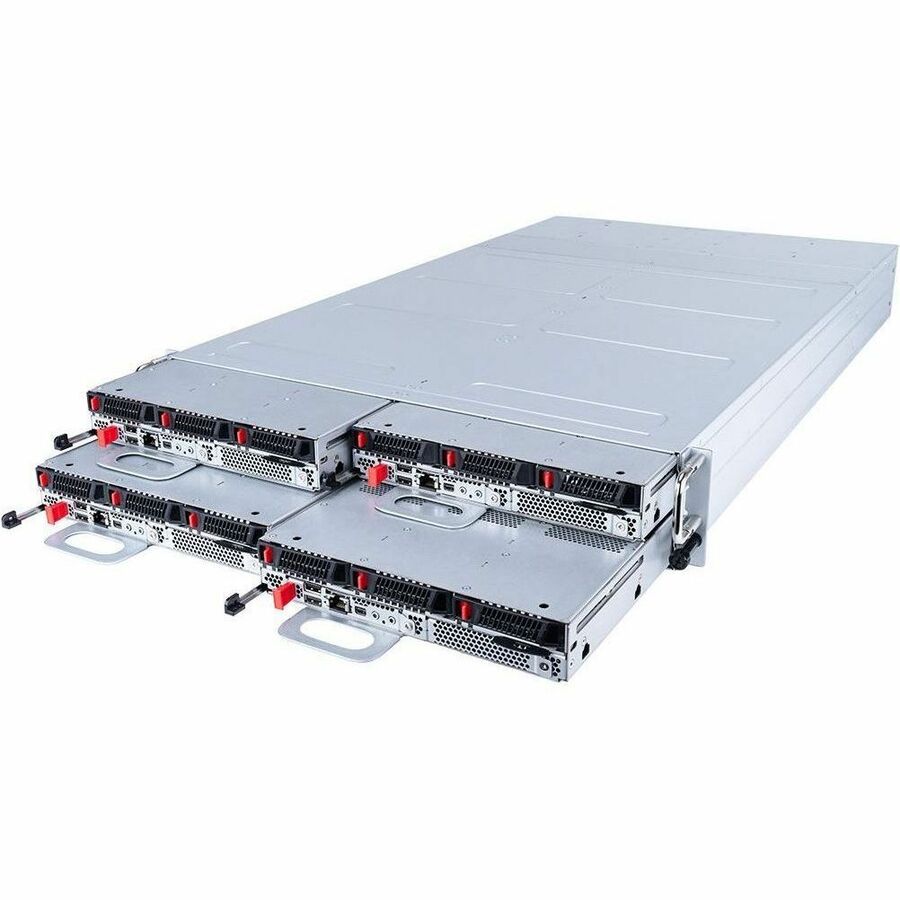

The MSI S4051D270RAU3-X4 (part of the CD270-S4051-X4 series) is a high-density 2U 4-node compute server built on the DC-MHS architecture. It is optimized for maximum rack density in cloud environments and throughput-heavy applications.

• 2U4N (DC-MHS architecture)

• Single AMD EPYC™ 9004/9005 Series processor, up to TDP 400W, per node

• (12) DDR5 RDIMM, 12 channels(1DPC), up to 6400MT/s, per node

• (3) Front hot-swap 2.5" U.2 PCIe 5.0 x4 NVMe drive bays per node

• (2) 2280/22110 PCIe 3.0 x2 NVMe M.2 ports per node

• (1) 1000Base-T Dedicated Server Management port per node with:

• ASPEED AST2600 with IPMI 2.0 & DMTF Redfish support

• Dual BIOS & BMC

• TPM2.0 and Hardware Root of Trust module are supported as optional

Product Specification:

Package Contents: S4051D270RAU3-X4 Barebone Systems 1 x Quick guide 1 x Slide rail Kit 4 x CPU Coolers 2 x CRPS PSUs
Product Type: Barebone System
Input Voltage: 120 V AC,230 V AC
Manufacturer Website Address: http://www.msi.com
Maximum Memory Supported: 256 GB
Packaged Quantity: 1
Form Factor: Rack-mountable
Manufacturer: MSI
Product Name: S4051D270RAU3-X4 Barebone Systems
Processor Supported: EPYC
Controller Type: NVMe
Processor Socket: Socket SP5 LGA-6096
Rack Height: 2U
Brand Name: MSI
Plug/Connector Type: C19
Memory Technology: DDR5 SDRAM
64 Bit Processing: Yes
Thermal Design Power: 400 W
Processor Manufacturer: AMD
Chipset Manufacturer: AMD
Graphics Controller Manufacturer: ASPEED
Number Of Power Supplies Installed: 2
Graphics Memory Accessibility: Dedicated
Number Of Processors Supported: 1
Ethernet Technology: Gigabit Ethernet
Number Of Total Expansion Bays: 3
Number Of Pci Express X4 Slots: 3
Number Of Pci Express X16 Slots: 1
Number Of Network (Rj 45) Ports: 1
Network (Rj 45): Yes
Maximum Power Supply Wattage: 2700 W
Total Number Of Usb Ports: 2
Number Of 2.5" Bays: 3
Total Number Of Expansion Slots: 4
Mini Displayport: Yes
Number Of M.2 Interfaces: 2
Total Number Of Memory Slots: 12
Energy Efficiency Compliance: Energy-related Products Directive (ErP)
Environmental Compliance: Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE)
Feature1: 2U4N (DC-MHS architecture)
Feature2: Single AMD EPYC™ 9004/9005 Series processor, up to TDP 400W, per node
Feature3: (12) DDR5 RDIMM, 12 channels(1DPC), up to 6400MT/s, per node
Feature4: (3) Front hot-swap 2.5" U.2 PCIe 5.0 x4 NVMe drive bays per node
Feature5: (2) 2280/22110 PCIe 3.0 x2 NVMe M.2 ports per node
Feature6: (1) 1000Base-T Dedicated Server Management port per node with:
Feature7: ASPEED AST2600 with IPMI 2.0 & DMTF Redfish support
Feature8: Dual BIOS & BMC
Feature9: TPM2.0 and Hardware Root of Trust module are supported as optional
