Overview

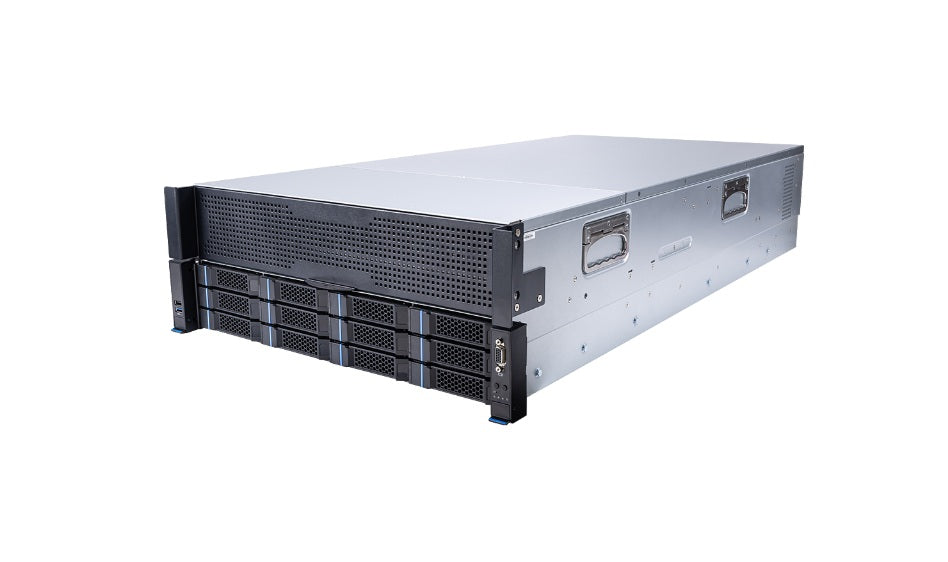

The MSI G4201RAS10U2-P4-Pt is a high-density 4U Rackmount GPU Server barebone designed for high-performance computing (HPC), AI training, and visual computing workloads. It is engineered to support up to eight dual-slot GPUs and features a switchless topology where all expansion slots are directly connected to the dual CPU sockets for low-latency performance.
Specifications
Model Number: G4201RAS10U2-P4-Pt
Brand:MSI
Alt Part Number(s): G4201RAS10U2-P4-Pt
Product Type: GPU Server
Technical Description
Brand:MSI
Model Number: G4201RAS10U2-P4-Pt
Series: G4201
Processor Type:Dual Intel Xeon Scalable
Processor Socket: 2 x Intel LGA4677
Processor Core: 128-Core/256 Threads
Processor 4th Gen Speed: 4800 MT/s (1DPC), 4400 MT/s (2DPC)
Processor 5th Gen Speed: 5600 MT/s (1DPC), 4400 MT/s (2DPC)
Processor Power: 350W
Chipset Type: Intel C741
Motherboard: MS-S370
Networking: (1)1000Base-T Ethernet port (Intel I210AT)
Drive Bays: (12) Hot-swap 3.5"/2.5" drive bays (2) U.2 PCIe 4.0 NVMe + (10) SATA 3.0
Internal Storage: (2) M.2 2280/22110 PCIe 3.0 x2 from PCH
Graphics Controller: ASPEED AST2600
GPU Model: NVIDIA RTX 6000 Ada Generation or L40S PCIe cards
Memory Capacity: 256GB Per Slot
Memory Supported: 8TB
Memory Technology: DDR5
Memory channels: 16 Channels
Memory Slots: 32 x DIMM
Expansion Slots: (8) PCIe 4.0 x16 FHFL slots
Cooling: (6) 6038, (4) 8038 rear Hot-swap fans, (8) 8038 Internal fans
Power Supply: (3+1) Redundant 2000W CRPS 80PLUS Platinum
Form Factor: 4U Rackmount/GPU Server
*
