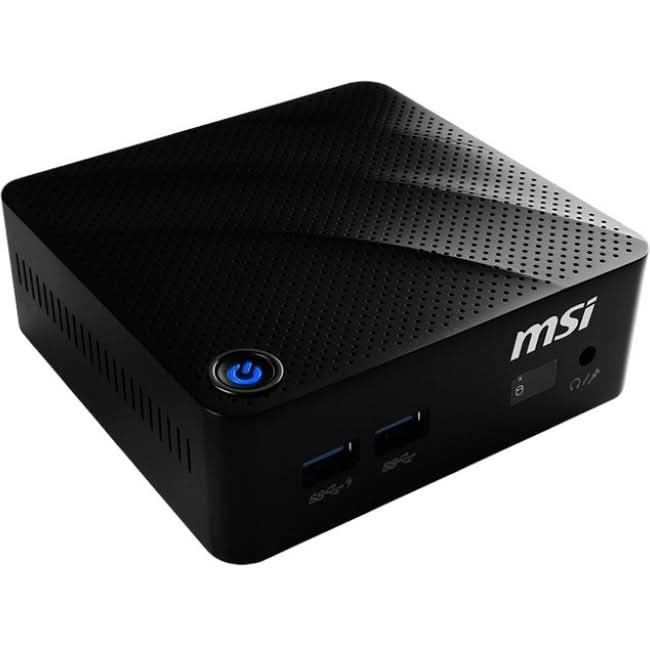

MSI CUBINADL020B Cubi N ADL-020BUS NUC Intel Celeron Mini PC Barebone System
Resilient and Pioneering | Spirit of Your Business
Your business should be empowered to stop at nothing while navigating your journey with the MSI Business & Productivity Series products.
Small But Powerful
Compact and versatile, this 0.66-liter mini PC is ideal for small workspaces, home entertainment sets, and a variety of industries.
Efficient and Stable: Cubi N, the Energy-Saving Solution.
With built-in UHD Graphics, 4 cores, and 4 threads, Cubi N save more power and energy source while satisfying your usage requirements with only 6W TDP.
Support up to Three Displays in 4K Resolution
With HDMI™, DP, and Type-C port, Cubi N allows you to extend to three monitors to preview your E-commerce content & data at home or in the office, enhancing your efficiency.
Limitless Wireless Connection | MSI Cloud Center + Wifi
Fast, secure, and wireless backup & download between your PC and mobile devices. Transfer files, phot
- DDR4 SDRAM compatible slot - Allows the memory to operate at an effective bus speed while using minimal power, resulting in an optimal computer performance and improved memory heat dissipation
- Gigabit Ethernet is very resourceful when a large number of file transfers are required, such as when performing backups over a network
- With 5 USB ports, connect/disconnect devices while not having to shut down the system
- Serial ATA interface provides quick data transfer and greater throughput
Product Specification:
|
Package Contents:
- Cubi N ADL-020BUS Barebone System
- AC Adapter
|
| Product Type: Barebone System |
| Manufacturer Part Number: CUBINADL020B |
| Manufacturer Website Address: http://www.msi.com |
| Maximum Memory Supported: 64 GB |
| Limited Warranty: 1 Year |
| Weight (Approximate): 1 lb |
| Manufacturer: MSI |
| Product Model: Cubi N ADL-020BUS |
| Product Name: Cubi N ADL-020BUS Barebone System |
| Processor Type: N-series |
| Product Line: Cubi N ADL |
| Controller Type: Serial ATA |
| Processor Socket: Socket BGA-1264 |
| Brand Name: MSI |
| Operating System Supported: Windows 10 Home,Windows 10 Pro |
| Memory Technology: DDR4 SDRAM |
| Processor Model: N100 |
| Processor Core: Quad-core (4 Core) |
| Environmentally Friendly: Yes |
| Thermal Design Power: 6 W |
| Chipset Manufacturer: Intel |
| Graphics Controller Model: UHD Graphics |
| Wireless Lan: Yes |
| Number Of Sata Interfaces: 1 |
| Graphics Memory Technology: DDR4 SDRAM |
| Graphics Memory Accessibility: Shared |
| Wireless Lan Standard: IEEE 802.11ac |
| Number Of Processors Supported: 1 |
| Number Of Processors Installed: 1 |
| Ethernet Technology: Gigabit Ethernet |
| Number Of Total Expansion Bays: 1 |
| Number Of Network (Rj 45) Ports: 2 |
| Network (Rj 45): Yes |
| Maximum Power Supply Wattage: 65 W |
| Displayport: Yes |
| Total Number Of Usb Ports: 5 |
| Maximum Turbo Speed: 3.40 GHz |
| Number Of M.2 Interfaces: 1 |
| Hdmi (Rear): Yes |
| Product Color: Black |
| Number Of Usb 3.2 Gen 1 Ports: 2 |
| Color Family: Black |
| Number Of Usb 3.2 Gen 2 Type C Ports: 1 |
| Total Number Of Memory Slots: 2 |
| Feature1: DDR4 SDRAM compatible slot - Allows the memory to operate at an effective bus speed while using minimal power, resulting in an optimal computer performance and improved memory heat dissipation |
| Feature2: Gigabit Ethernet is very resourceful when a large number of file transfers are required, such as when performing backups over a network |
| Feature3: With 5 USB ports, connect/disconnect devices while not having to shut down the system |
| Feature4: Serial ATA interface provides quick data transfer and greater throughput |
*
