Description

The Siemens MSI-B6F is an intelligent manual fire alarm station designed for use with FireFinder XLS and MXL fire alarm control panels. Built with microcomputer technology, it provides addressable supervision, reset capability with a key, and reliable pull activation in emergency situations.

Technical Specifications

Information About MSI-B6F

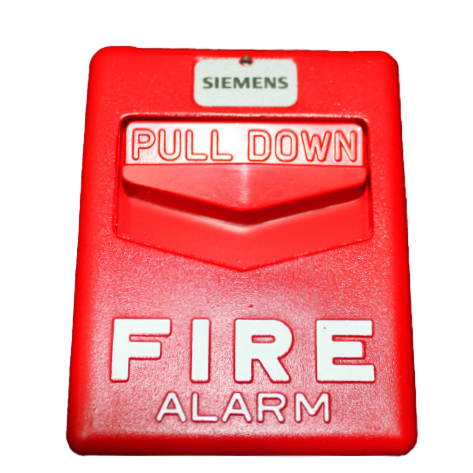

The MSI-B6F is a Siemens intelligent manual fire alarm pull station, developed for integration with FireFinder XLS and MXL fire alarm control panels. Unlike conventional pull stations, this model uses a built-in microcomputer chip for address programming and device supervision, enhancing reliability and system integrity. It supports both surface and semi-flush installations with a durable metal housing for rugged use. Designed with a key reset mechanism and optional break-rod activation, the MSI-B6F provides a secure, code-compliant solution for life-safety applications.

Key Features:

• Intelligent Communication: Bi-directional data exchange with FireFinder XLS and MXL FACPs.
• Microcomputer Technology: Stores identification and operational status data for enhanced reliability.
• Durable Housing: Constructed with metal for strength and long-term use.
• Flexible Installation: Supports both surface-mounted and semi-flush configurations.
• Activation Method: Manual pull action with optional break-rod feature.
• Reset Capability: Resettable via key for secure and quick system restoration.
• Wiring: Operates as a 2-wire intelligent initiating device.
• Approvals: UL Listed, USCG, and FM approved for compliance with safety standards.
• Compact Dimensions: Sized at 7 x 7 x 6 in and weighing 2 lbs for easy handling.

The MSI-B6F delivers the reliability and precision required for modern addressable fire alarm systems, combining rugged construction with advanced intelligent communication.
