Description

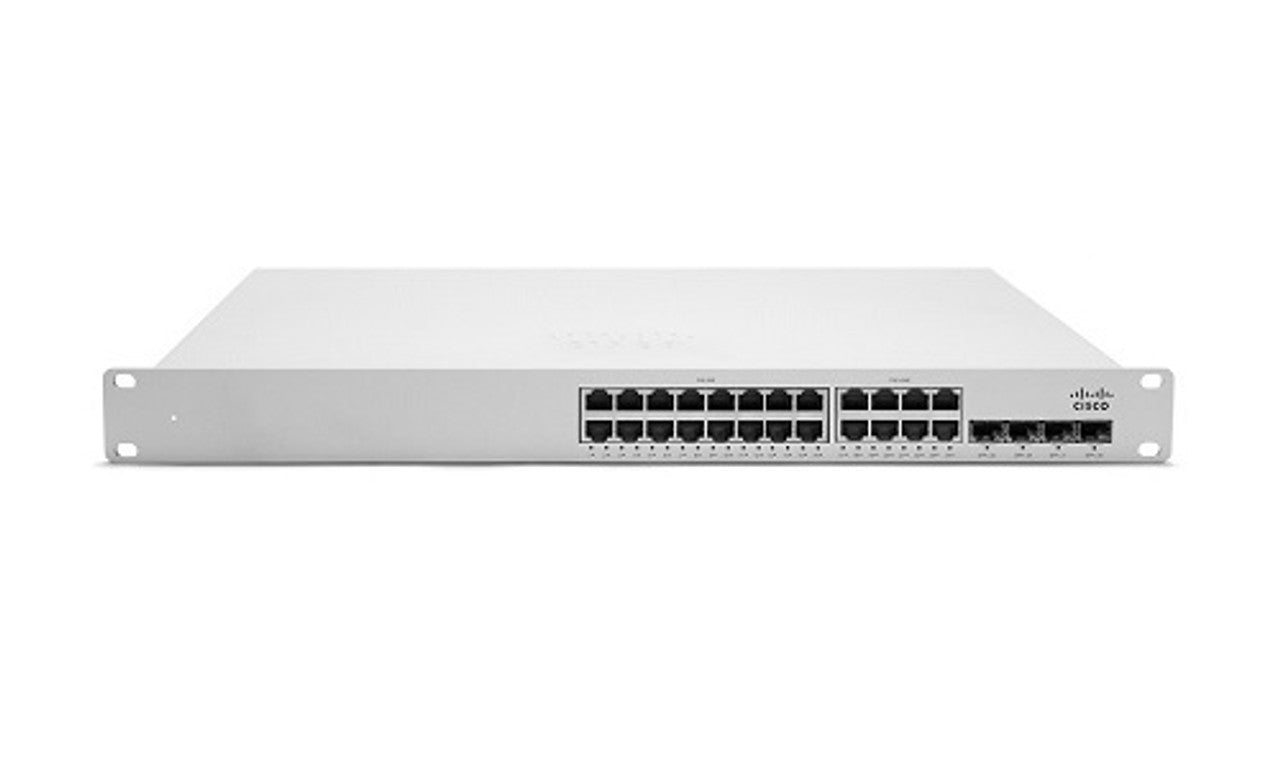

The Cisco Meraki MS350-24X-HW is a cloud-managed Layer 3 access switch offering next-generation multigigabit Ethernet, stacking capabilities, and robust PoE+ power support. With its combination of high throughput and flexible uplink options, it is ideal for high-performance enterprise edge deployments.





Technical Specifications

Condition	New/Never Used Surplus
Brand	Cisco
Category	Networking
Part Number	MS350-24X-HW
Subcatecory	Managed Switches – Layer 3
Ports	16 x 1G RJ45, 8 x 100M–10G RJ45, 4 x 10G SFP+, 2 x stacking
Switching Capacity	272 Gbps
Stacking Bandwidth	160 Gbps
PoE+ Power Budget	740 W
Power Supply	1 x MA-PWR-1025WAC (Included), Optional 2 x 1025W PSU
Idle / Full Load Power	215 W / 867 W
Cooling	2 x Pre-Installed Fans
Form Factor	1U Rack-Mountable
Dimensions (W x D x H)	1.74” x 19.08” x 23.4” (4.44 cm x 48.46 cm x 59.47 cm)
Weight	14.48 lb (6.6 kg)





Information About MS350-24X-HW

The MS350-24X-HW provides 24 total Ethernet ports, including:

• 16 x 1G RJ45 ports

• 8 x multigigabit RJ45 ports (100M/1G/2.5G/5G/10G)

• 4 x 10G SFP+ uplink ports

• 2 x dedicated stacking ports (for 160 Gbps bandwidth)

Designed for performance and scalability, this switch supports a switching capacity of 272 Gbps and includes hot-swappable power supplies to minimize downtime. It ships with one 1025W power supply (MA-PWR-1025WAC) and can support up to 740W of PoE+ power, making it capable of powering a wide range of devices, including wireless access points, phones, and cameras.

Key Features:

• 24-Port Configuration with Multigigabit Support: Includes 8 ports up to 10G

• 272 Gbps Switching Capacity: Delivers wire-speed performance

• PoE+ Power Budget (740W): Supports high-power devices across the network

• Cloud-Managed via Meraki Dashboard: Intuitive visibility and remote control

• Hot-Swappable Power Supplies: Simplifies maintenance and supports high availability

The MS350-24X-HW is engineered to meet the growing bandwidth and power demands of enterprise access networks.
