Description

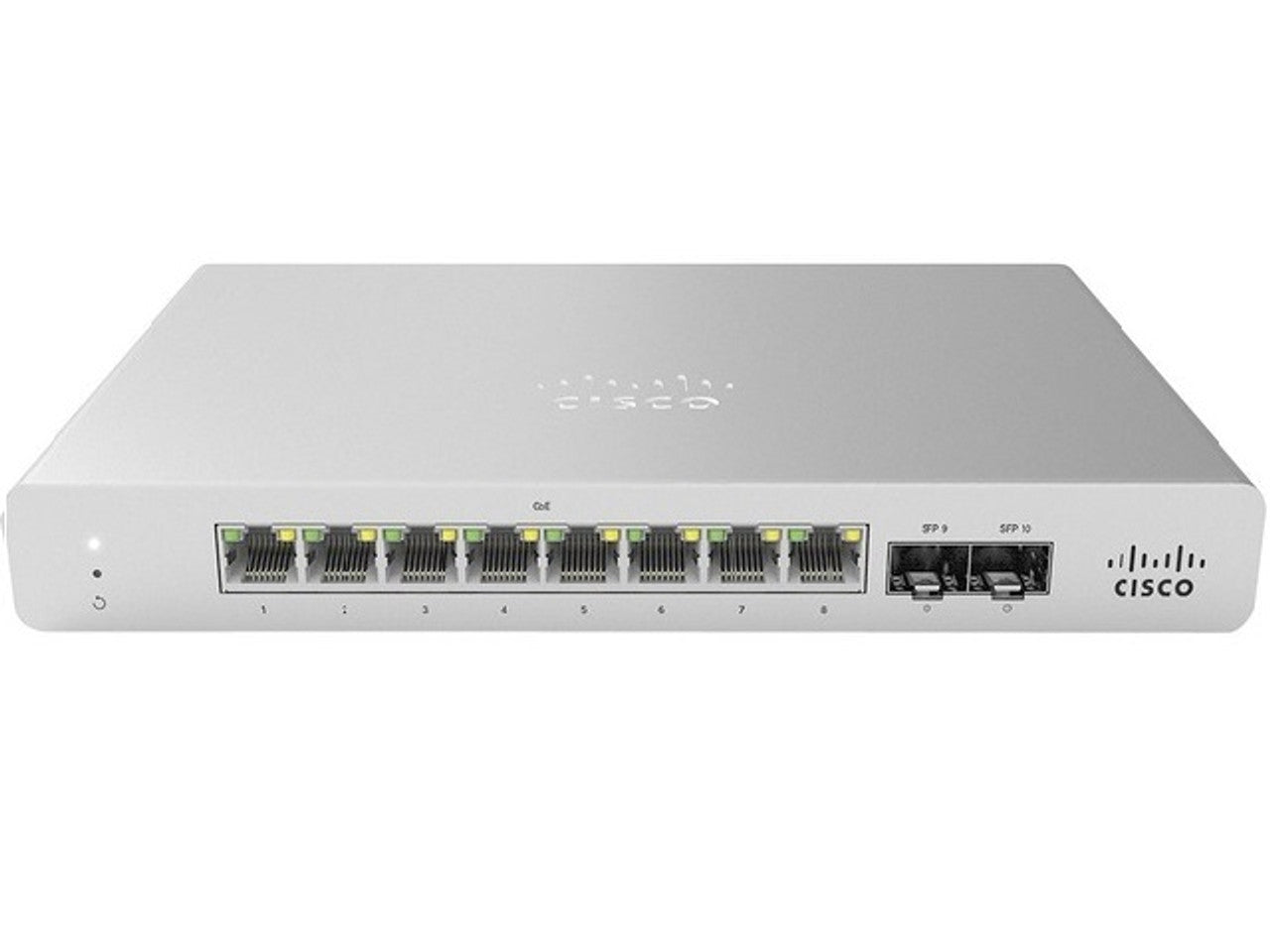

The MS120-8LP is a compact, cloud-managed Layer 2 switch from Cisco Meraki, designed for small-scale network deployments. It offers seamless integration, centralized management, and PoE+ support for powered devices.





Technical Specifications

Condition	New/Never Used Surplus
Brand	Cisco
Category	Network Switches
Part Number	MS120-8LP
Subcatecory	Cloud-Managed PoE Switches
Interfaces	8 x 10/100/1000BASE-T (PoE+), 2 x 1GbE SFP
Switching Capacity	20 Gbps
PoE+ Budget	67 W
Power Supply	External (MA-PWR-90WAC, 54V/1.67A, 90W)
Power Consumption	7W (idle), 88W (full load)
Form Factor	Compact
Dimensions (W x H x D)	1.1 x 8.74 x 5.91 in (2.8 x 22.2 x 15 cm)
Shipping Weight	2.76 lb (1.25 kg)





Information About MS120-8LP

The MS120-8LP is part of Cisco Meraki’s MS120 series, engineered for reliability, simplicity, and cloud-based control. Designed with compactness in mind, it is ideal for deployments in retail, hospitality, and branch offices. It features eight 10/100/1000BASE-T Ethernet ports with PoE+ support and two 1GbE SFP uplink ports, delivering a total switching capacity of 20 Gbps. With 67W of PoE+ budget, it can support multiple VoIP phones, access points, or other powered devices. The switch uses an external 90W power adapter and includes mounting hardware for convenient installation.

Key Features:

• Compact and Cloud-Managed: Fully managed through Cisco Meraki’s intuitive cloud dashboard for streamlined network administration.

• PoE+ Support: Offers 67W total PoE+ power across 8 ports to support IP phones, access points, and cameras.

• High Performance: Delivers 20 Gbps of switching capacity for fast and reliable data transmission.

• Flexible Uplinks: Equipped with 2 x 1GbE SFP uplink ports for extended network connectivity.

• Low Power Consumption: Idle power draw of just 7W, with full load reaching 88W for energy efficiency.

The MS120-8LP provides a cost-effective and reliable solution for small-scale networking needs with the benefits of centralized cloud management.
