Description

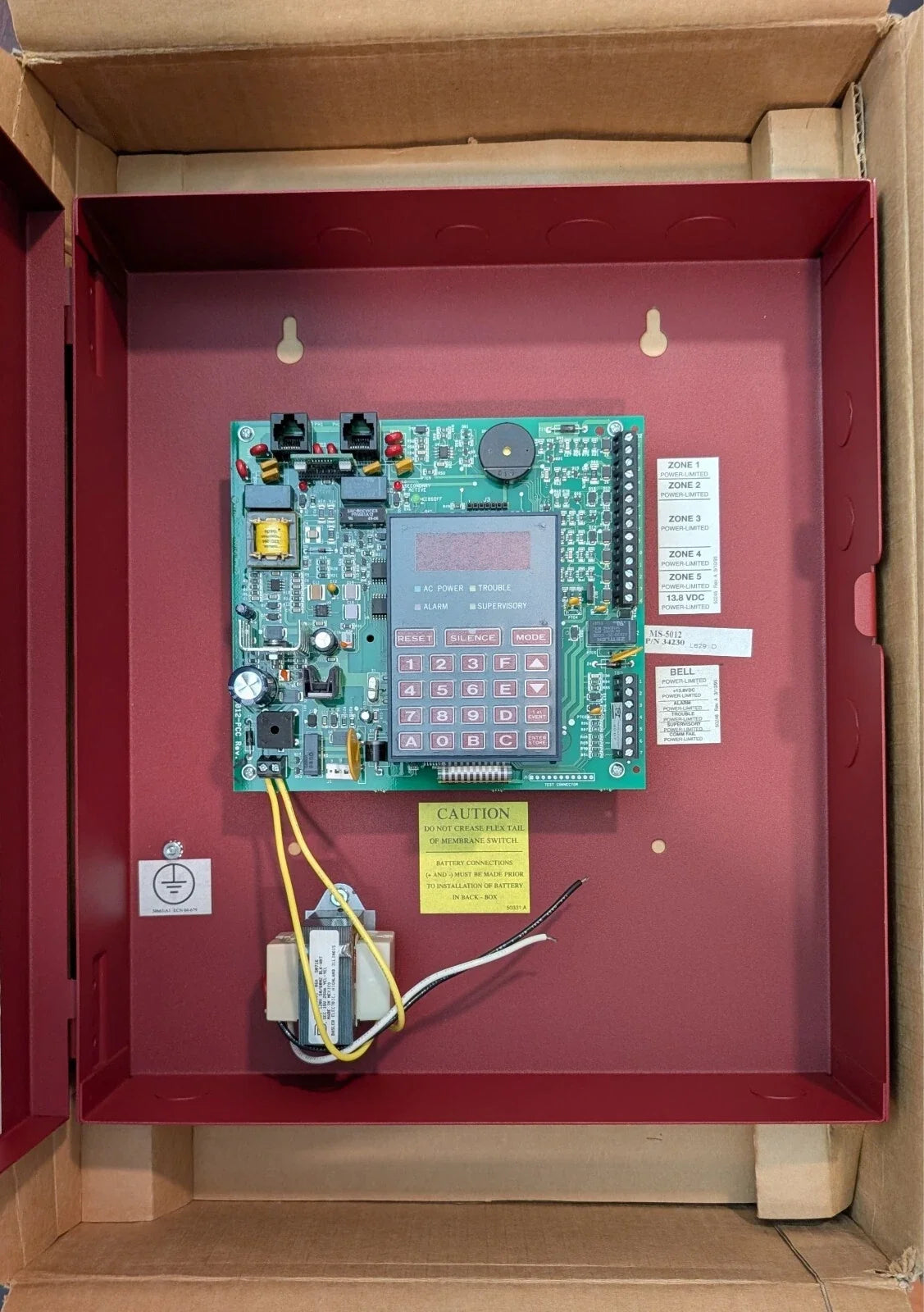

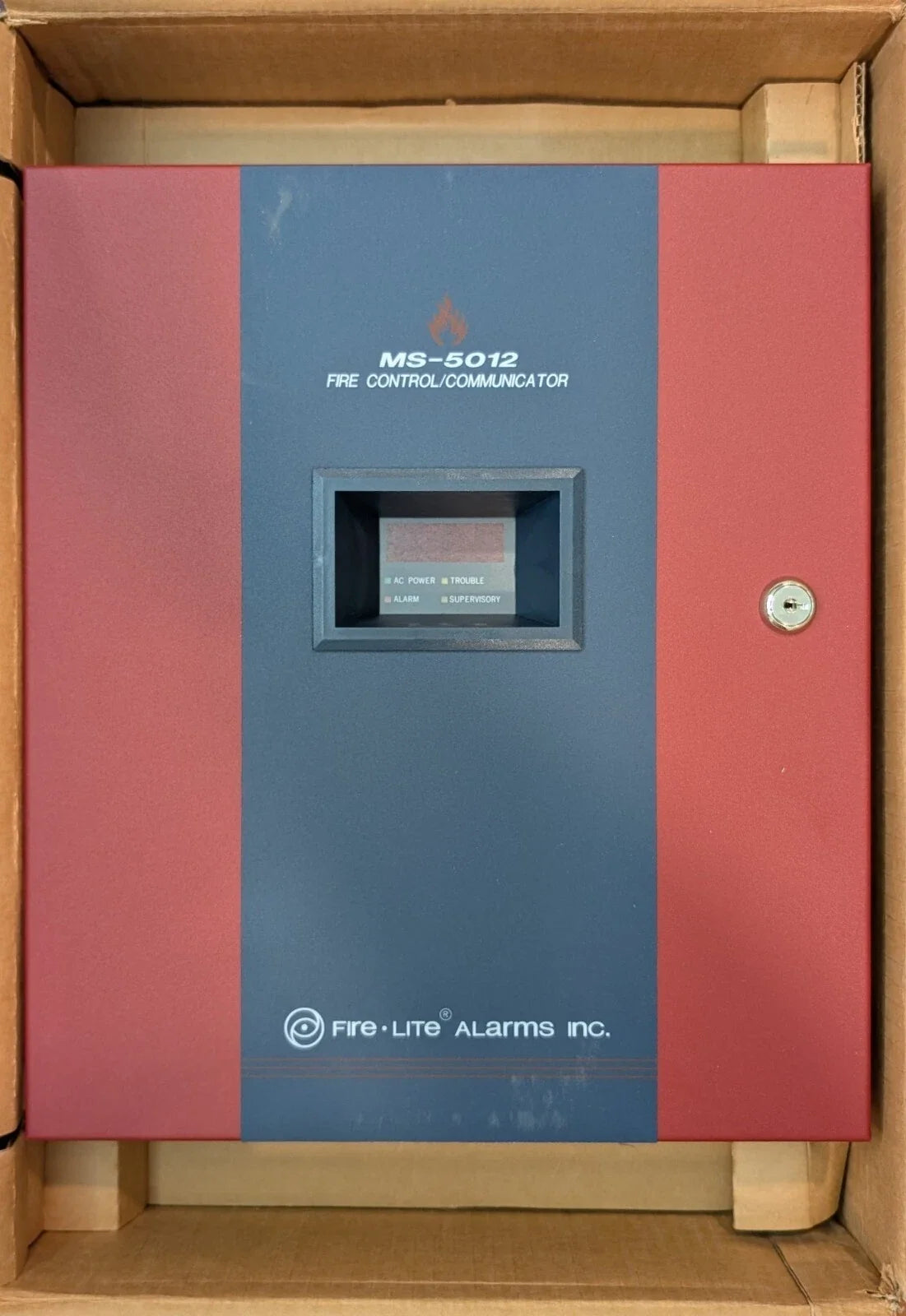

The Fire-Lite MS-5012 Fire Alarm Control Panel is a conventional fire alarm system designed to monitor multiple initiating zones and provide reliable notification control. Operating on 120 VAC at 50/60 Hz, it features an integral LCD display for clear event annunciation and system status.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Fire-Lite |
| Category |
Fire Alarm Equipment |
| Part Number |
MS-5012 |
| Subcategory |
Fire Alarm Control Panel |
| System Type |
Conventional fire alarm control panel |
| Power Input |
120 VAC, 50/60 Hz |
| Standby Power |
24 VDC (battery backup, supervised) |
| Initiating Zones |
Up to 5 Class B or Class A zones |
| Notification Circuits |
12 supervised outputs |
| Display Type |
Backlit LCD screen for status and event messages |
| Controls |
Acknowledge, silence, reset, and drill functions |
| Communication Ports |
Optional modem or DACT interface |
| Supervision |
Monitors wiring, battery, and circuit integrity |
| Enclosure Material |
Steel cabinet, red finish |
| Operating Temperature Range |
32°F to 120°F (0°C to 49°C) |
| Humidity Range |
Up to 93% RH, non-condensing |
| Compliance |
UL 864 Listed; NFPA 72 compliant |
| Dimensions |
Approx. 26" H × 16" W × 5" D |
| Weight |
22 lb (10 kg) |
Information About MS-5012
The MS-5012 is a conventional fire alarm control panel developed by Fire-Lite to provide flexible zone monitoring and notification control in commercial and institutional applications. This panel supports up to five initiating zones and twelve notification circuits, allowing integration with a wide range of detection devices and audible/visual alarms. The built-in LCD display provides real-time indication of alarms, troubles, and supervisory conditions, while front-panel buttons enable quick access for system operation and reset. Operating from a 120 VAC power source, the MS-5012 includes supervised battery backup, making it suitable for both new installations and retrofits. Though discontinued by the manufacturer, it remains a widely used panel in legacy Fire-Lite systems.
Key Features:
- Multi-Zone Capability: Supports up to 5 initiating zones for flexible system design.
- 12 Notification Circuits: Provides extensive control for horns, strobes, and other devices.
- Integrated LCD Display: Offers clear visual feedback of system events and conditions.
- 120 VAC Operation: Standard power input with battery backup supervision.
- Front-Panel Controls: Includes system reset, silence, and acknowledge functions.
- UL/NFPA Compliant: Meets recognized life-safety and fire alarm standards.
- Event History Storage: Maintains system logs for troubleshooting and recordkeeping.
- Discontinued Model Support: Ideal for servicing and maintaining existing installations.
The MS-5012 delivers the reliability and precision required for conventional fire alarm control in commercial and institutional environments.
