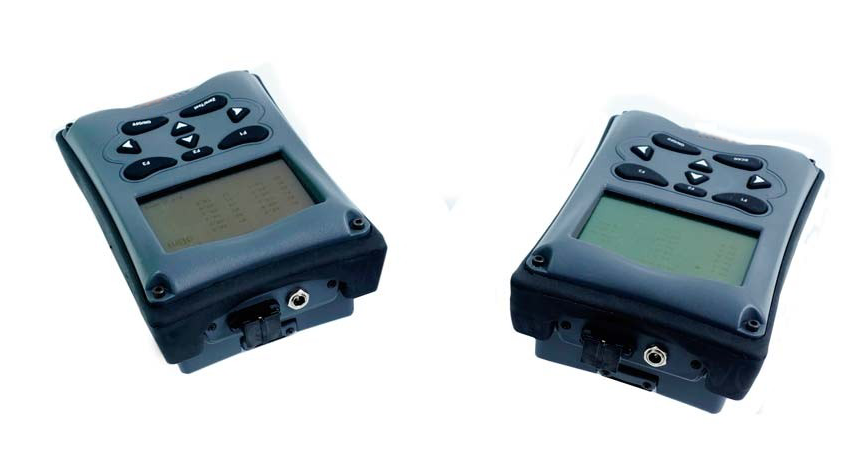

The MPO 12-Fiber Test Set with 1310 nm singlemode light source delivers rapid and reliable fiber certification in under 15 seconds.

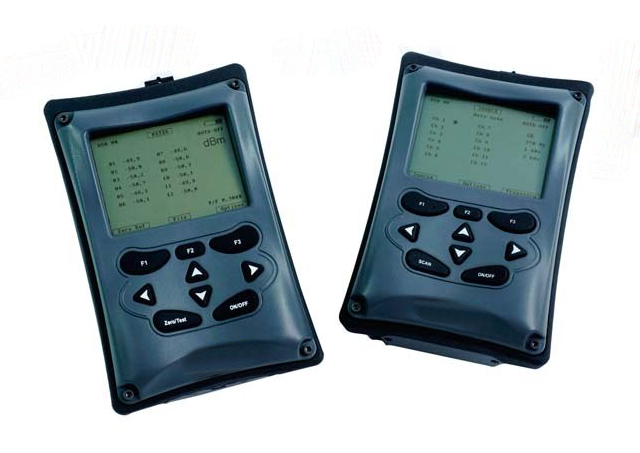

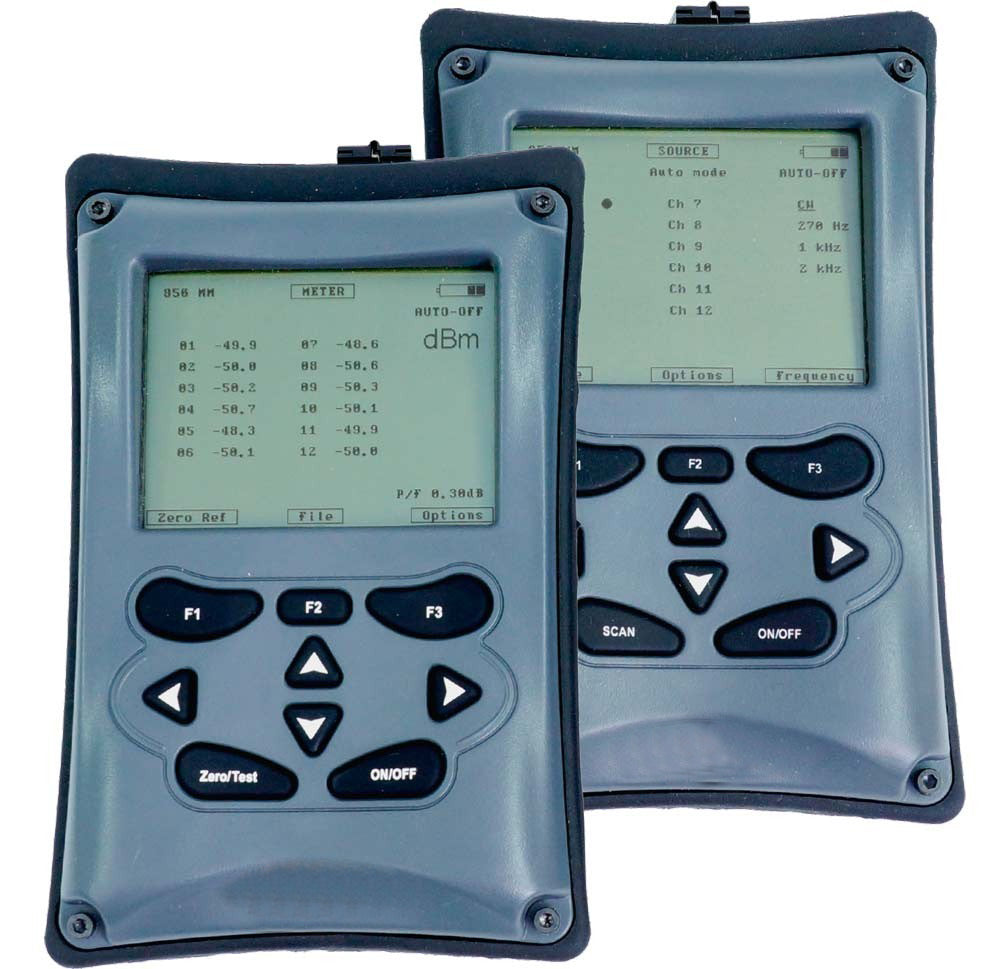

Engineered for MPO-style fiber links, this two-piece test kit includes a 12-position InGaAs power meter and programmable light source to provide comprehensive testing, polarity verification (A, B, C, and 40G), and customizable Pass/Fail analysis.

This set is ideal for data centers, telecom, and enterprise environments requiring scalable MPO testing with PC-based reporting and automated sequences.

---

🧰 Kit Includes

• 12-Position InGaAs Power Meter (calibrated for 1310 nm)

• 1310 nm Singlemode Light Source

• 2 MPO Reference Cables (Polarity A)

• 2 MPO Mating Sleeves

• 2 AC Power Adapters (120–240 V input, 12 V DC output)

• USB Mini Cable for Data Transfer

• PC Reporting Software

• Semi-Rugged Carrying Case

---

✅ Key Features

• Fast Testing – Complete link analysis of all 12 MPO fibers in <15 seconds

• Polarity Verification – Supports A, B, C, and 40G polarity schemes

• Pass/Fail Display – Custom thresholds show FAIL if any fiber exceeds limits

• Data Logging – Store up to 1,000 test results

• USB Transfer – Export results to PC reporting software for PDF test reports

• Flexible Light Output Modes:

  • Automated loop

  • Manual step-through

  • All 12 fibers illuminated

  • 1–4 and 9–12 mode for 40G

---

📋 Power Meter Specifications

Parameter	Value
Measurement Type	Power / Insertion Loss (dBm/dB)
Detector Type	12 × InGaAs photodiodes (800–1700 nm range)
Calibrated Wavelength	1310 nm (Singlemode)
Dynamic Range	+3.0 dBm to –50 dBm
Resolution	0.01 dBm/dB
Accuracy	±0.15 dBm/dB
Polarity Detection	A, B, C, 40G
Data Storage	999 test results

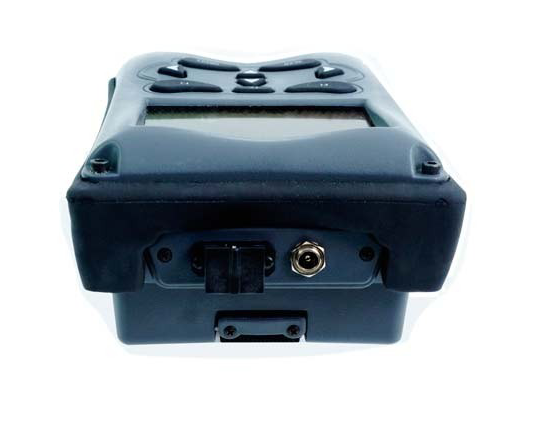

Connector	MPO Male APC (compatible with 9 µm fiber)
Battery Type	8 × NiMH rechargeable (2100 mAh)
Battery Life	6 hours (without backlight)
Charge Time	3 hours
Auto-Off Timeout	10 minutes (user selectable)
Size / Weight	7.25″ × 4.5″ × 2.75″ / 1.9 lbs
Data Transfer	USB Serial (Mini)

---

📋 Light Source Specifications

Parameter	Value
Wavelength	1310 nm (Singlemode)
Output Power	<–1.0 dBm typical (–4.0 dBm) on 9/125 fiber
Modulation Modes	CW, 270 Hz, 1 kHz, 2 kHz
Output Modes	Auto-sequence, Manual, All-on, 40G 1–4 & 9–12
Laser Class	Class 3B
Battery Type	8 × NiMH rechargeable (2100 mAh)
Battery Life / Charge	6 hours / 3 hours
Auto-Off Timeout	10 minutes (user selectable)
Size / Weight	7.25″ × 4.5″ × 2.75″ / 1.9 lbs

---

🧱 Rugged Version (Optional: F11310MPOR)

Feature	Rugged Variant Details
Size / Weight	8″ × 6″ × 4″ / 3 lbs
Water Resistance	IP-rated: 30 min up to 1 m submersion (cover closed)

---

🔢 Ordering Information

Part Number	Description
F11310MPO	SM Test Set – 1310 nm Light Source + Power Meter
9400-0002SM1310LS	1310 nm Light Source only
9400-0004SMPM	SM Power Meter (1310/1550 nm)

---

🧩 Optional Accessories

• MPOACCESSORYKITSM: SM cleaner, gender changer, reference cord, sleeves

• 18814: MTP Pro Field Gender Changing Tool

• LC–MPO Breakout Cable (1m)

• F1EFRC-OM3: OM3 Encircled Flux Reference Cord (for multimode)

---

Download Product Specification
