Description

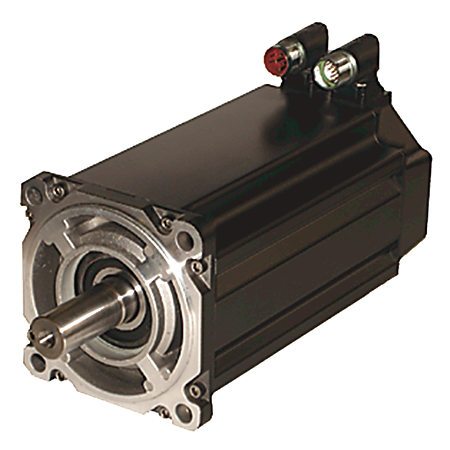

The MPL-B330P-MJ74AA is a Low-Inertia Brushless Servo Motor from the Allen-Bradley Bulletin MPL series, designed for high-performance motion control applications. It features a 460V AC input, a rated power output of 1.8 kW, and delivers 4.18 Nm of continuous torque at a rated speed of 5000 RPM.
Technical Specifications
|
Condition
|
New/Never Used Surplus
|
| Brand |
Allen-Bradley
|
|
Category
|
|
|
Part Number
|
MPL-B330P-MJ74AA
|
| Subcatecory |
|
| Voltage |
400VAC |
| Torque Rating |
4.18 NM |
| Rated Power |
1.8 kW |
| Encoder |
1024 sin/cos, absolute multi-turn encoder (Hiperface protocol) |
| Stack Length |
76.2 mm (3.0 in.) |
| Mounting Holes |
Type FF |
| Compatible Servo Drives |
Kinetix 5500, Kinetix 5700, Kinetix 6200/6500,Kinetix 6000, Kinetix 300/350, Kinetix 2000, Kinetix 7000 |
| Series Type |
Low-inertia |
| Voltage Class |
400 Volts AC |
| Magnetic Stack Length |
3 inches |
| Rated Speed |
5000 rpm |
| Feedback |
Multi-turn high-resolution encoder |
| Shaft Key/Seal |
Shaft key/no shaft seal |
Information About MPL-B330P-MJ74AA
The MPL-B330P-MJ74AA is part of the MPL Servo Motors product line, offering precision motion control and compatibility with a broad range of Allen-Bradley Kinetix servo drives. The motor comes in a Frame Size 3 (100 mm) with a Stack Length 30 (76.2 mm). It is equipped with a multi-turn absolute high-resolution encoder using Hiperface protocol, ensuring precise positioning feedback.
This unit features a keyed shaft, a 24V DC holding brake, and a SpeedTEC DIN connector in a right-angle, 180° rotatable configuration. It includes IEC metric flange mounting with Type FF free mounting holes, ideal for flexible machine design.
Key Features:
-
High Precision Feedback: 1024 sin/cos absolute multi-turn encoder (Hiperface protocol) for precise and reliable feedback control.
-
Low-Inertia Design: Optimized for dynamic response in demanding motion applications.
-
Integrated Holding Brake: 24V DC brake helps secure load positioning when power is removed.
-
Flexible Mounting: IEC Metric (Type FF) free mounting holes for easy mechanical integration.
-
Wide Drive Compatibility: Fully compatible with Kinetix 5500, 5700, 6200/6500, 6000, 300/350, 2000, and 7000 drives.
This motor is ideal for OEMs and automation engineers needing compact, high-performance servo motors in advanced machine systems.
