Description

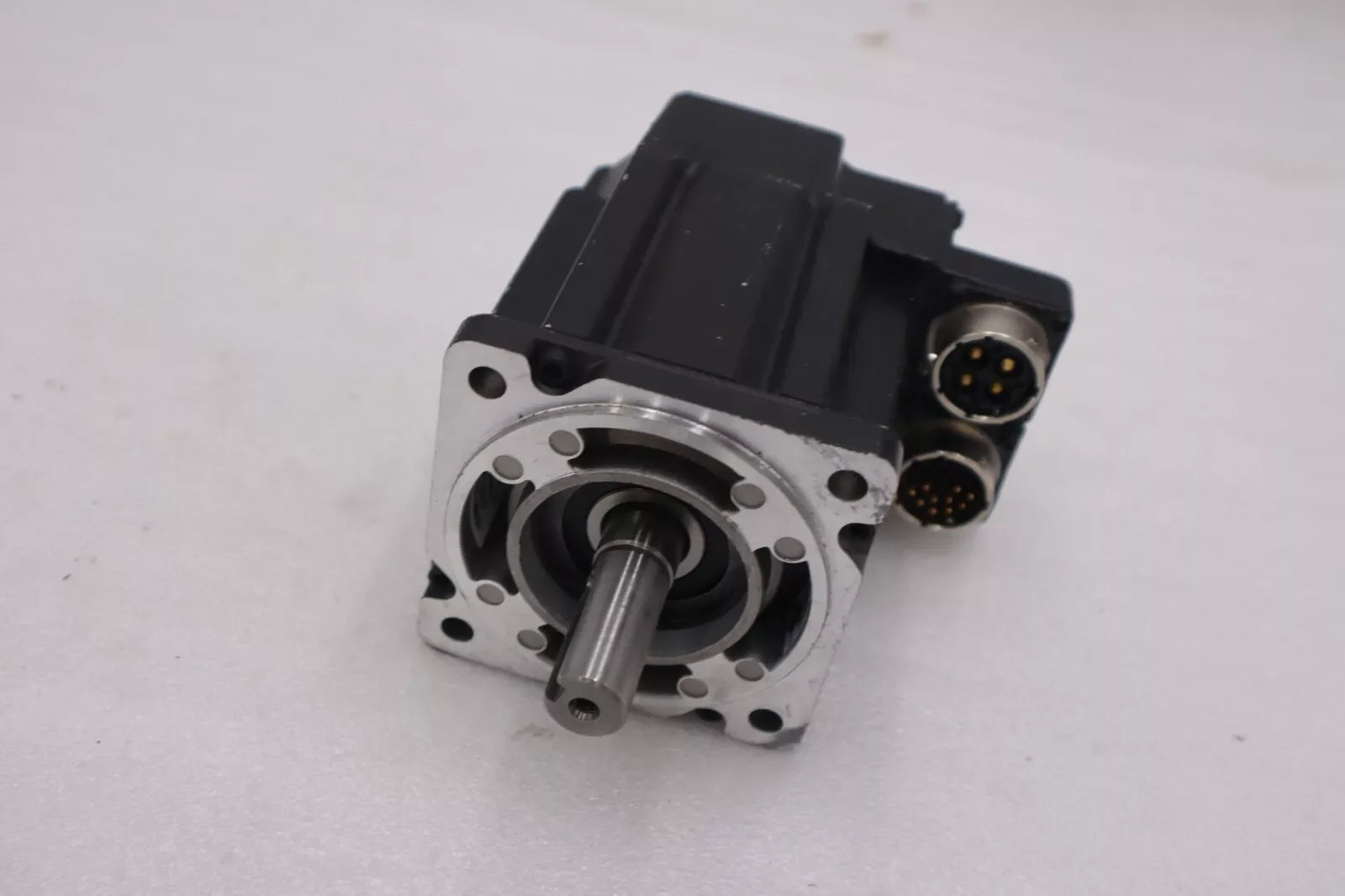

The MPL-B310P-MJ22AA is a high-performance brushless servo motor from the Allen-Bradley MP Series, designed for applications requiring precision, reliability, and compact size. With a frame size of 100 mm, this low-inertia servo motor offers a 5000 RPM speed rating and multi-turn high-resolution encoder feedback, making it suitable for dynamic motion control in industrial automation.
Technical Specifications
|
Condition
|
New/Never Used Surplus
|
| Brand |
Allen-Bradley
|
| Category |
|
| Part Number |
MPL-B310P-MJ22AA
|
| Subcatecory |
|
| Product Family |
MP Series Low Inertia servo motors |
| Voltage |
400VAC |
| Torque Rating |
1.58 NM |
| Rated Power |
0.77 kW |
| Encoder |
1024 sin/cos, absolute multi-turn encoder (Hiperface protocol) |
| Stack Length |
25.4 mm (1.0 in.) |
| Mounting Holes |
Type FF |
| Compatible Servo Drives |
Kinetix 5500, Kinetix 5700, Kinetix 6200/6500,Kinetix 6000, Kinetix 300/350, Kinetix 2000, Kinetix 7000 |
| Compatible Applications |
Packaging, Converting, Material handling, Electronic assembly, Automotive |
| Series Type |
Low-inertia |
| Voltage Class |
400 Volts AC |
| Magnetic Stack Length |
1 inches |
| Rated Speed |
5000 rpm |
Information About MPL-B310P-MJ22AA
The MPL-B310P-MJ22AA is part of the MP Series Low Inertia motors by Allen-Bradley, tailored for seamless integration into advanced motion control systems. The motor is engineered with a 25.4 mm (1 inch) magnetic stack length, contributing to its compact profile while maintaining power efficiency. It features a multi-turn absolute encoder (Hiperface) with 1024 sin/cos resolution, offering precise positioning feedback. This smart motor operates on a 400V AC voltage class and is capable of delivering 1.58 Nm of continuous torque with a rated power output of 0.77 kW.
Key Features:
-
Low Inertia Design: Enhances dynamic response for high-speed applications.
-
Rated Speed 5000 RPM: Ideal for fast and precise motion control tasks.
-
High-Resolution Encoder: Multi-turn 1024 sin/cos encoder supports Hiperface protocol for accurate feedback.
-
Compact Stack Length: 1-inch magnetic stack allows dense panel configurations without sacrificing power.
-
Wide Drive Compatibility: Works with multiple Kinetix servo drives, providing broad system integration support.
The MPL-B310P-MJ22AA delivers robust motion performance in a compact footprint, suited for demanding automation environments.
