Description

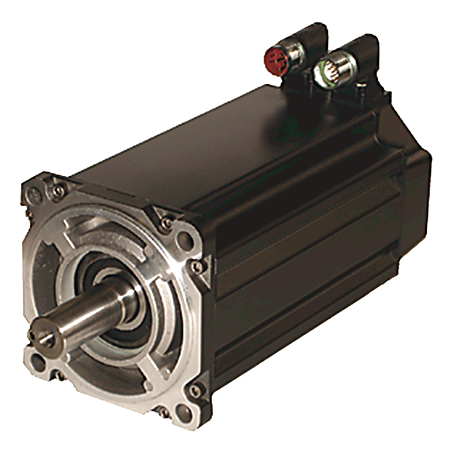

The MPL-A320P-HJ72AA is a low inertia servo motor from Allen-Bradley’s MP-Series, designed for high-performance motion control. It features a rotor inertia optimized for rapid acceleration, a rated speed of 5000 RPM, and includes a high-resolution encoder for precise positioning.
Technical Specifications
|
Condition
|
New/Never Used Surplus
|
| Brand |
Allen-Bradley |
|
Category
|
|
|
Part Number
|
MPL-A320P-HJ72AA
|
| Subcatecory |
|
| Enclosure |
Keyed Shaft Extension |
| Mounting Type |
IEC Metric, Free Mounting Holes (Type FF) |
| RPM |
5000 rpm |
| TC Connection |
SpeedTec DIN Connector, Right Angle, 180 Rotatable (Quick Connect) |
| Voltage |
230 Volt |
| Frame |
3 = 100 mm (3.94 in.) |
| Power Rating |
1.3 kW |
| Standard |
KC |
| Feedback |
2000-line encoder |
| Weight |
3.63 kgs |
Information About MPL-A320P-HJ72AA
The MPL-A320P-HJ72AA is a low-inertia servo motor from Allen-Bradley's MP-Series, engineered for high-performance motion control applications requiring rapid acceleration and precision.
Key Features:
-
Voltage Rating: 230V AC
-
Frame Size: 100 mm (Frame Size 3)
-
Magnet Stack Length: 50.8 mm
-
Rated Speed: 5000 RPM
-
Continuous Stall Torque: 3.05 Nm
-
Peak Torque: 7.91 Nm
-
Feedback Device: 2000-line incremental encoder
-
Shaft: Keyed shaft extension
-
Connector Type: SpeedTEC DIN connector, right angle, 180° rotatable (Quick Connect)
-
Brake Option: No brake
This servo motor is ideal for applications demanding high responsiveness and precision, such as packaging machinery, material handling systems, and automation equipment.
