Overview

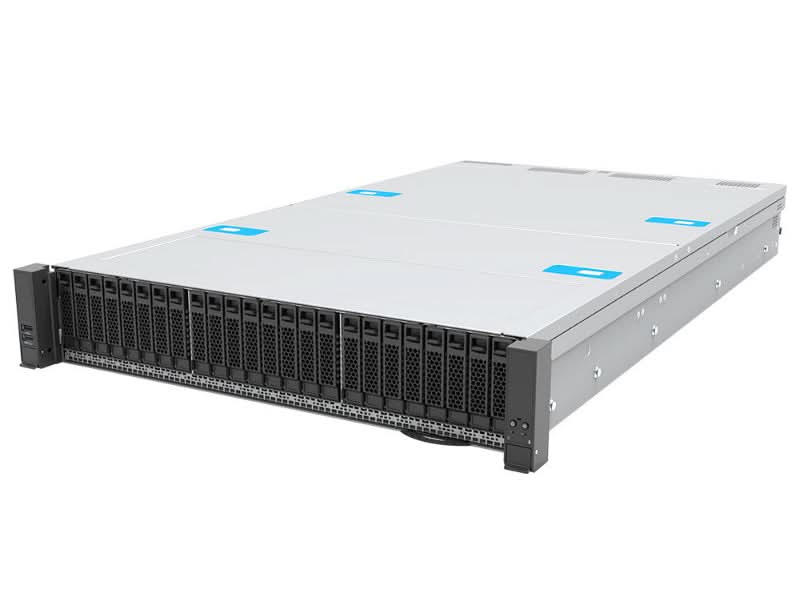

MITAC M50FCP2UR208 LGA4677 2U Rack-mountable Server System
Specifications
Model Number: M50FCP2UR208
Brand: MITAC
Alt Part Number(s): M50FCP2UR208
Product Type: Server
Technical Description
Brand: MITAC
Model:M50FCP2UR208
Product Description: Intel Server System M50FCP2UR208 - Rackmount, No CPU, 0 GB RAM, No HDD
Form Factor: Rack-mountable - 2U
Processor Installed: None
Max CPU Supported: 2
CPU Socket: LGA4677 Socket-E
Motherboard: Intel Server Board M50FCP2SBSTD
RAM Installed / Max: 0 GB (installed) / 12 TB (maximum)
RAM Technology: DDR4 SDRAM
RAM Form Factor: 288-pin DIMM
RAM Slots: 32 total
RAM Features: Load-Reduced DIMM (LRDIMM)
Storage Controller: RAID
RAID Levels Supported: RAID 0, 1, 5, 10
Storage Bays (Hot-Swap):
4 total (4 free) × 2.5" hot-swap
8 × hot-swap bays (total)
2 × internal bays
Hard Drive Installed: None
Optical Drive: None
Embedded Security: Trusted Platform Module (TPM 2.0)
Interfaces:
2 × USB 3.0 (1 front, 1 rear)
3 × USB 2.0 (1 front, 2 rear)
1 × Serial port
Monitor: None
Power Supply Type: Power Supply (not included)
Power Supply Installed: 0
Included Accessories:
Front I/O panel assembly
16 × DIMM slot blanks
Chassis with Quick Reference Label affixed to top cover
2 × Processor carrier clips
8 × 1U spare fan kit
2 × EVAC heatsinks
1U Spare PCIe riser
Cables Included:
I2C cable
Power splitter cable
*
