[shortdesc]A wireless outdoor access point, compact design, high gain antenna, easy installation, weatherproof enclosure, affordable price[/shortdesc]
[properties]
| Properties |
MikroTik SXTsq Lite2 RBSXTSQ2ND |
| Description |
Low-cost small-size 10dBi 2.4GHz dual chain integrated CPE/Backbone |
| Product Family |
SXT Series |
| Product Type |
Access Point |
| 10/100 Ethernet ports |
1 |
| Dimensions |
129 x 129 x 34 mm |
| Number of DC inputs |
1 (PoE-IN) |
| Max power consumption |
5 W |
| Cooling type |
Passive |
| PoE in |
Passive PoE |
| PoE in input Voltage |
10-30 V |
[/properties][specifications]
| Specifications |
RBSXTSQ2ND |
| Memory |
64 MB |
| Flash Storage size |
16 MB |
| CPU |
QCA9533 650 MHz |
| CPU core count |
4 |
| OS |
RouterOS level 3 license |
| Wireless capabilities |
| Wireless 2.4 GHz Max data rate |
300 Mbit/s |
| Wireless 2.4 GHz number of chains |
2 |
| Wireless 2.4 GHz standards |
802.11b/g/n |
| Antenna gain dBi for 2.4 GHz |
10 |
| Wireless 2.4 GHz chip model |
QCA9533 |
| Wireless 2.4 GHz generation |
Wi-Fi 4 |
| Wireless specifications |
| 5 GHz |
|
| 1MBit/s |
Transmit (dBm): 30
Receive Sensitivity: -100 |
| 11MBit/s |
Transmit (dBm): 30
Receive Sensitivity: -93 |
| 6MBit/s |
Transmit (dBm): 30
Receive Sensitivity: -94 |
| 54MBit/s |
Transmit (dBm): 26
Receive Sensitivity: -80 |
| MCS0 |
Transmit (dBm): 30
Receive Sensitivity: -94 |
| MCS7 |
Transmit (dBm): 25
Receive Sensitivity: -75 |
| MTBF |
Approximately 100.000 hours at 25C |
| Temperature |
-40°C to 70°C tested |
| Certification |
CE, FCC, IC, EAC, ROHS |
| IP |
IP54 |
[/specifications][accesories]
|
|
| Metal ring (one) |
| PoE injector |
[/accesories]

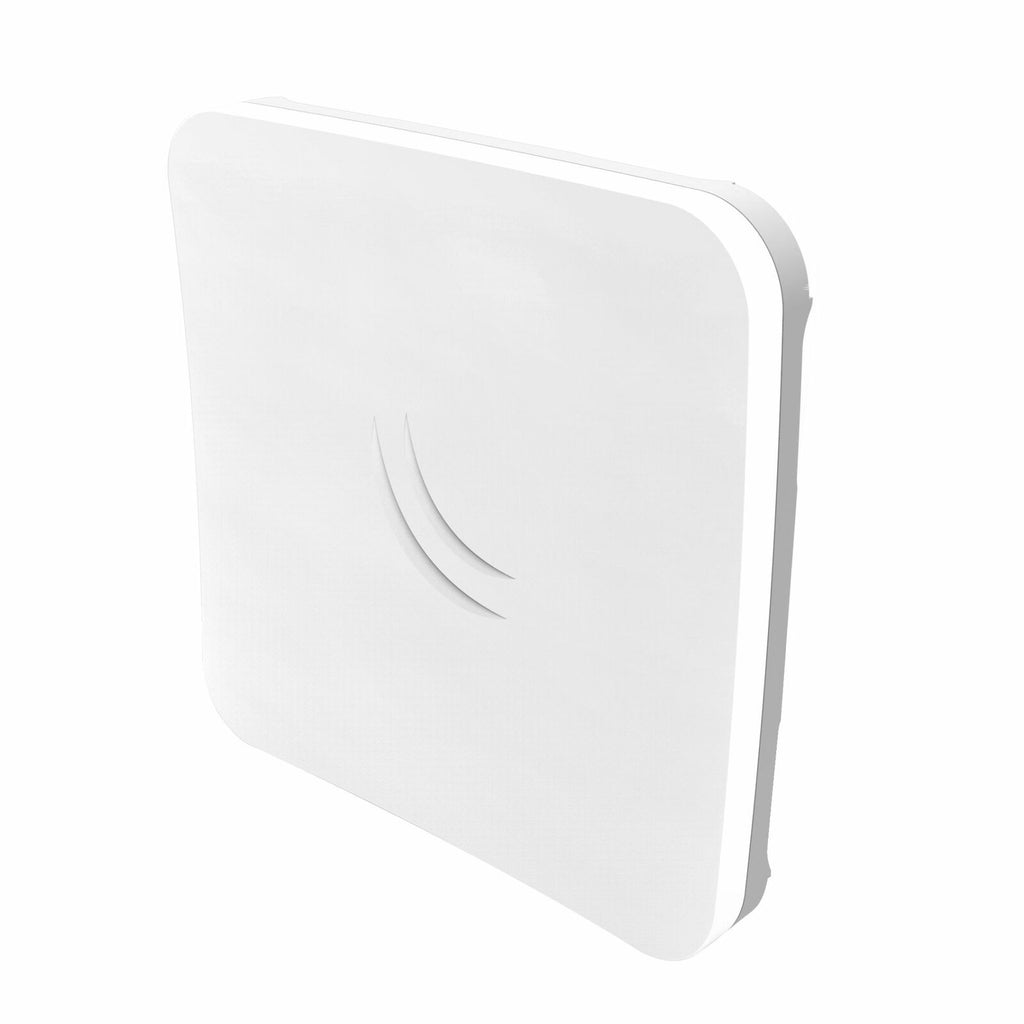

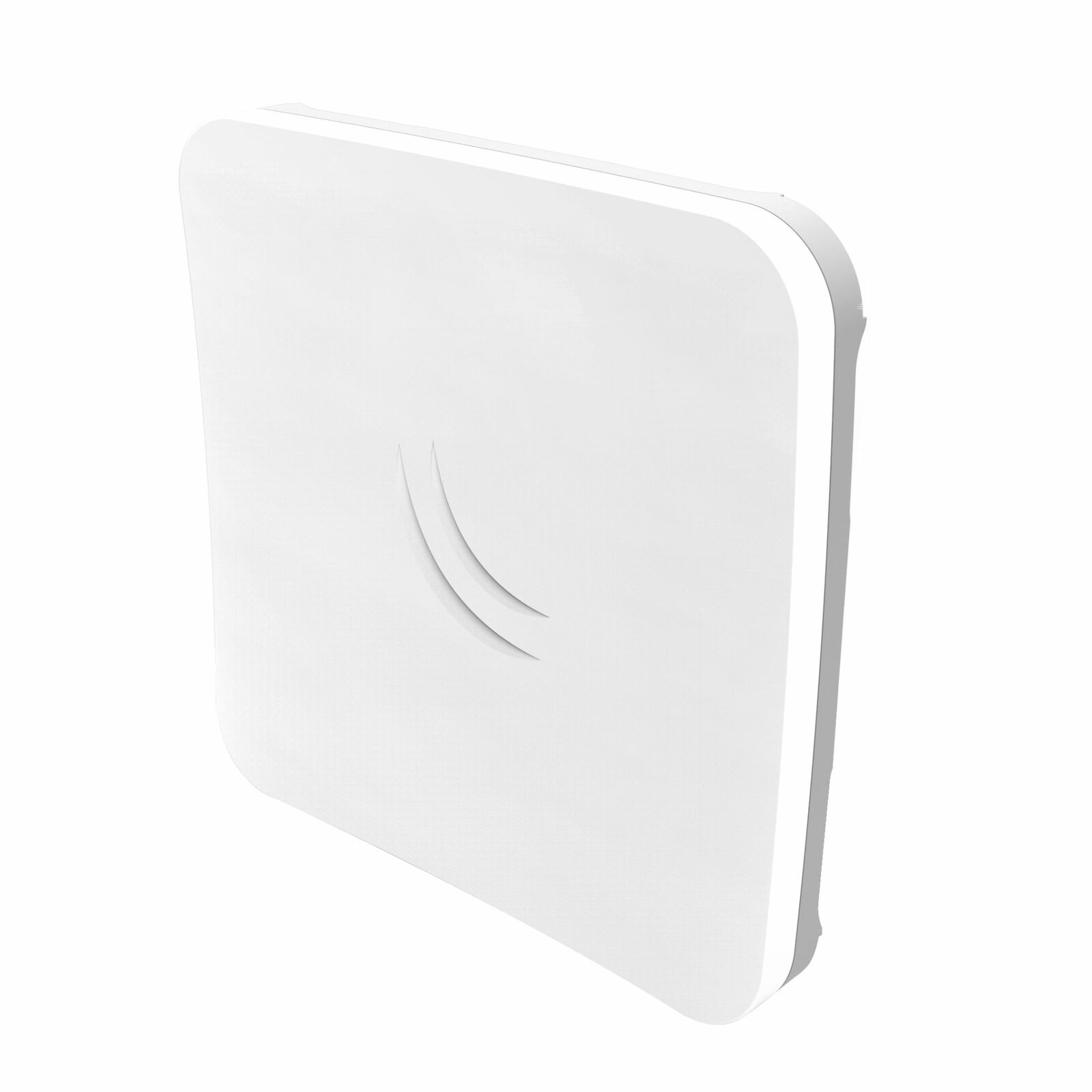

MikroTik RBSXTSQ2ND Access Point
The RBSXTsq2nD is a wireless outdoor access point that features a compact design and high gain antenna, which enhances connectivity. It is engineered for effortless installation and is equipped with a weatherproof enclosure, rendering it suitable for outdoor deployment. Offering a cost-effective solution, the RBSXTsq2nD is an ideal option for extending wireless network coverage to outdoor spaces.
Quick Specs:
-
1x 10/100 Ethernet Port
-
PoE in: Passive PoE
-
QCA9533, 1 core, 650 MHz CPU
-
RouterOS
Please see the related tabs for the RBSXTsq2nDdatasheet and compatible accessories.
