[shortdesc]
- 802.11ac up to 540Mbit, high output, wide beamwidth sector antenna
[/shortdesc]
[properties]
| Properties |
MikroTik SXT SA5 ac RBSXTG-5HPACD-SA-US |
| Description |
802.11ac up to 540Mbit, high output, wide beamwidth sector antenna |
| Product Family |
SXT Series |
| Product Type |
Access Point |
| Features |
Extended temperature range -30C to +80C
• Up to 540Mbps throughput
• Low latency Point to Point
• Supports passive PoE and 802.3af/at PoE input (15-60V) |
| 10/100/1000 Ethernet ports |
1 |
| Number of USB ports |
1 USB type A |
| Extras |
PCB temperature monitor
Voltage Monitor
Beeper |
| Dimensions |
140 x 140 x 56mm |
| Weight without packaging, adapters and cables |
265g |
| Number of DC inputs |
1 (PoE-IN) |
| Max power consumption |
12 W |
| Cooling type |
Passive |
| PoE in |
802.3af/at |
| PoE in input Voltage |
12-57 V |
[/properties][specifications]
| Specifications |
RBSXTG-5HPACD-SA-US |
| Memory |
128 MB |
| NAND Storage size |
128 MB |
| CPU |
QCA9557 720 MHz |
| CPU core count |
1 |
| OS |
RouterOS level 3 license |
| Wireless capabilities |
| Wireless 5 GHz Max data rate |
867 Mbit/s |
| Wireless 5 GHz number of chains |
2 |
| Wireless 5 GHz standards |
802.11a/n/ac |
| Antenna gain dBi for 5 GHz |
14 |
| Wireless 5 GHz chip model |
QCA9892 |
| Wireless 5 GHz generation |
Wi-Fi 5 |
| Wireless specifications |
| 5 GHz |
|
| 6MBit/s |
Transmit (dBm): 31
Receive Sensitivity: -96 |
| 54MBit/s |
Transmit (dBm): 28
Receive Sensitivity: -81 |
| MCS0 |
Transmit (dBm): 30
Receive Sensitivity: -96 |
| MCS7 |
Transmit (dBm): 27
Receive Sensitivity: -77 |
| MCS9 |
Transmit (dBm): 22
Receive Sensitivity: -72 |
| MTBF |
Approximately 200.000 hours at 25C |
| Temperature |
-40°C to 70°C tested |
| Certification |
CE, FCC, IC, EAC, ROHS |
| IP |
IP54 |
[/specifications][accesories]
| 24V 0.8A power adapter |
| Metal ring (one) |
| Gigabit PoE injector |
| Pole mounting bracket |
[/accesories]

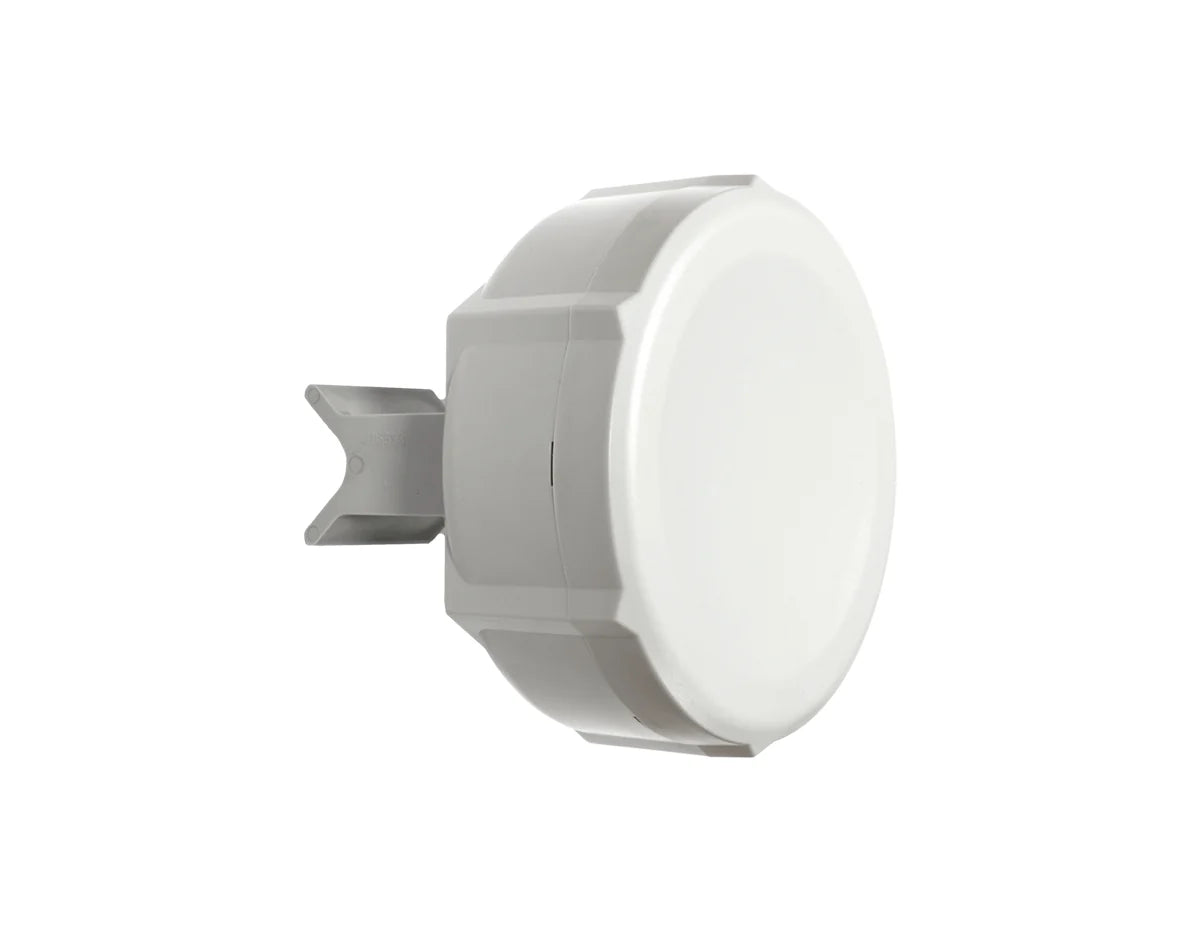

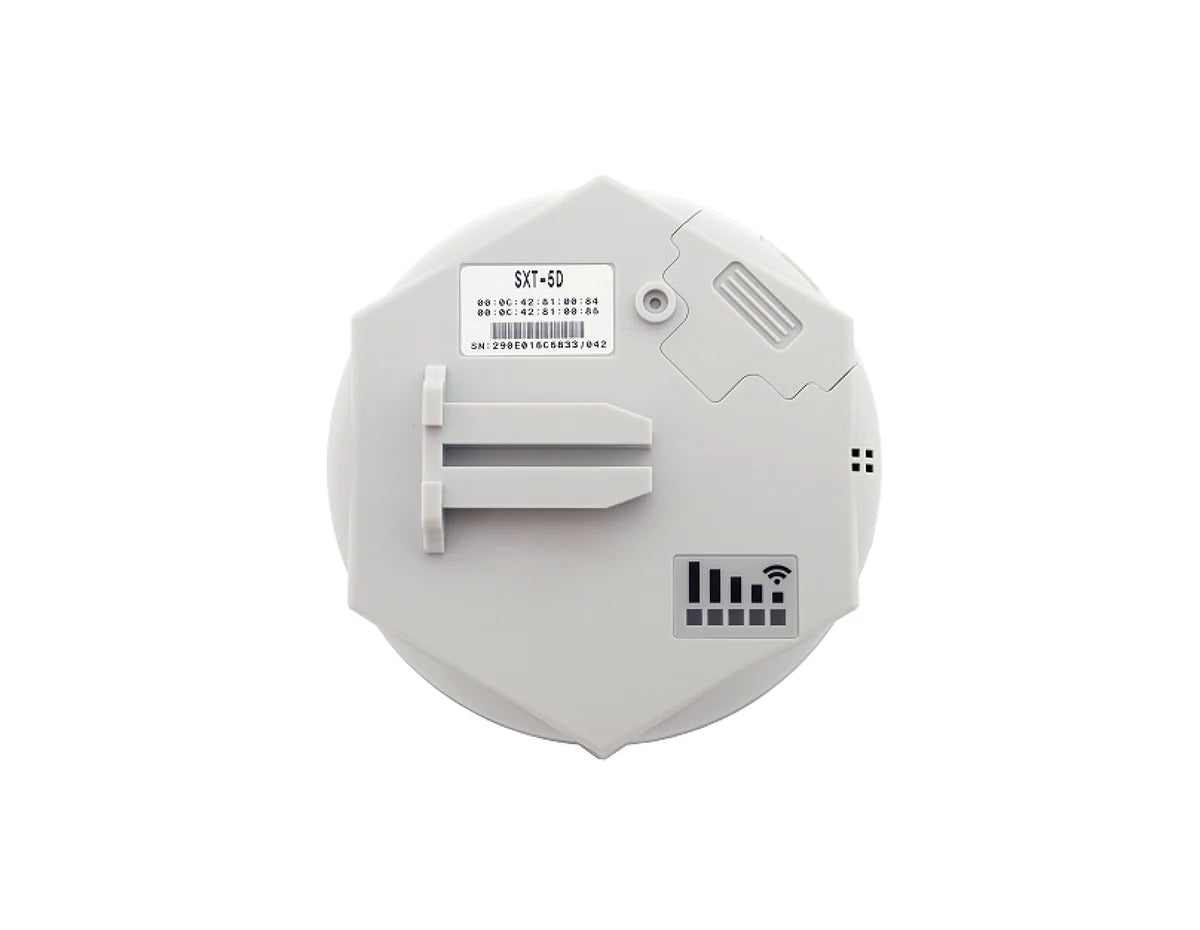

MikroTik RBSXTG-5HPacD-SA-US Antenna
The RBSXTG-5HPacD-SA model features a 90-degree wide beam-width sector antenna and is equipped to support 802.11ac mode. It is also compatible with all legacy RouterBOARD devices, including Nstream and Nv2 protocols, and includes a Gigabit Ethernet port. This product supports passive PoE and 802.3af/at PoE input (15-60V). The RBSXTG-5HpacD-Sar2-US (USA) is factory locked for 5170-5250 MHz and 5725-5835 MHz frequencies. This lock can not be removed due to country regulations.
Quick Specs:
-
1x 10/100/1000 Ethernet Port
-
QCA9557, 1 core, 720MHz CPU
- Low latency Point to Point
-
RouterOS
Please see the related tabs for the RBSXTG-5HPacD-SA-US datasheet and compatible accessories.
