| Properties |
MikroTik RBwAPR-2nD&R11e-LR9 Wireless Access Point |
| Description |

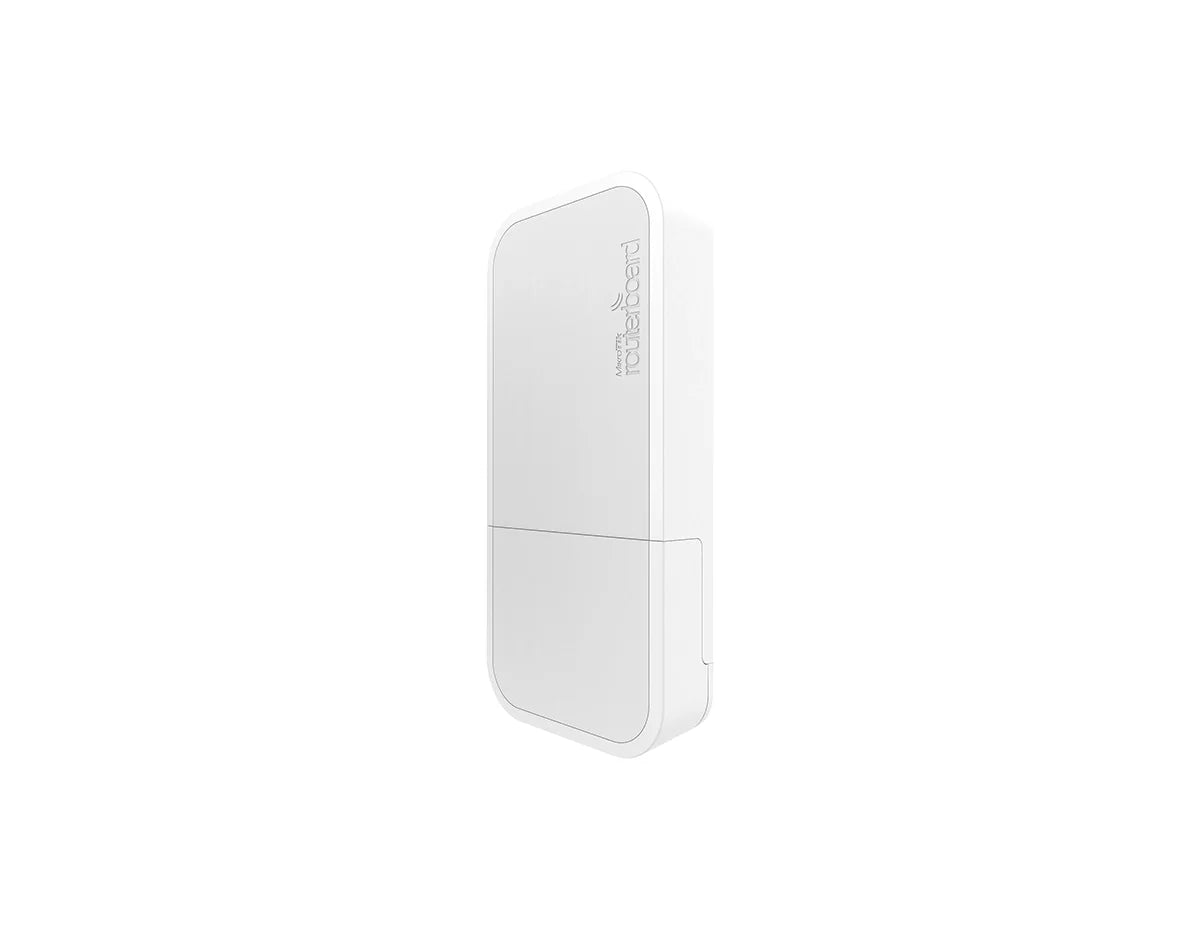

The MikroTik RBwAPR-2nD&R11e-LR9 is a compact outdoor wireless access point with an integrated LTE modem, providing dual-band 2.4 GHz wireless connectivity and Category 9 LTE speeds. Ideal for remote locations, surveillance, and IoT applications, it features a weatherproof design for outdoor use. |
| Product Family |
Mikrotik Wireless Access Points |
| Product Type |
Access Point |
| Key Features |
• Compact outdoor wireless access point
• Dual-band 2.4 GHz wireless (802.11b/g/n) support
• Integrated LTE modem (R11e-LR9) for Category 9 LTE speeds
• Ideal for remote locations, surveillance, and IoT applications
• Weatherproof design for outdoor use
• Easy installation and setup |
[/properties] [specifications]
| Specifications |
MikroTik RBwAPR-2nD&R11e-LR9 Wireless Access Point |
| Product code |
RBwAPR-2nD&R11e-LR9 |
| Architecture |
MIPSBE |
| CPU |
QCA9531 |
| CPU core count |
1 |
| CPU nominal frequency |
650 MHz |
| RouterOS license |
4 |
| Operating System |
RouterOS |
| Size of RAM |
64 MB |
| Storage size |
16 MB |
| Storage type |
FLASH |
| MTBF |
Approximately 100'000 hours at 25C |
| Tested ambient temperature |
-40°C to 60°C |
| Powering |
| Number of DC inputs |
3 (DC jack, PoE-IN, Automotive) |
| DC jack input Voltage |
9-30 V |
| Automotive input Voltage |
9-30 V |
| Max power consumption |
7 W |
| Cooling type |
Passive |
| PoE in |
Passive PoE |
| PoE in input Voltage |
9-30 V |
| Wireless specifications |
| Wireless 2.4 GHz Max data rate |
300 Mbit/s |
| Wireless 2.4 GHz number of chains |
2 |
| Wireless 2.4 GHz standards |
802.11b/g/n |
| Antenna gain dBi for 2.4 GHz |
2 |
| Wireless 2.4 GHz chip model |
QCA9531 |
| Wireless 2.4 GHz generation |
Wi-Fi 4 |
| Ethernet |
| 10/100 Ethernet ports |
1 |
| Peripherals |
| Number of SIM slots |
1 Modem (Mini-SIM) |
| MiniPCI-e slots |
1 |
| Other |
| PCB temperature monitor |
Yes |
| Voltage Monitor |
Yes |
| Certification & Approvals |
| Certification |
FCC, IC, EAC |
| IP |
IP54 |
| Wireless specifications (2.4 GHz) |
| 1MBit/s |
Transmit (dBm): 22
Receive Sensitivity: -96 |
| 11MBit/s |
Transmit (dBm): 22
Receive Sensitivity: -89 |
| 6MBit/s |
Transmit (dBm): 20
Receive Sensitivity: -93 |
| 54MBit/s |
Transmit (dBm): 18
Receive Sensitivity: -74 |
| MCS0 |
Transmit (dBm): 20
Receive Sensitivity: -93 |
| MCS7 |
Transmit (dBm): 16
Receive Sensitivity: -93 |
[/specifications] [accesories] [/accesories]

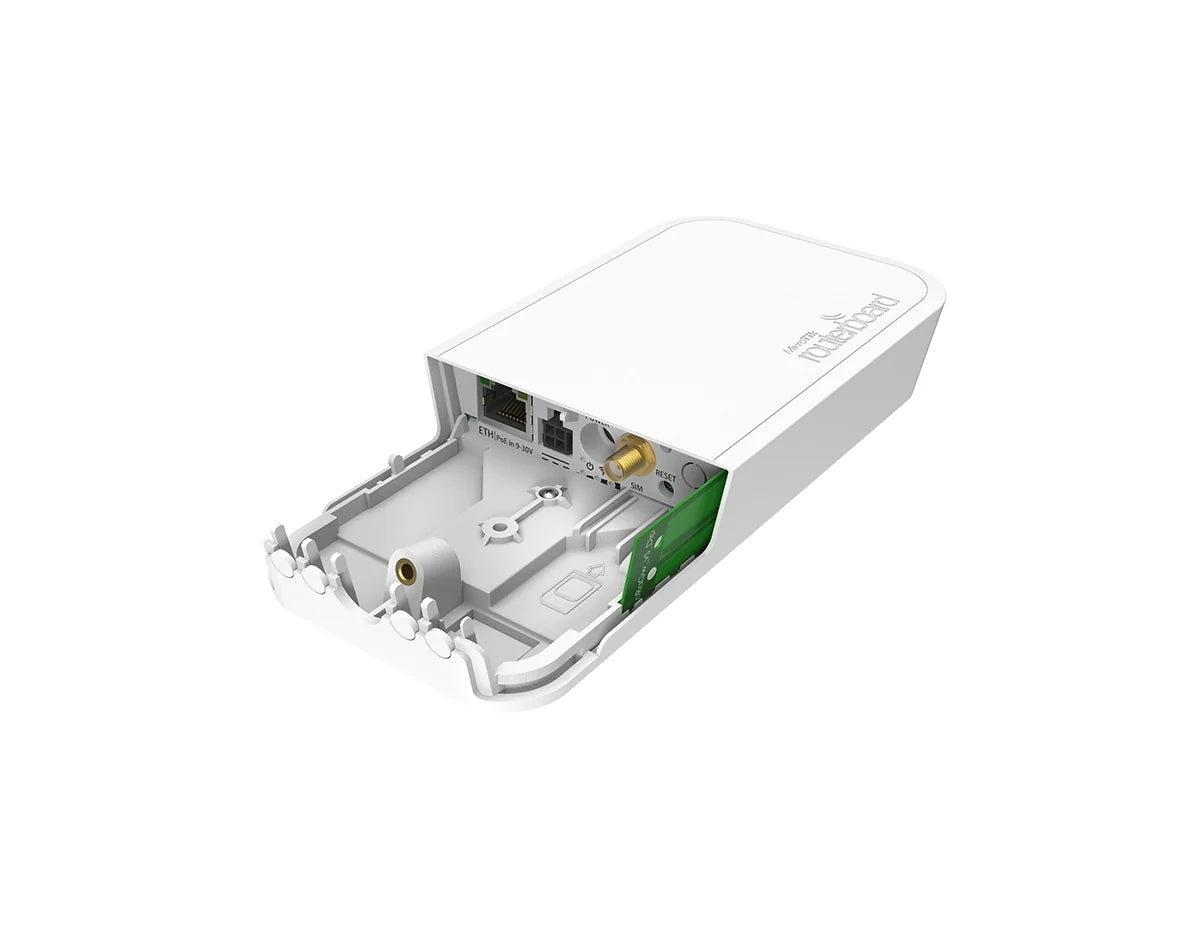

The wAP LR9 kit (RBwAPR-2nD&R11e-LR9) is a wireless access point designed for use in challenging environmental conditions. It features a MIPSBE architecture, QCA9531 CPU, and 64 MB of RAM, as well as 16 MB of storage. The device supports passive PoE and offers three DC input options, with a maximum power consumption of 7W. Operating on the 2.4 GHz frequency, it provides a maximum data rate of 300 Mbit/s and is equipped with two chains. This kit is a ready-to-use solution for utilizing LoRa technology.
Quick Specs:
- 1x 10/100 Ethernet Port
- 1x miniPCI-e slot
- Antenna Design: Omni
- IP54
Please see the related tabs for the RBwAPR-2nD&R11e-LR9 datasheet and compatible accessories.
