[shortdesc]
- Tiny size 2.4GHz Dual Chain access point with a 650MHz CPU, 64MB RAM, and one Ethernet
[/shortdesc]
[properties]
| Properties |
MikroTik cAP Lite RBCAPL-2ND |
| Description |
Low-cost dual-chain 2.4GHz AP with wall and ceiling enclosure |
| Product Family |
cAP Series |
| Product Type |
Access Point |
| 10/100 Ethernet ports |
1 |
| Number of USB ports |
1 microUSB type AB |
| Extras |
Mode button |
| Dimensions |
Wall case: 88 x 52 x 20 mm Ceiling case: ⌀88 mm x 20 mm |
| MicroUSB input Voltage |
5-5 V |
| Number of DC inputs |
2 (PoE-IN, MicroUSB) |
| Max power consumption |
4 W |
| Cooling type |
Passive |
| PoE in |
802.3af/at |
| PoE in input Voltage |
10-60 V |
[/properties][specifications]
| Specifications |
RBCAPL-2ND |
| Memory |
64 MB |
| Flash Storage size |
16 MB |
| CPU |
QCA9533 650 MHz |
| CPU core count |
4 |
| OS |
RouterOS level 4 license |
| Wireless capabilities |
| Wireless 2.4 GHz Max data rate |
300 Mbit/s |
| Wireless 2.4 GHz number of chains |
2 |
| Wireless 2.4 GHz standards |
802.11b/g/n |
| Antenna gain dBi for 2.4 GHz |
1.5 |
| Wireless 2.4 GHz chip model |
QCA9533 |
| Wireless 2.4 GHz generation |
Wi-Fi 4 |
| Wireless specifications |
| 2.4 GHz |
|
| 1MBit/s |
Transmit (dBm): 22
Receive Sensitivity: -96 |
| 11MBit/s |
Transmit (dBm): 22
Receive Sensitivity: -89 |
| 6MBit/s |
Transmit (dBm): 20
Receive Sensitivity: -93 |
| 54MBit/s |
Transmit (dBm): 18
Receive Sensitivity: -74 |
| MCS0 |
Transmit (dBm): 20
Receive Sensitivity: -93 |
| MCS7 |
Transmit (dBm): 16
Receive Sensitivity: -71 |
| MTBF |
Approximately 100.000 hours at 25C |
| Temperature |
-40°C to 70°C tested |
| Certification |
CE, FCC, IC, EAC, ROHS |
| IP |
IP20 |
[/specifications][accesories]
| 24V 0.2A power adapter |
| PoE injector |
| K-49 screw kit |
[/accesories]

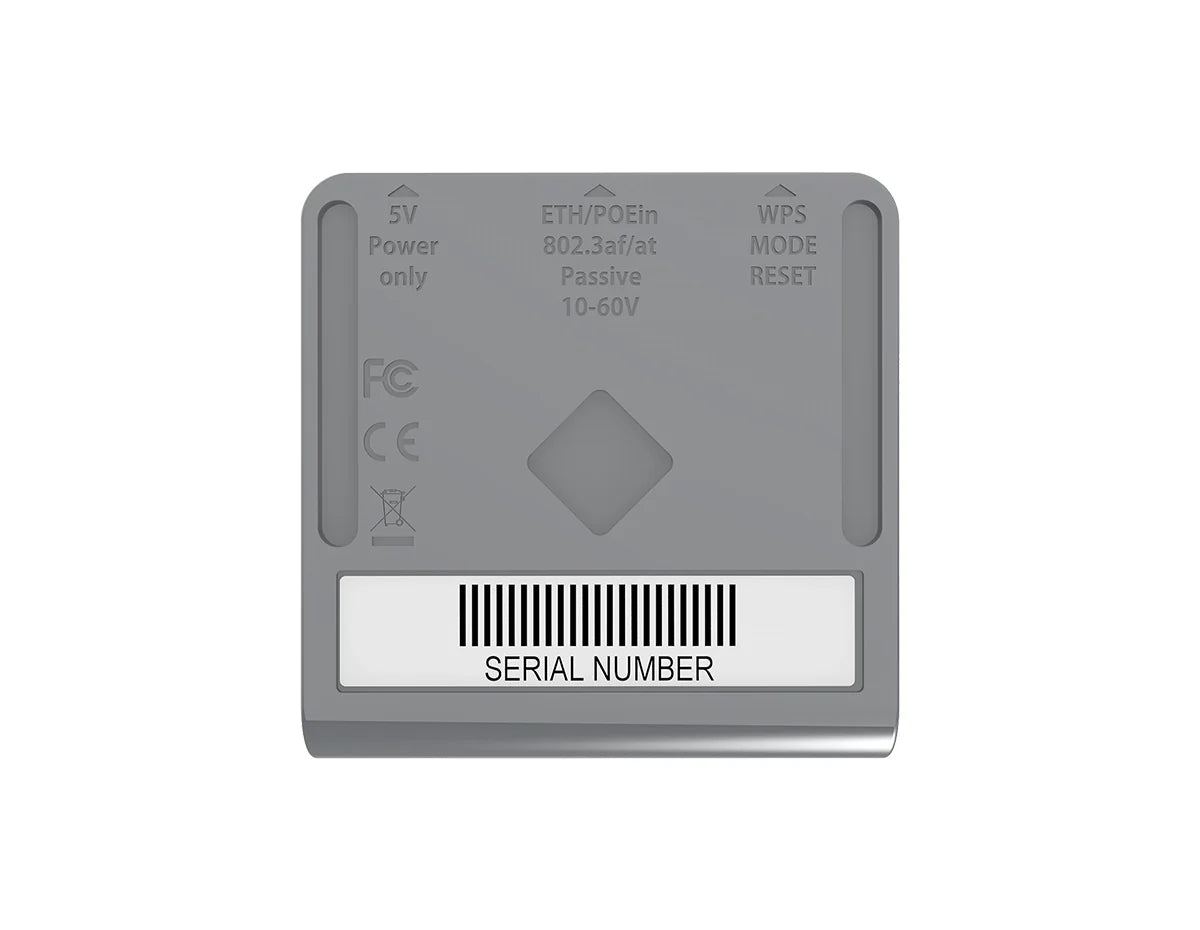

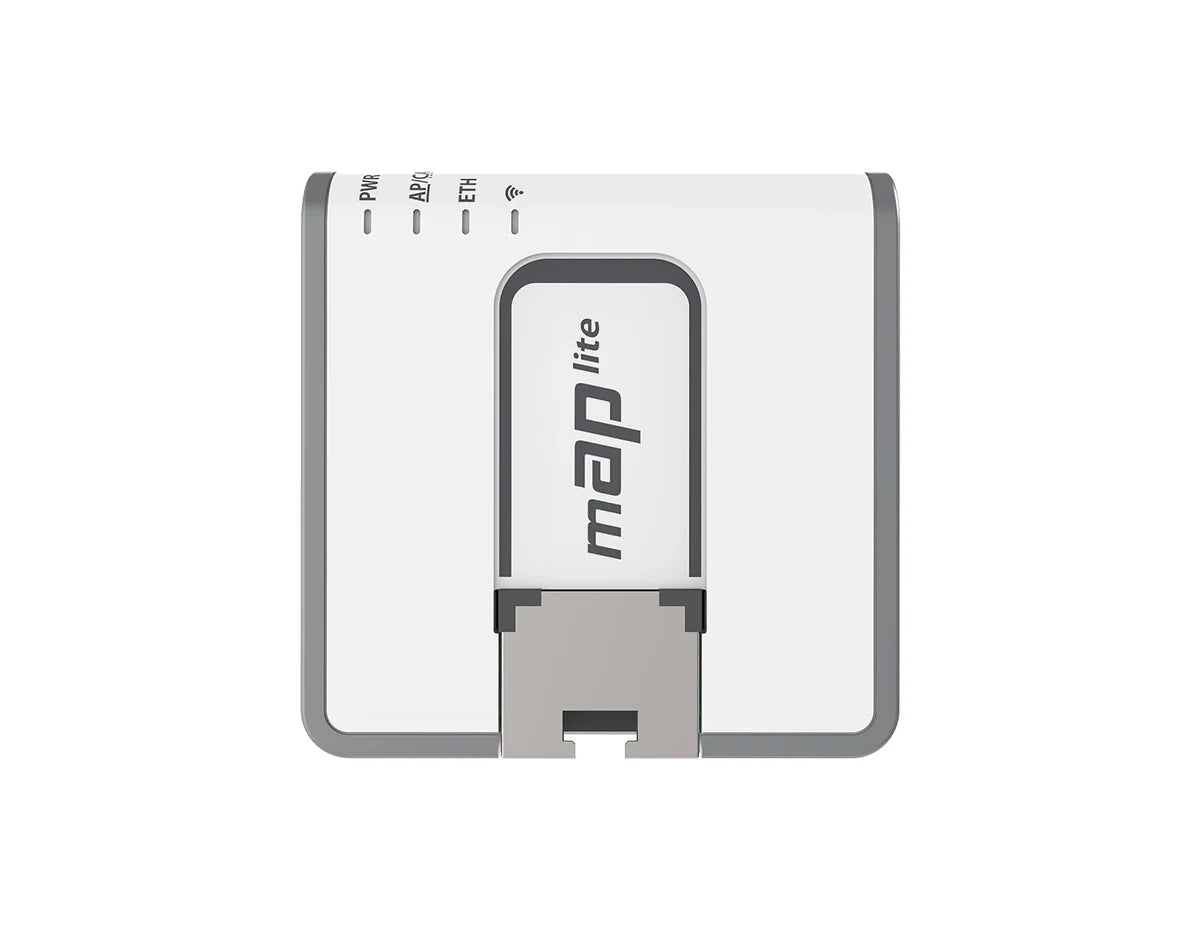

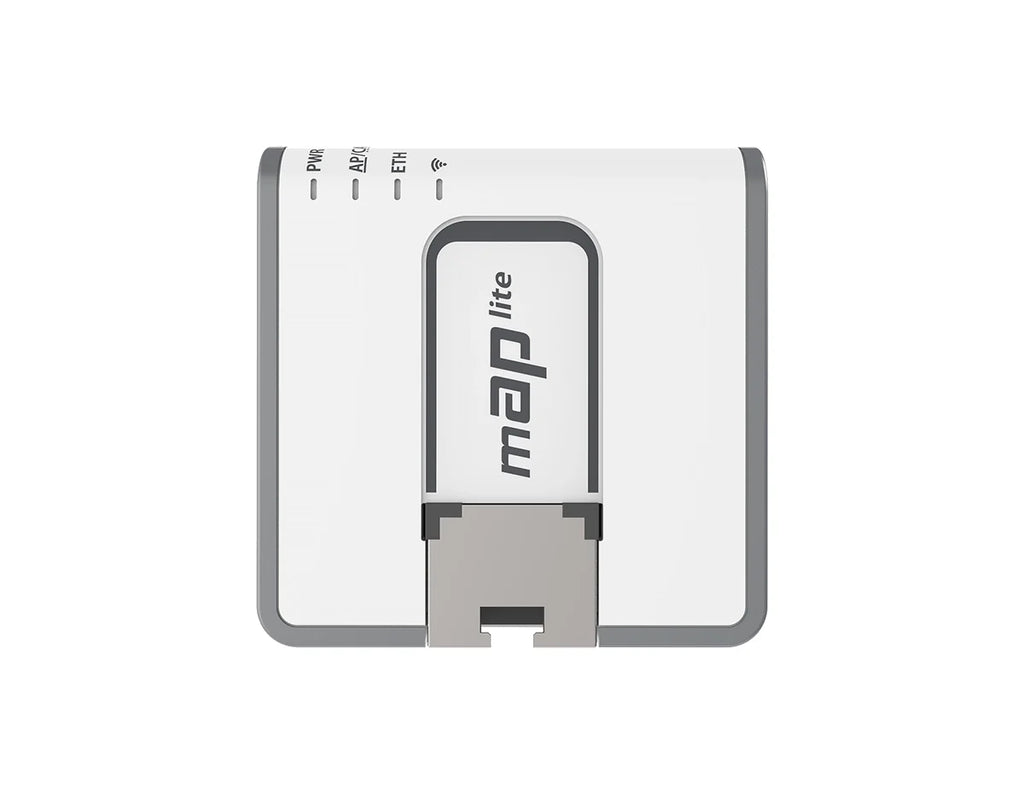

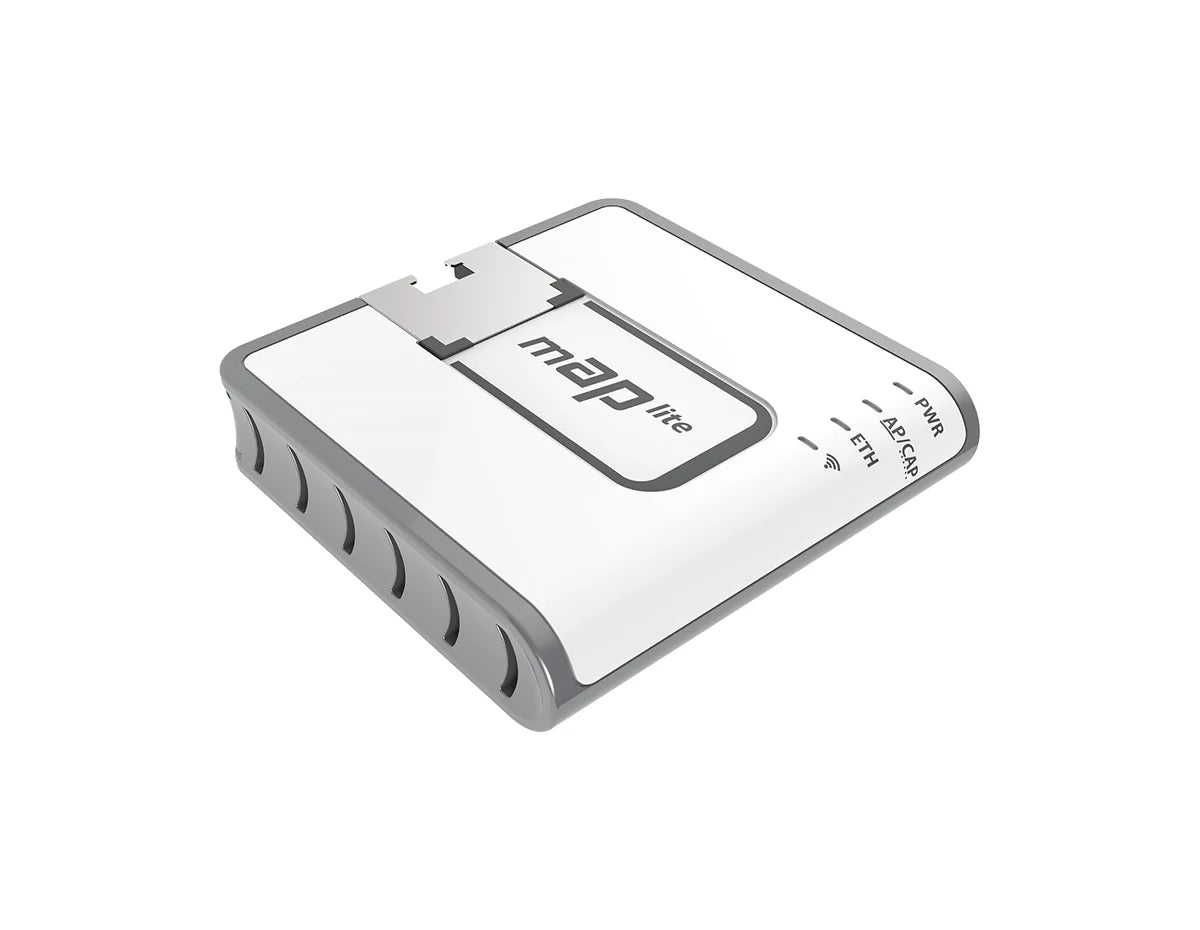

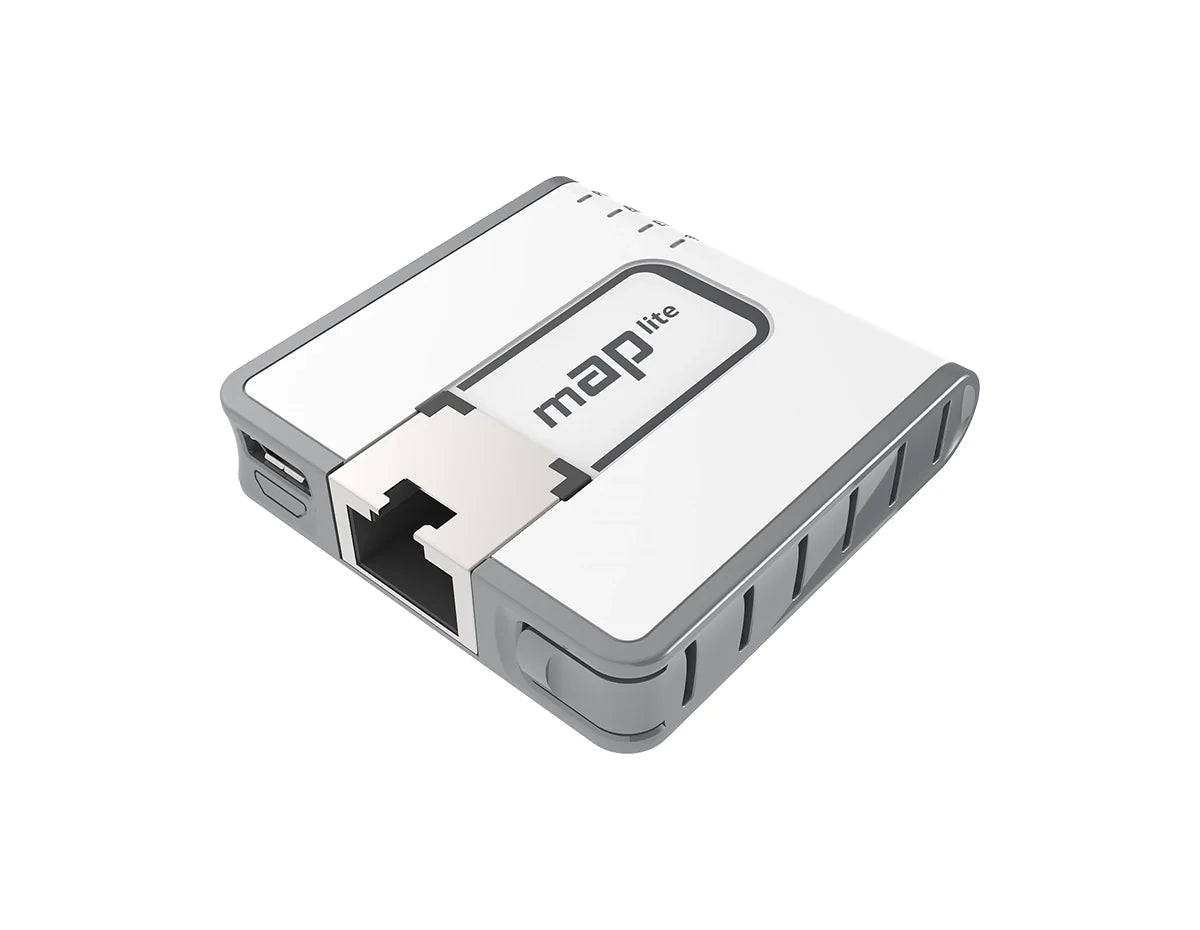

MikroTik RBmAPL-2nD Access Point
The RBmAPL-2nD is very small and portable. You have the flexibility to transport it to any location and utilize it as a travel router to extend the hotel internet access to all of your devices. It can also function as a straightforward setup tool for your servers in the absence of an Ethernet connection on your mobile device. The RBmAPL-2n is a dual chain 802.11 b/g/n device that operates in the 2 GHz frequency band.
Quick Specs:
-
1x 10/100 Ethernet Port
-
Wireless: 2.4 GHz 802.11b/g/n, dual-chain
-
QCA9533, 650 MHz CPU
-
RouterOS
Please see the related tabs for the RBmAPL-2nD datasheet and compatible accessories.
