[properties]

Properties	MikroTik Audience RBD25G-5HPACQD2HPND-US
Description	Tri-band (one 2.4 GHz & two 5 GHz) home access point with meshing technology
Product Family	Audience Series
Product Type	Access Point
10/100/1000 Ethernet ports	2
Number of USB ports	1 USB type A
Dimensions	100 x 235 x 97 mm
Number of DC inputs	2 (DC jack, PoE-IN)
DC jack input Voltage	12-57 V
Max power consumption	27 W
Max power consumption without attachments	27 W
Cooling type	Passive
PoE in	Passive PoE
PoE in input Voltage	24-57 V

[/properties][specifications]

Wireless 5 GHz Max data rate	867 Mbit/s
Wireless 5 GHz number of chains	2
Wireless 5 GHz standards	802.11a/n/ac
Antenna gain dBi for 5 GHz	4.5
Wireless 5 GHz chip model	IPQ-4019
Wireless 5 GHz generation	Wi-Fi 5
Wireless 5 GHz Max data rate	1733 Mbit/s
Wireless 5 GHz number of chains	4
Wireless 5 GHz standards	802.11a/n/ac
Antenna gain dBi for 5 GHz	4.5
Wireless 5 GHz chip model	QCA9984
Wireless 5 GHz generation	Wi-Fi 5
Wireless specifications
2.4 GHz
1MBit/s	Transmit (dBm): 22 Receive Sensitivity: -96
11MBit/s	Transmit (dBm): 22 Receive Sensitivity: -89
6MBit/s	Transmit (dBm): 20 Receive Sensitivity: -93
54MBit/s	Transmit (dBm): 18 Receive Sensitivity: -74
MCS0	Transmit (dBm): 20 Receive Sensitivity: -93
MCS7	Transmit (dBm): 16 Receive Sensitivity: -71
5 GHz
6MBit/s	Transmit (dBm): 23 Receive Sensitivity: -93
54MBit/s	Transmit (dBm): 20 Receive Sensitivity: -75
MCS0	Transmit (dBm): 23 Receive Sensitivity: -93
MCS7	Transmit (dBm): 19 Receive Sensitivity: -71
MCS9	Transmit (dBm): 16 Receive Sensitivity: -63
6MBit/s	Transmit (dBm): 32 Receive Sensitivity: -96
54MBit/s	Transmit (dBm): 28 Receive Sensitivity: -80
MCS0	Transmit (dBm): 32 Receive Sensitivity: -96
MCS7	Transmit (dBm): 27 Receive Sensitivity: -77
MCS9	Transmit (dBm): 22 Receive Sensitivity: -70
MTBF	Approximately 100.000 hours at 25C
Temperature	-40°C to 60°C tested
IPsec hardware acceleration	Yes
Certification	CE, FCC, IC, EAC, ROHS
IP	IP20

[/specifications][accesories]

24 V 1.5 A power adapter (white)

Ethernet cable

[/accesories]

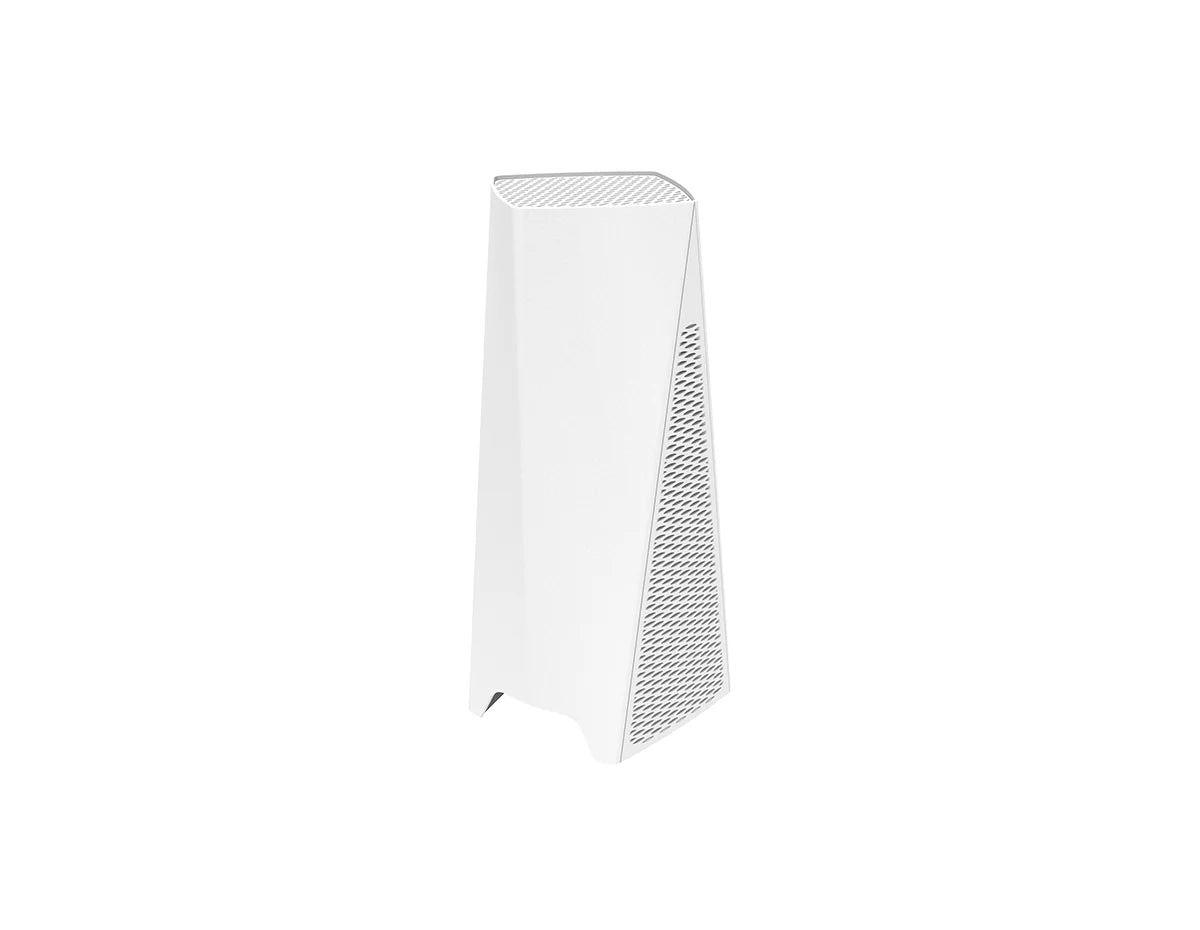

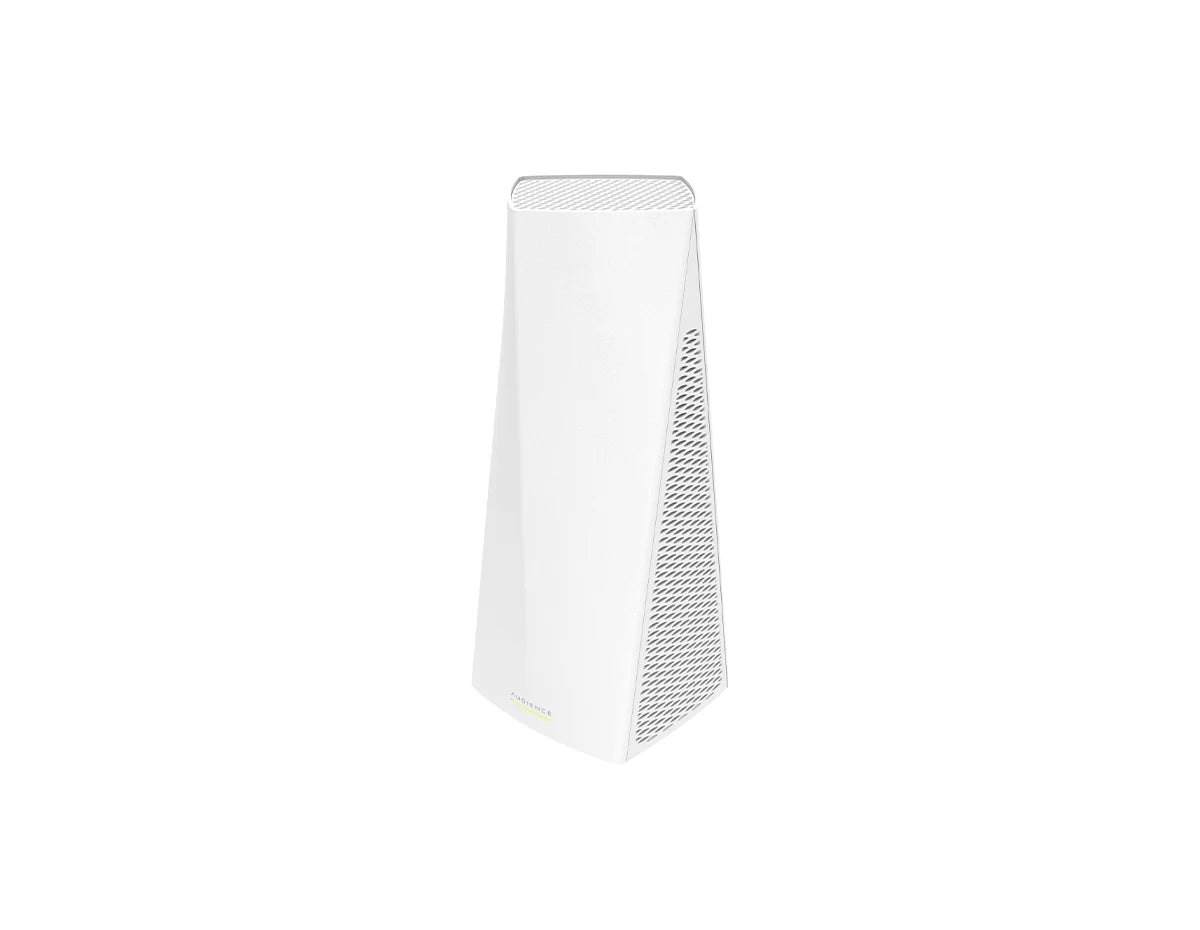

MikroTik RBD25G-5HPacQD2HPnD-US Access Point

The RBD25G-5HPacQD2HPnD-US is a tri-band home access point equipped with meshing technology, featuring one 2.4 GHz and two 5 GHz bands. When requiring Wi-Fi coverage in a large building with various obstacles, additional Audience devices can be seamlessly integrated into the network with a simple button, creating a unified Wi-Fi network to encompass the entire premises. The dual-chain 2.4 GHz and 5 GHz wireless coverage effectively addresses interference challenges in densely populated environments. Household mobile devices can use the 2.4 GHz channel, while the 5 GHz channel can be reserved for PC or TV usage.

Quick Specs:

• 2x 10/100/1000 Ethernet ports
• IPQ-4019, 4 core, 716 MHz CPU
• 256 MB RAM
• PoE in: Passive PoE

Please see the related tabs for the RBD25G-5HPacQD2HPnD-US datasheet and compatible accessories.
