[properties]

Properties	MikroTik hAP RB951UI-2ND
Description	2.4GHz AP, Five Ethernet ports, PoE-out on port 5, USB for 3G/4G support
Product Family	hAP Series
Product Type	Access Point
10/100 Ethernet ports	5
Number of USB ports	1 USB type A
Extras	Beeper
Dimensions	113 x 89 x 28mm
Number of DC inputs	2 (DC jack, PoE-IN)
DC jack input Voltage	10-28 V
Max power consumption	5 W
Cooling type	Passive
PoE in	Passive PoE
PoE in input Voltage	10-28 V
PoE-out ports	Ether5
PoE out	Passive PoE
Max out per port output (input 18-30 V)	500 mA
Max total out (A)	500 mA

[/properties][specifications]

Specifications	RB951UI-2HND
Memory	64 MB
Flash Storage size	16 MB
CPU	QCA9531 650 MHz
CPU core count	1
Switch chip model	QCA9531
OS	RouterOS level 4 license
Wireless capabilities
Wireless 2.4 GHz Max data rate	300 Mbit/s
Wireless 2.4 GHz number of chains	2
Wireless 2.4 GHz standards	802.11b/g/n
Antenna gain dBi for 2.4 GHz	1.5
Wireless 2.4 GHz chip model	QCA9531
Wireless 2.4 GHz generation	Wi-Fi 4
Wireless specifications
2.4 GHz
1MBit/s	Transmit (dBm): 22 Receive Sensitivity: -96
11MBit/s	Transmit (dBm): 22 Receive Sensitivity: -89
6MBit/s	Transmit (dBm): 20 Receive Sensitivity: -93
54MBit/s	Transmit (dBm): 18 Receive Sensitivity: -74
MCS0	Transmit (dBm): 20 Receive Sensitivity: -93
MCS7	Transmit (dBm): 16 Receive Sensitivity: -71
MTBF	Approximately 100.000 hours at 25C
Temperature	-30°C to 70°C tested
Certification	CE, FCC, IC, EAC, ROHS
IP	IP20

[/specifications][accesories]

24V 0.8A power adapter[/accesories]

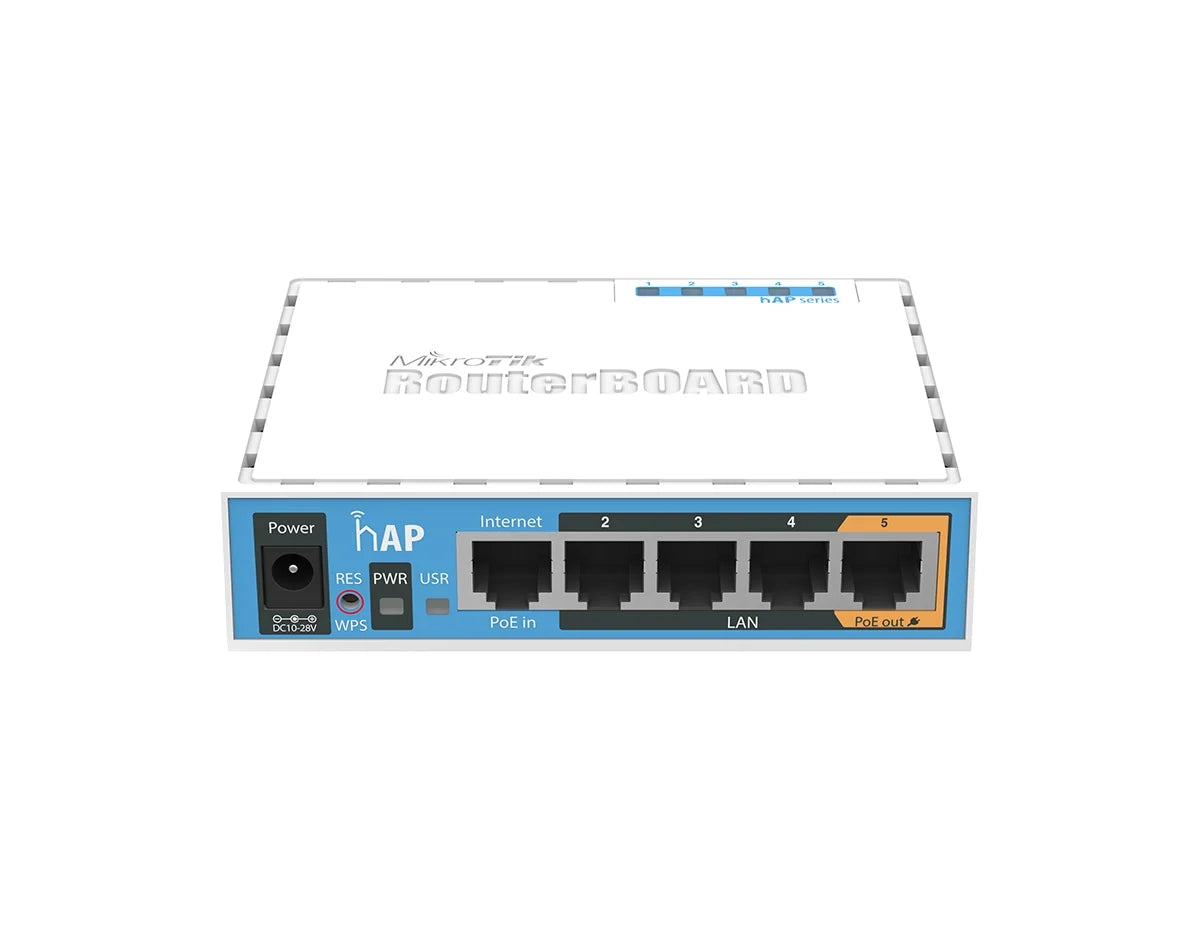

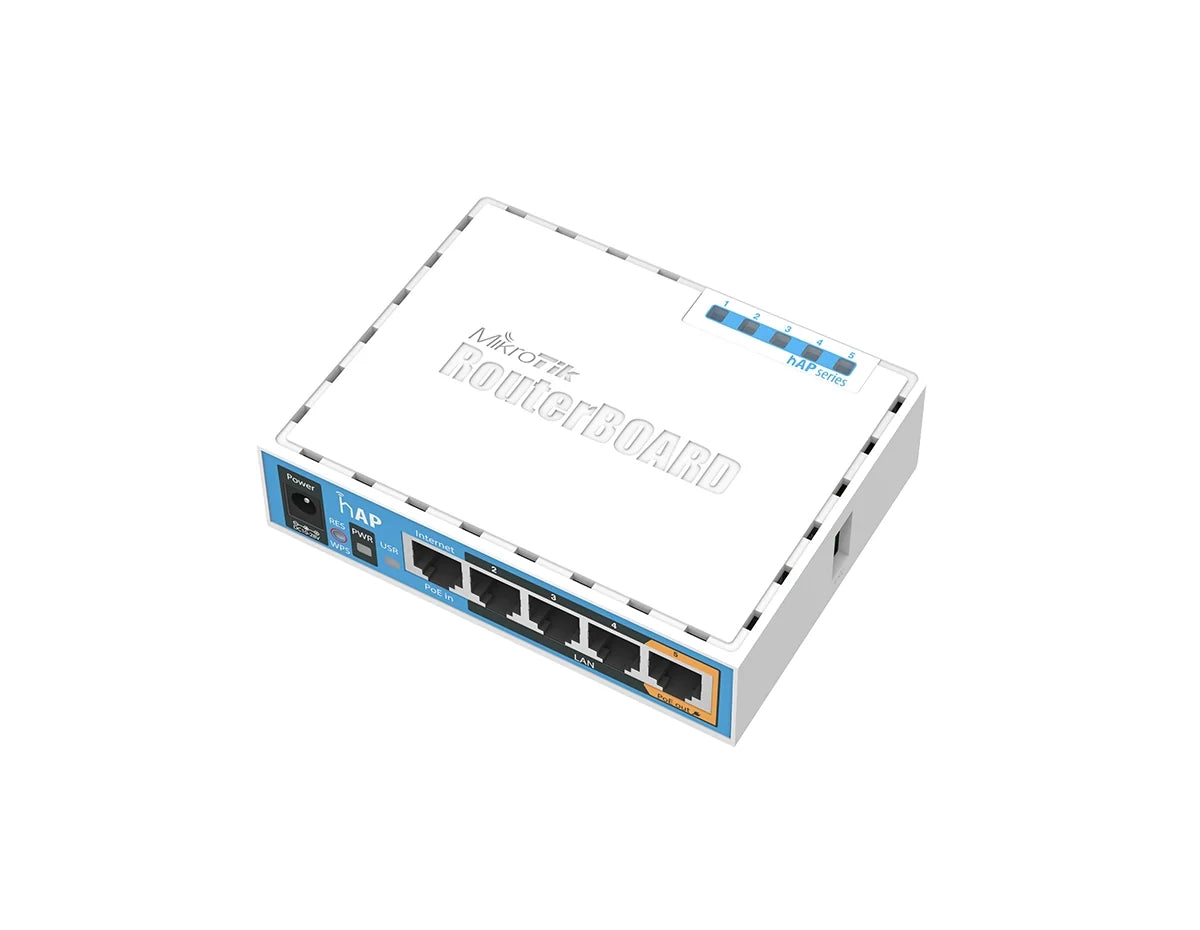

MikroTik RB951Ui-2nD Access Point

The RB951Ui-2nD access point is an ideal solution for residential or small office environments requiring wireless access and connectivity for a limited number of wired devices. This device can be powered through the power jack or via passive PoE using a PoE injector, with the power adapter provided. The RB951Ui-2nD comes preconfigured, simplifying setup to the extent that users only need to connect the internet cable, power, and access the internet by connecting to the MikroTik network.

Quick Specs:

• 5x 10/100 Ethernet ports
• Dual chain wireless 2.4 GHz
• Passive PoE output on port5
• USB port for 3G/4G modem

Please see the related tabs for the RB951Ui-2nD datasheet and compatible accessories.
