[properties]

Properties	MikroTik RB951UI-2HND
Description	2.4GHz AP with five Ethernet ports and PoE output on port 5. It has a 600MHz CPU, 128MB RAM and a USB port
Product Family	RB900 Series
Product Type	Access Point
10/100 Ethernet ports	5
Number of USB ports	1 USB type A
Extras	Beeper
Dimensions	113 x 138 x 29mm
Number of DC inputs	2 (DC jack, PoE-IN)
DC jack input Voltage	8-30 V
Max power consumption	24 W
Max power consumption without attachments	7 W
Cooling type	Passive
PoE in	Passive PoE
PoE in input Voltage	8-30 V
PoE-out ports	Ether5
PoE out	Passive PoE
Max out per port output (input 18-30 V)	500 mA
Max total out (A)	500 mA

[/properties][specifications]

Specifications	RB951UI-2HND
Memory	128 MB
NAND Storage size	128 MB
CPU	AR9344 600 MHz
CPU core count	1
Switch chip model	AR8327-BL1A
OS	RouterOS level 4 license
Wireless capabilities
Wireless 2.4 GHz Max data rate	300 Mbit/s
Wireless 2.4 GHz number of chains	2
Wireless 2.4 GHz standards	802.11b/g/n
Antenna gain dBi for 2.4 GHz	2.5
Wireless 2.4 GHz chip model	AR9344
Wireless 2.4 GHz generation	Wi-Fi 4
Wireless specifications
2.4 GHz
6MBit/s	Transmit (dBm): 30 Receive Sensitivity: -96
54MBit/s	Transmit (dBm): 25 Receive Sensitivity: -80
MCS0	Transmit (dBm): 30 Receive Sensitivity: -96
MCS7	Transmit (dBm): 23 Receive Sensitivity: -78
MTBF	Approximately 100.000 hours at 25C
Temperature	-20°C to 50°C tested
Certification	CE, FCC, IC, EAC, ROHS
IP	IP20

[/specifications][accesories] 24V 0.8A power adapter[/accesories]

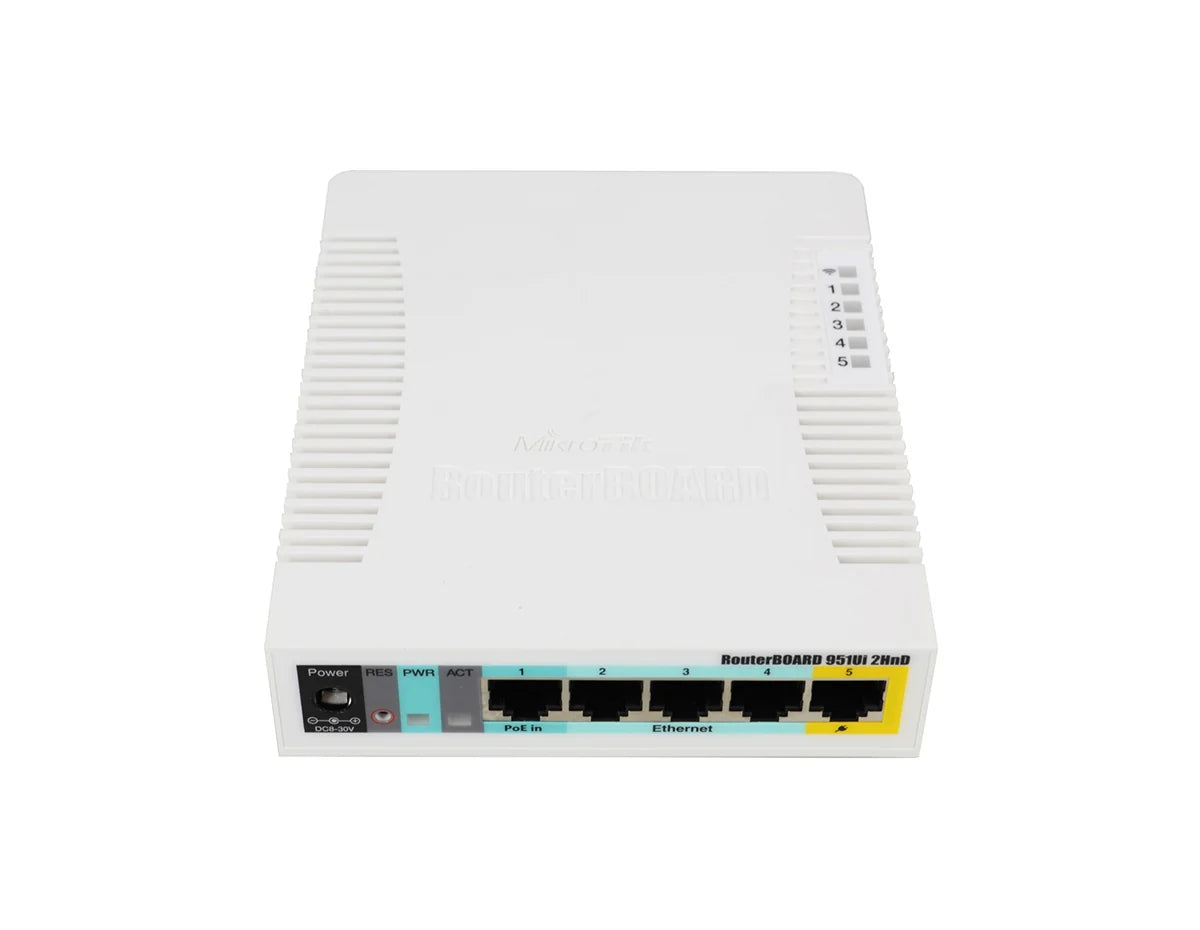

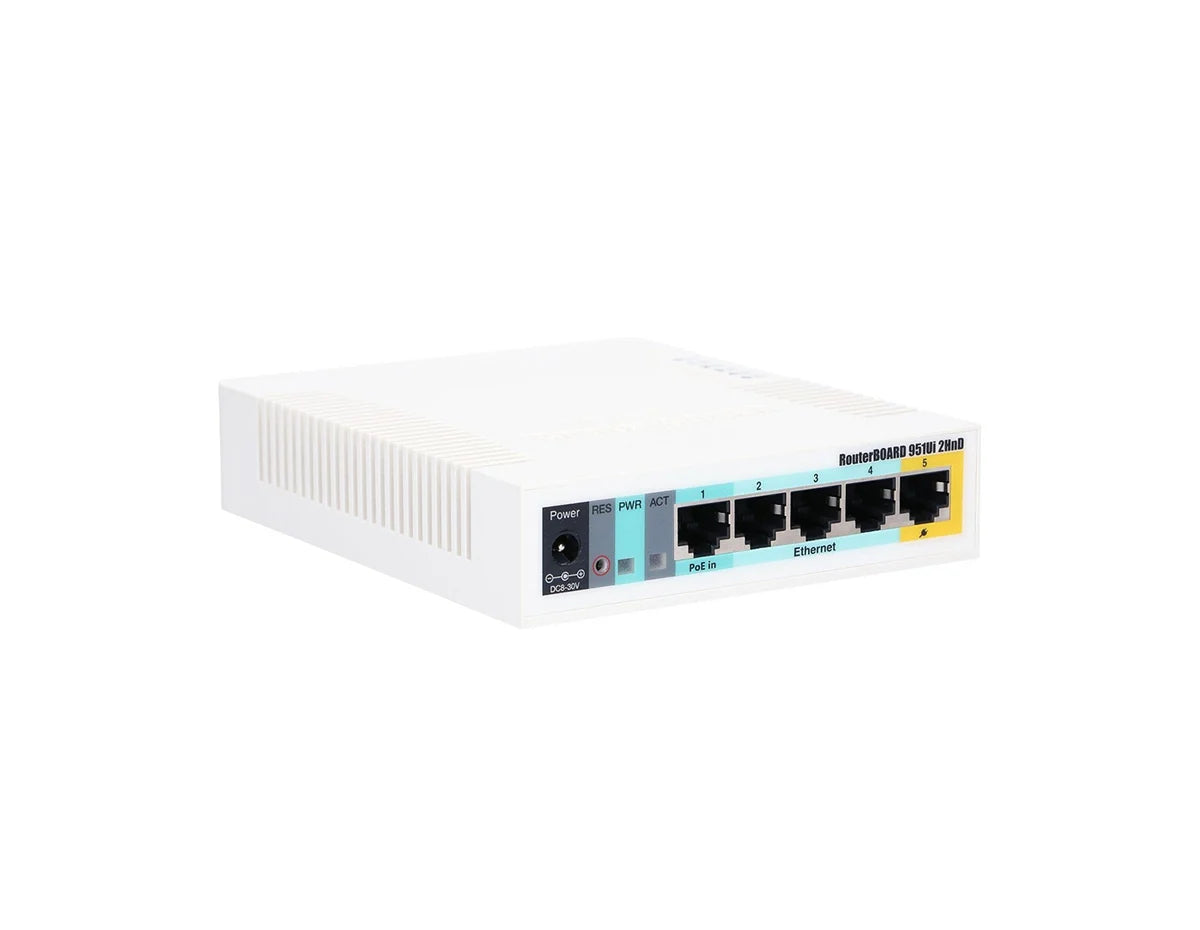

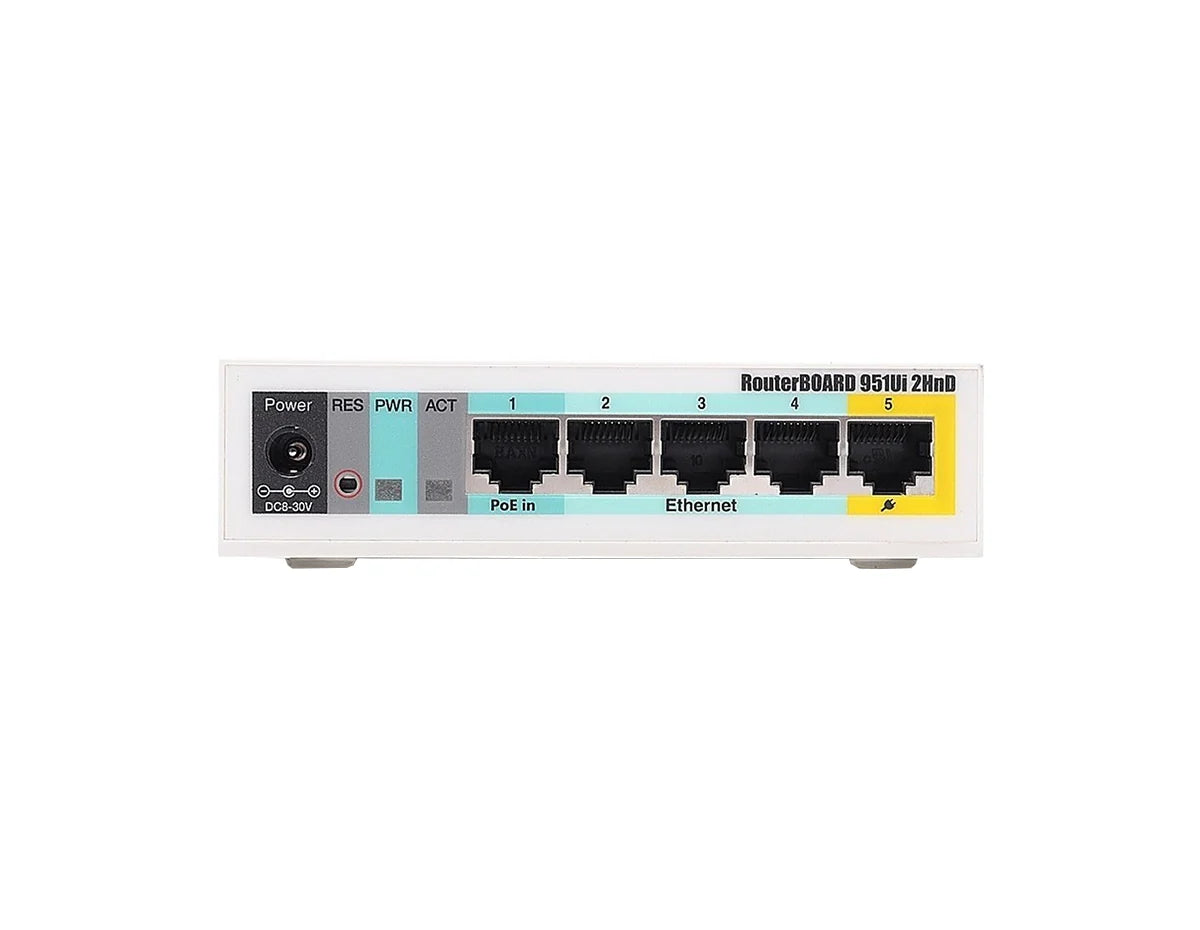

MikroTik RB951Ui-2HnD Access Point

The RB951Ui-2HnD is a wireless Small Office/Home Office (SOHO) access point featuring an advanced Atheros CPU and enhanced processing capabilities. Equipped with five Ethernet ports, a USB 2.0 port, and a high-power 2.4GHz 802.11b/g/n wireless access point with integrated antennas, it boasts a 600MHz CPU, 128MB of RAM, and a Power over Ethernet (PoE) output function for port #5, enabling it to supply power to other PoE compatible devices at the same voltage as the unit. The maximum load on the port is 500mA.

Quick Specs:

• 5x 10/100 Ethernet Ports
• AR9344, 1 core, 600 MHz CPU
• 128 MB RAM
• RouterOS

Please see the related tabs for the RB951Ui-2HnD datasheet and compatible accessories.
