[shortdesc]
- Small home AP with four ethernet ports and a colorful enclosure.
[/shortdesc]
[properties]
| Properties |
MikroTik hAP Lite TC RB941-2ND-TC |
| Description |
Compact and affordable home wireless router with 4 Ethernet ports and 2.4GHz 802.11b/g/n wireless. Includes RouterOS Level 4 license. |
| Product Family |
hAP Series |
| Product Type |
Access Point |
| 10/100/1000 Ethernet ports |
4 |
| Dimensions |
113 x 89 x 28mm |
| MicroUSB input Voltage |
5-5 V |
| Number of DC inputs |
1 (MicroUSB) |
| Max power consumption |
3.5 W |
| Cooling type |
Passive |
[/properties][specifications]
| Specifications |
RB941-2ND-TC |
| Memory |
32 MB |
| Flash Storage size |
16 MB |
| CPU |
QCA9533 650 MHz |
| CPU core count |
1 |
| Switch chip model |
QCA9533-BL3A |
| OS |
RouterOS level 4 license |
| Wireless capabilities |
| Wireless 2.4 GHz Max data rate |
300 Mbit/s |
| Wireless 2.4 GHz number of chains |
2 |
| Wireless 2.4 GHz standards |
802.11b/g/n |
| Antenna gain dBi for 2.4 GHz |
1.5 |
| Wireless 2.4 GHz chip model |
QCA9533 |
| Wireless 2.4 GHz generation |
Wi-Fi 4 |
| Wireless specifications |
| 2.4 GHz |
|
| 1MBit/s |
Transmit (dBm): 22
Receive Sensitivity: -96 |
| 11MBit/s |
Transmit (dBm): 22
Receive Sensitivity: -89 |
| 6MBit/s |
Transmit (dBm): 20
Receive Sensitivity: -93 |
| 54MBit/s |
Transmit (dBm): 18
Receive Sensitivity: -74 |
| MCS0 |
Transmit (dBm): 20
Receive Sensitivity: -93 |
| MCS7 |
Transmit (dBm): 16
Receive Sensitivity: -71 |
| MTBF |
Approximately 100.000 hours at 25C |
| Temperature |
-20°C to 60°C tested |
| Certification |
FCC, IC |
[/specifications][accesories]
5V 1A power adapter[/accesories]

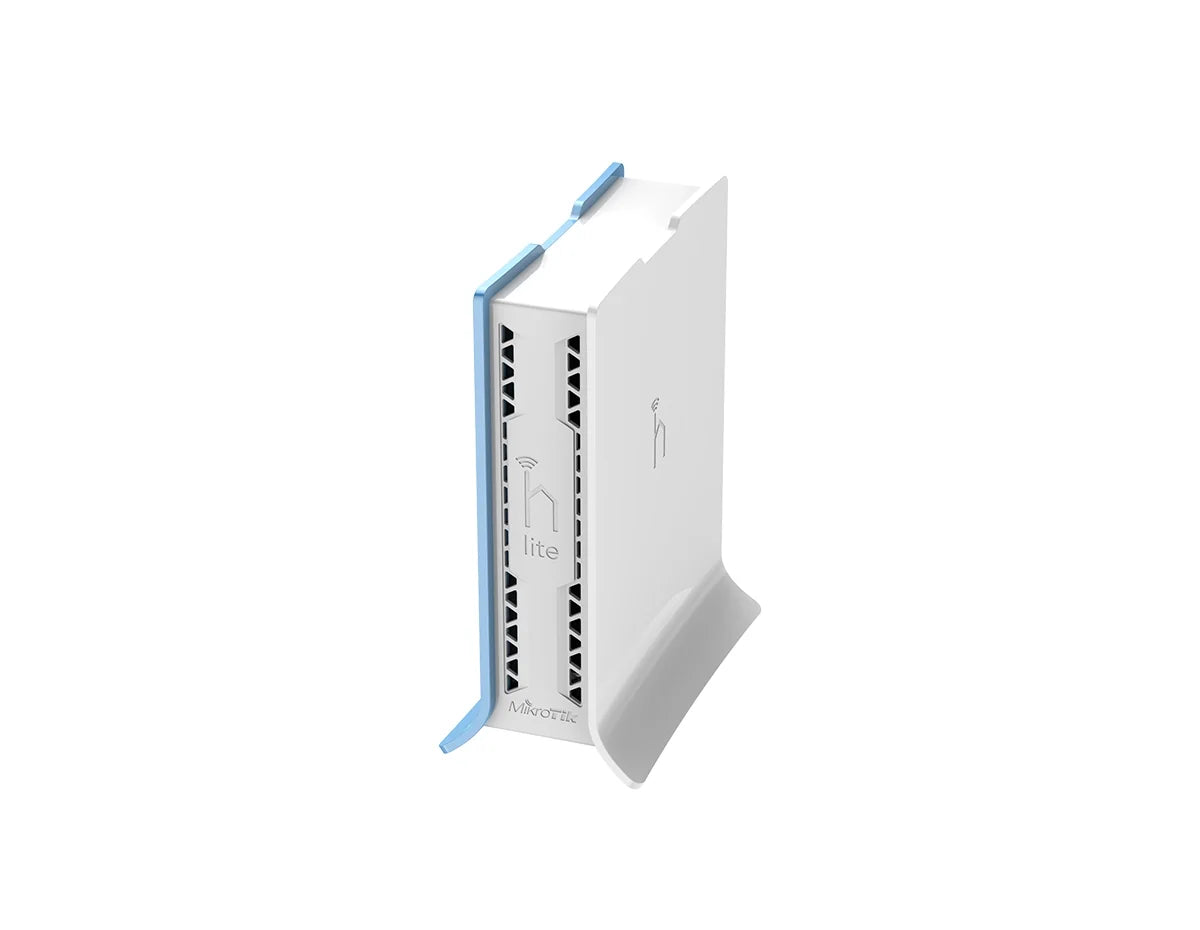

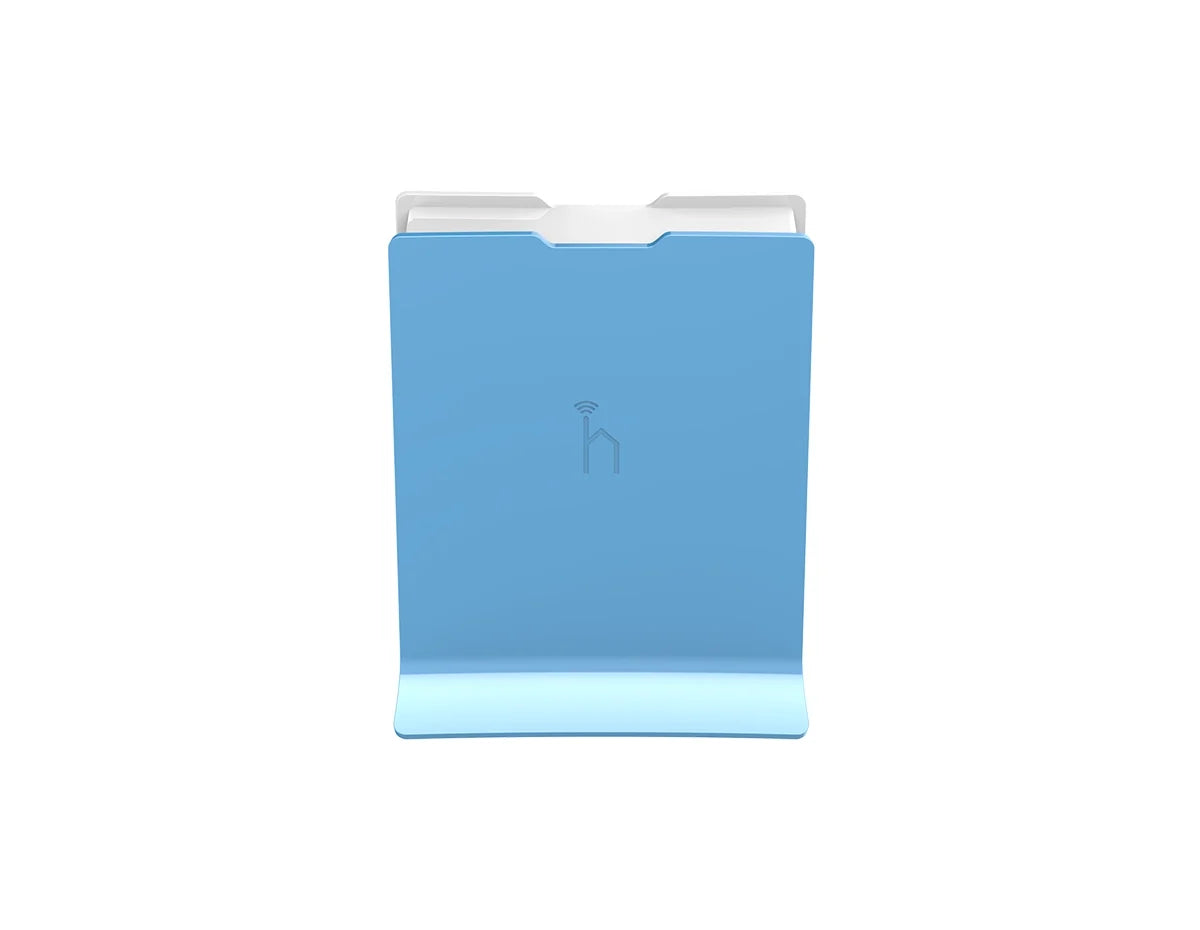

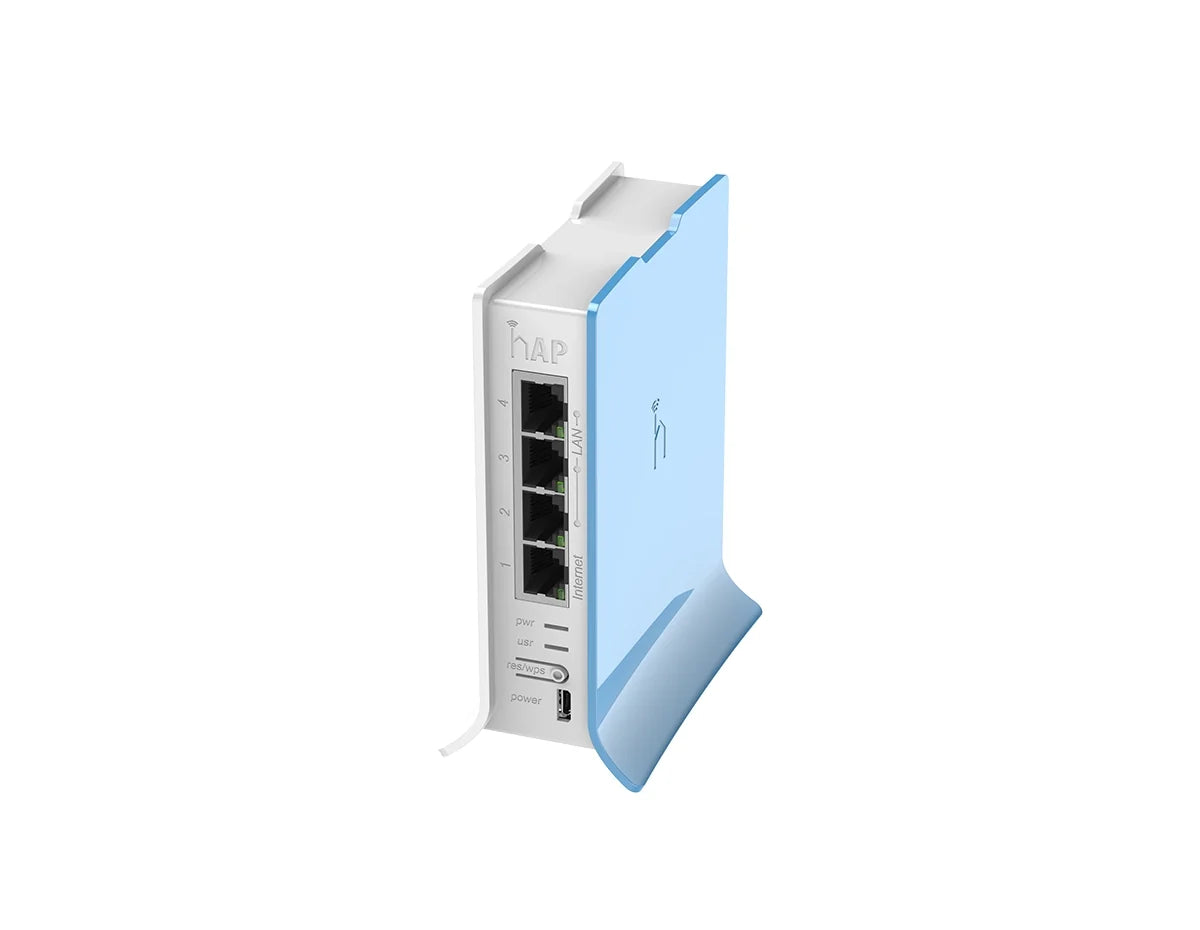

MikroTik RB941-2ND-TC Access Point
The RB941-2ND-TC is a compact and versatile device suitable for use in residential or commercial settings. It features a button-triggered WPS function for simplified wireless internet access, eliminating the need to enter a complex password. Additionally, it can easily switch to cAP mode and connect to a centrally managed CAPsMAN network with the push of a button. Equipped with a robust 650MHz CPU, 32MB RAM, dual chain 2.4GHz onboard wireless, four Fast Ethernet ports, and a RouterOS L4 license, this device offers reliable performance. It also comes with a USB power supply for added convenience.
Quick Specs:
-
4x 10/100 Ethernet Ports
-
QCA9533, 1 core, 650 MHz CPU
-
32 MB RAM
-
Power Connector: MicroUSB
Please see the related tabs for the RB941-2ND-TC datasheet and compatible accessories.
