[properties]
| Properties |
Mikrotik QRT 5 ac / RB911G-5HPacD-QRT |
| Description |
The QRT 5 ac is a robust outdoor antenna with a built-in RouterBOARD, supporting both 802.11ac and 802.11a/n. It's designed for easy setup and long point-to-point connections at higher speeds. |
| Product Family |
Mikrotik 911 Series |
| Product Type |
Outdoor Antenna |
| 10/100 Ethernet ports |
1 |
| Number of DC inputs |
1 (PoE-IN) |
| Max power consumption |
10.5 W |
| Cooling type |
Passive |
| PoE in |
Passive PoE |
| PoE in input Voltage |
8-30 V |
| Dimensions |
309x320x50mm |
| Features |
PCB temperature monitor
Voltage Monitor
Beeper |
[/properties][specifications]
| Specifications |
RB911G-5HPacD-QRT-US |
| Architecture |
MIPSBE |
| CPU |
QCA9557 |
| CPU core count |
1 |
| CPU nominal frequency |
720 MHz |
| Operating System |
RouterOS License 4 |
| Size of RAM |
128 MB |
| Storage |
128 MB NAND |
| MTBF |
Approximately 200'000 hours at 25C |
| Tested ambient temperature |
-40°C to 70°C |
| Wireless 5 GHz Max data rate |
867 Mbit/s |
| Wireless 5 GHz number of chains |
2 |
| Wireless 5 GHz standards |
802.11a/n/ac |
| Antenna gain dBi for 5 GHz |
24 |
| Wireless 5 GHz chip model |
QCA9892 |
| Wireless 5 GHz generation |
Wi-Fi 5 |
| Certification |
CE, FCC, IC, EAC, ROHS |
[/specifications][accesories]
| Included in package |
24V 0.8A power adapter
K-QRT screw kit
Gigabit PoE injector
U bolts
U mast clamp
QRT antenna mount |
[/accesories]

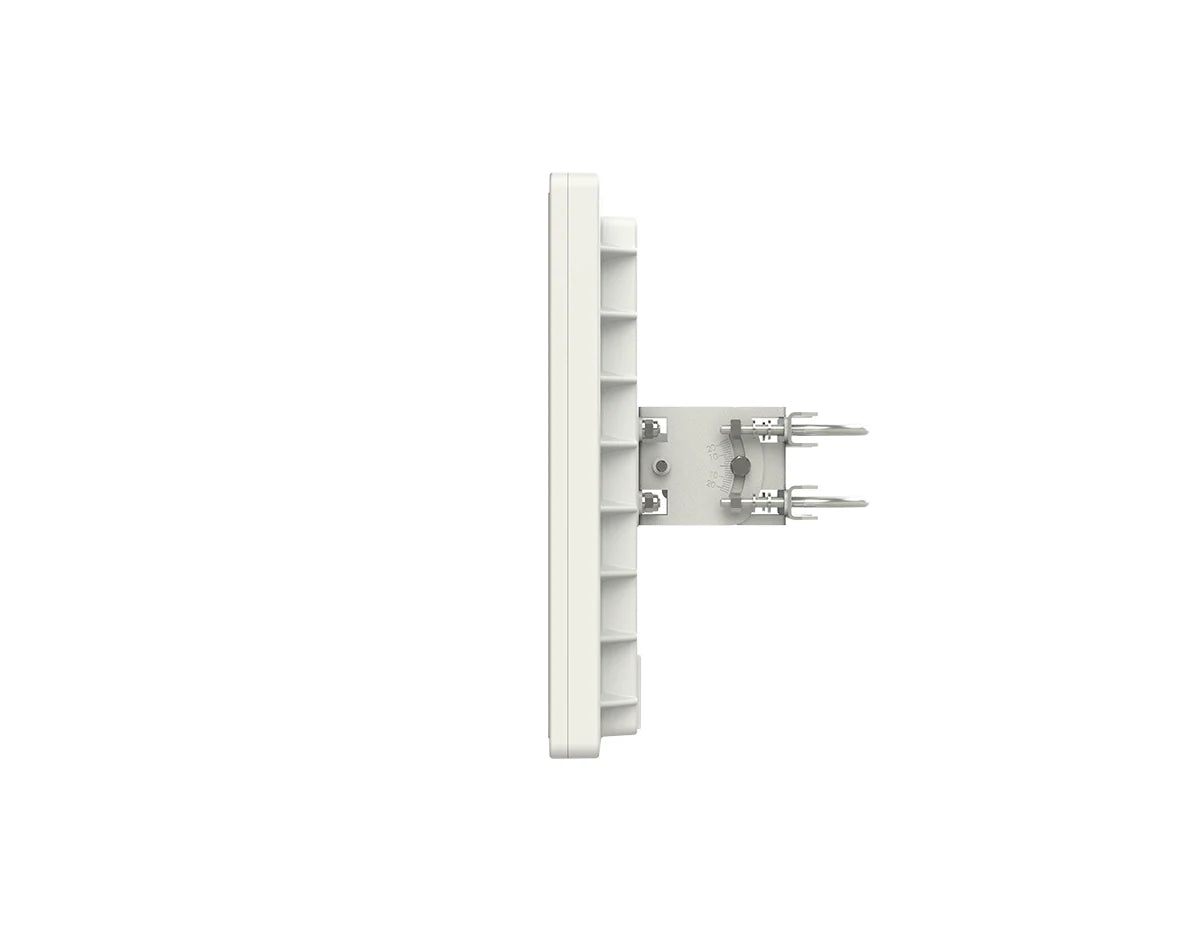

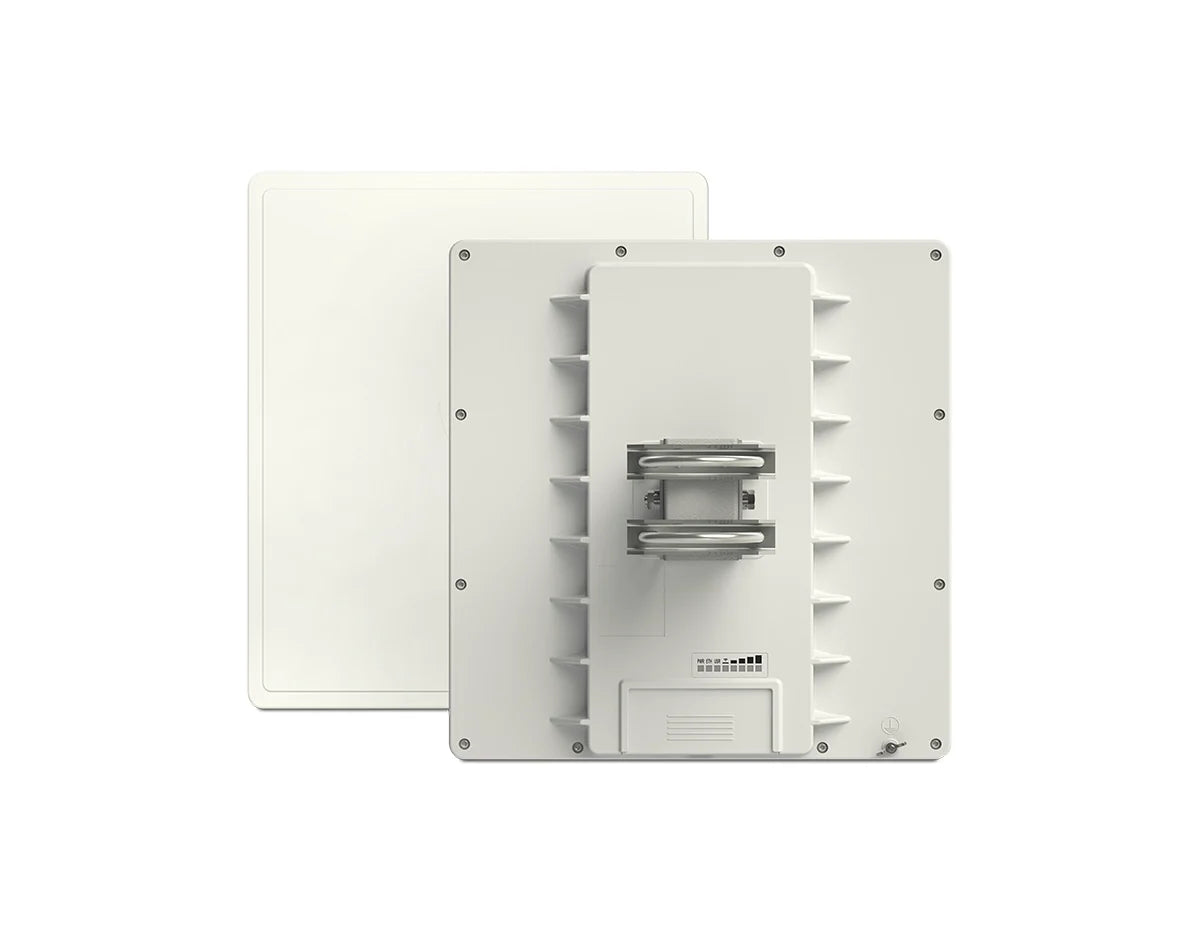

MikroTik RB911G-5HPacD-QRT-US Antenna
The RB911G-5HPacD-QRT-US is equipped with a 24 dBi antenna and a high-power 5 GHz wireless transmitter that is compatible with 802.11ac and backward compatible with 802.11a/n. The device houses the high-power RB911G-5HPacD dual-chain wireless component with a high-performance, high-output power wireless transmitter. Additionally, it features a Gigabit Ethernet port to maximize the advantages of 802.11ac high-speed wireless technology. Its user-friendly interface facilitates easy deployment. The RB911G-5HPACD-QRT-US (USA) is factory-locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed due to country regulations.
Quick Specs:
-
1x 10/100/1000 Ethernet Port
-
QCA9557, 1 core, 720 MHz CPU
-
PoE-in: Passive PoE
-
128 MB RAM
Please see the related tabs for the RB911G-5HPacD-QRT-US datasheet and compatible accessories.
