[shortdesc] Router, Mikrotik RB750P-PBr2, hEX PoE lite, 5-Port Ethernet, PoE Support [/shortdesc]
[properties]
| Properties |
RB750P-PBr2 - PowerBox |
| Description |
The PowerBox, an outdoor router, offers PoE output on four ports for powering devices like SXT. Its waterproof case allows flexible outdoor mounting on towers or in various outdoor spots. |
| Product Type |
Outdoor Ethernet Router |
| 10/100 Ethernet ports |
5 |
| Number of DC inputs |
2 (DC jack, PoE-IN) |
| DC jack input Voltage |
8-30 V |
| Max power consumption |
50 W |
| Cooling type |
Passive |
| PoE in |
Passive PoE |
| PoE in input Voltage |
8-30 V |
| PoE-out ports |
Ether2-Ether5 |
| PoE out |
Passive PoE |
| Max out per port output (input 18-30 V) |
1A |
| Max total out (A) |
2A |
| Dimensions |
125x178x48mm |
[/properties][specifications]
| Specifications |
RB750P-PBr2 - PowerBox |
| Architecture |
MIPSBE |
| Memory |
64 MB |
| Storage size |
16 MB FLASH |
| CPU |
QCA9533 650 MHz |
| CPU core count |
1 |
| Switch chip model |
QCA9533 |
| Operating System |
RouterOS level 4 license |
| MTBF |
Approximately 100.000 hours at 25C |
| Temperature |
-40°C to 70°C tested |
| Certification |
CE, EAC, ROHS |
| IP |
IP20 |
| Features |
Current Monitor
PCB temperature monitor
Voltage Monitor |
[/specifications][accesories]
| Included Accessories |
IEC cord
Metal ring (one)
PoE injector
24V 2.5A power adapter
DIN mount (K-27) |
[/accesories]

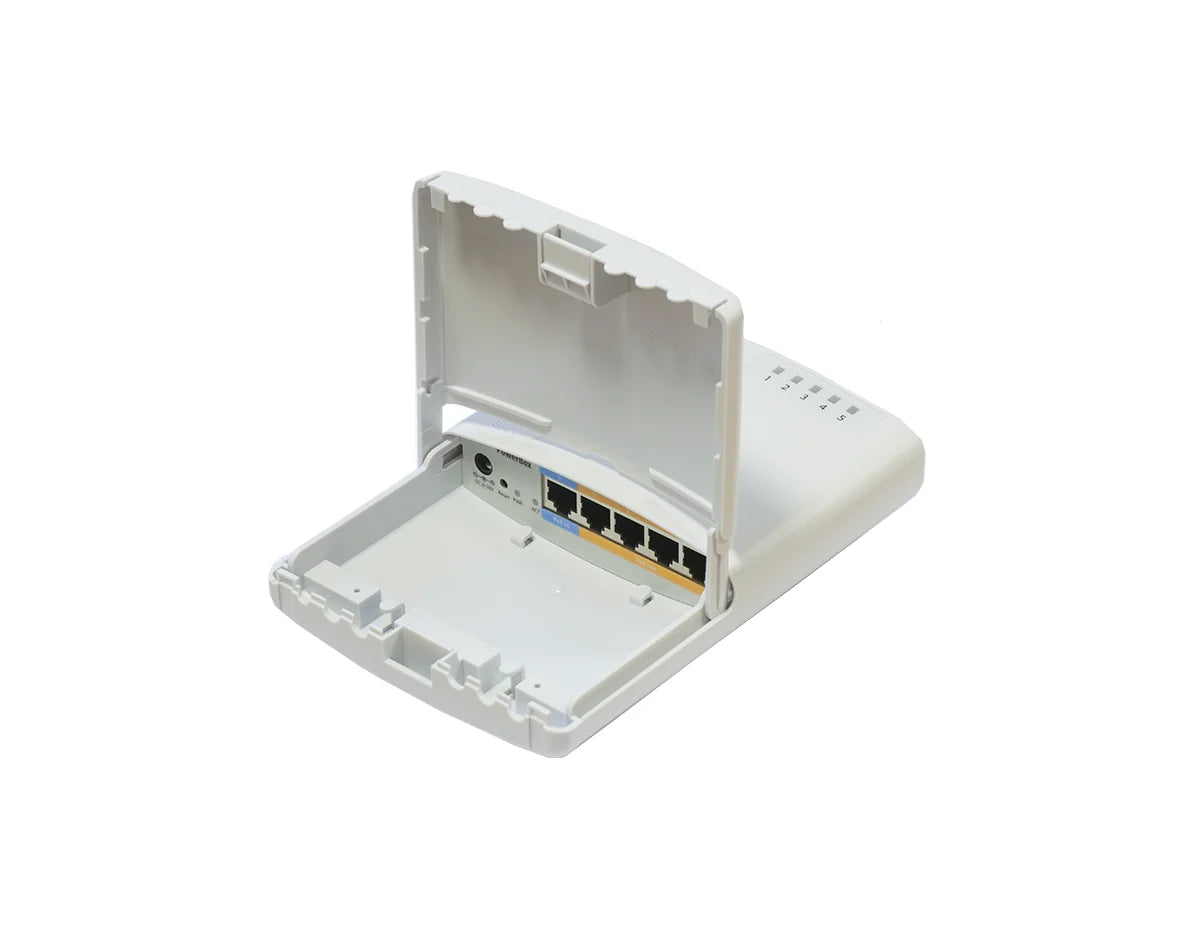

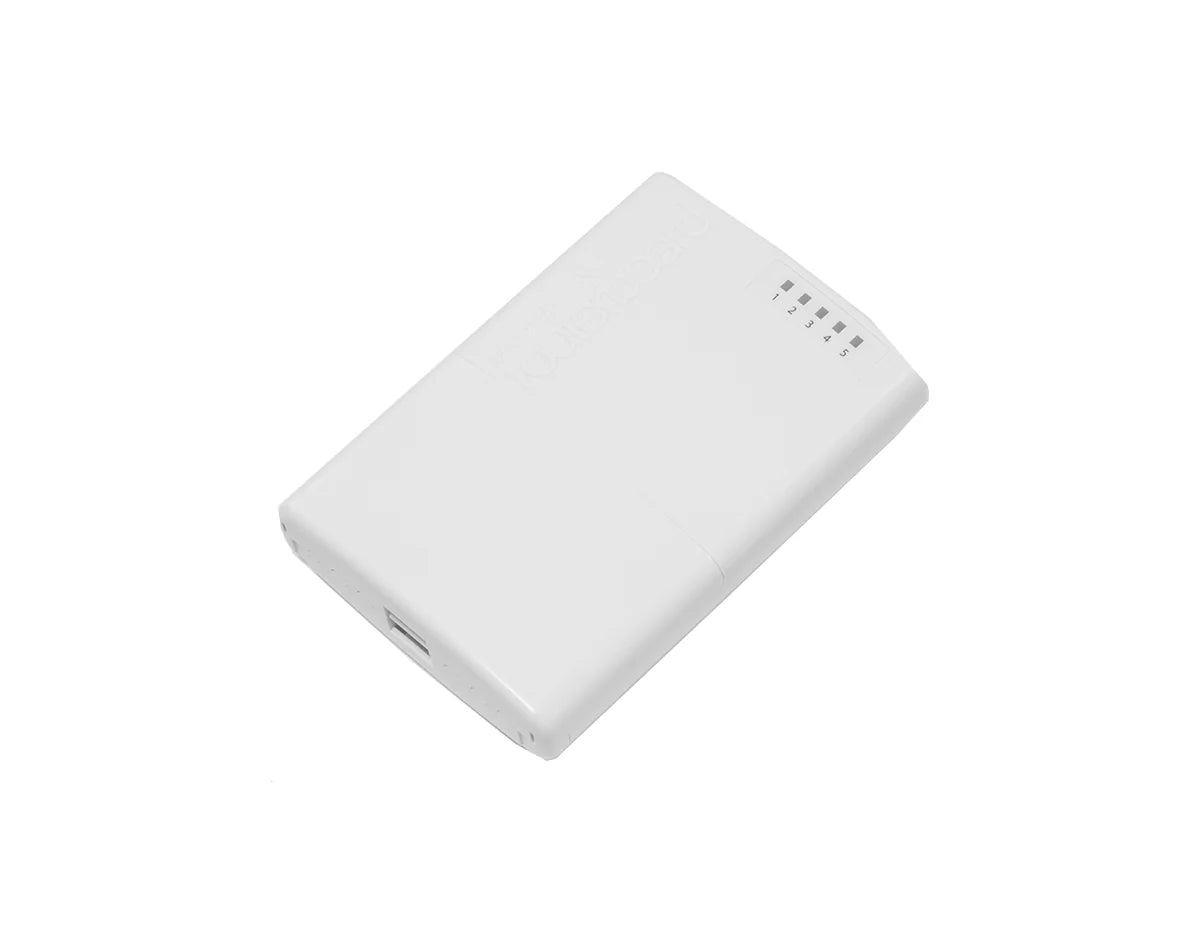

MikroTik RB750P-PBR2 Powerbox
The RB750P-PBR2 is a router designed for outdoor use, featuring five Ethernet ports with PoE output on four of them. This device can supply power to up to four PoE-compatible devices, such as the SXT or other similar devices. Its waterproof outdoor case allows for mounting on a tower or in different outdoor settings. The unit is equipped with five shielded Ethernet ports, four of which can provide power to other PoE-compatible devices at the same voltage as applied to the unit, with a maximum current output of 1A per port and a total maximum output of 2A.
Quick Specs:
-
5x 10/100 Ethernet Ports
-
PoE-in: Passive PoE
-
PoE-out ports: Ether2-Ether5
-
QCA9533, 1 core, 650 MHz CPU
Please see the related tabs for the RB750P-PBR2 datasheet and compatible accessories.
