[shortdesc]
- Dual-Core IPQ-5010 800 MHz ARM architecture, 5 GHz Wi-Fi 6 dual-chain radio, 256 MB RAM, 128 MB NAND storage, Gigabit Ethernet with PoE-in
[/shortdesc]
[properties]
| Product code |
L11UG-5HaxD |
| Architecture |
ARM |
| CPU |
IPQ-5010 |
| CPU core count |
2 |
| CPU nominal frequency |
800 MHz |
| RouterOS license |
4 |
| Operating System |
RouterOS v7 |
| Size of RAM |
256 MB |
| Storage size |
128 MB |
| Storage type |
NAND |
| MTBF |
Approximately 100'000 hours at 25C |
| Tested ambient temperature |
-40°C to 70°C |
[/properties]
[specifications]
| Details |
|
| Number of DC inputs |
2 (DC jack, PoE-IN) |
| DC jack input Voltage |
12-28 V |
| Max power consumption |
15 W |
| Max power consumption without attachments |
6 W |
| Cooling type |
Passive |
| PoE in |
Passive PoE |
| PoE in input Voltage |
18-28 V |
| Wireless specifications |
|
| Wireless 5 GHz Max data rate |
2400 Mbit/s |
| Wireless 5 GHz number of chains |
2 |
| Wireless 5 GHz standards |
802.11a/n/ac/ax |
| Wireless 5 GHz chip model |
QCN-6102 |
| Wireless 5 GHz generation |
Wi-Fi 6 |
| 10/100/1000 Ethernet ports |
1 |
| Number of USB ports |
1 |
| USB Power Reset |
Yes |
| USB slot type |
USB type A |
| Max USB current (A) |
1.5 |
| PCB temperature monitor |
Yes |
| Voltage Monitor |
Yes |
| Beeper |
Yes |
| Certification & Approvals |
|
[/specifications]

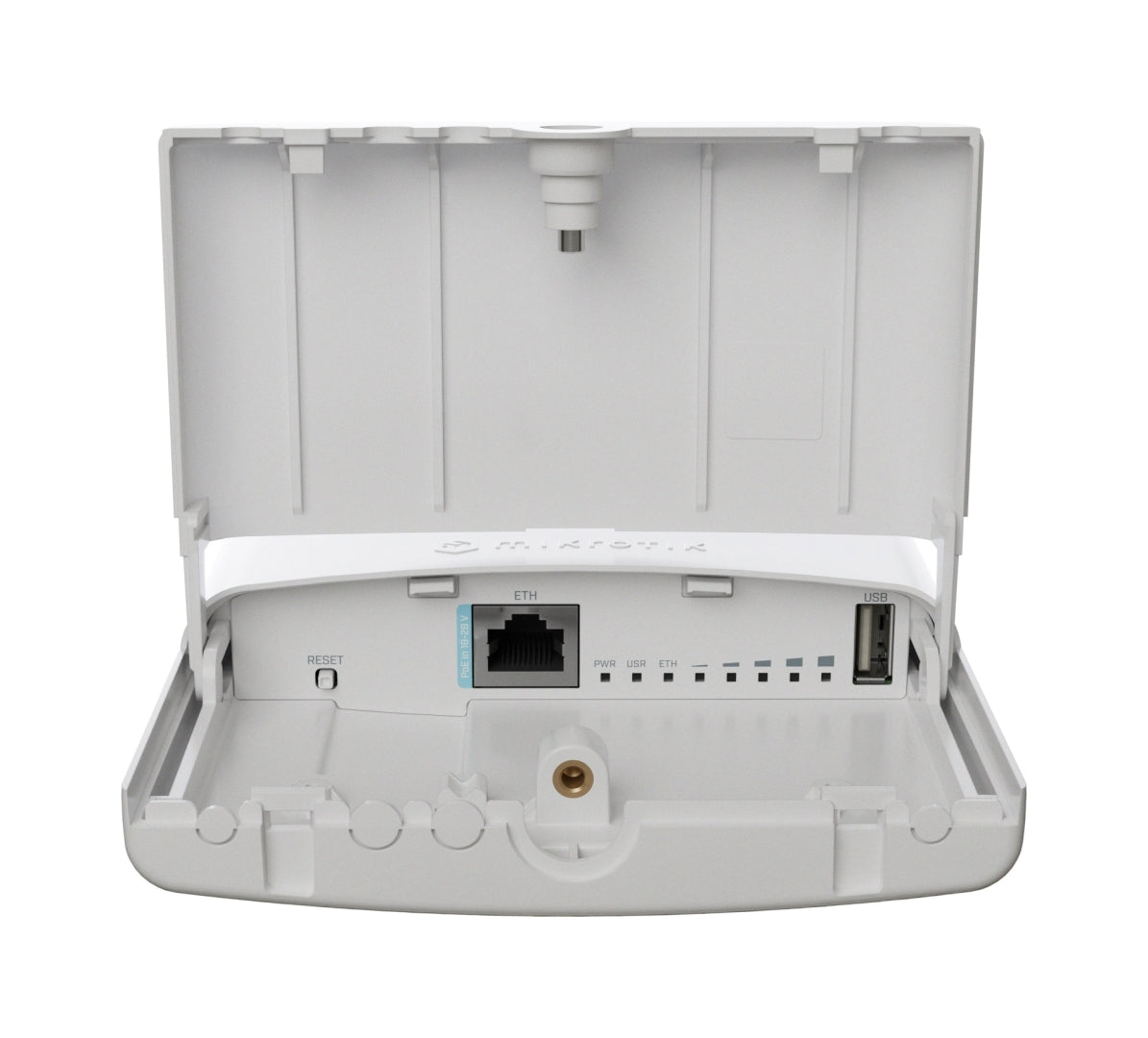

NetBox 5 ax L11UG-5HaxD-NB-US
The NetBox 5 ax is a powerful dual-chain outdoor device designed to fill multiple roles in your network setups, including AP, CPE, and point-to-point connections. It features a strong 5 GHz Wi-Fi 6 radio with SMA connectors for versatile omnidirectional access points or long-range point-to-point links. The durable outdoor enclosure, modern Qualcomm Maple ARM CPU, and Gigabit Ethernet with PoE-in make it a reliable and flexible solution for various networking needs.
Product Highlights
- 5 GHz Wi-Fi 6 dual-chain radio
- ARM-based Qualcomm Maple CPU
- 256 MB RAM, 128 MB NAND storage
- Gigabit Ethernet with PoE-in
- Durable weatherproof outdoor enclosure
- SMA connectors for versatile antenna options
- Operating temperature: -40°C to +70°C
Specifications
| Category |
Specifications |
| Product Code |
L11UG-5HaxD-NB-US |
| CPU |
Dual-Core IPQ-5010 800 MHz, ARM architecture |
| RAM |
256 MB |
| Storage |
128 MB NAND |
| Ethernet Ports |
1 x 1G Ethernet port |
| USB Port |
1 x USB 2.0 Type A |
| Wireless Band |
5 GHz, 802.11a/n/ac/ax dual chain |
| Connector Type |
RP-SMA female (outside thread) |
| Extras |
Beeper, signal and status LEDs, voltage and temperature sensors |
| Dimensions |
245 x 121 x 50 mm |
| Operating System |
RouterOS v7, License level 4 |
| Operating Temperature |
-40°C to +70°C |
Powering
- PoE-In: Passive PoE, 18-28 V input voltage
- Max Power Consumption: 15 W
- Included Parts: 24V 1.2A power adapter, Gigabit PoE injector, hose clamp, DIN rail mount kit
