[shortdesc]
- Parabolic dish antenna for 5GHz, 30dBi gain. This model includes precision alignment mount
[/shortdesc]
[properties]
| Properties |
MikroTik mANT30 PA Antenna MTAD-5G-30D3-PA |
| Description |
Parabolic dish antenna for 5GHz, 30dBi gain. This model includes precision alignment mount |
| Product Family |
mANT30 Series |
| Product Type |
Antenna |
| 10/100 Ethernet ports |
1 |
| Dimensions |
70 x 45cm (27.5 x 17.8in) |
| Weight |
5.7kg (12.6 lbs) |
| Packaged size |
73x73x20cm (29x29x8in) |
| Packaged weight |
8.4 kg (18,5) |
| Reflector |
Aluminum |
| Wind Survivability |
201kph (125mph) |
| Wind Load (125 mph) |
181.4kg (400 lbs) |
| Pole Mount Diameter Range |
3 to 10cm (1.2 to 3.9in) |
| Connector (2) |
RP-SMA Female (outside thread) |
| Power Rating |
100 watts |
| Impedance |
50 ohms |
| Elevation adjustment range |
+/- 15 deg |
[/properties][specifications]
| Frequency Range |
4.7-5.875 GHz |
| Antenna gain |
30 dBi typically |
| Polarization |
Dual (Vertical and Horizontal) |
| 3dB Beamwidth |
+/-2.5 deg |
| VSWR |
≤ 1.4 typ, ≤ 1.8 max |
| Port to Port Isolation |
>40dB min |
| Front-to-Back Ratio |
>30 dB |
| Cross Polarization |
>40 dB |
[/specifications]

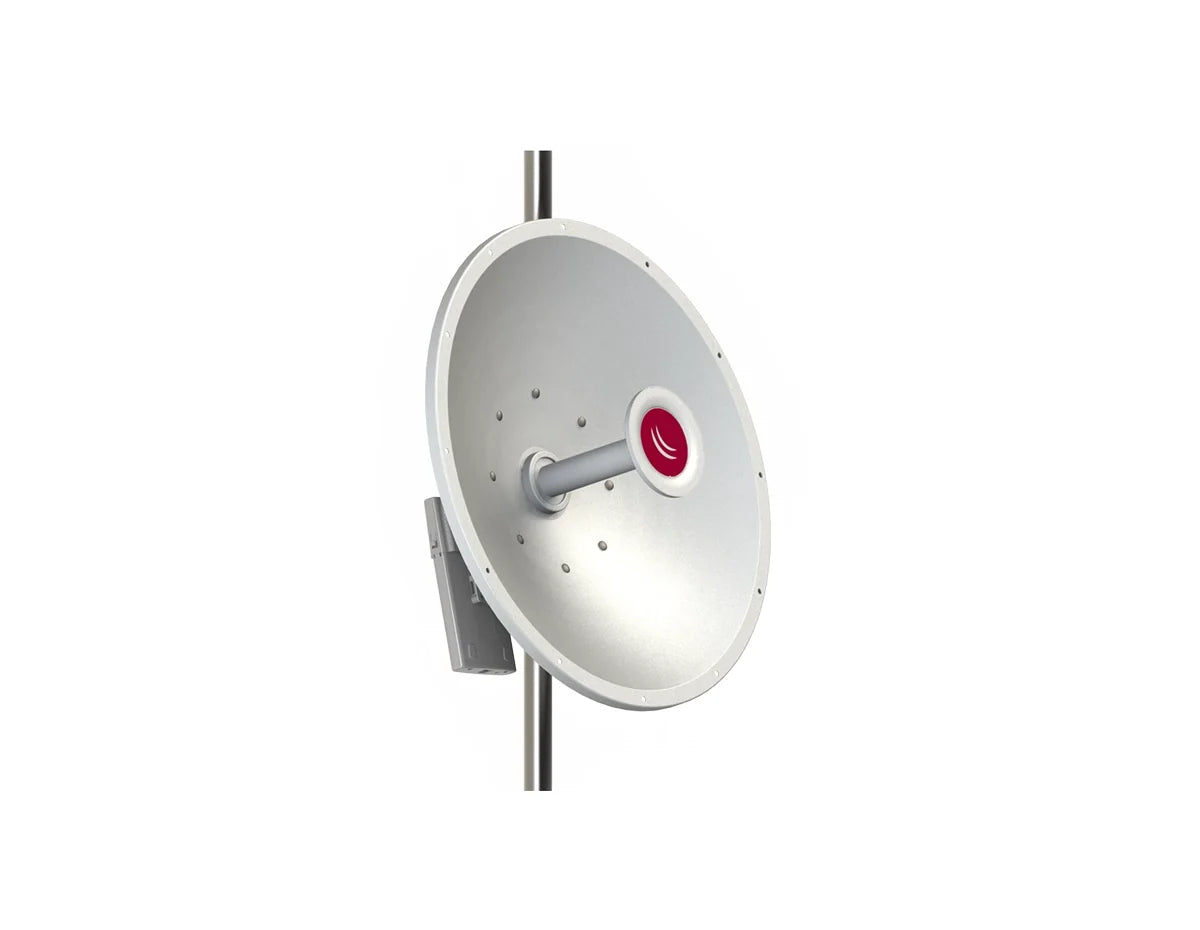

MikroTik MTAD-5G-30D3-PA Antenna

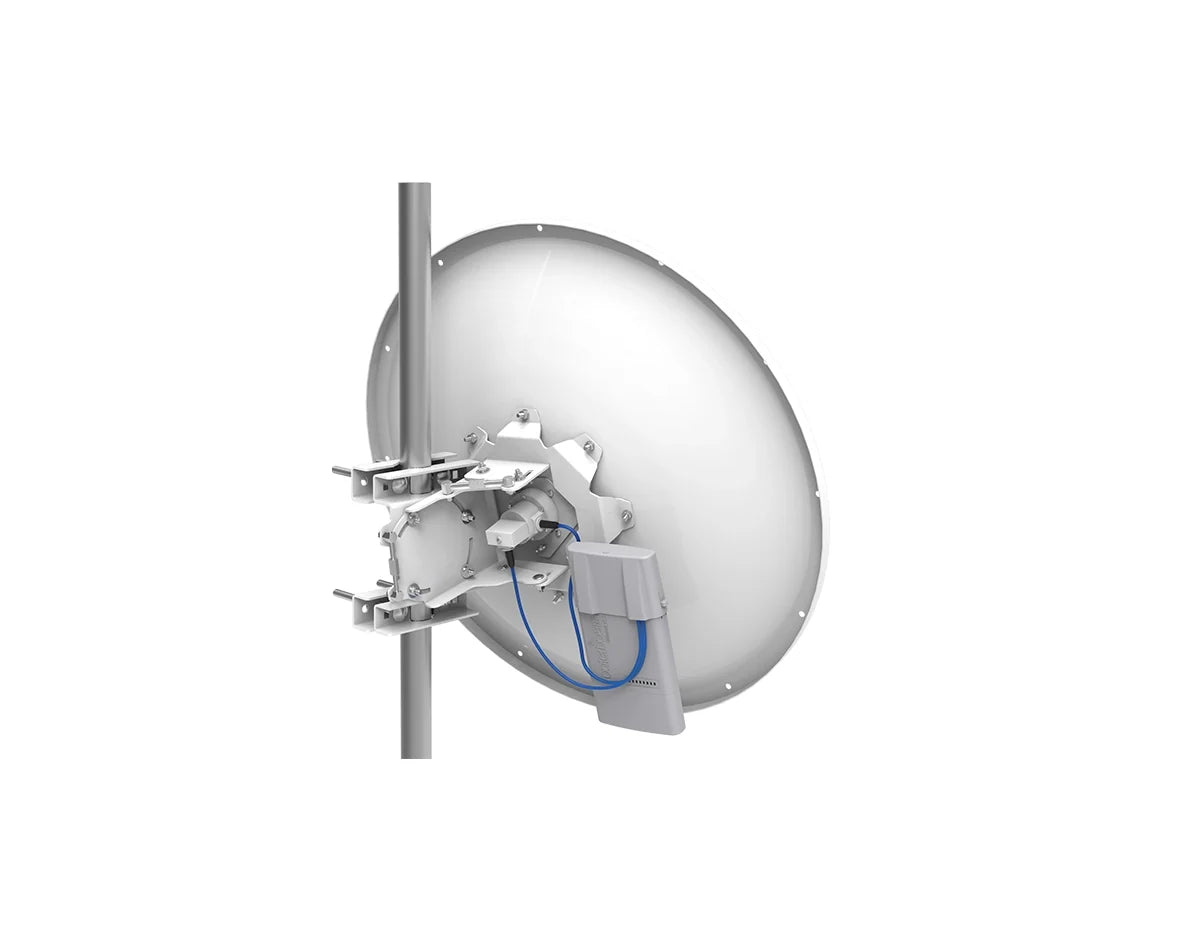

The MTAD-5G-30D3-PA represents a high-quality class 5GHz 30dBi dish antenna designed according to industry-leading standards. This antenna is equipped with a precision alignment mount, which has been meticulously engineered to enhance the accuracy of directional antenna alignment. The mount allows for meticulous fine-tuning adjustments, providing users with precise control over elevation angles and thereby elevating the standard of wireless connectivity. Two modifications are available - with a standard type mount (MTAD-5G-30D3), and with a precision alignment mount (MTAD-5G-30D3-PA). The antennas come packaged with all necessary accessories and cables.
Quick Specs:
-
2x RP-SMA Female
-
700-5.875 GHz - 30 dBi
-
Antenna beamwidth: 2.5
-
Operating Temperature: -50C to 80C
Please see the related tabs for the MTAD-5G-30D3-PA datasheet and compatible accessories.
