[shortdesc]
- For use as 60GHz CPE in Point-to-Multipoint setups for connections up to 800m with a 60GHz Base Stations, with Gigabit Ethernet port for speeds up to 1Gbps
[/shortdesc]
[properties]
| Properties |
MikroTik LHG 60G Antenna RBLHGG-60AD |
| Description |
For use as 60GHz CPE in Point-to-Multipoint setups for connections up to 800m with a 60GHz Base Stations, with Gigabit Ethernet port for speeds up to 1Gbps |
| Product Family |
LHG Series |
| Product Type |
Antenna |
| Features |
• ideal for long distance point-to-point links
• 5 GHz dual chain board integrated into 25 dBi
dish antenna with 8 degree beam width
• 720 Mhz CPU 300 MHz DDR2
• One Gigabit Ethernet port |
| 10/100/1000 Ethernet ports |
1 |
| Extras |
PCB temperature monitor
Voltage Monitor
Beeper |
| Dimensions |
Ø 391 x 222 mm |
| Number of DC inputs |
1 (PoE-IN) |
| Max power consumption |
5 W |
| Cooling type |
Passive |
| PoE in |
802.3af/at |
| PoE in input Voltage |
12-57 V |
[/properties][specifications]
| Specifications |
RBLHGG-60AD |
| Memory |
256 MB |
| Flash Storage size |
16 MB |
| CPU |
IPQ-4019 716 MHz |
| CPU core count |
4 |
| OS |
RouterOS level 3 license |
| Wireless |
Built-in 60 GHz 802.11ad |
| Wireless chip model |
QCA6335 |
| MTBF |
Approximately 200.000 hours at 25C |
| Temperature |
-40°C to 70°C tested |
| IPsec hardware acceleration |
Yes |
| Certification |
CE, FCC, IC, EAC, ROHS |
| IP |
IP55 |
[/specifications][accesories]
24 V 0.38 A power adapter
|
| Gigabit PoE injector |
| LHG precision mount |
| Aim tool |
[/accesories]

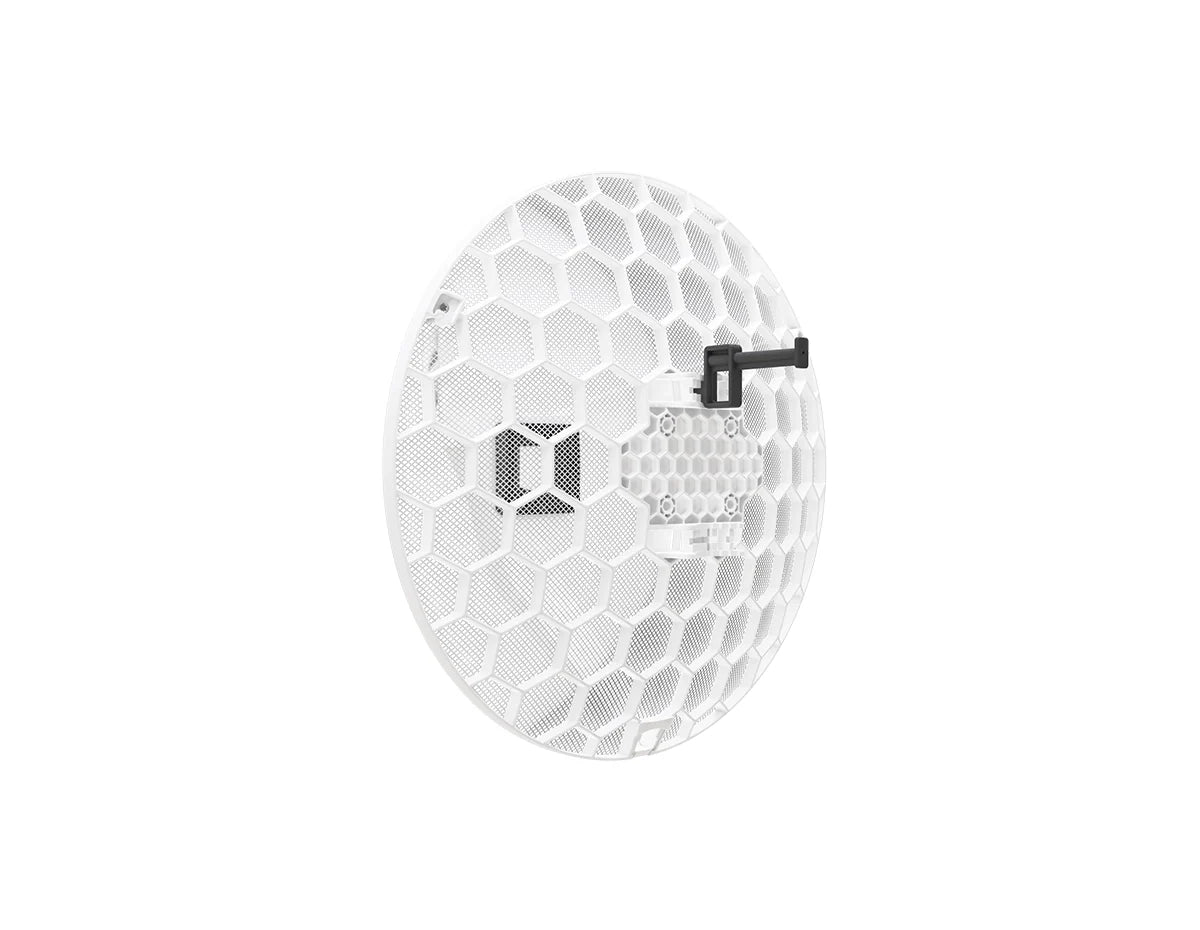

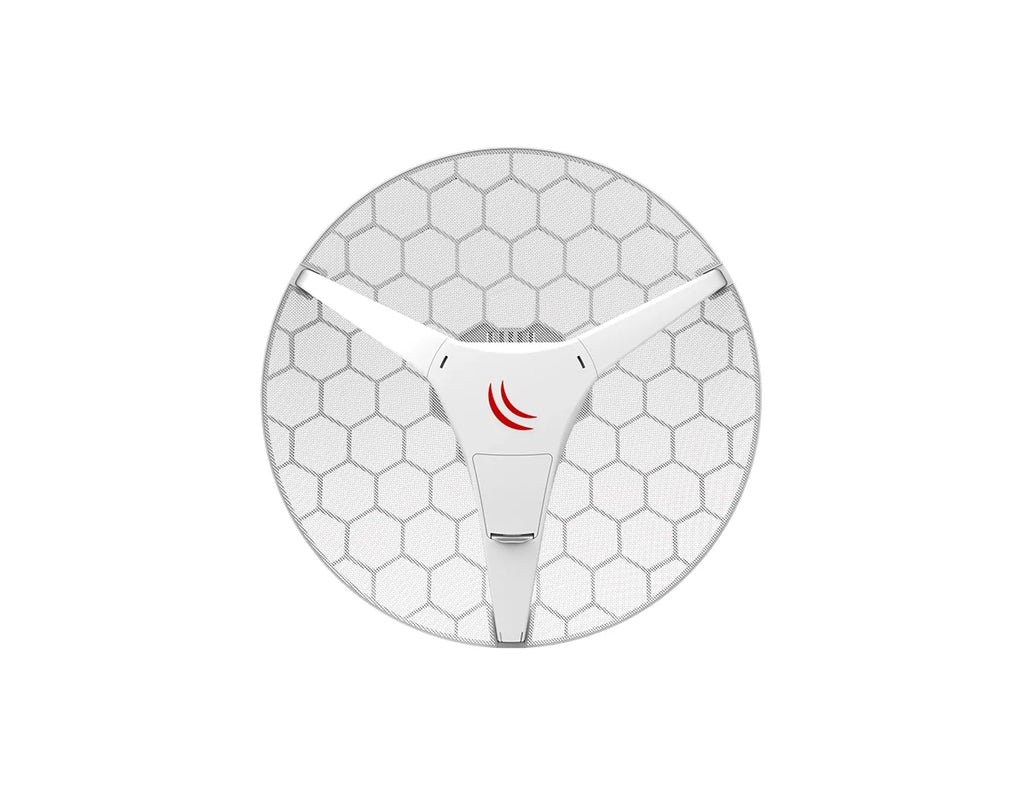

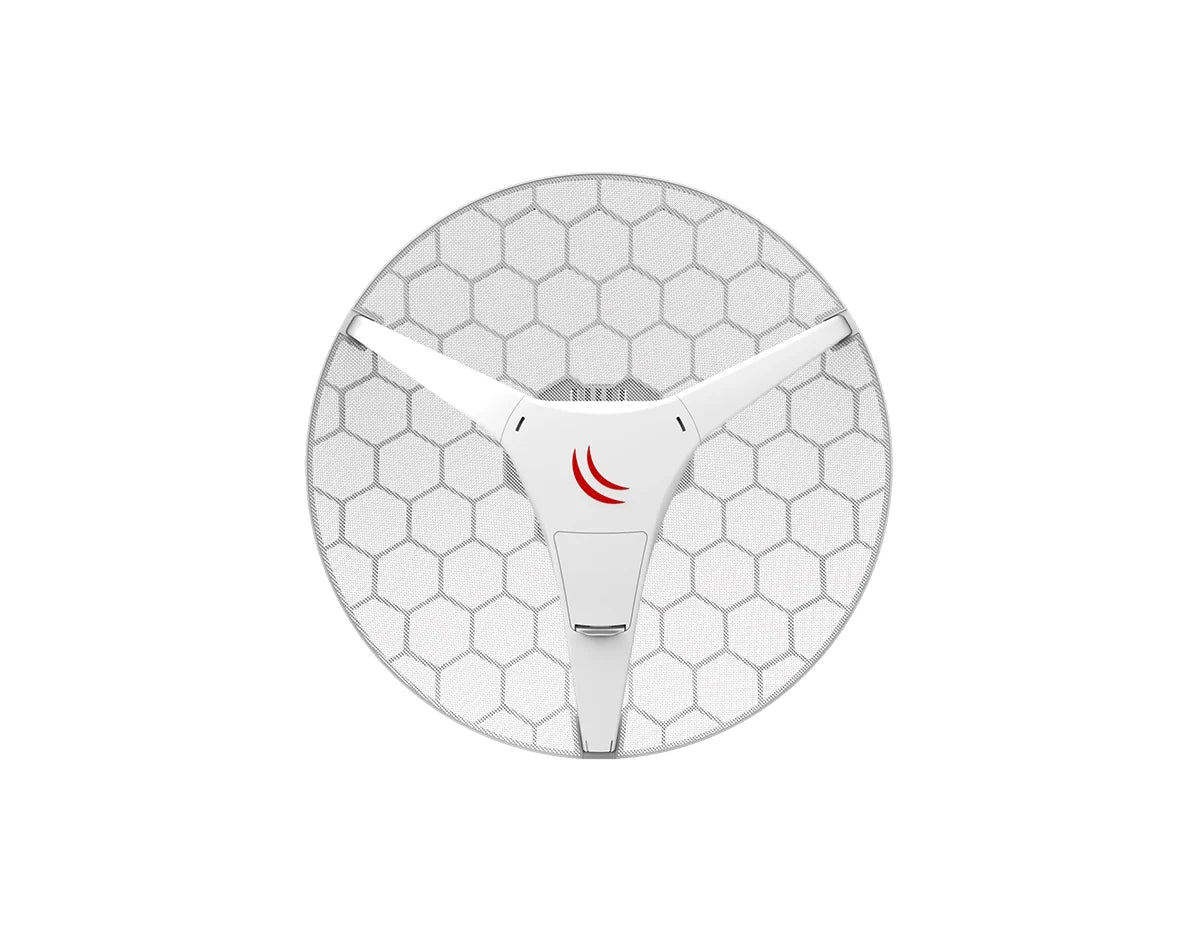

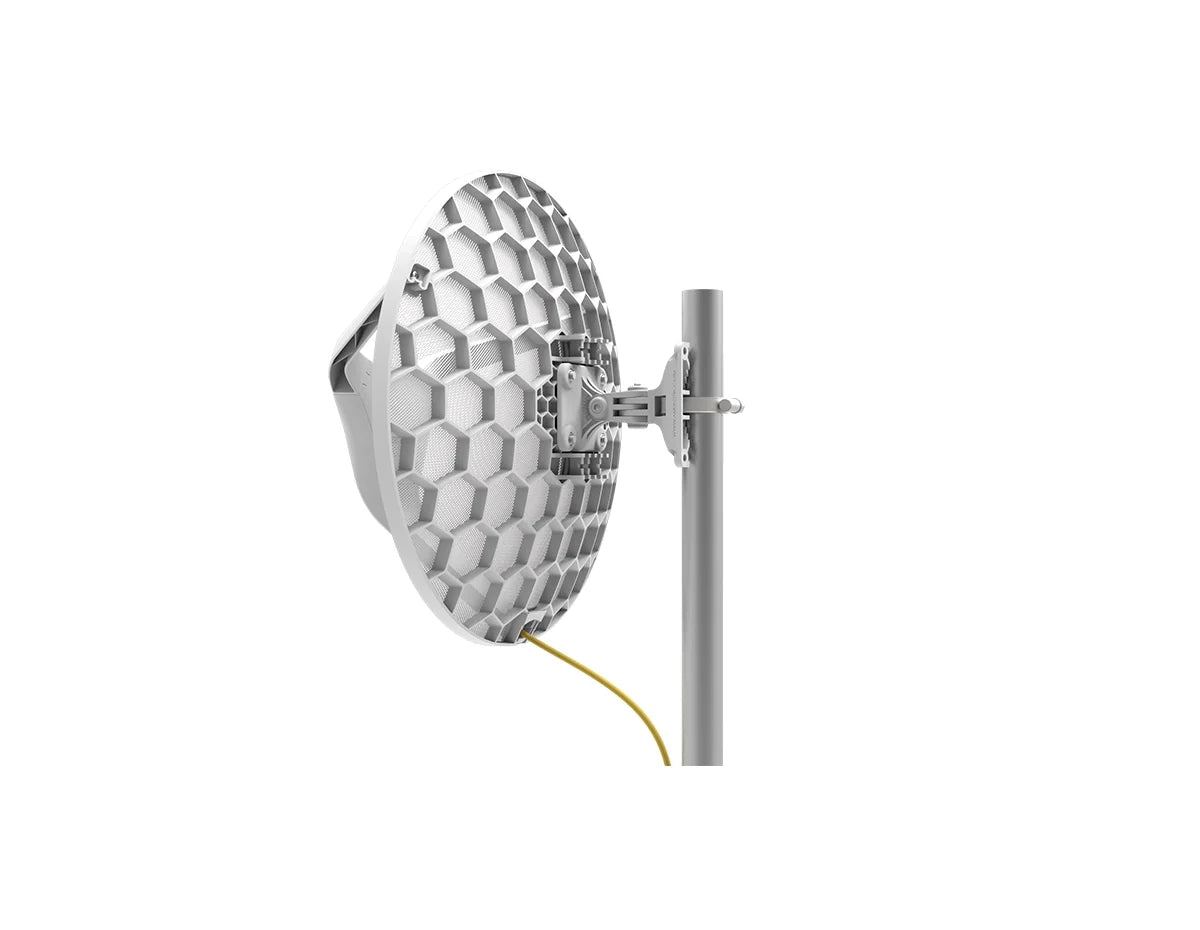

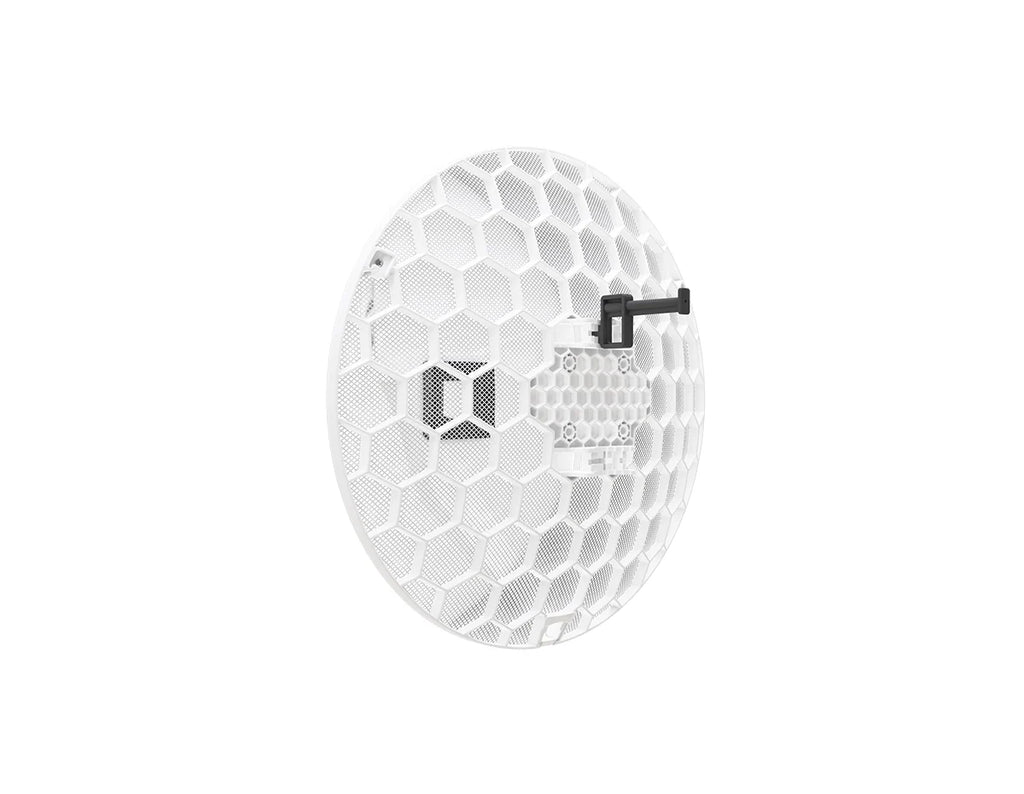

MikroTik RBLHGG-60AD Antenna
The RBLHGG-60AD is a high-speed 60 GHz Customer Premises Equipment (CPE) device designed for establishing connections with a 60 GHz Access Point (AP) over extended distances. This product facilitates creating a cost-efficient point-to-multipoint configuration within the uncluttered 60 GHz wireless frequency band. The RBLHGG-60AD units can achieve an effective point-to-point distance of up to 1500 meters and a point-to-multipoint distance of up to 800 meters.
Quick Specs:
- 1x 10/100/1000 Ethernet Port
- IPQ-4019, 4 core, 716 MHz CPU
- PoE-in: 802.3af/at
- 256 MB RAM
Please see the related tabs for the RBLHGG-60AD datasheet and compatible accessories.
