[shortdesc]
- 5x Gigabit Ethernet, SFP, Dual Core 880MHz CPU, 256MB RAM, USB, microSD, RouterOS L4, IPsec hardware encryption support and The Dude server package
[/shortdesc]
[properties]
| Properties |
MikroTik hEX RB750GR3 |
| Description |
5x Gigabit Ethernet, Dual Core 880MHz CPU, 256MB RAM, USB, microSD, RouterOS L4 |
| Product Family |
hEX Series |
| Product Type |
Ethernet Router |
| Ports |
| 10/100 Ethernet ports |
5 |
| Number of USB ports |
1 |
| Memory Cards |
1 |
| Features |
hEX (revision 3)
880 MHz CPU, 2 cores and 4 threads
256 MB RAM
microSD slot for œDude Serversupport
Full size USB
IPsec hardware acceleration ~450 Mbps
Same form factor
Same price |
| Extras |
PCB temperature monitor
Voltage Monitor
Mode button
Beeper |
| Dimensions |
113x89x28mm |
| USB slot type |
USB type A |
| Number of DC inputs |
2 (DC jack, PoE-IN) |
| DC jack input Voltage |
8-30 V |
| Max power consumption |
10 W |
| Max power consumption without attachments |
5 W |
| Cooling type |
Passive |
| PoE in |
Passive PoE |
| PoE in input Voltage |
8-30 V |
[/properties][specifications]
| Specifications |
RB750GR3 |
| Memory |
256 MB |
| Flash Storage size |
16 MB |
| CPU |
MT7621A 880 MHz |
| CPU core count |
4 |
| Switch chip model |
MT7621A |
| OS |
RouterOS level 4 license |
| MTBF |
Approximately 100.000 hours at 25C |
| Temperature |
-40°C to 60°C tested |
| IPsec hardware acceleration |
Yes |
| Certification & Approvals |
| Certification |
CE, FCC, EAC, ROHS |
| IP |
IP20 |
| Bridging |
64 byte: 523 Mbps
1518 byte: 1972 Mbps
1400 byte: 1972 Mbps |
| Routing |
64 byte: 530 Mbps
1518 byte: 1972 Mbps
1400 byte: 1972 Mbps |
| AES-128 |
64 byte: 21 Mbps
1518 byte: 472 Mbps
1400 byte: 450 Mbps |
[/specifications][accesories]
| Accessories |
24V 0.38A power adapter |
[/accesories]

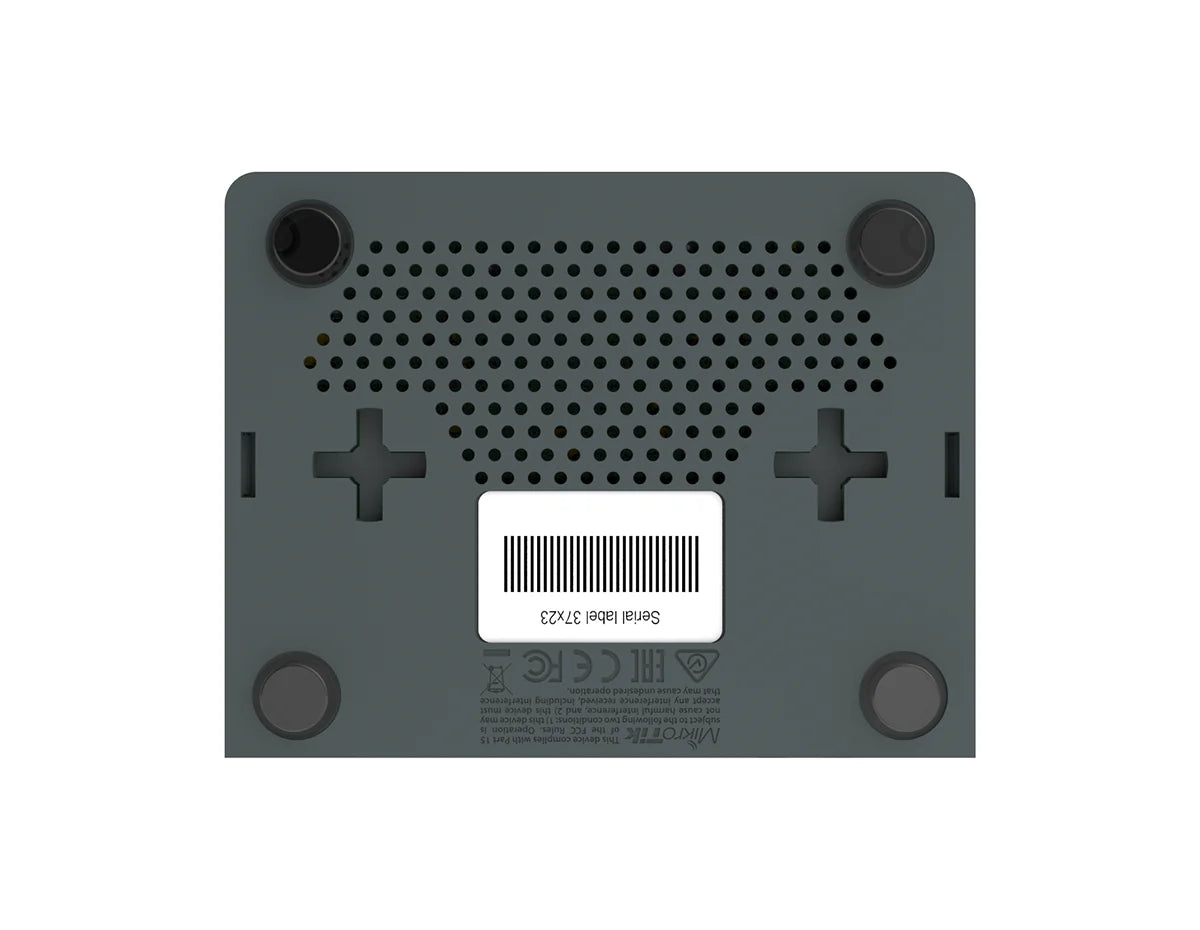

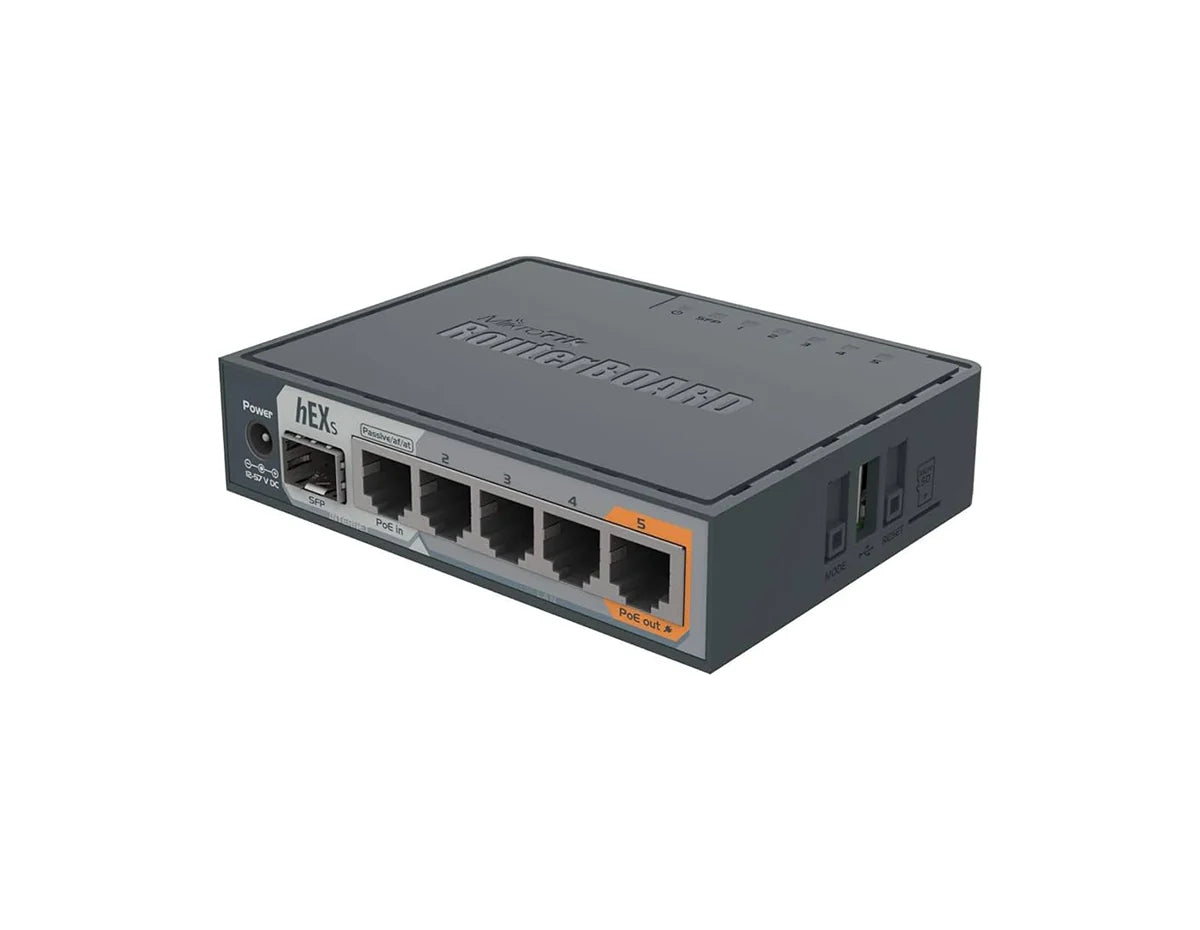

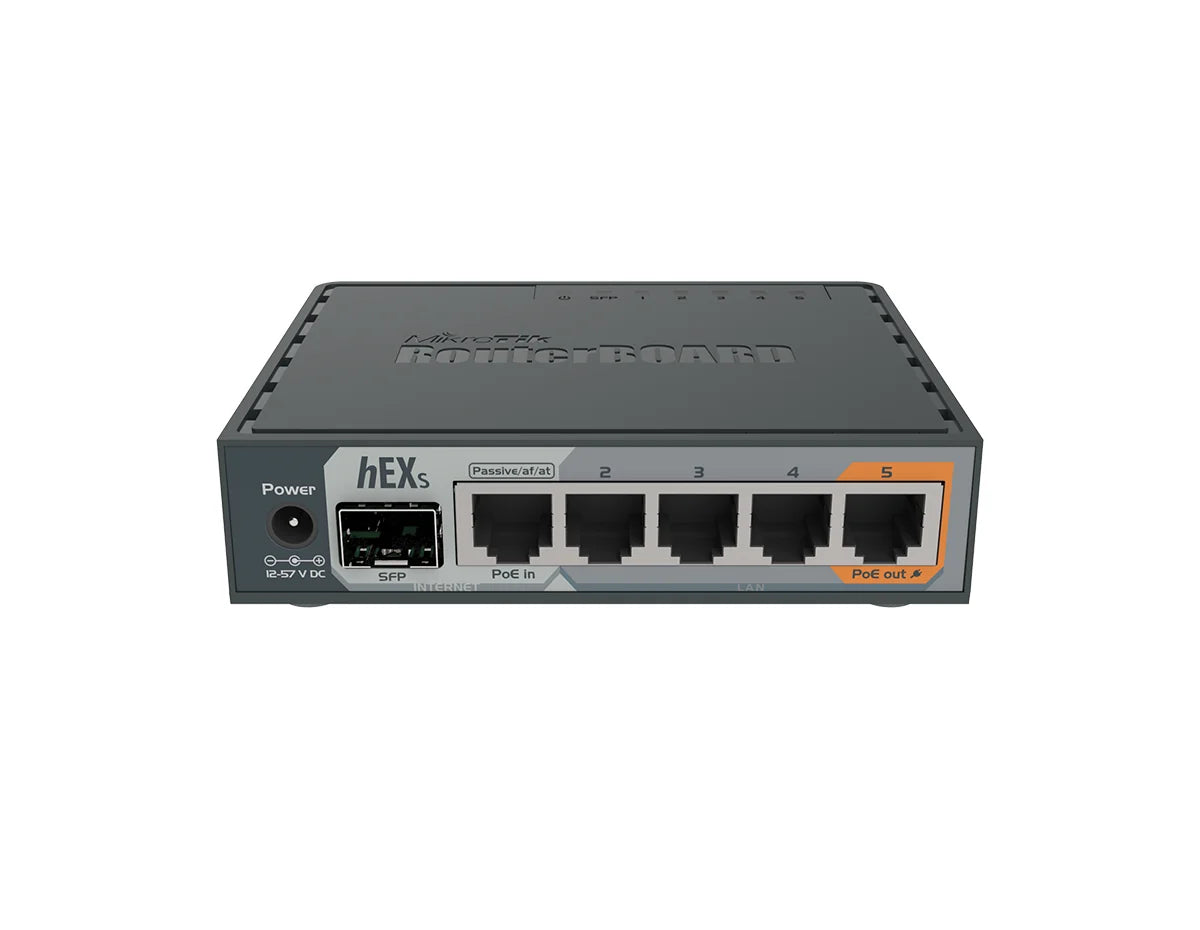

MikroTik RB760iGS Router
The RB760iGS is a router with five Gigabit Ethernet ports designed for use in environments where wireless connectivity is unnecessary. The product is cost-effective, compact, and user-friendly, while also featuring a robust dual core 880 MHz CPU and 256 MB RAM, enabling advanced configurations supported by RouterOS. Additionally, it includes a USB 2.0 port, PoE output for Ethernet port5, and a 1.25Gbit/s SFP cage. Port5 has the capability to power other passive PoE capable devices with the same voltage as applied to the unit.
Quick Specs:
-
5x 10/100/1000 Ethernet Ports
-
1 SFP port uplink
-
256 MB RAM
-
PoE in: 802.3af/at
Please see the related tabs for the RB760iGS datasheet and compatible accessories.
