[properties]

Properties	MikroTik CSS610-8G-2S+IN
Description	Eight 1G Ethernet ports and two SFP+ ports for 10G fiber connectivity. Portable, powerful and extremely cost-effective this switch is an instant classic!
Product Family	CSS Series
Product Type	Ethernet Switch
Ports
10/100/1000 Ethernet ports	8
SFP+	2
Dimensions	200 x 164 x 44 mm
Number of DC inputs	2 (DC jack, PoE-IN)
DC jack input Voltage	12-57 V
Max power consumption	11 W
Max power consumption without attachments	5 W
Cooling type	Passive
PoE in	Passive PoE
PoE in input Voltage	12-57 V

[/properties][specifications]

Specifications	CSS610-8G-2S+IN
Flash Storage size	64 KB
Switch chip model	88E6193X
OS	SwitchOS Lite
Non-Blocking throughput	28 Gbps
Switching capacity	56 Gbps
Forwarding rate	41.7 Mpps
MTBF	Approximately 200.000 hours at 25C
Temperature	-20°C to 60°C tested
Certification & Approvals
Certification	CE, EAC, ROHS
IP	IP20

[/specifications][accesories]

Accessories

Rack ears for CSS610-8G-2S+IN

K-48 fastening set

24V 0.8A power adapter

[/accesories]

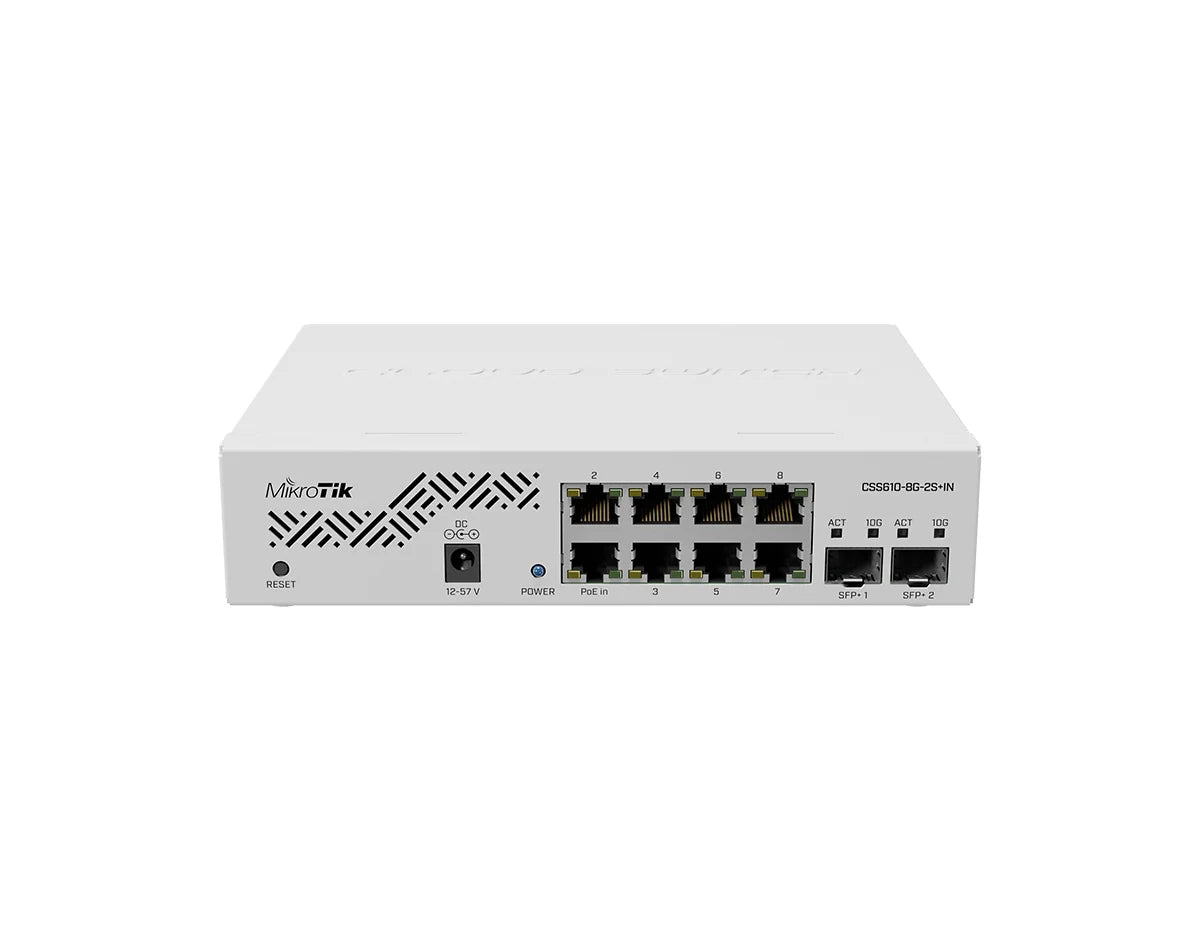

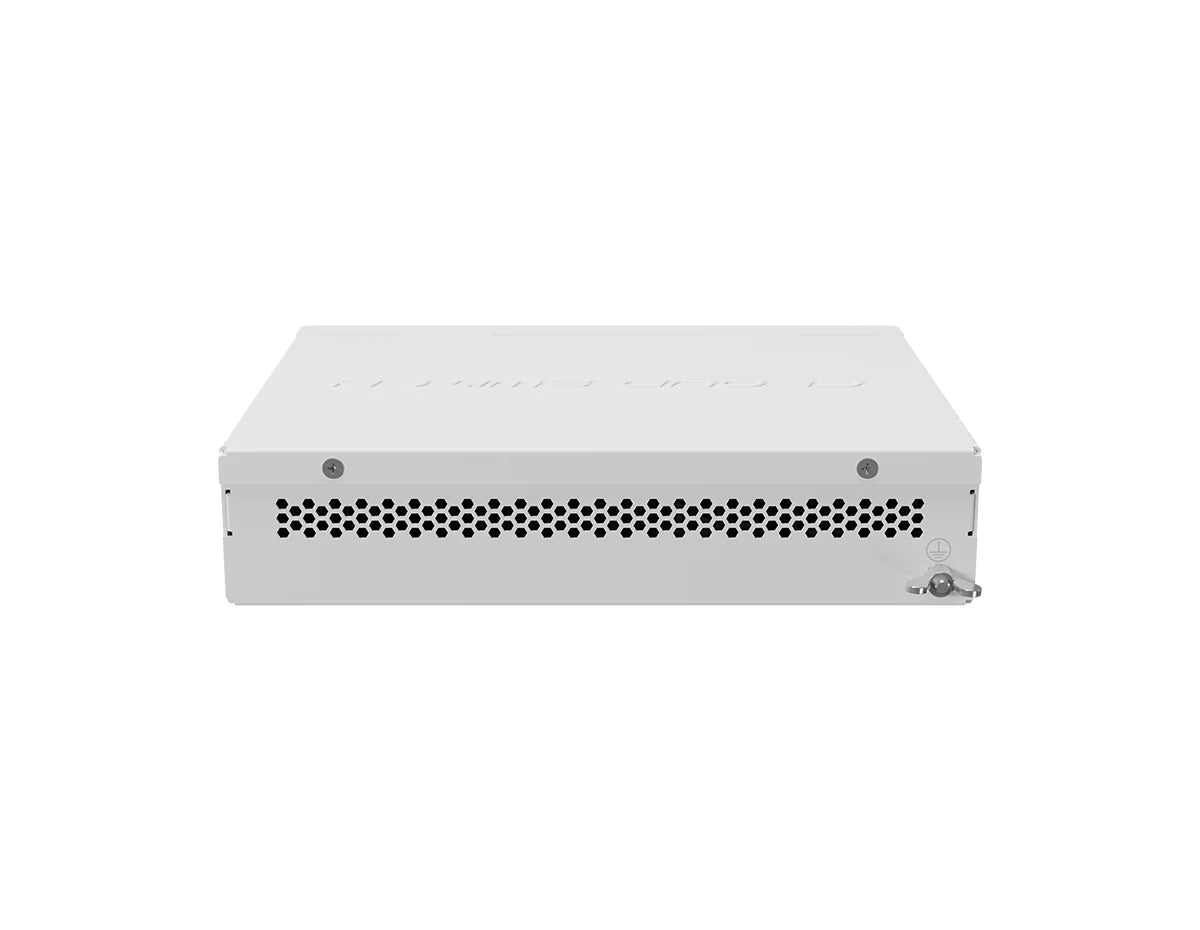

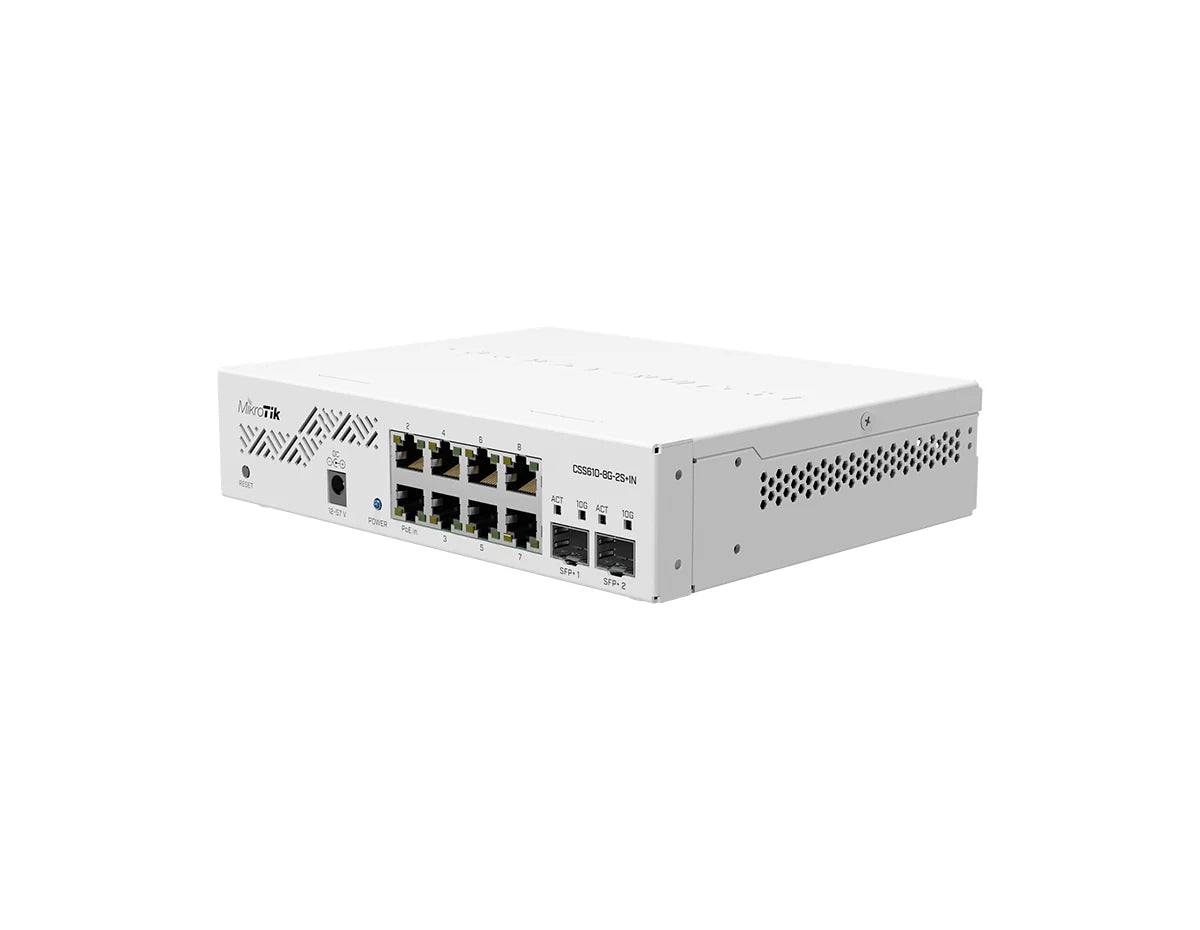

MikroTik CSS610-8G-2S+IN Switch

The CSS610-8G-2S+IN is a multifunctional network switch that provides a remarkable blend of mobility, capability, and affordability. The CSS610-8G-2S+IN has eight Gigabit Ethernet ports and can transfer data at speeds of up to 1 gigabit per second. This product operates on SwOS (SwitchOS), a streamlined and user-friendly operating system. SwOS streamlines network management, providing an intuitive web browser interface for easy configuration and monitoring of the network.

Quick Specs:

• 8x 10/100/1000 Ethernet Ports
• 2x 10G SFP+ ports uplink
• 41.7 Mpps forwarding rate
• PoE-in: Passive PoE

Please see the related tabs for the CSS610-8G-2S+IN datasheet and compatible accessories.
