[shortdesc]
- SwOS powered 24 port Gigabit Ethernet switch with two SFP+ ports in 1U rackmount case
[/shortdesc]
[properties]
| Properties |
MikroTik CSS326-24G-2S+RM |
| Description |
SwOS powered 24 port Gigabit Ethernet switch with two SFP+ ports in 1U rackmount case |
| Product Family |
CSS Series |
| Product Type |
Ethernet Switch |
| Ports |
| 10/100/1000 Ethernet ports |
24 |
| SFP+ |
2 |
| Extras |
Hardware watchdog |
| Dimensions |
443 x 144 x 44 mm |
| Number of DC inputs |
2 (PoE-IN, DC jack) |
| DC jack input Voltage |
10-30 V |
| Max power consumption |
19 W |
| Cooling type |
Passive |
| PoE in |
Passive PoE |
| PoE in input Voltage |
10-30 V |
[/properties][specifications]
| Specifications |
CSS326-24G-2S+RM |
| Flash Storage size |
2 MB |
| Switch chip model |
98DX3216 |
| OS |
MikroTik SwOS |
| Features |
Non-blocking Layer 2 switching capacity
16K host table
IEEE 802.1Q VLAN
Supports up to 250 VLANs
Port isolation
Port security
Broadcast storm control
Port mirroring of ingress/egress traffic
Rapid Spanning Tree Protocol
Access Control List
MikroTik neighbor discovery
SNMP v1
Web-based GUI |
| MTBF |
Approximately 200.000 hours at 25C |
| Temperature |
-20°C to 70°C tested |
| Certification & Approvals |
| Certification |
CE, EAC, ROHS |
| IP |
IP20 |
[/specifications][accesories]
| Accessories |
| 24V 1.2A power adapter |
| Screw set (4) |
| Rack ears |
[/accesories]

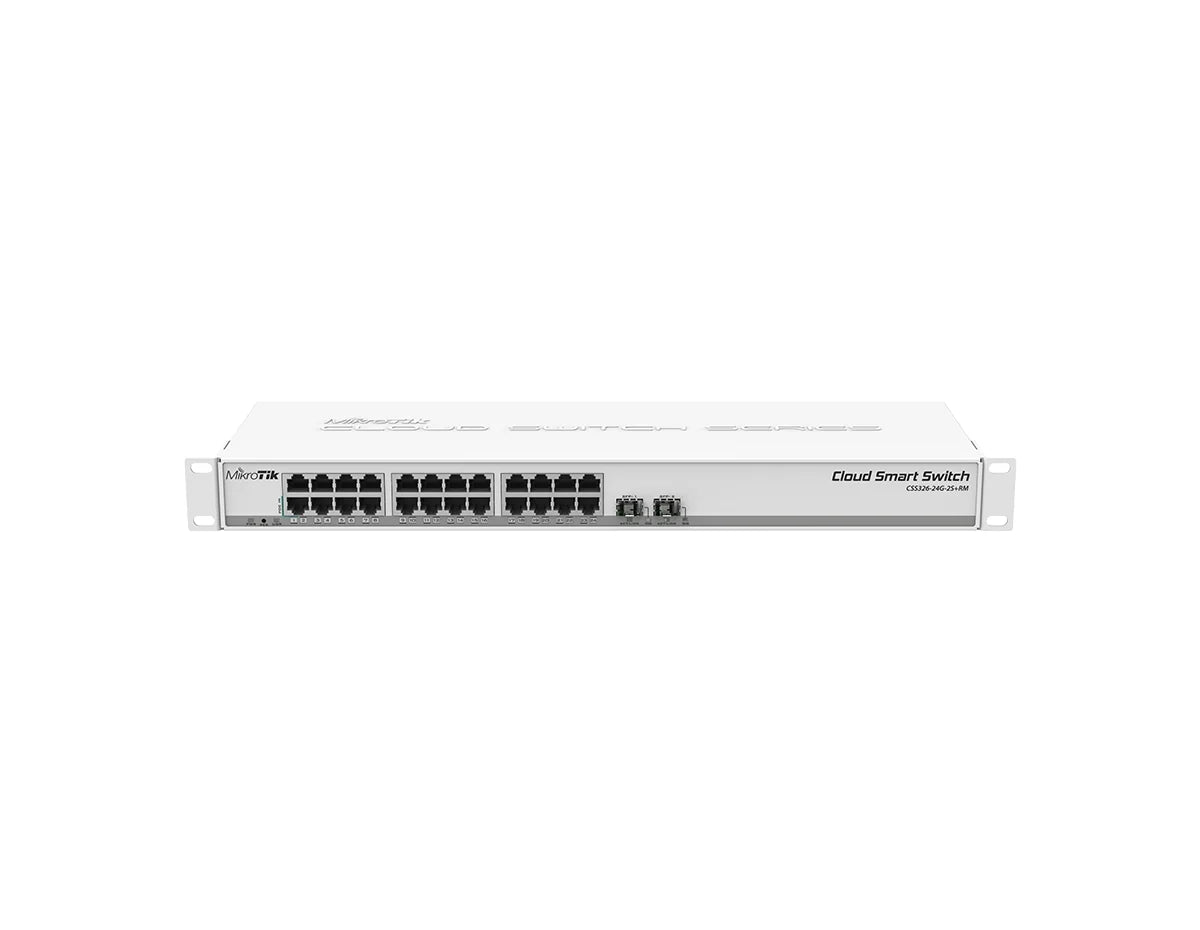

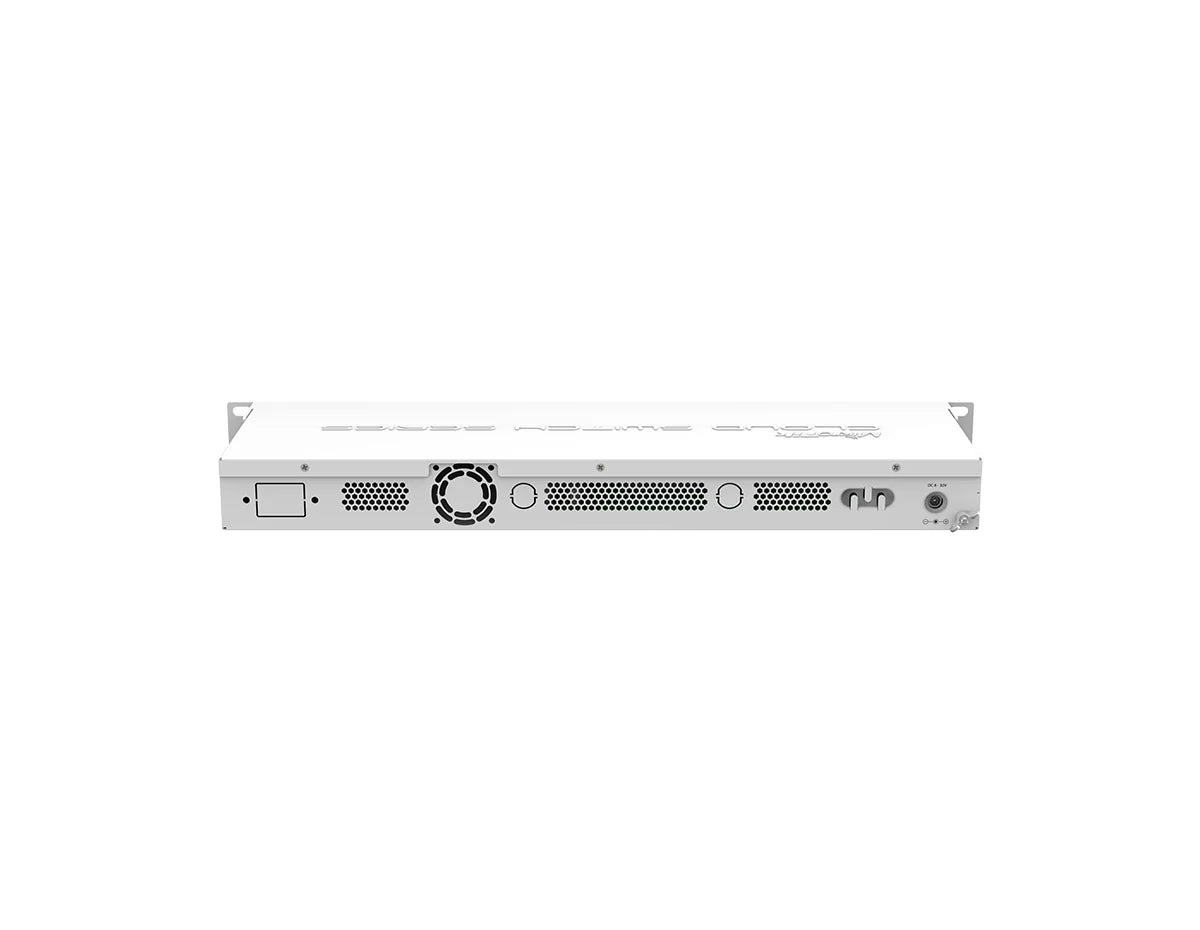

MikroTik CSS326-24G-2S+RM Switch
CSS326-24G-2S+RM is SwOS powered 24 port Gigabit Ethernet switch with two SFP+ ports in 1U rackmount case that provides wire speed connectivity with several new switching features. This 24-port Gigabit Ethernet Switch improves network infrastructure connectivity and management. The CSS326-24G-2S+RM is driven by the advanced Marvell DX switch chip architecture, which enables high-speed and efficient data routing to eliminate bottlenecks and ensure seamless communication.
Quick Specs:
- 24x 10/100/1000 Ethernet Ports
- 2 SFP+ Ports
- Non-blocking Layer 2 switching capacity
- Rapid Spanning Tree Protocol
Please see the related tabs for the CSS326-24G-2S+RM datasheet and compatible accessories.
