[shortdesc]
- Your most affordable, compact, energy-efficient doorway to the world of 100 Gigabit networking. This switch is the next step in upgrading existing 10 or 25 Gigabit networks. Multiple powering options, dual hot-swap power supplies.
[/shortdesc]
[properties]
| Properties |
MikroTik CRS504-4XQ-IN |
| Description |
Your most affordable, compact, energy-efficient doorway to the world of 100 Gigabit networking. This switch is the next step in upgrading existing 10 or 25 Gigabit networks. Multiple powering options, dual hot-swap power supplies |
| Product Family |
CRS Series |
| Product Type |
Ethernet Switch |
| Ports |
| 10/100 Ethernet ports |
1 |
| 100G QSFP+ |
4 |
| Serial console port |
1 RJ45 |
| Extras |
CPU temperature monitor
PCB temperature monitor
Voltage Monitor |
| Dimensions |
320 x 185 x 44 mm |
| Number of AC inputs |
2 |
| AC input range |
100-240 |
| Number of DC inputs |
3 (DC jack, PoE-IN, 2-pin terminal) |
| DC jack input Voltage |
36-57 V |
| 2-pin terminal input Voltage |
36-57 V |
| Frequency (Hz) |
47-63 |
| Max power consumption |
41 W |
| Max power consumption without attachments |
25 W |
| Cooling type |
2 fans |
| PoE in input Voltage |
43-57 V Passive poe or 802.3bt Class 6 |
[/properties][specifications]
| Specifications |
CRS504-4XQ-IN |
| Memory |
64 MB |
| Flash Storage size |
16 MB |
| CPU |
QCA9531 650 MHz |
| CPU core count |
1 |
| Switch chip model |
98DX4310 |
| OS |
RouterOS (v7 only) |
| MTBF |
Approximately 200.000 hours at 25C |
| Temperature |
-40°C to 70°C tested |
| Certification & Approvals |
| Certification |
CE, EAC, ROHS |
| IP |
IP20 |
[/specifications][accesories]
| Accessories |
| 2 x IEC cords |
| Rack ears (CRS504) |
| K10 screw kit |
[/accesories]

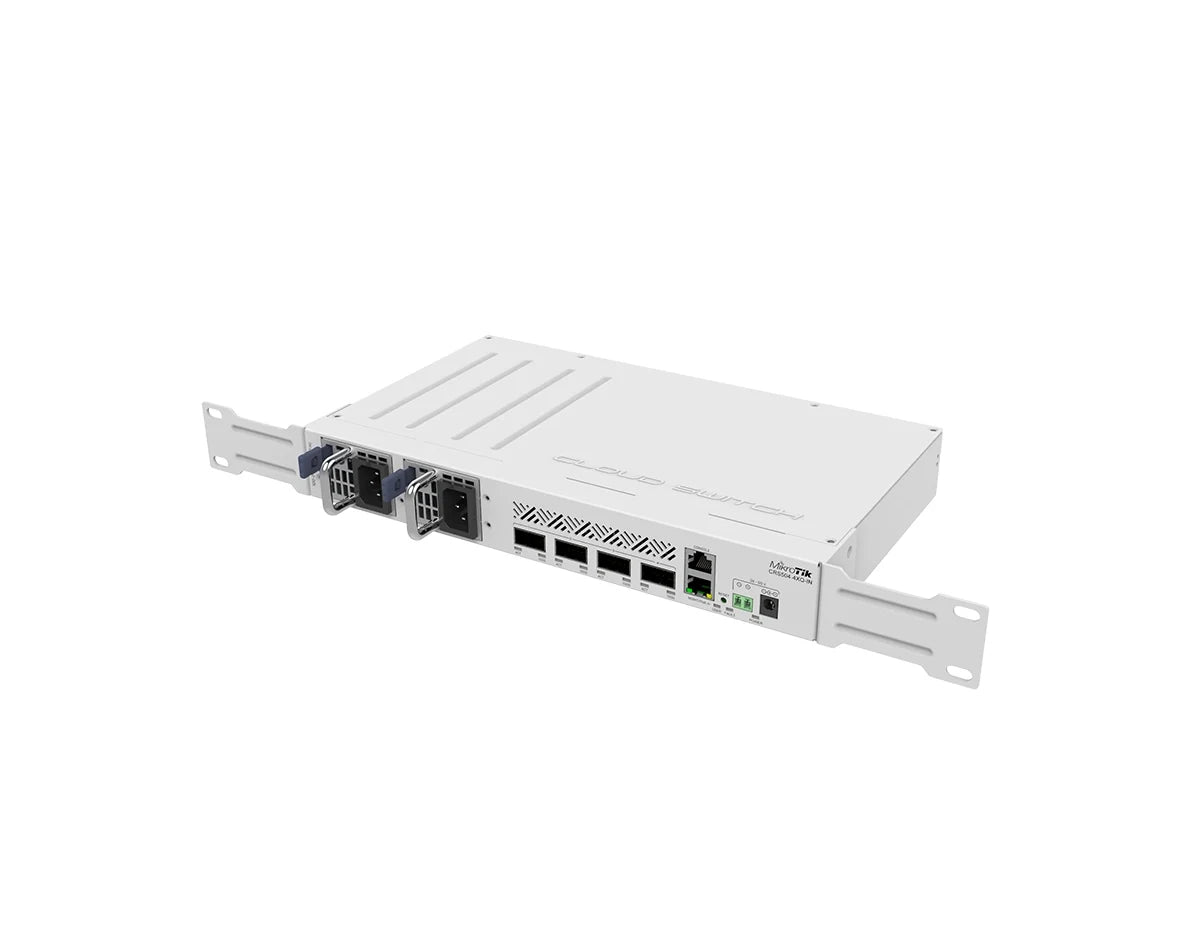

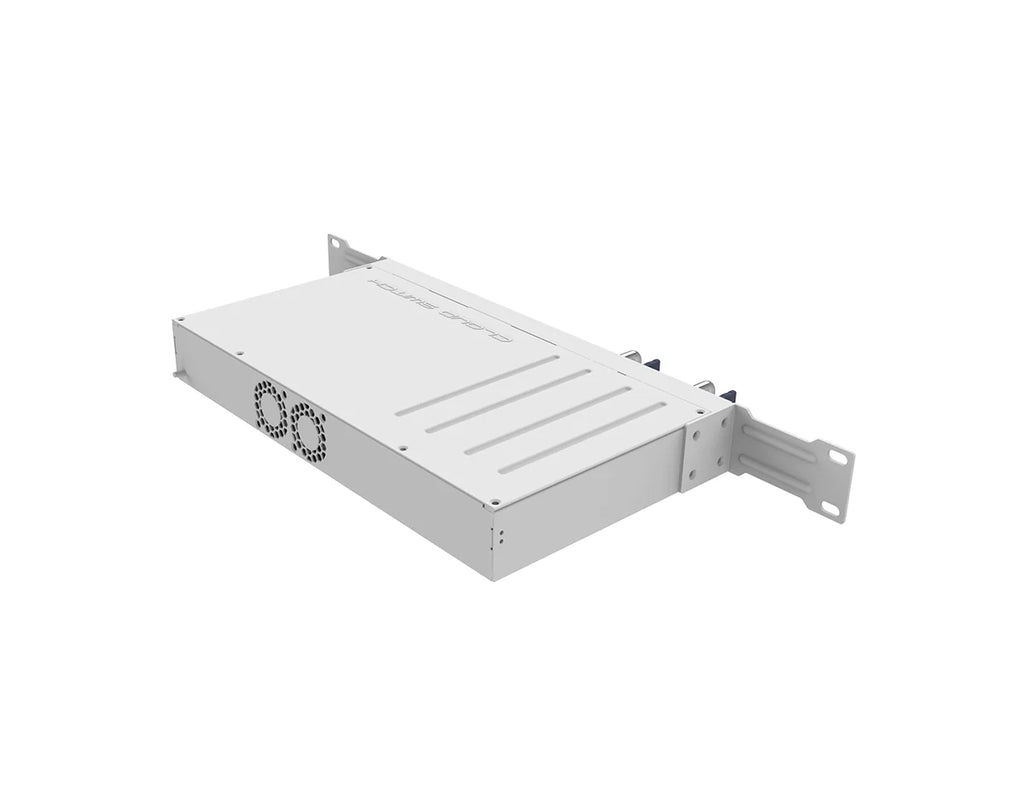

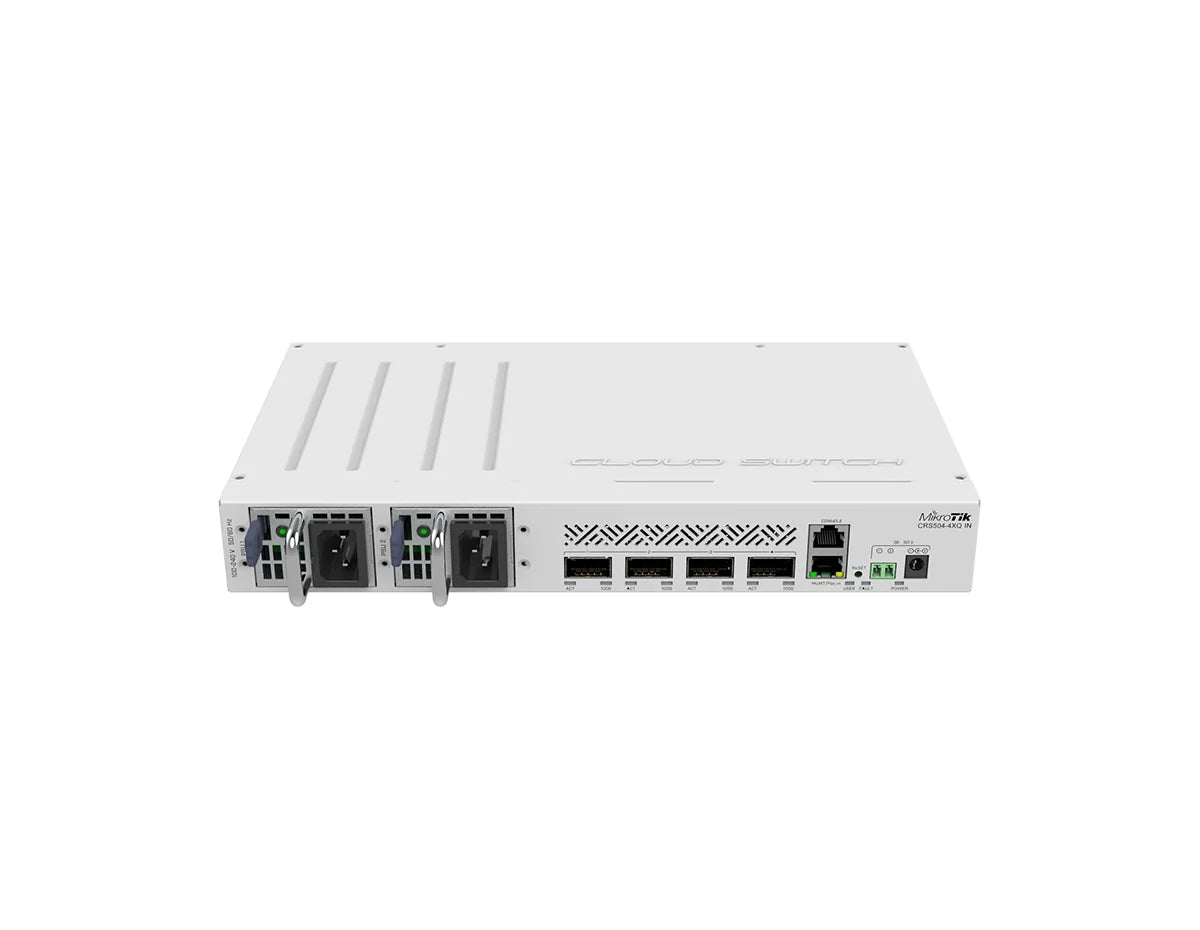

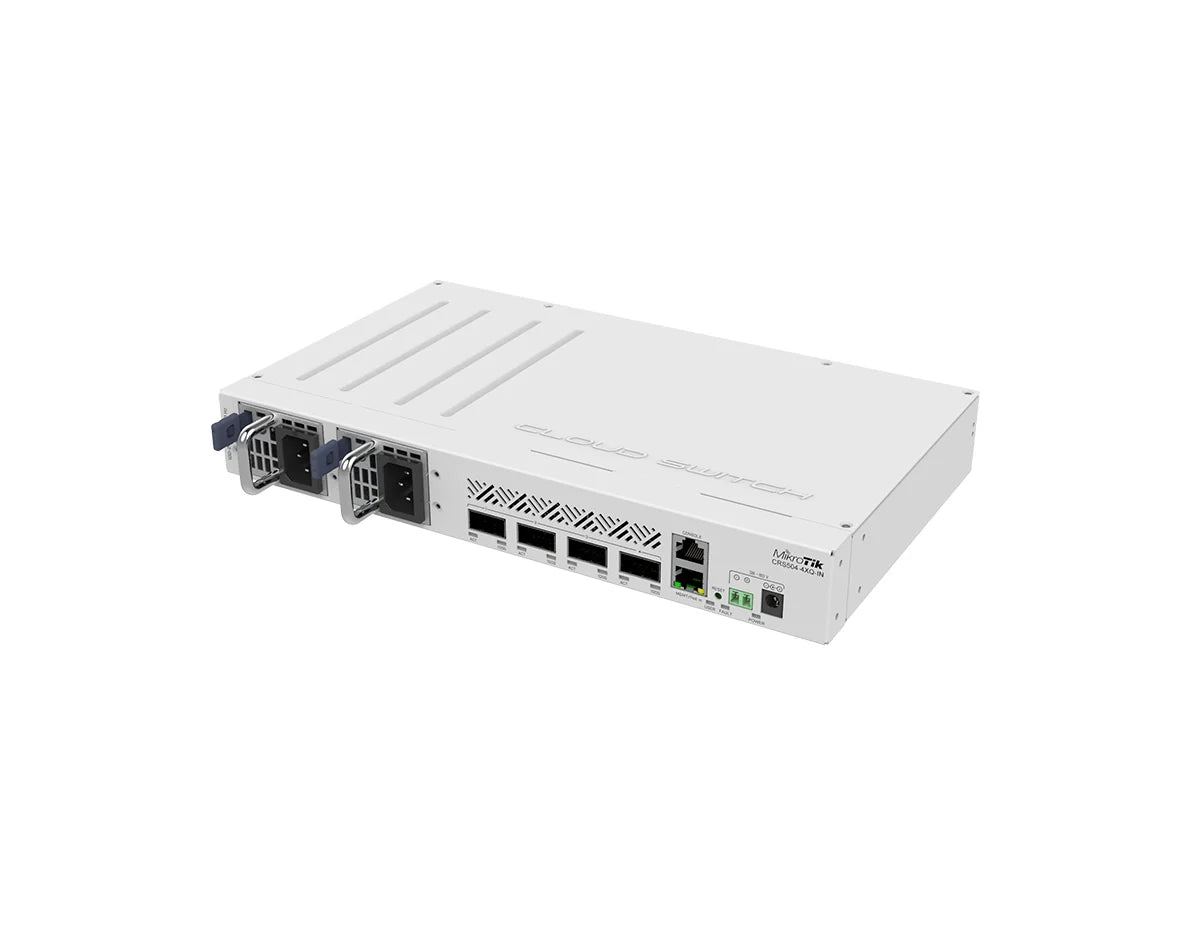

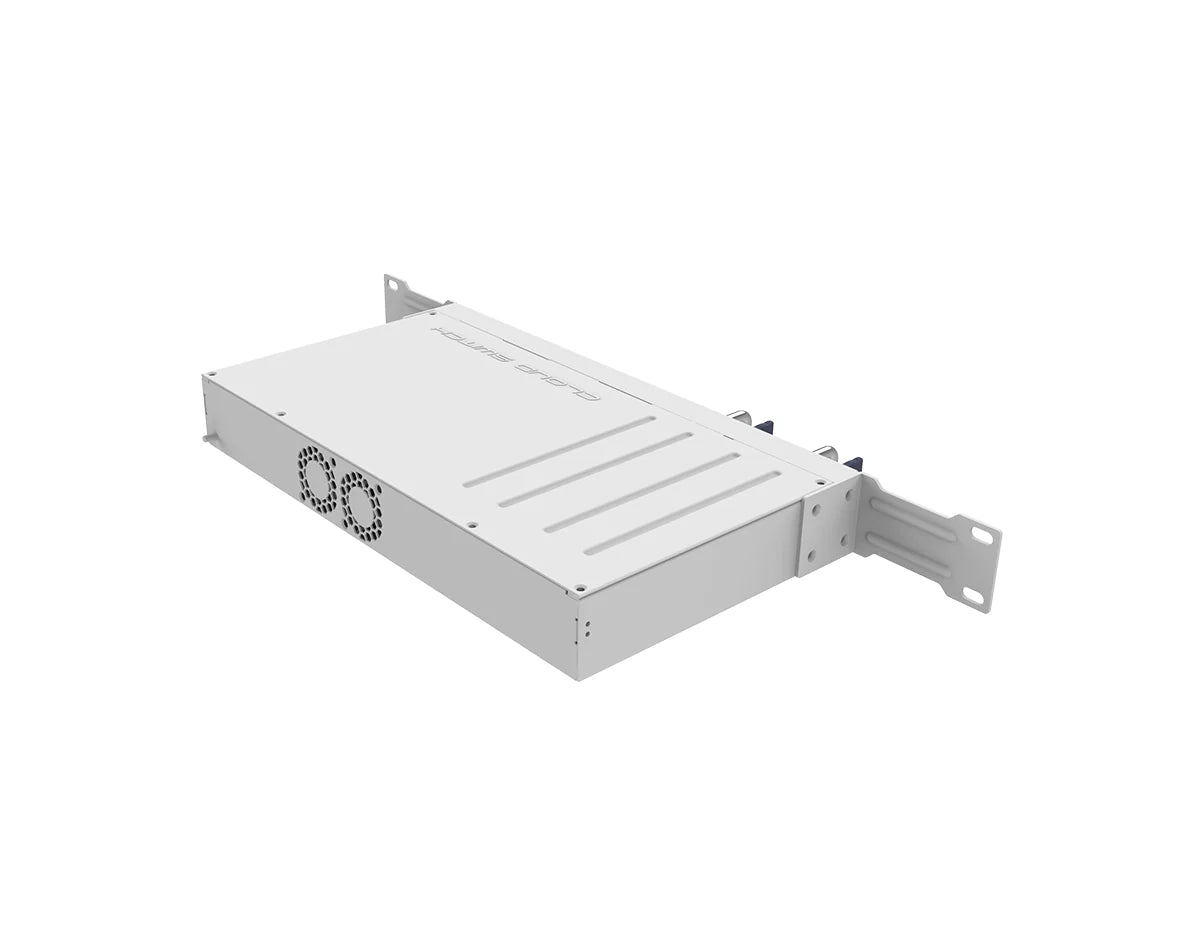

MikroTik CRS504-4XQ-IN Switch
The CRS504-4XQ-IN switch has been specifically engineered to cater to the needs of data centers, internet service providers, and contemporary infrastructures, providing a 100 Gigabit networking capacity. This enhanced speed attribute is of paramount importance as organizations manage increasing volumes of data and devices, necessitating swift data transmission rates.
Quick Specs:
- 1x 100 Mbit Ethernet Port
- 4x 100G QSFP28 Ports
- Dual Hot-Swap Power Supplies
- RouterOS v7
Please see the related tabs for the CRS504-4XQ-IN datasheet and compatible accessories.
