- Best price and best performance on the market this 48 port switch will rock any setup, including 40 Gbps devices!
[/shortdesc]
[properties]
| Properties |

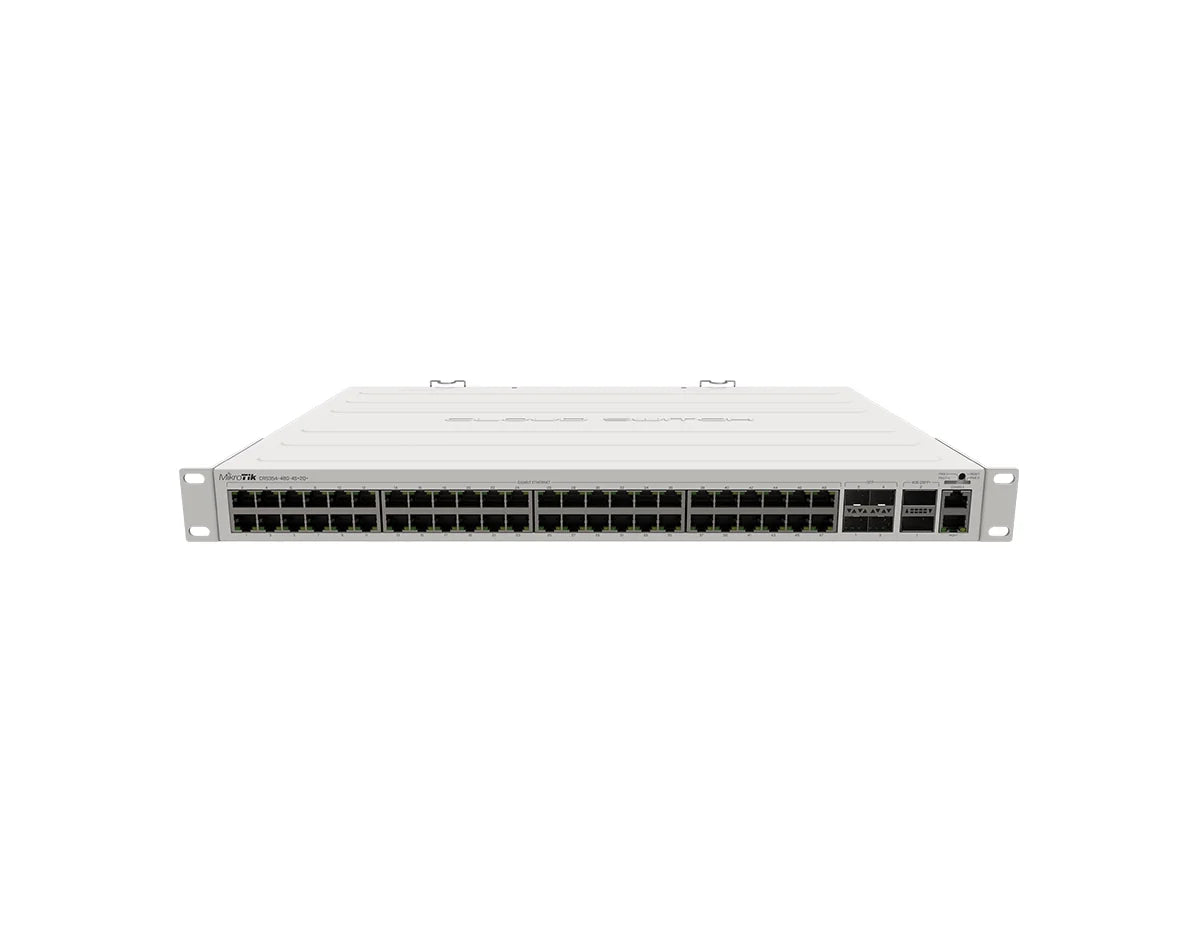

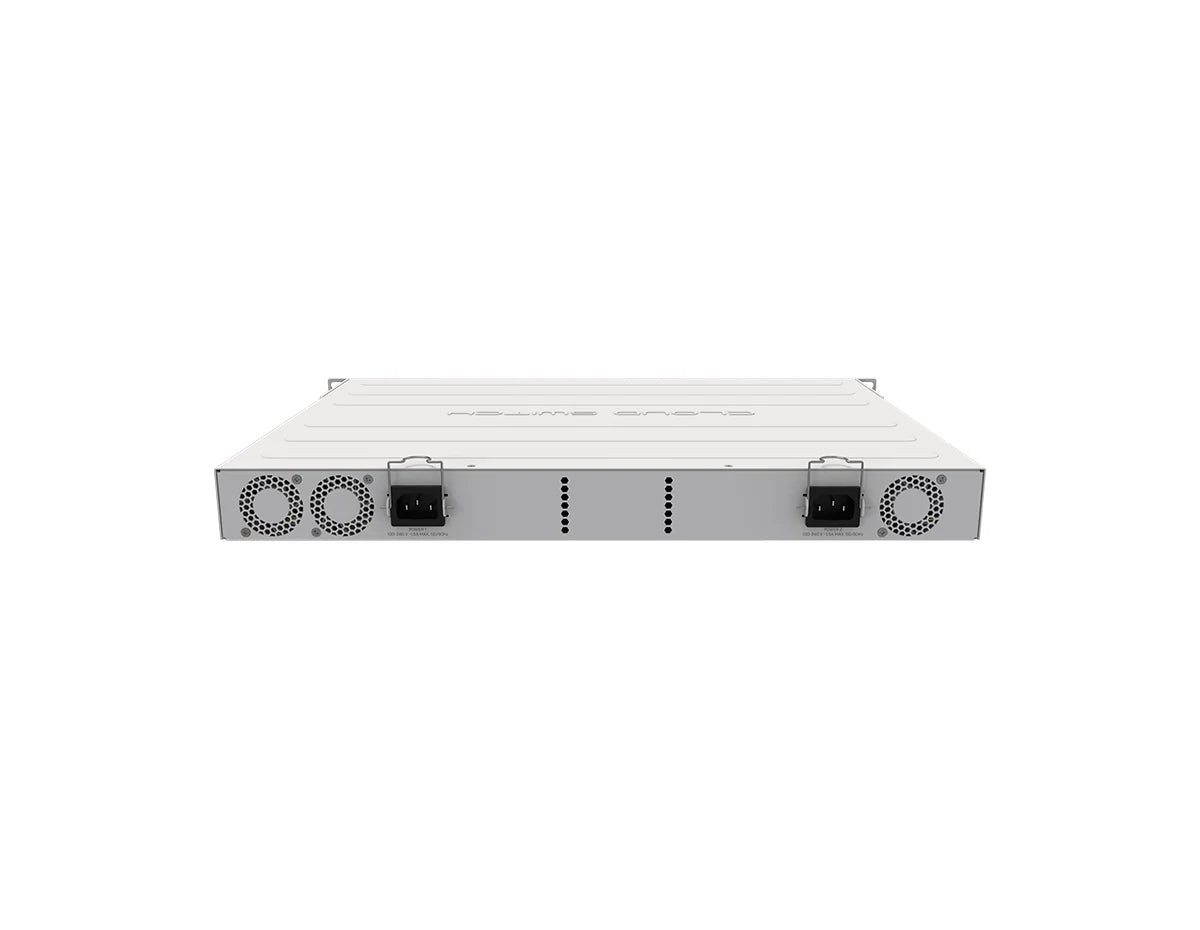

MikroTik CRS354-48G-4S+2Q+RM |
| Description |
Cloud Router Switch with 48 Gigabit Ethernet ports, four SFP+ ports and two QSFP+ ports in a 1U rackmount case. Includes SwOS/RouterOS dual boot and passive PoE output on port 1. |
| Product Family |
CRS Series |
| Product Type |
Ethernet Switch |
| Ports |
| 10/100 Ethernet ports |
1 |
| 10/100/1000 Ethernet ports |
48 |
| SFP+ |
4 |
| 40G QSFP+ |
2 |
| Serial console port |
1 RJ45 |
| Extras |
CPU temperature monitor
PCB temperature monitor
Voltage Monitor |
| Dimensions |
297 x 443 x 44 mm |
| Number of AC inputs |
2 |
| AC input range |
100-240 |
| Max power consumption |
60 W |
| Max power consumption without attachments |
50 W |
| Cooling type |
3 fans |
[/properties][specifications]
| Specifications |
CRS354-48G-4S+2Q+RM |
| Memory |
64 MB |
| Flash Storage size |
16 MB |
| CPU |
QCA9531 650 MHz |
| CPU core count |
1 |
| Switch chip model |
98DX3257 |
| OS |
RouterOS / SwitchOS |
| Non-blocking throughput |
168 Gbps |
| Switching capacity |
336 Gbps |
| Forwarding rate |
235 Mpps |
| Ethernet test results |
| Bridging |
|
| 64 byte |
|
| none (fast path) |
kpps: 119,8
Mbps: 61,3 |
| 25 bridge filter rules |
kpps: 44,9
Mbps: 23 |
| 512 byte |
|
| none (fast path) |
kpps: 58,5
Mbps: 239,6 |
| 25 bridge filter rules |
kpps: 42,9
Mbps: 175,7 |
| 1518 byte |
|
| none (fast path) |
kpps: 34,9
Mbps: 423,8 |
| 25 bridge filter rules |
kpps: 26,5
Mbps: 321,8 |
| Routing |
|
| 64 byte |
|
| none (fast path) |
kpps: 116,8
Mbps: 59,8 |
| 25 simple queues |
kpps: 57,5
Mbps: 29,4 |
| 25 ip filter rules |
kpps: 31,4
Mbps: 16,1 |
| 512 byte |
|
| none (fast path) |
kpps: 61,8
Mbps: 253,1 |
| 25 simple queues |
kpps: 46,8
Mbps: 191,7 |
| 25 ip filter rules |
kpps: 30,1
Mbps: 123,3 |
| 1518 byte |
|
| none (fast path) |
kpps: 35,4
Mbps: 429,9 |
| 25 simple queues |
kpps: 33,7
Mbps: 409,3 |
| 25 ip filter rules |
kpps: 23,7
Mbps: 287,8 |
| Switching results |
| 64 byte |
| Non blocking Layer 2 throughput |
kpps: 235114,7
Gbps: 120,379 |
| Non blocking Layer 2 capacity |
kpps: 235114,7
Gbps: 240,758 |
| Non blocking Layer 1 throughput |
kpps: 235114,7
Gbps: 120,379 |
| Non blocking Layer 1 capacity |
kpps: 235114,7
Gbps: 240,758 |
| 512 byte |
| Non blocking Layer 2 throughput |
kpps: 38533,8
Gbps: 157,834 |
| Non blocking Layer 2 capacity |
kpps: 38533,8
Gbps: 315,669 |
| Non blocking Layer 1 throughput |
kpps: 38533,8
Gbps: 168 |
| Non blocking Layer 1 capacity |
kpps: 38533,8
Gbps: 336 |
| 1518 byte |
| Non blocking Layer 2 throughput |
kpps: 13329
Gbps: 161,867 |
| Non blocking Layer 2 capacity |
kpps: 13329
Gbps: 323,735 |
| Non blocking Layer 1 throughput |
kpps: 13329
Gbps: 168 |
| Non blocking Layer 1 capacity |
kpps: 13329
Gbps: 336 |
| MTBF |
Approximately 200.000 hours at 25C |
| Temperature |
-20°C to 60°C tested |
| Certification & Approvals |
| Certification |
CE, EAC, ROHS |
| IP |
IP20 |
[/specifications][accesories]
| Accessories |
| 2x IEC cords |
| Cable managment brackets |
| Rackmount ears (CRS354) |
| K-48 fastening set |
[/accesories]
If you are looking for a single switch that will put your network setup ahead of the curve without costing a fortune, look no further. The new CRS354-48G-4S+2Q+RM is an effective and adaptable rackmount solution for managing networks in demanding and busy environments. With this product we aim to set a new price-performance bar get more features while spending way less! < This powerful switch has 48 x 1G RJ45 ports and 4 x 10G SFP+ ports. There are also 2 x 40G QSFP+ ports for extremely fast fiber connections or linking with other 40 Gbps devices. The total non-blocking throughput is 168 Gbps, switching capacity is 336 Gbps and the forwarding rate reaches 235 Mpps.
