[shortdesc]
- Fastest Mikrotik switch for the most demanding setups
[/shortdesc]
[properties]
| Properties |
MikroTik CRS326-24S+2Q+RM |
| Description |
Cloud Router Switch with 24 SFP+ ports and two 40 Gbps QSFP+ ports in a 1U rackmount case. Includes SwOS/RouterOS dual boot and passive PoE output on port 1. |
| Product Family |
CRS Series |
| Product Type |
Ethernet Switch |
| Ports |
| 10/100 Ethernet ports |
1 |
| 10G SFP+ |
24 |
| 40G QSFP+ |
2 |
| Number of USB ports |
1 |
| Serial console port |
1 RJ45 |
| Dimensions |
443 x 200 x 44 mm |

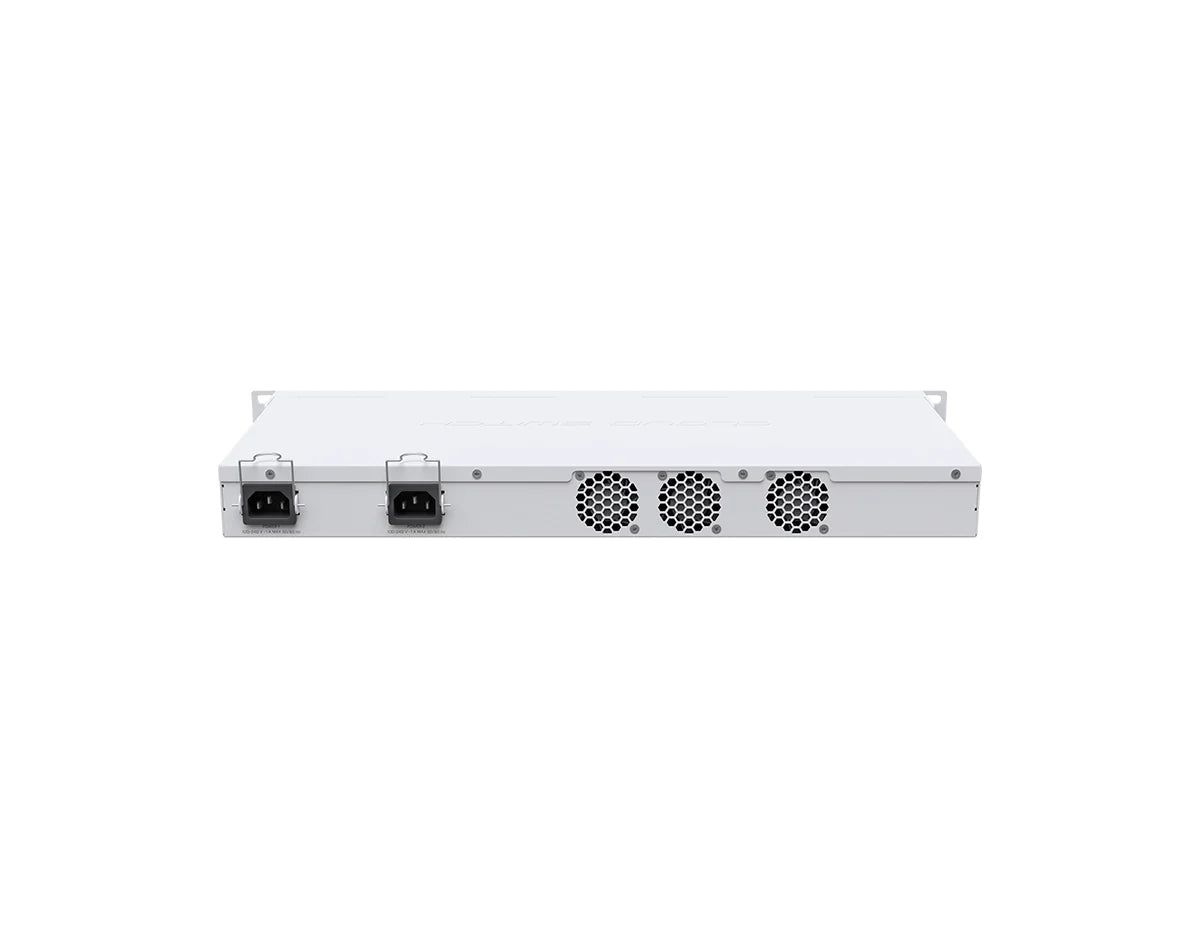

| Number of AC inputs |
2 |
| AC input range |
100-240 |
| Max power consumption |
69 W |
| Max power consumption without attachments |
42 W |
| Cooling type |
3 fans |
[/properties][specifications]
| Specifications |
CRS326-24S+2Q+RM |
| Memory |
64 MB |
| Flash Storage size |
16 MB |
| CPU |
QCA9531, 650 MHz |
| CPU core count |
1 |
| Switch chip model |
98DX8332 |
| OS |
RouterOS / SwitchOS |
| Non-blocking throughput |
320 Gbps |
| Switching capacity |
640 Gbps |
| Forwarding rate |
252 Mpps |
| Ethernet test results |
| Bridging |
|
| 64 byte |
|
| none (fast path) |
kpps: 184,3
Mbps: 94,4 |
| 25 bridge filter rules |
kpps: 50,2
Mbps: 25,7 |
| 512 byte |
|
| none (fast path) |
kpps: 82,2
Mbps: 336,7 |
| 25 bridge filter rules |
kpps: 47,6
Mbps: 195,0 |
| 1518 byte |
|
| none (fast path) |
kpps: 37,3
Mbps: 453,0 |
| 25 bridge filter rules |
kpps: 37,1
Mbps: 450,5 |
| Routing |
|
| 64 byte |
|
| none (fast path) |
kpps: 94,1
Mbps: 48,2 |
| 25 simple queues |
kpps: 66,3
Mbps: 33,9 |
| 25 ip filter rules |
kpps: 30,9
Mbps: 15,8 |
| 512 byte |
|
| none (fast path) |
kpps: 69,0
Mbps: 282,6 |
| 25 simple queues |
kpps: 56,5
Mbps: 231,4 |
| 25 ip filter rules |
kpps: 29,4
Mbps: 120,4 |
| 1518 byte |
|
| none (fast path) |
kpps: 37,6
Mbps: 456,6 |
| 25 simple queues |
kpps: 37,2
Mbps: 451,8 |
| 25 ip filter rules |
kpps: 26,7
Mbps: 324,2 |
| Switching results |
| 64 byte |
| Non blocking Layer 2 throughput |
kpps: 240652
Gbps: 123,214 |
| Non blocking Layer 2 capacity |
kpps: 240652
Gbps: 246,428 |
| Non blocking Layer 1 throughput |
kpps: 240652
Gbps: 161,718 |
| Non blocking Layer 1 capacity |
kpps: 240652
Gbps: 323,436 |
| 512 byte |
| Non blocking Layer 2 throughput |
kpps: 75187,5
Gbps: 307,968 |
| Non blocking Layer 2 capacity |
kpps: 75187,5
Gbps: 615,936 |
| Non blocking Layer 1 throughput |
kpps: 75187,5
Gbps: 320 |
| Non blocking Layer 1 capacity |
kpps: 75187,5
Gbps: 640 |
| 1518 byte |
| Non blocking Layer 2 throughput |
kpps: 26007,8
Gbps: 315,838 |
| Non blocking Layer 2 capacity |
kpps: 26007,8
Gbps: 631,677 |
| Non blocking Layer 1 throughput |
kpps: 26007,8
Gbps: 320 |
| Non blocking Layer 1 capacity |
kpps: 26007,8
Gbps: 640 |
| MTBF |
Approximately 200.000 hours at 25C |
| Temperature |
-20°C to 60°C tested |
| Certification & Approvals |
| Certification |
CE, EAC, ROHS |
| IP |
IP20 |
[/specifications][accesories]
| Accessories |
| 2x IEC cords |
| Rack ears |
| Screw and feet kit (K10) |
[/accesories]

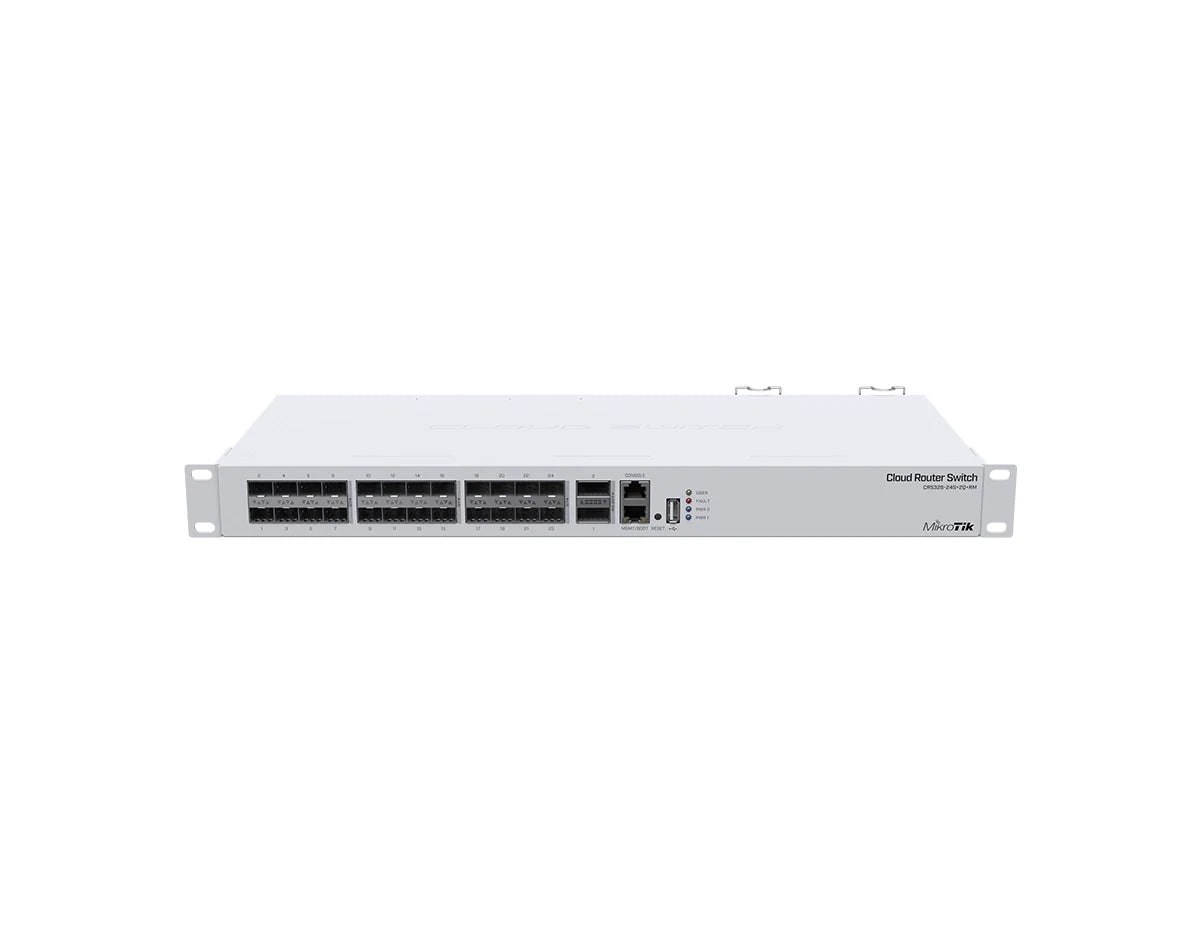

MikroTik CRS326-24S+2Q+RM Switch
The CRS326-24S+2Q+RM presents a substantial enhancement for data-intensive settings, rendering it a flexible option for delivering high-speed Internet access or overseeing a sizable data center. The ease of configuring through the USB port simplifies the setup process, enabling efficient customization of network settings and adjustments as required. The CRS326-24S+2Q+RM delivers total nonblocking throughput of 320 Gbps and switching capacity of 640 Gbps.
Quick Specs:
- 1x 10/100 Gigabit Ethernet ports
- 24x 10G SFP+ Ports
- 2x 40G QSFP+ Ports
Please see the related tabs for the CRS326-24S+2Q+RM datasheet and compatible accessories.
