[shortdesc]
- Silent
- Speed
- Compact
- Outdoor
[/shortdesc]
[properties]
| Properties |
MikroTik CRS305-1G-4S+OUT |
| Description |
Five-port desktop switch with one Gigabit Ethernet port and four SFP+ 10Gbps ports |
| Product Family |
CRS Series |
| Product Type |
Ethernet Switch |
| Quick specifications |
4 SFP+ ports
1 Gigabit Ethernet ports
Non-Blocking throughput: 41 Gbps
Switching capacity: 82 Gbps
Forwarding rate: 61 Mpps
2 DC jack for redundancy
Maximum power consumption: 12 W
(with attachments 18 W)
Supports PoE+ IEEE 802.3at/af and passive
PoE 12-57 V
Metal enclosure
Fanless |
| Ports |
| 10/100/1000 Ethernet ports |
1 |
| SFP+ cages |
4 |
| PoE in |
802.3af/at |
| Extras |
CPU temperature monitor |
| Dimensions |
141 x 115 x 28 mm |
| Number of DC inputs |
2 (DC jack, PoE-IN) |
| DC jack input Voltage |
12-57 V |
| Cooling type |
Passive |
| Max power consumption |
12 W |
| PoE in input Voltage |
12-57 V |
| Power options |
8-28V, 24V 1.2A PSU included |
[/properties]
[specifications]
| Specifications |
CRS305-1G-4S+OUT |
| Memory |
512 MB |
| Flash Storage size |
16 MB |
| CPU |
98DX3236 800 MHz |
| CPU core count |
1 |
| Switch chip model |
98DX3236 |
| OS |
SwOS / RouterOS (Dual boot) |
| MTBF |
Approximately 200.000 hours at 25C |
| Temperature |
-40°C to 70°C tested |
| Certification & Approvals |
| Certification |
CE, EAC, ROHS |
| IP |
IP66 |
[/specifications]
[accesories]
| Accessories |
| 24V 0.8A power adapter |
|
| K-41 fastening set |
|
| K-72 fastening set |
|
| Gigabit PoE injector |
|
| Hose clamp 1 |
|
[/accesories]

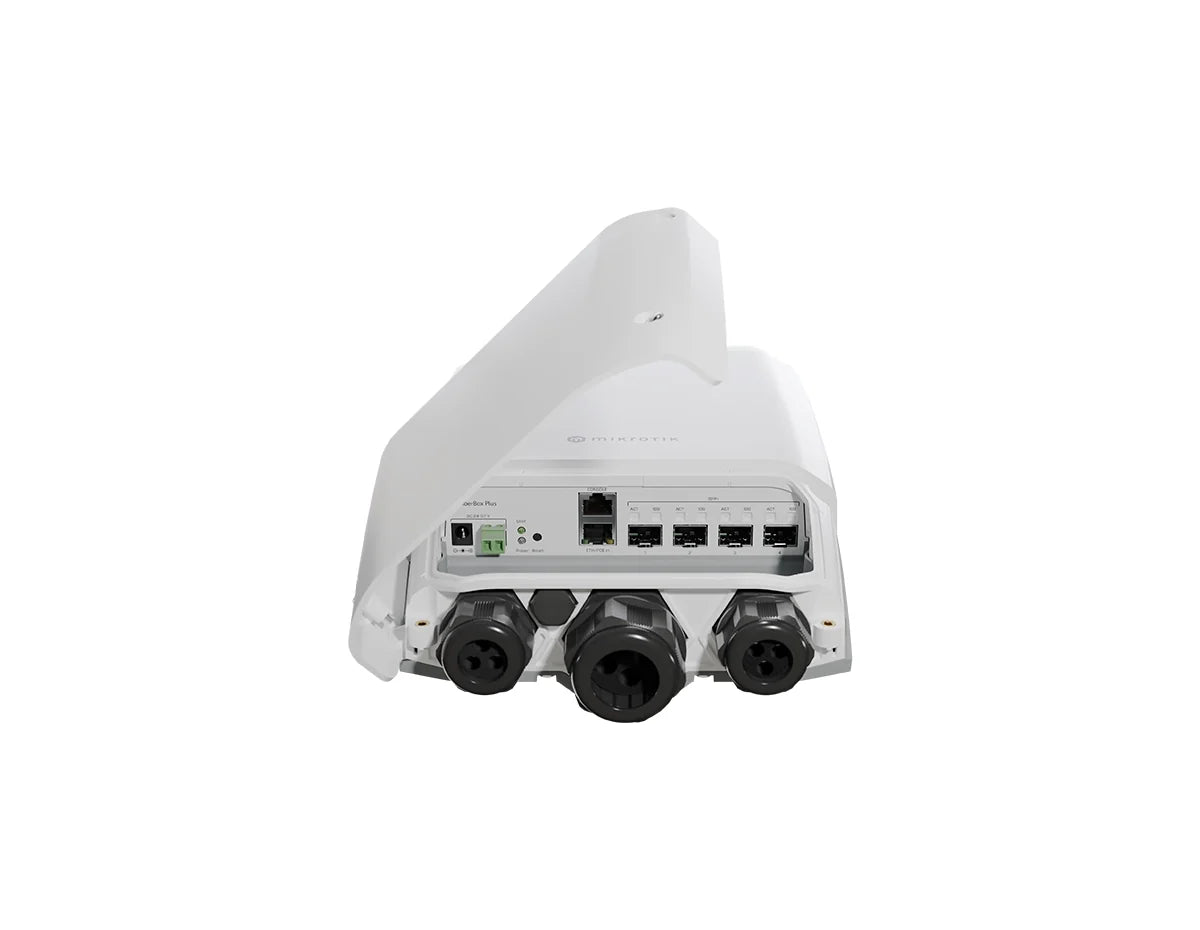

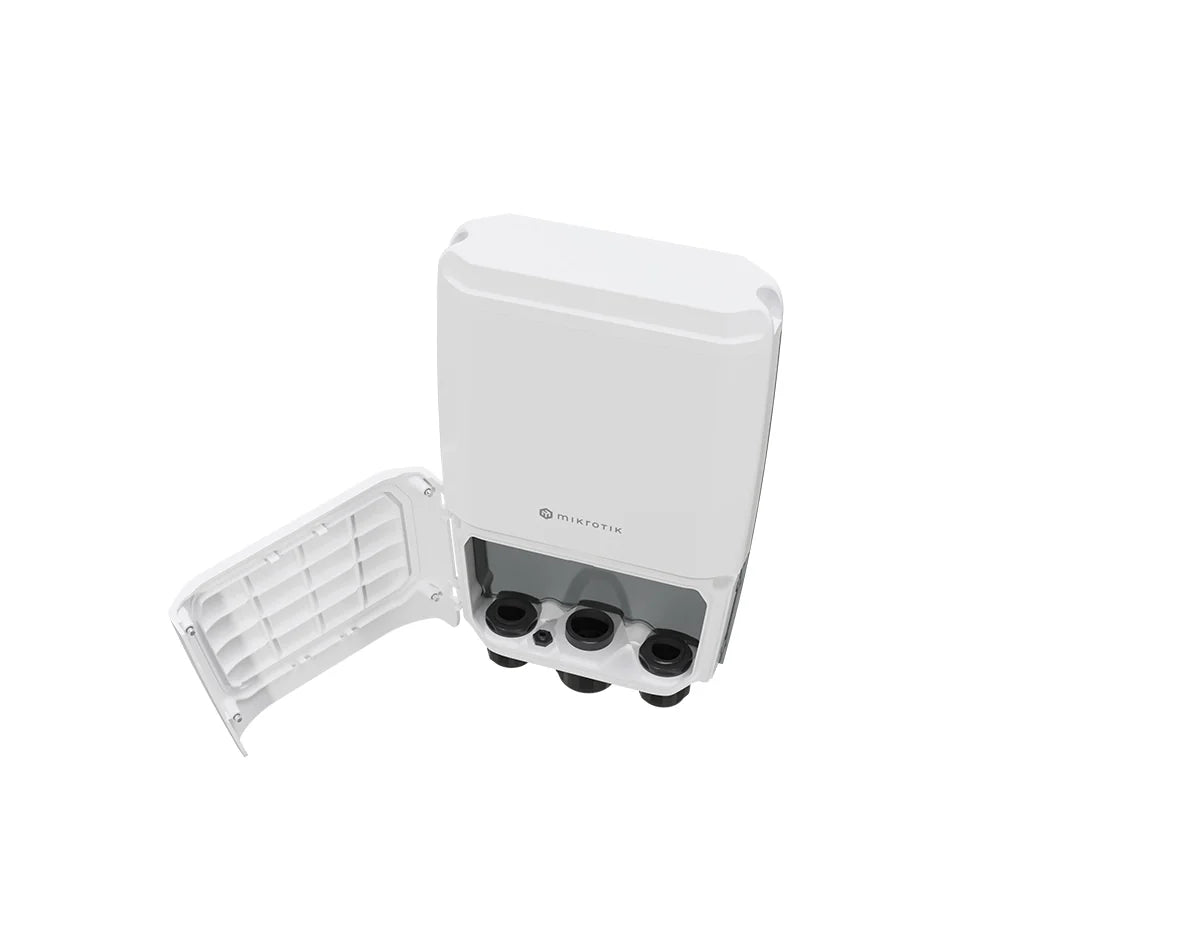

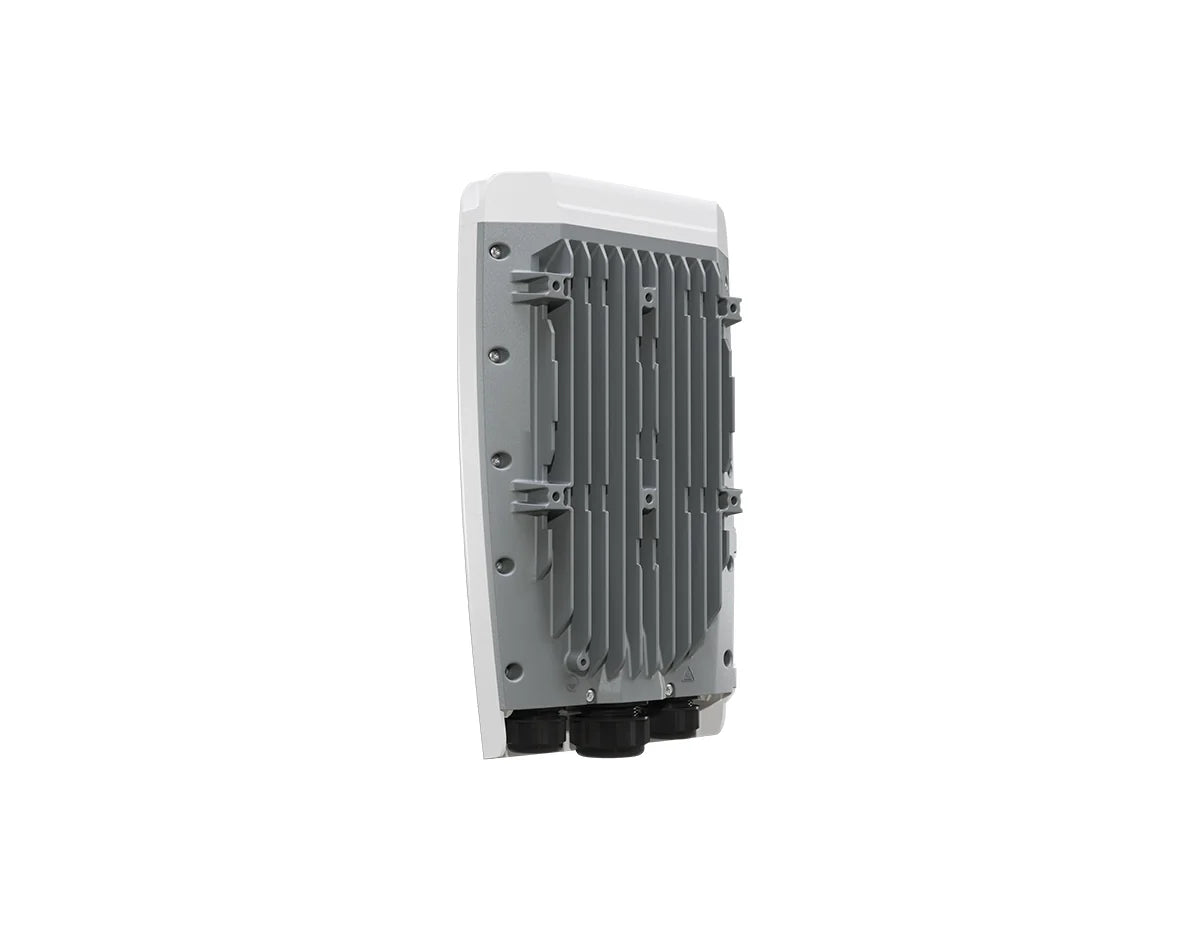

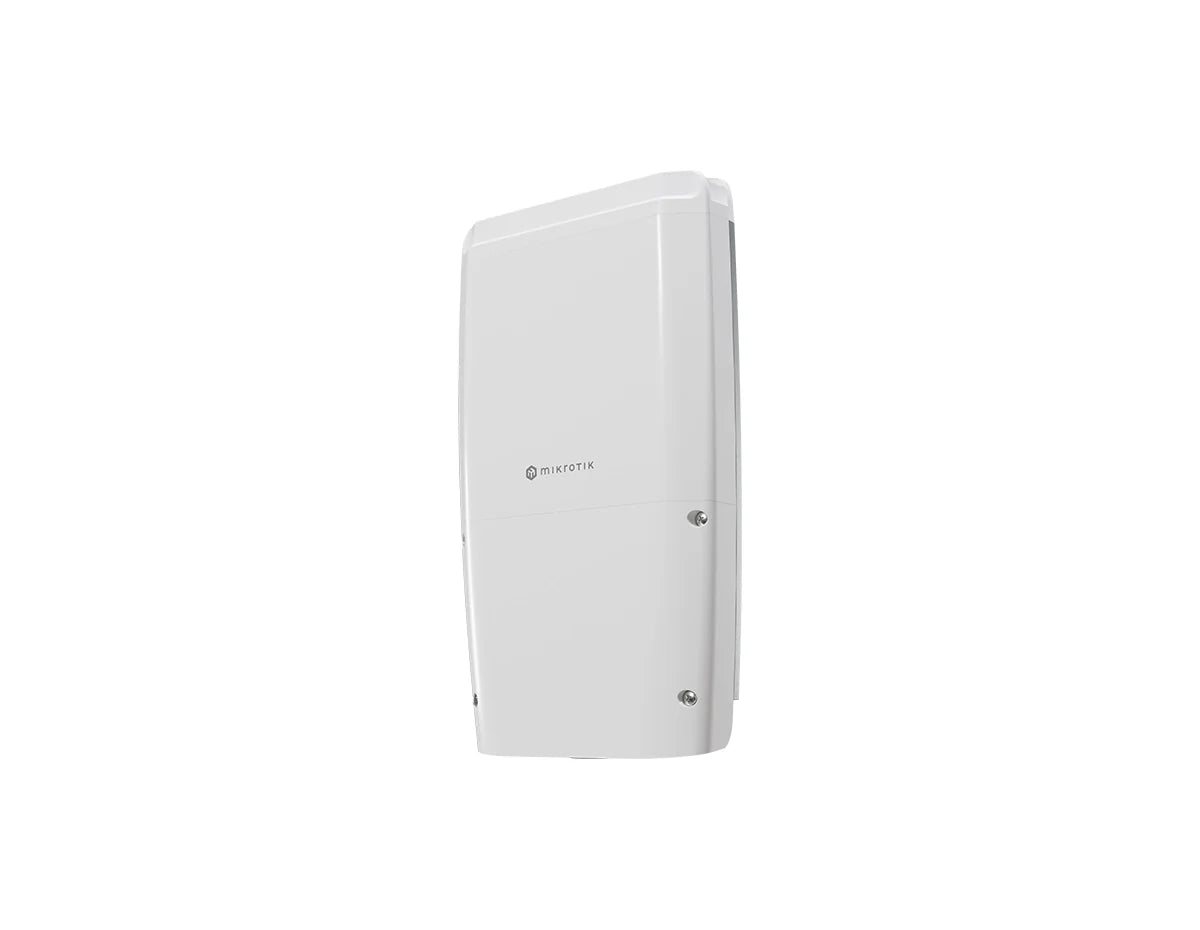

MikroTik CRS305-1G-4S+OUT Switch
The CRS305-1G-4S+OUT is a robust outdoor switch that is equipped with a modern ARM CPU, 256 MB RAM, four 10-Gigabit SFP+ ports, and a Gigabit Ethernet port for management or PoE-in power. This product offers three different power options: PoE-in, a 2-pin terminal, and a standard DC jack. It supports a wide input voltage range of 24-57V and is highly efficient, with a maximum power consumption of only 7W without attachments.
Quick Specs:
-
1x 10/100/1000 Ethernet Port
-
4x 10G SFP+ ports uplink
-
98DX226S,1 core, 800 MHz CPU
-
256 MB RAM
Please see the related tabs for the CRS305-1G-4S+OUT datasheet and compatible accessories.
